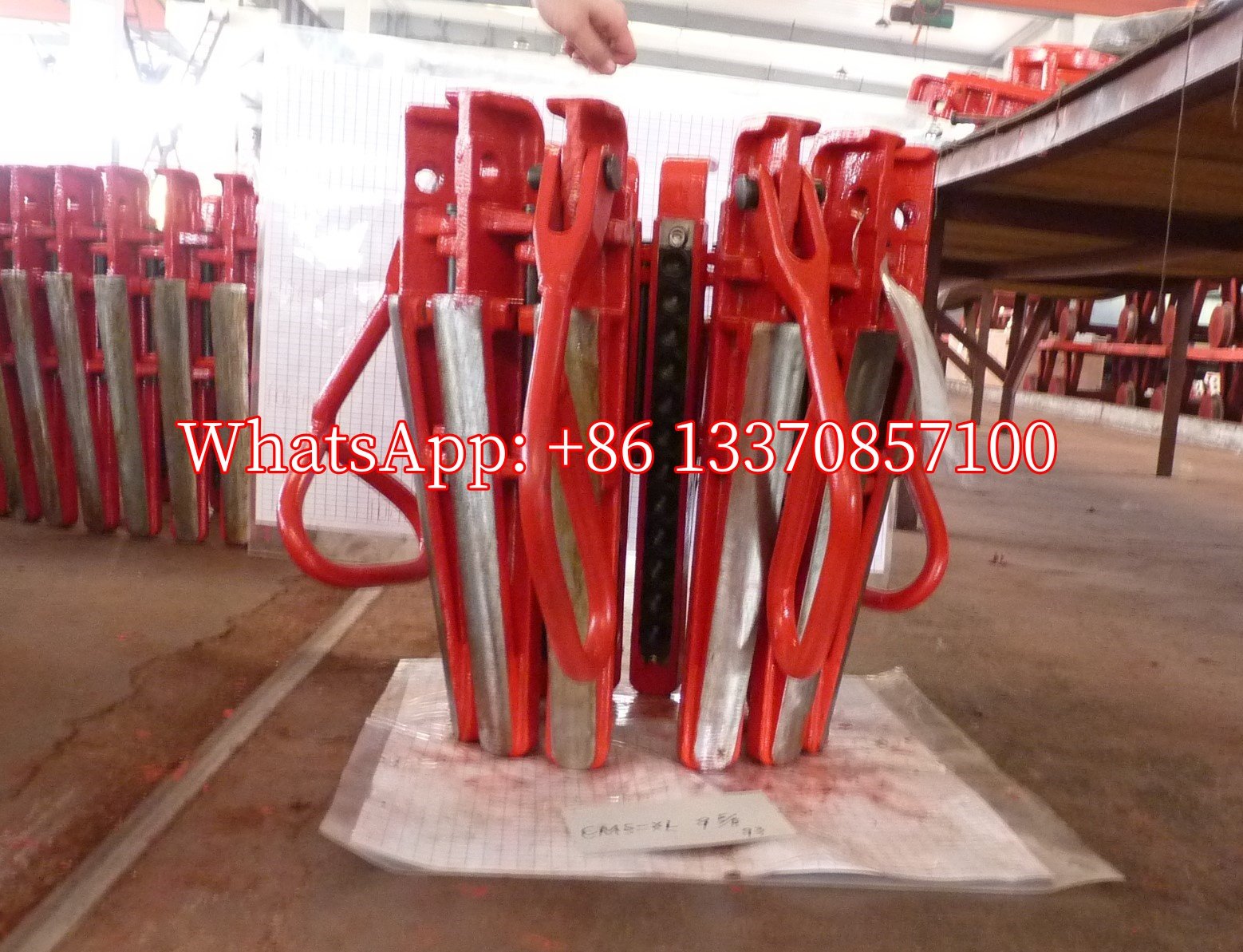

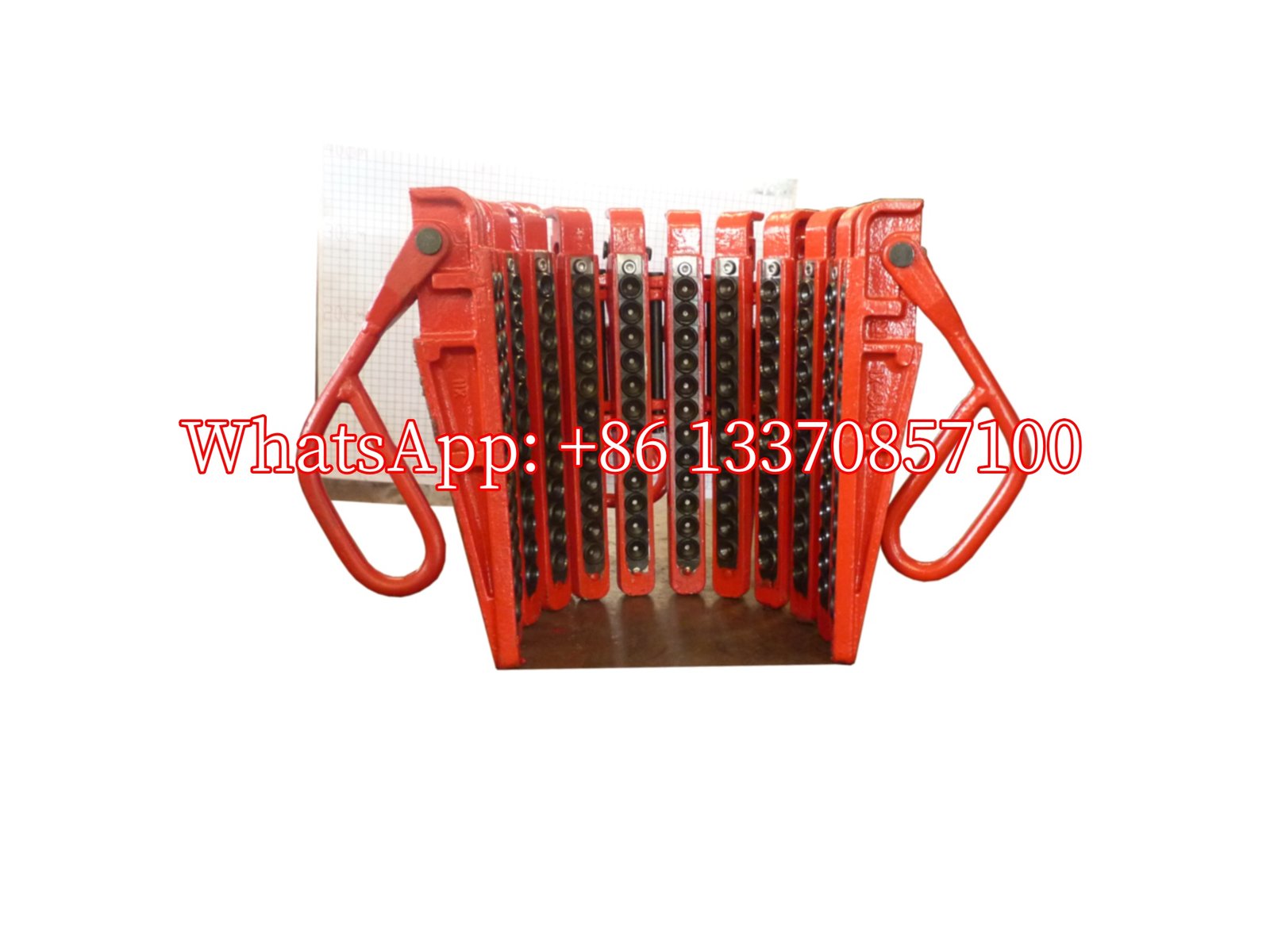

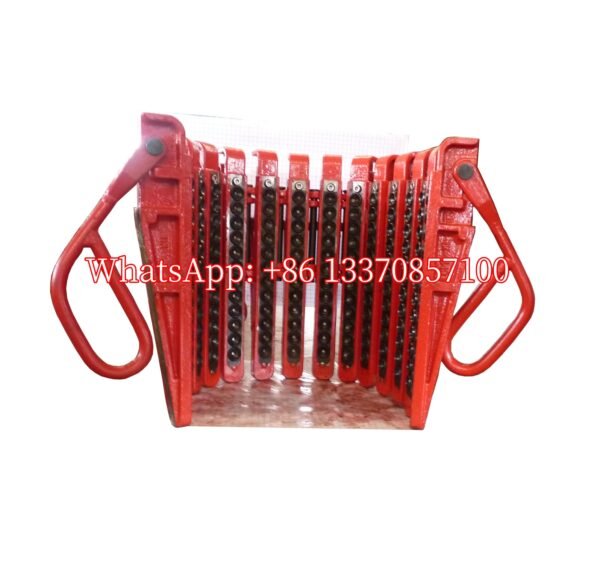

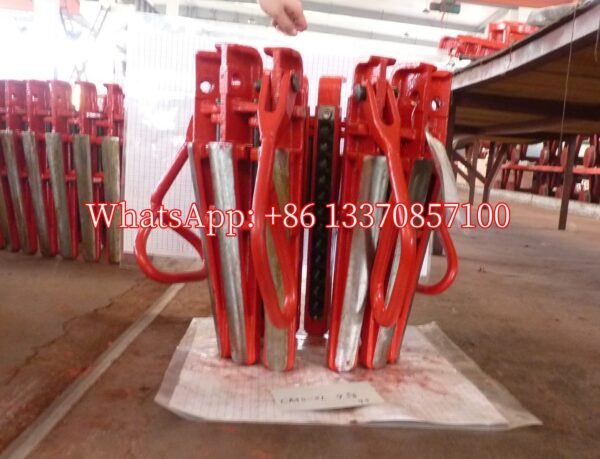

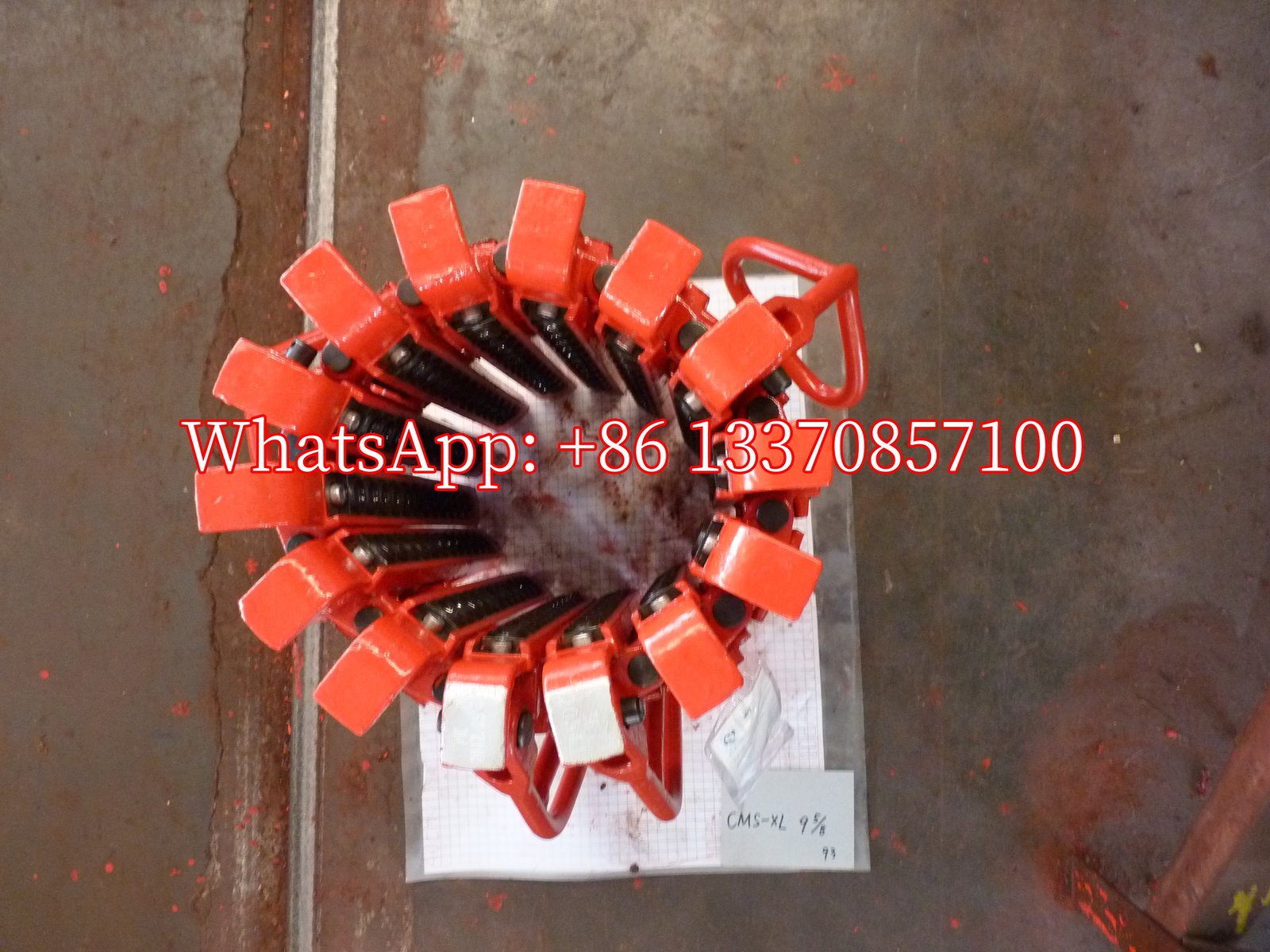

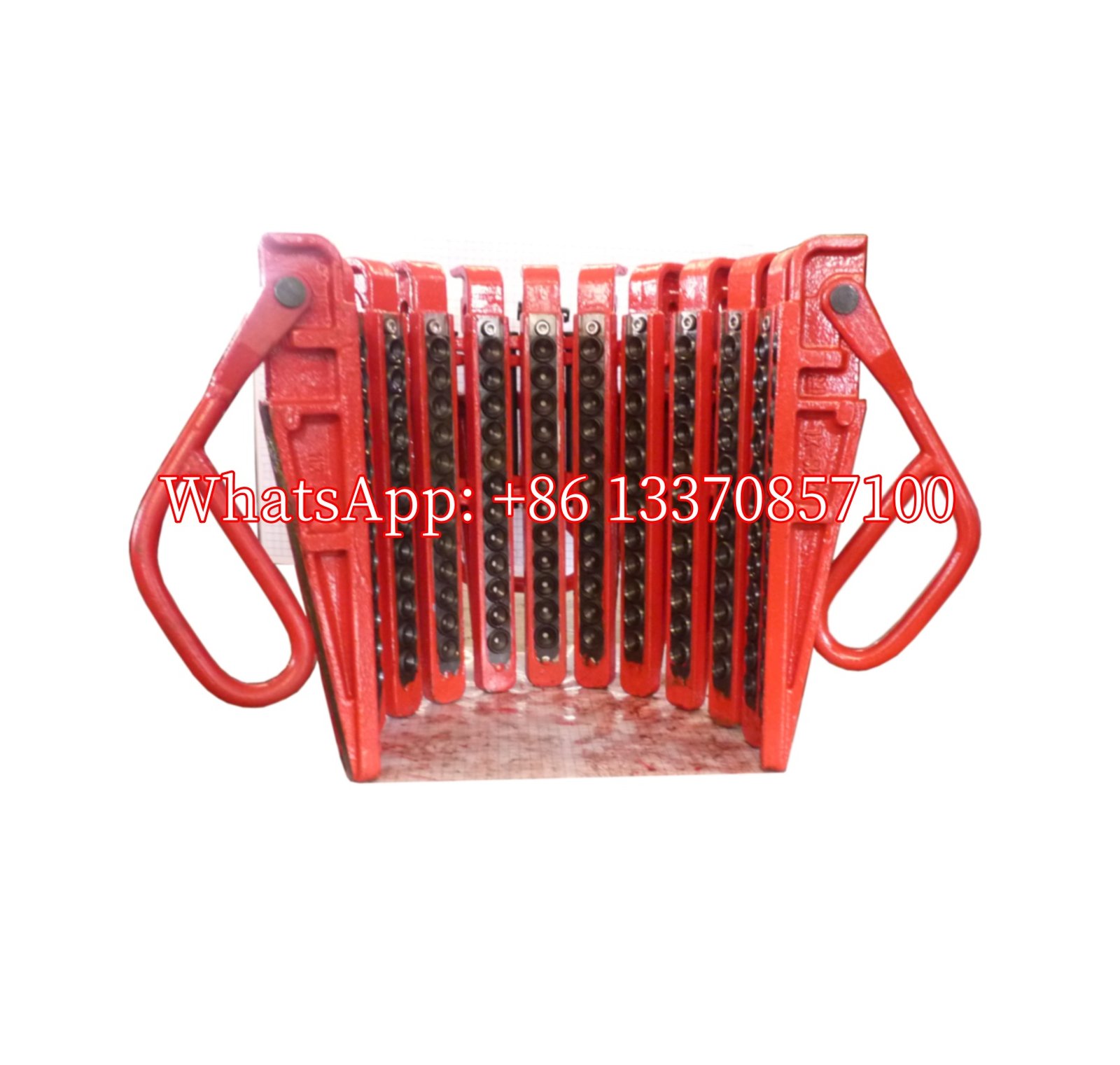

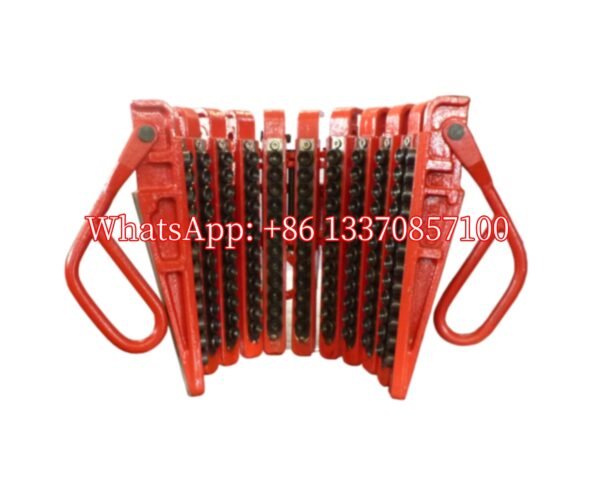

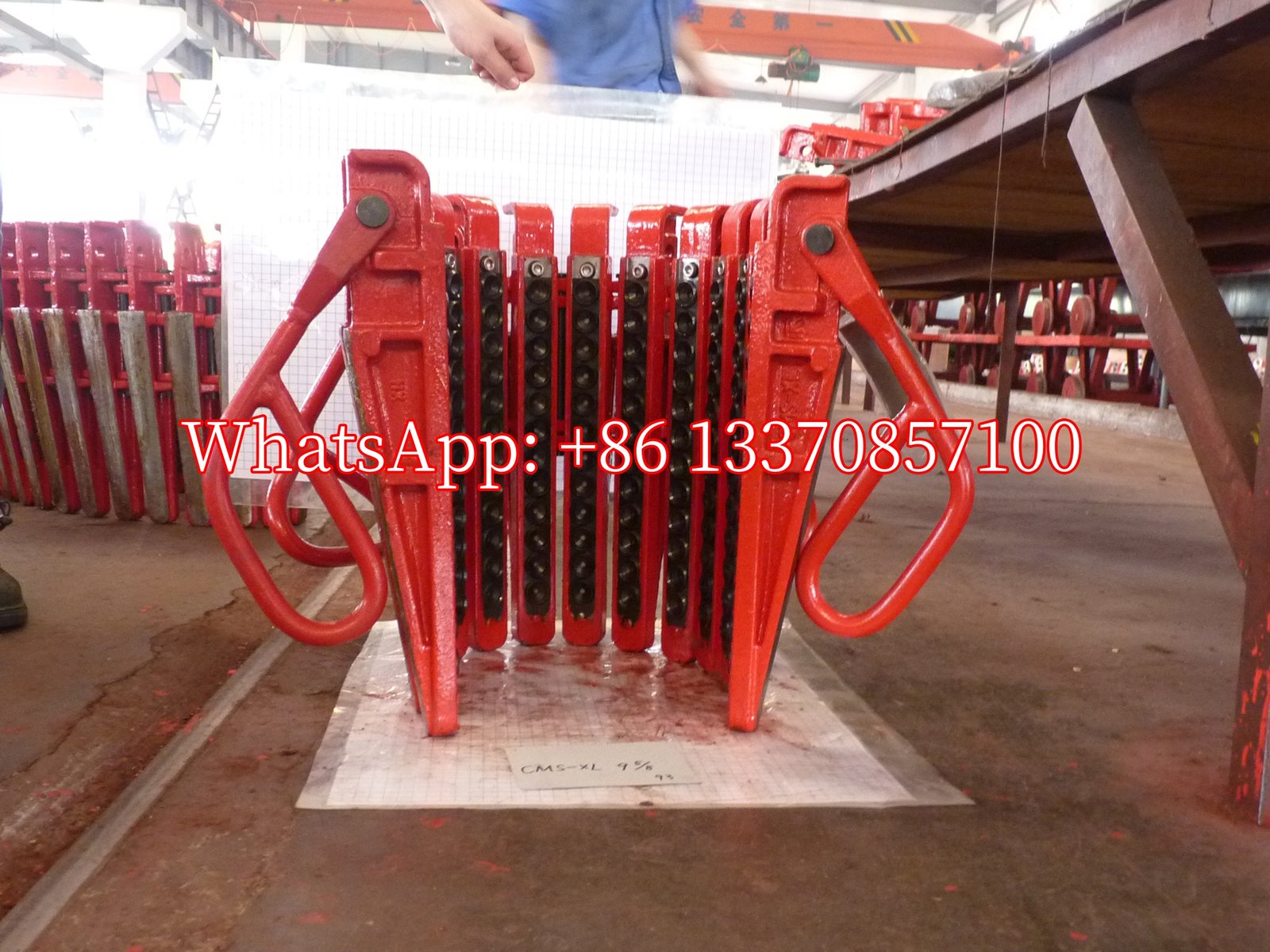

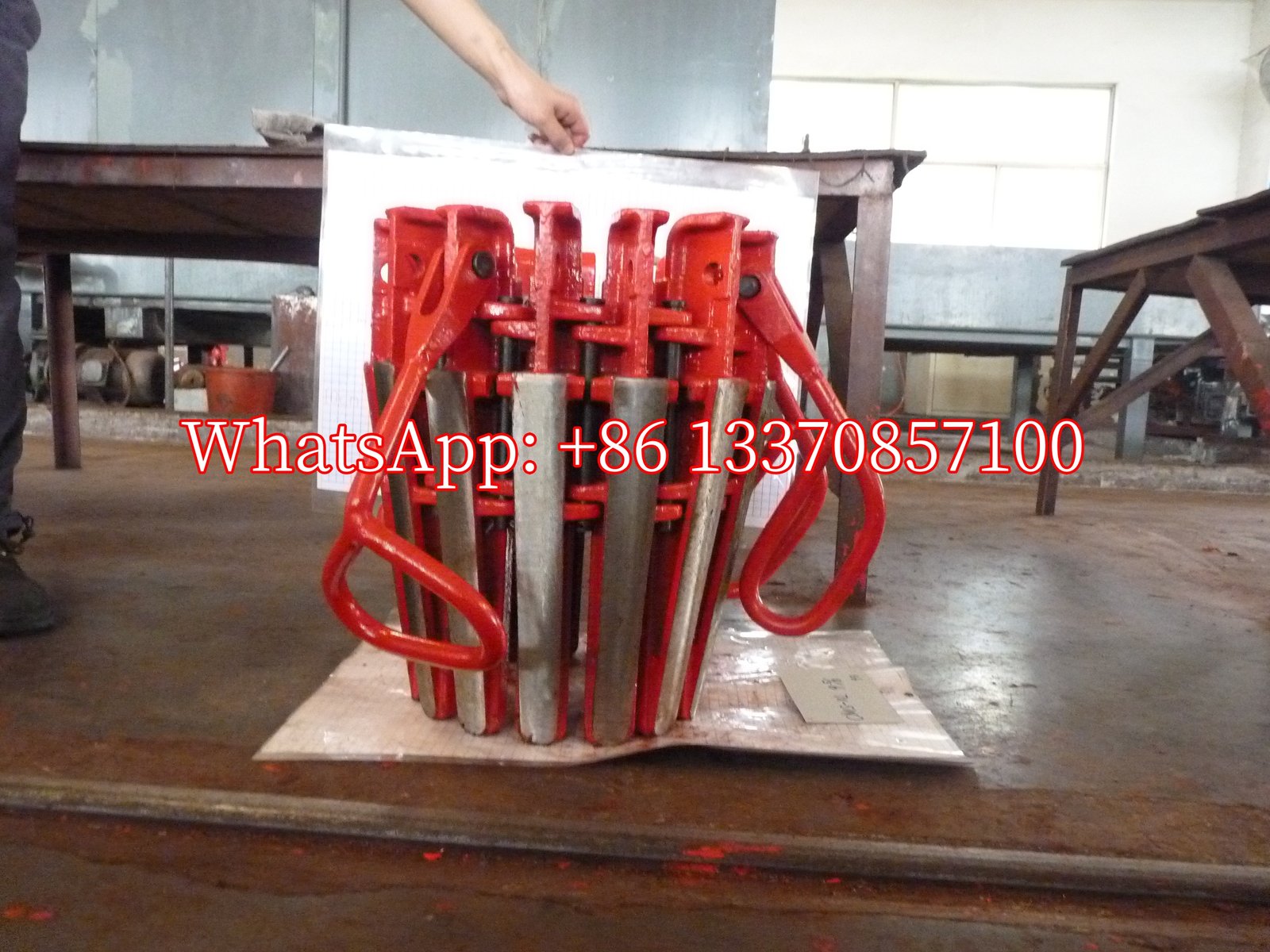

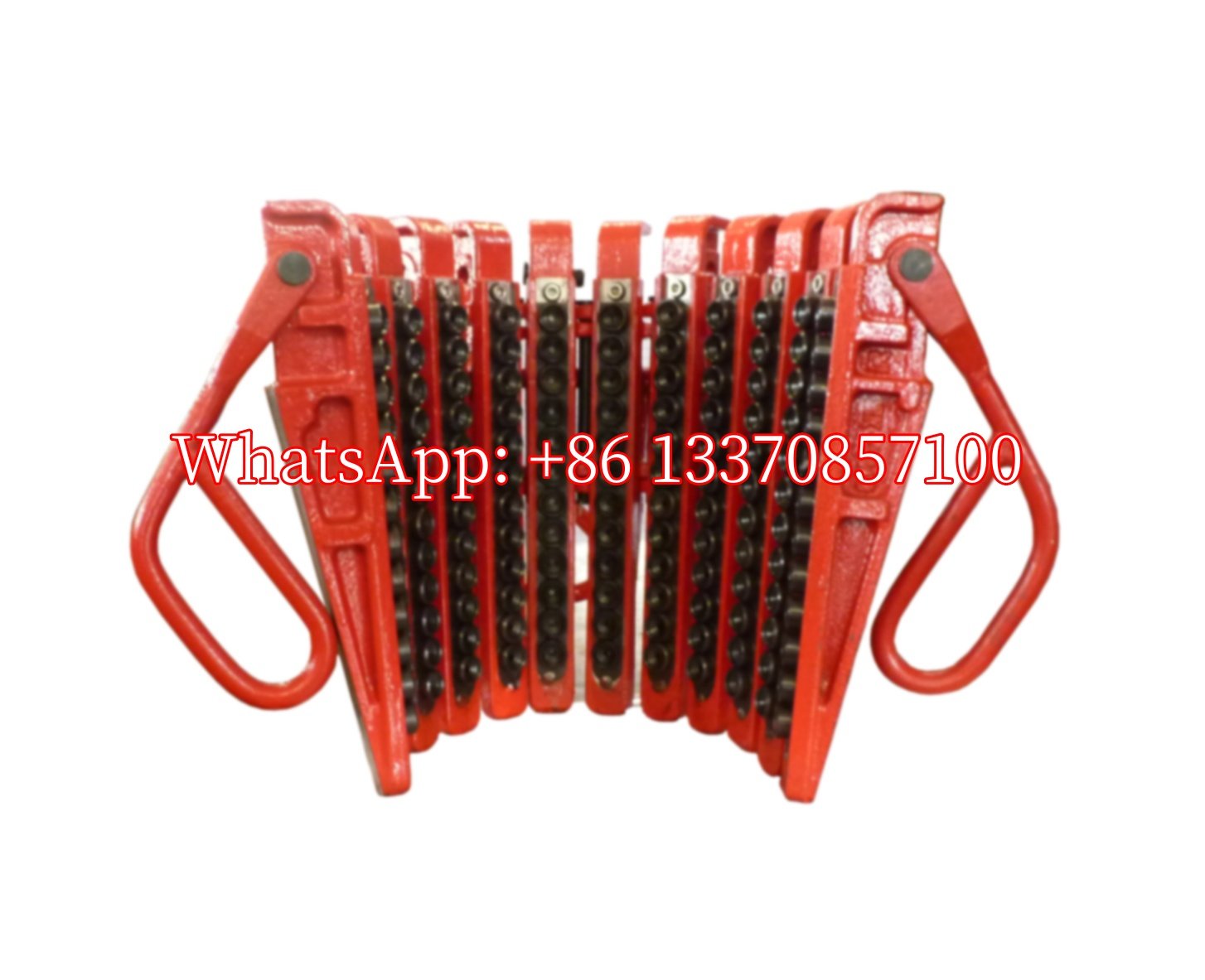

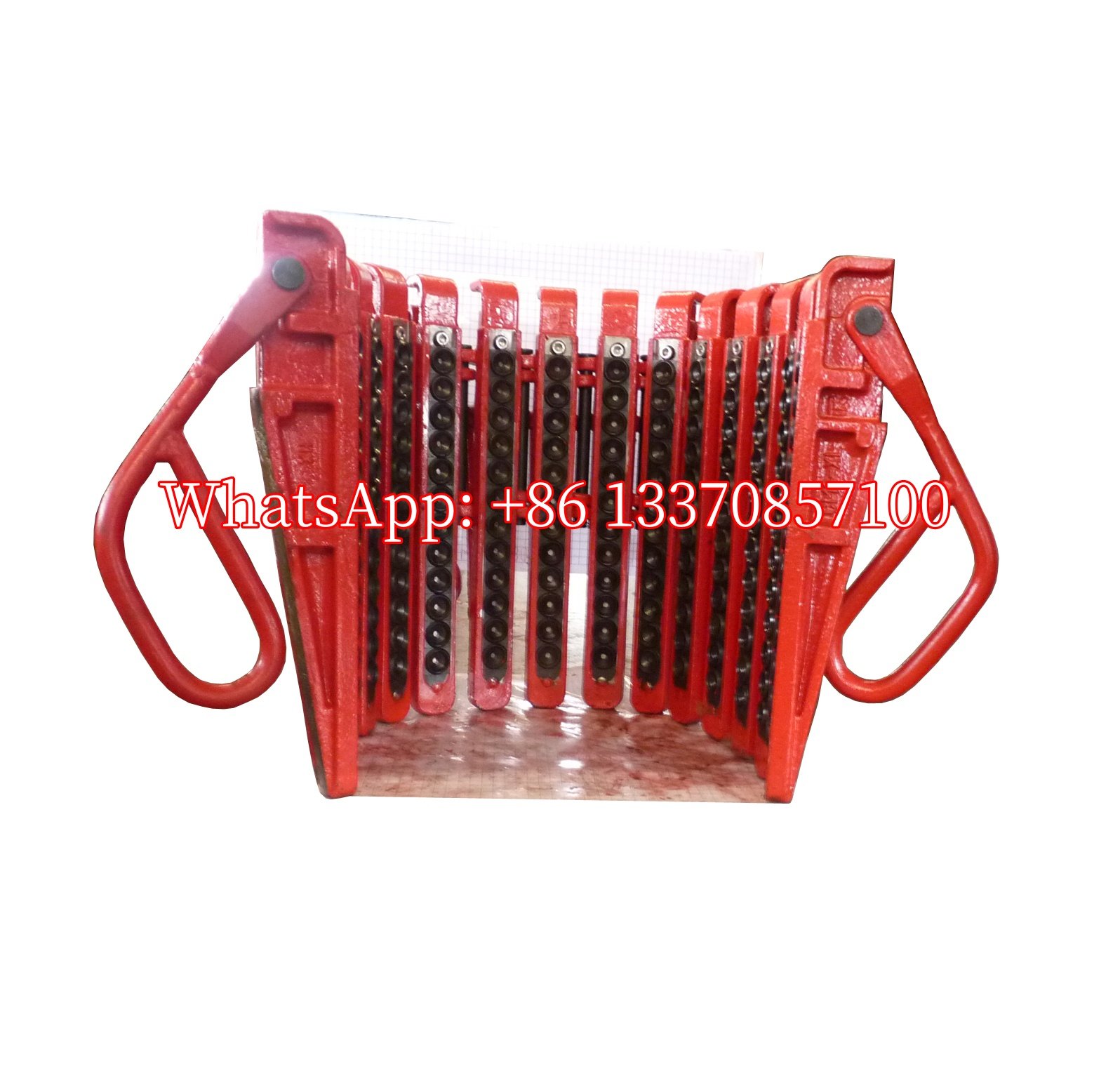

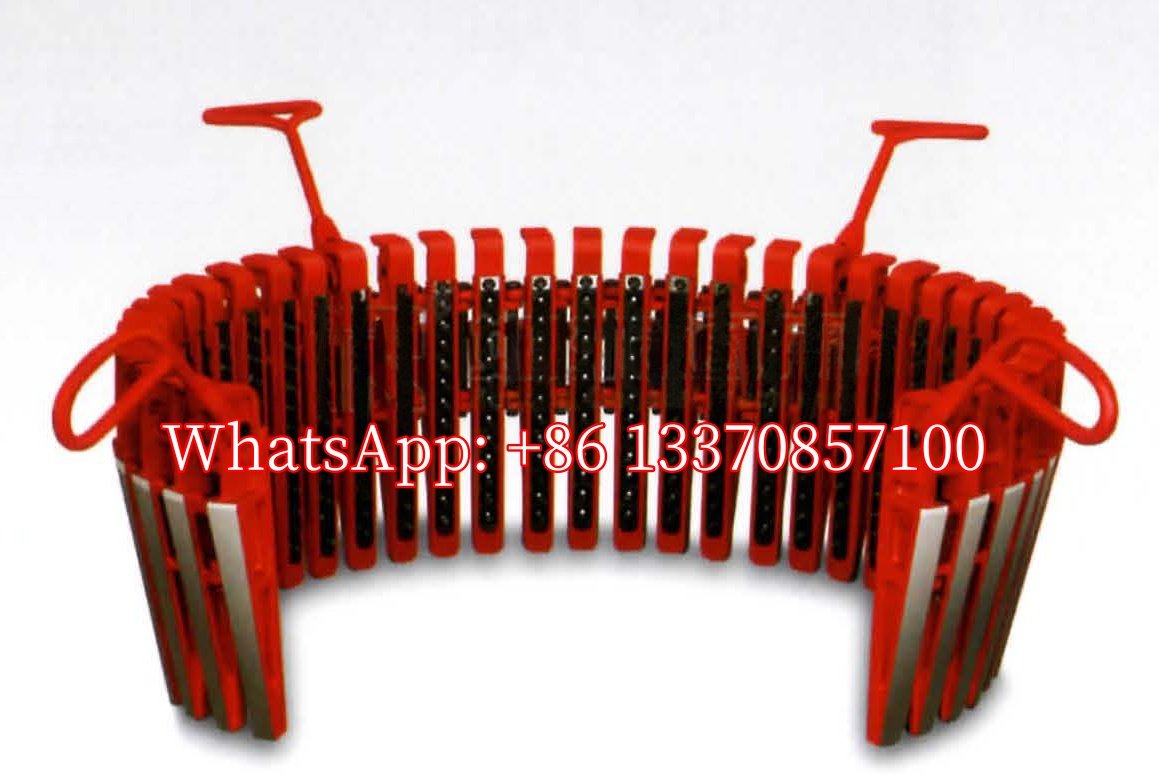

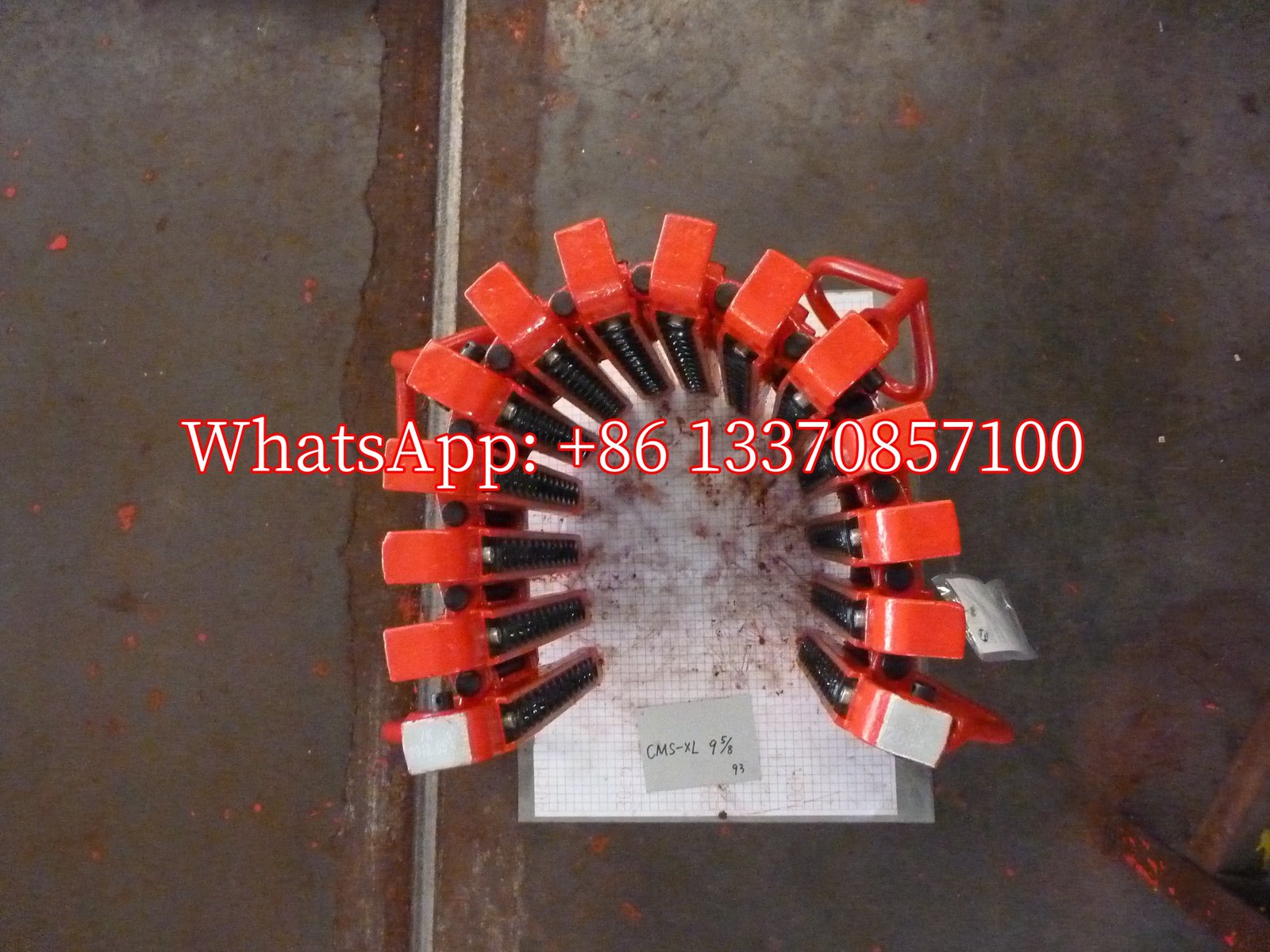

Casing Slips Type CMS can accommodate casings from 4 1/2 to 30in (114.3 to 762mm). They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.
| Main Technical Parameters | |||
| Casing OD | in | 4 1/2-5 | 5 1/2-6 |
| mm | 114.3-127 | 139.7-152.4 | |
| weight | kg | 76 | 71 |
| lb | 168 | 157 | |
| Total No. of Segments | 9 | 9 | |
| Use in Insert Bowl No. | API or No.3 | ||
| Casing OD | in | 6 5/8 | 7 |
| mm | 168.3 | 177.8 | |
| weight | kg | 89 | 83.5 |
| lb | 196 | 184 | |
| Total No. of Segments | 12 | 12 | |
| Use in Insert Bowl No. | API or No.3 | ||
| Casing OD | in | 7 5/8 | 8 5/8 |
| mm | 193.7 | 219.1 | |
| weight | kg | 75 | 82 |
| lb | 166 | 181 | |
| Total No. of Segments | 12 | 13 | |
| Use in Insert Bowl No. | API or No.3 | ||
| Casing OD | in | 9 5/8 | 10 3/4 |
| mm | 244.5 | 273.1 | |
| weight | kg | 87 | 95 |
| lb | 192 | 209 | |
| Total No. of Segments | 14 | 15 | |
| Use in Insert Bowl No. | No.2 | ||
| Casing OD | in | 11 3/4 | 13 3/8 |
| mm | 298.5 | 339.7 | |
| weight | kg | 118 | 117 |
| lb | 260 | 258 | |
| Total No. of Segments | 17 | 18 | |
| Use in Insert Bowl No. | No.1 | ||
| Casing OD | in | 16 | 18 5/8 |
| mm | 406.4 | 473.1 | |
| weight | kg | 140 | 166.5 |
| lb | 308 | 367 | |
| Total No. of Segments | 21 | 25 | |
| Use in Insert Bowl No. | Match with Relevant Casing Bushing | ||
| Casing OD | in | 20 | 24 |
| mm | 508 | 609.6 | |
| weight | kg | 174 | 201 |
| lb | 383 | 443 | |
| Total No. of Segments | 26 | 30 | |
| Use in Insert Bowl No. | Match with Relevant Casing Bushing | ||
| Casing OD | in | 26 | 30 |
| mm | 660.4 | 762 | |
| weight | kg | 220 | 248 |
| lb | 486 | 546 | |
| Total No. of Segments | 33 | 37 | |
| Use in Insert Bowl No. | Match with Relevant Casing Bushing | ||
