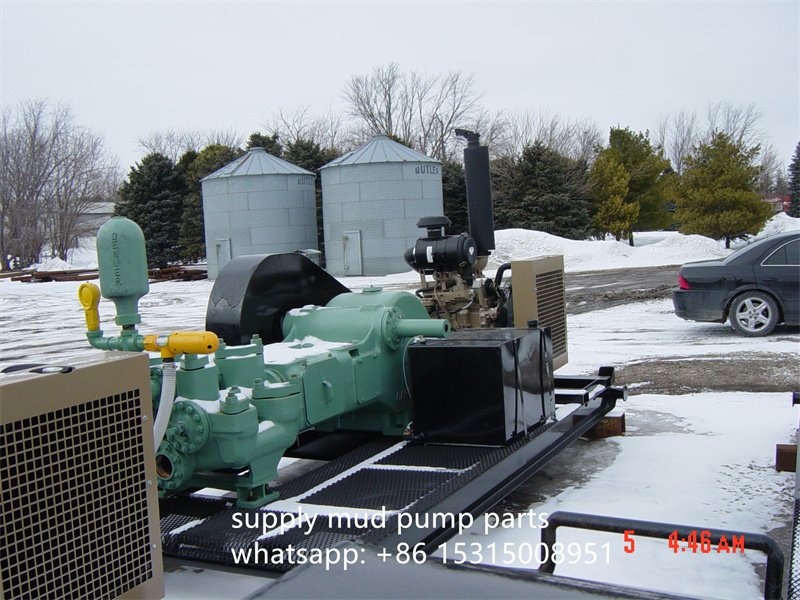

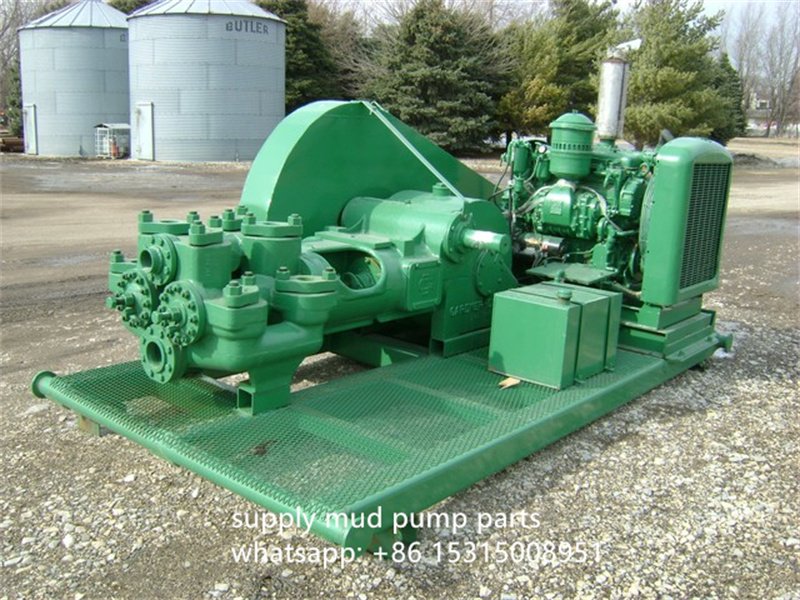

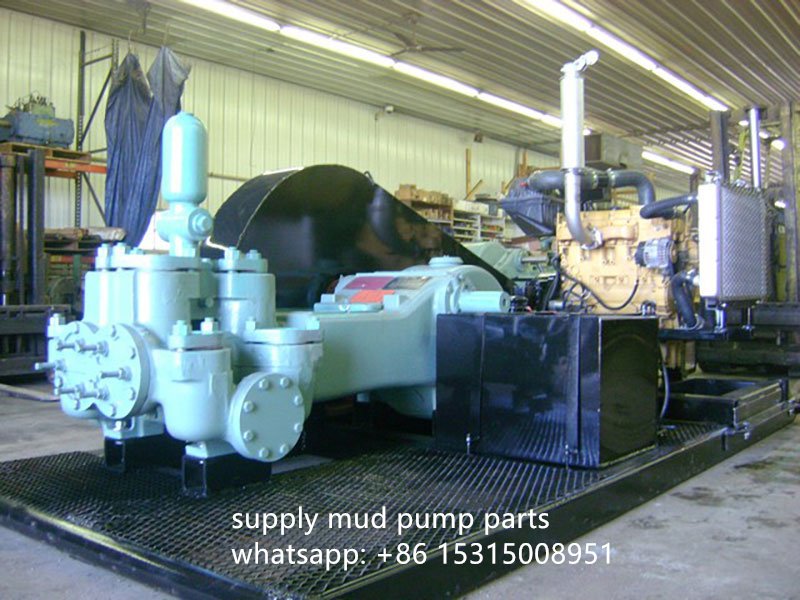

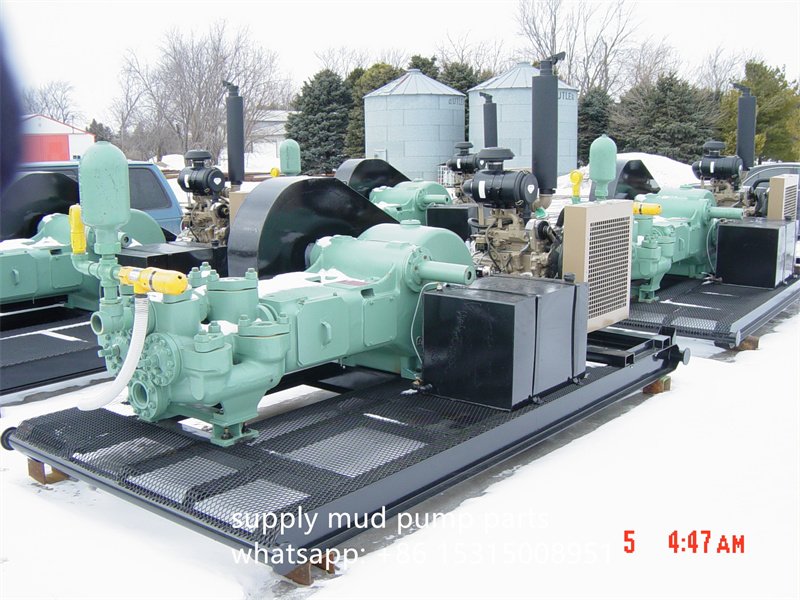

Gardner Denver 5.5″ x 8″ FD FXX Duplex Mud Pump Parts List Manual

Retainer PlatePPGD 75B11

Replacement parts for the Gardner Denver 5.5″ x 8″ FD FXX mud pump
Gardner Denver 5.5″ x 8″ FD FXX Fluid End Rebuild Kit Qty.
Description Part No. 2 Liner PPGD FD45655 2 Liner Chrome PPGD FD45655C 4 Liner Packing PPGD 25T32 2 Lantern Ring PPGD FD445 2 Head Gasket PPGD 25G43 2 Piston PPGD 204TBB045A 2 Piston Rubber Kit PPGD TBB76013 2 Piston Rod PPGD 5EF183 (5.5X8) 2 Piston Rod Chrome PPGD 14EF183 2 Junk Ring PPGD BC317 2 Packing PPGD 60BH2 2 Bushing Gland PPGD 1FD152
Gardner Denver 5.5″ x 8″ FD FXX Fluid End Valves, Seats and Springs Qty.
Description Part No. 8 Valve Cover Gasket PPGD 25G18 8 Valve Spring PPGD 78D22 8 Spring SS PPGD 78A171SS 8 Spring Steel PPGD 78A171ST
8 Valve Gravel PPGD 200FGG482A 8 Valve Gravel Insert PPGD 200FGG106 8 Valve Seat PPGD 200FGG039 OR
8 Valve Standard PPGD 1FG928 8 Valve Standard Insert PPGD 1FG452 8 Valve Standard Seat PPGD 11FG39 OR
8 Seat Valve PPGD 200FDD039 8 Valve-Ball PPGD 200FDD481 8 Cover-Valve PPGD 200FDD147A
Gardner Denver 5.5″ x 8″ FD FXX Fluid End Stuffing Box Qty.
Description Part No. 4 Stud, Stuffing Box PPGD 79A183 4 Nut, Stuffing Box Stud PPGD 50B8 2 ASM Stuffing Box PPGD 2007956 2 Packing, Braided Asbestos PPGD 60BG13 2 Packing, Oil Res Molded Convex PPGD 60BH2 2 Packing, Molded Rubber & Duck PPGD 60DA415 2 Ring-Junk PPGD BC317 2 Gasket PPGD 25C1737 2 Bushing-Gland PPGD 1FD152 2 Gland, Stuffing Box PPGD FD21 2 ASM Gland PPGD 200FXX008A 2 Packing-Ring PPGD 60DD75 2 Nut PPGD 200FXX086
Gardner Denver 5.5″ x 8″ FD FXX Fluid End Cylinder Qty.
Description Part No. 1 ASM Fluid Cylinder PPGD 6FD29B 12 Stud, Cylinder to Frame PPGD 79L92 12 Nut, Cylinder Head PPGD 50B10 16 Stud, Valve Cover PPGD 79A559 16 Nut, Valve Cover PPGD 50B13 8 Stud, Discharge Flange PPGD 79A183 8 Nut, Discharge Flange Stud PPGD 50B8 24 Stud, Cylinder Head PPGD 79A183 24 Nut, Cylinder Head Stud PPGD 50B8 8 Stud, Suction Flange PPGD 79A183 8 Nut, Suction Flange Stud PPGD 50B8 1 Flange, Discharge PPGD 64DA5 1 Gasket, Discharge Flange PPGD 25G4 2 Head Cylinder PPGD 4FD41 2 Gasket, Cylinder Head PPGD 25G43 2 Clamp Liner PPGD 3FD217 4 Sleeve, Liner PPGD 25T32 2 Spacer, Liner PPGD FD445 2 Liner Set Screw PPGD 76W3 2 Nut, Liner Set Screw PPGD 50B12 2 Washer, Liner Set Screw PPGD 95F12 2 Packing, Liner Set Screw PPGD 60BQ6 1 Flange, Suction PPGD FD77 1 Gasket, Suction Flange PPGD 25C320 5 Plug PPGD 64AU5 8 Valve Cover PPGD FD147 32 Stud, Flange & head PPGD 79A183 32 Nut, Flange & head PPGD 50B8 1 Gasket, Discharge Flange PPGD 25BE14 2 Plug PPGD 64AU5
Gardner Denver 5.5″ x 8″ FD FXX Fluid End Optional Liners, Pistons Piston Rubber Kits Qty.
Description Part No. 2 Liner 5.5″ x 8″ 5.5″ Bore PPGD FD45655 2 Piston 5.5″ B API-3 PPGD 204TBB045A 2 Piston Rubber Kits 5.5″  Bore PPGD TBB76013 2 Liner 5.5″ x 8″ 5″ Bore PPGD 1FD45650 2 Piston 5″ B API-3 PPGD 202TBB045A 2 Piston Rubber Kit 5″ B PPGD TBB76011 2 Liner 4.5″ Bore for 5.5″ x 8″ PPGD 1FD45645 2 Piston 4.5″ B API-3 PPGD 200TBB045A 2 Piston Rubber Kit 4.5″ Bore PPGD TBB76009 2 Liner 5.5″ x 8″ 4″ Bore PPGD 1FD45640 2 Piston 4″ K API-3 PPGD 221TBK045A 2 Piston Rubber Kit 4″ K PPGD TBK90423 2 Liner 3.5″ Bore PPGD 200FDD456 2 Piston 3.5″ K API-3 PPGD 220TBK045A 2 Piston Rubber Kit 3.5″ K PPGD TBK90422 Gardner Denver 5.5″ x 8″ FD FXX Liner And Seat Pullers
Qty.
Description Part No. 1 Puller, Seat Standard PPGD 1AUX545 1 Puller, Seat Gravel PPGD 200FGG219A 1 Puller, Liner PPGD 1FD345A Gardner Denver 5.5″ x 8″ FD FXX Gear End Oil Stop Head 2 Bolt
Qty.
Description Part No. 2 Oil Stop Head PPGD FXX495 4 Stud, Oil Stop Head PPGD 79A69 4 Nut, Oil Stop Head Stud PPGD 50B5 2 Gland, Oil Stop Head PPGD PXD238 2 Packing, Oil Stop Head PPGD 60BG26 2 Washer, Oil Stop Head PPGD BC318 2 Gasket, Oil Stop Head PPGD 25C974
Gardner Denver 5.5″ x 8″ FD FXX Gear End Oil Stop Head 4 Bolt
Qty.
Description Part No. 2 Oil Stop Head PPGD 200FXX051A 4 Plate‐Retaining PPGD 201FXX168 8 Screw‐Hex Cap PPGD 75A54 2 Gland PPGD PXD238 4 Nut‐Hex PPGD 50B5 4 Stud PPGD 79A69 2 Packing PPGD 60BG26 2 Ring‐Junk PPGD BC318 8 Gasket‐Ring PPGD 25F9 2 Gasket PPGD 25BC177
Gardner Denver 5.5″ x 8″ FD FXX Gear End Jackshaft Qty.
Description Part No. 1 ASM JackShaft PPGD FXX374 1 JackShaft PPGD FXX371 1 Key, JackShaft to Gear PPGD 35C56 1 Gear‐Driver PPGD FXX181 2 Sleeve‐Shaft PPGD FXX289 2 Seal‐Oil, Bearing Housing PPGD 60G5 2 Spacer, Bearing PPGD FXX376 2 Bearing, JackShaft PPGD 12W4 2 Housing‐Bearing PPGD 1FXX368 4 Gasket, Housing & Retain Plate PPGD 25C973 2 Plate‐Bearing Retaining PPGD 4FXX370 12 Screw, Housing & Retain Plate PPGD 655EF070 4 Screw, Shaft Extension Cover PPGD 75A5 1 Cover‐Shaft Extension PPGD 200FXX490 1 Key, JackShaft PPGD 35B99 2 Seal‐Oil, Bearing Retaining Plate PPGD 60G19 2 Fitting Lube PPGD 40E5
Gardner Denver 5.5″ x 8″ FD FXX Gear End Eccentric Shaft
Qty.
Description Part No. 1 Shaft‐Eccentric PPGD 1FXX367 1 Key, Eccentric Shaft PPGD 35C68 1 Eccentric PPGD 1FXX255 2 Sleeve‐Shaft PPGD 20AUX18 2 Seal‐Oil PPGD 60G7 2 Bearing, Eccentric Shaft PPGD 12C33 2 Shim, Bearing Cover Plate PPGD 77B20 12 Screw, Bearing Cover Plate PPGD 75A18 2 Plate‐Bearing Cover PPGD FXX366 1 Gasket, Bearing Cover Plate PPGD 25C973 2 Fitting-Lube, Bearing CVR Plate PPGD 40E5
Gardner Denver 5.5″ x 8″ FD FXX Connecting Rod CrossHead Qty.
Description Part No. 2 ASM Connecting Rod PPGD 2FXX417 2 Bushing (Eccentric End) PPGD 2FXX421 2 Bushing (CrossHead End) PPGD FXX229 2 CrossHead PPGD FXX175 2 Plate‐Retainer PPGD 1FXX281 4 Screw(1.25″ LG.)
Screw 1″ LG Retainer Plate PPGD 75B13 48 Wire PPGD 97A29
Gardner Denver 5.5″ x 8″ FD FXX Gear End Frame Qty.
Description Part No. 1 ASM Frame PPGD 200FXX001A 1 Plug‐SQHD Pipe, Oil Drain PPGD 64A5 1 Elbow‐Pipe Street, Oil Level PPGD 64D4 1 Plug‐SQHD Pipe, Oil Level PPGD 64AA4 1 Hood PPGD 200FXX053 96″ Gasket, Hood PPGD 2009457 12 Screw, Hood PPGD 75AA1 1 Cover‐Filler PPGD FXX880 2 Plug‐SQHD Pipe, CrossHead PPGD 64AA7 4 Stud, CrossHead INSPECT.
Plate PPGD 79A6 4 Nut, CrossHead INSP.
 PL.
Stud PPGD 50B5 2 Plate‐Inspection, CrossHead PPGD FXX723 2 Gasket, CrossHead INS.
Plate PPGD 25C1180 4 Screw, CrossHead INS.
Plate PPGD 75A4 1 Stud, Plate Inspection PPGD 79A338 1 Nut, Plate Inspection Stud PPGD 50B3 1 Plate‐Inspection PPGD 1PXD237 1 Manifold‐Water PPGD 1FXX315 2 Screw, Water Manifold PPGD 75A5 2 Valve‐Angle PPGD 90F4 2 Nipple‐Pipe PPGD 63D9 2 Nipple‐Pipe PPGD 63D14 2 Baffle, Piston Rod PPGD 1FXX840

Feed Rod Dia 1-1/2″
Part # (5EF183)
Material SS-304 As per attached drawing # 5EF183
Liner 5-1/2″” Dia (Part # FD45655)
As Per Drawing#1212 Material of Construction Hardended Steel with inner side Honed and Hard Chrome finsh
Valve Insert (Part # IFG452)
As per Drawing#401GD Material of Construction PU

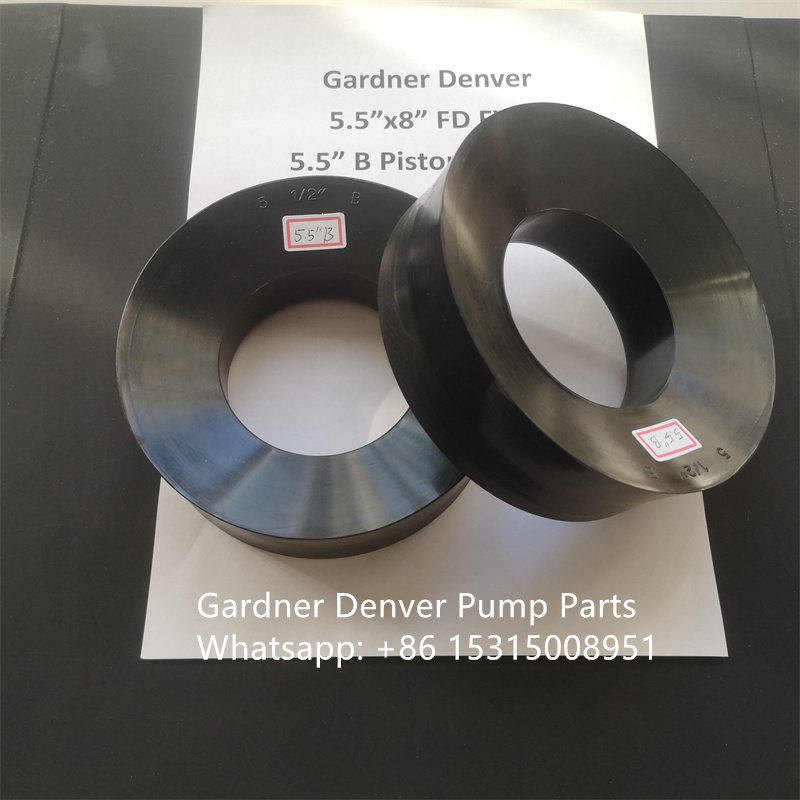

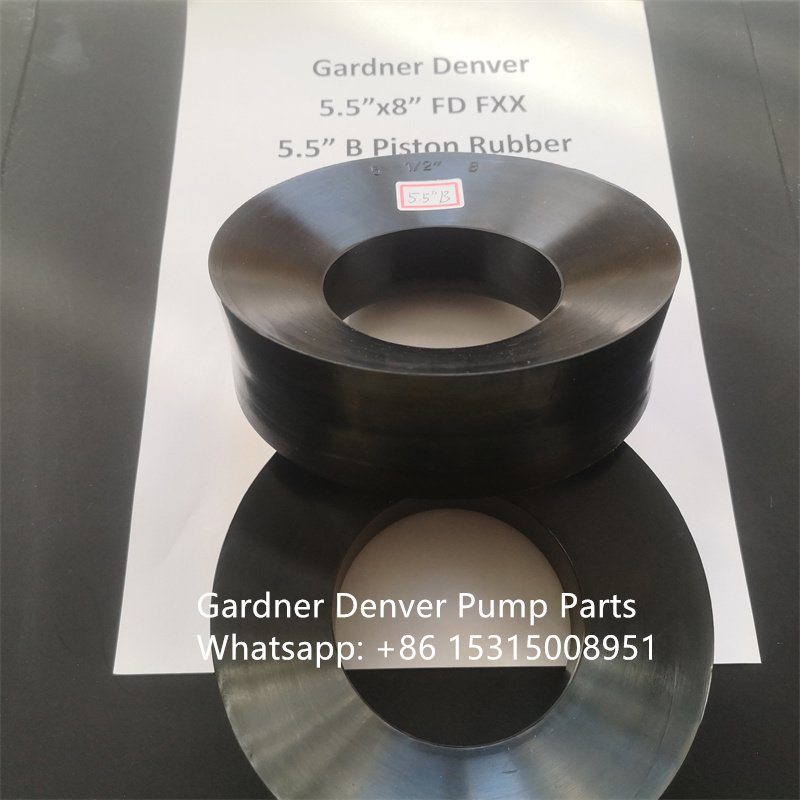

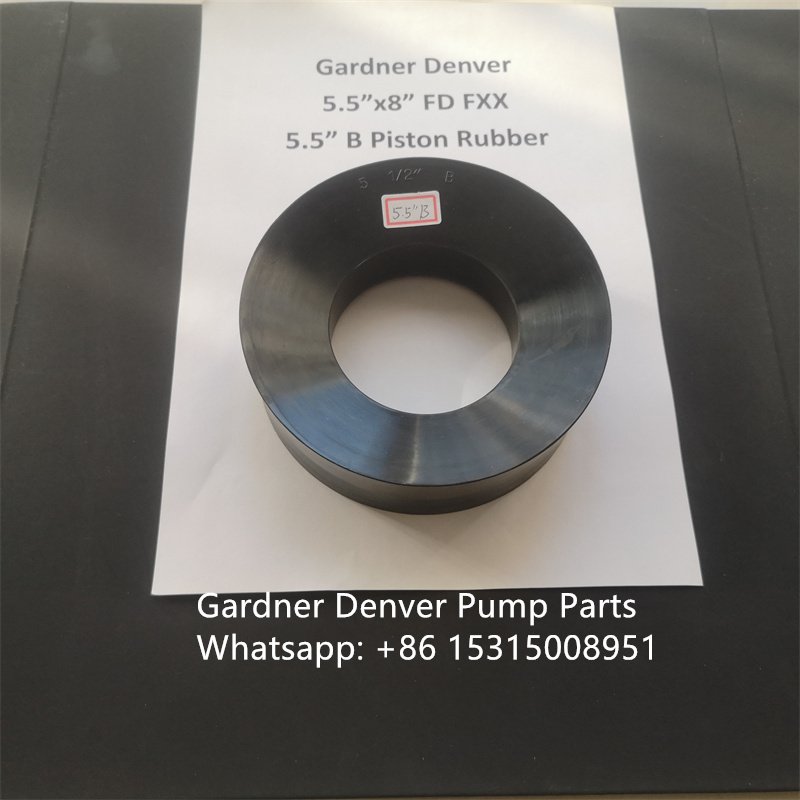

Rubber Plunger 5-1/2″
(TBB76013) Dia Drawing#213GD Material of ConstructionRubber+Canvas
Valve Seat For GD Mud Pump Material Hardend Steel
Feed Rod Seal 1-1/2″
(Part # 60DA415) Dia Drawing#214GD Material of Construction Rubber
Wing Guided Valve, (Part # IFG 928) As per Drawing#201G Material of Construction Hardended Steel
Water Swivel Seal, Drawing#WS332
Material of Construction rubber
