LEWCO W2200 W3000 Triplex Mud Pump Expendable Parts Manual List
| LEWCO W2200 Triplex Mud Pump Expendable Parts Manual List | |

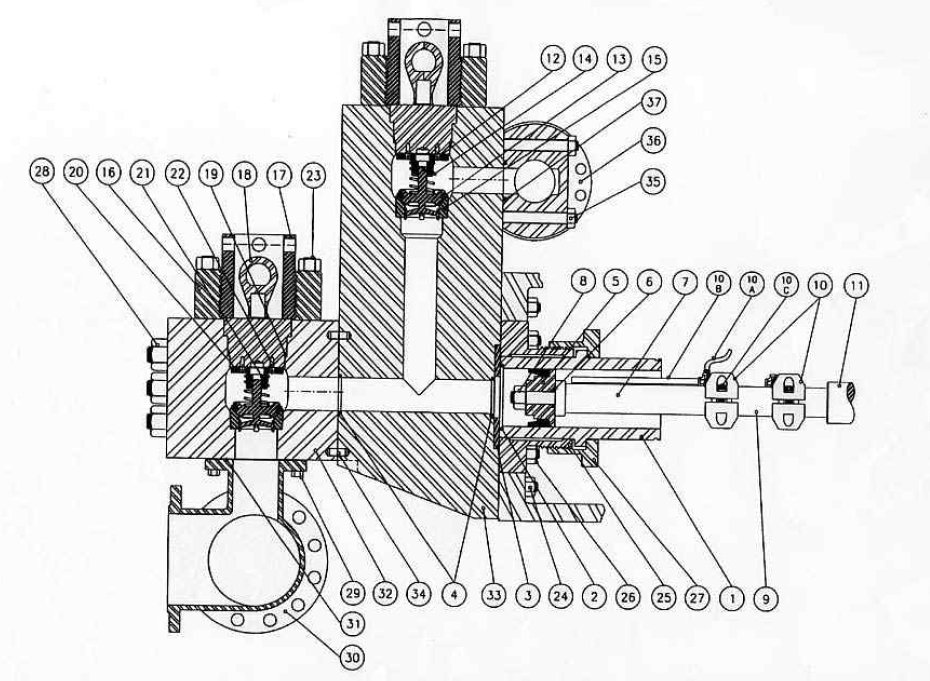

| SOUTHWEST 8482-25A FLUID END FOR LEWCO W-2200 FLUID END TYPE SOUTHWEST 7500 P.S.I. SIZE OF PUMP 9” X 14” | |
| PART NO. | DESCRIPTION |
| 8482-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4,16,17,18,19,20,21,22,23,24,25,26,27,28,29,32,33,34) |
| 6382G-XX | LINER REFER TO GUIDE FOR ORDERING CHART FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) |
| 2930-XX | LINER SEAL |
| 8482-5 | WEARPLATE |
| 2930-09 | WEARPLATE & MODULE SEAL |
| XX-BYY | PISTON REFER TO GUIDE FOR ORDERING CHART FOR SIZE (XX) AND FOR TYPE (YY) |
| 568-225 | PISTON O-RING |
| PISTON ROD (WITH ELASTIC STOP NUT) | |
| API-4ESN | PISTON ROD ELASTIC STOP NUT |
| SUB ROD | |
| ROD CLAMP (CONSIST OF 10A, 10B, 10C)(FOR CLAMP ONLY, USE XXXXC) | |
| HOSE | |
| PIPE | |
| ROD CLAMP BOLT | |
| PONY ROD | |
| SEE PAGE | VALVE |
| SEE PAGE | VALVE INSERT (IF REQUIRED) |
| SEE PAGE | VALVE SPRING |
| SEE PAGE | VALVE SEAT |
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (REFER TO TOOLS SECTION IN CATALOG) |
| 4476 | THREADED FLANGE |
| 4597 | SCREW GLAND |
| 4609-25 | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21, & 22 |
| P119 | HP VALVE COVER PLUG SEAL (ALSO AVAILABLE IN URETHANE – PART# P119U) |
| 4776R | VALVE GUIDE (COMPLETE WITH BUSHING #4700I) |
| 4700I | VALVE GUIDE BUSHING (ALSO AVAILABLE IN URETHANE – PART# 4700IU) |
| 4016-98 | VALVE GUIDE SCREW |
| 4015-54 | VALVE COVER STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) |
| 4019-24 | POWER END STUD (WITH SW PART# HHN1500-6 1 ½-6 HEAVY HEX NUT) |
| 6482 | LINER RETAINER FLANGE |
| 4015-52 | LINER RETAINER STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) |
| 6582 | LINER RETAINER NUT |
| 4020-6 | SUCTION MODULE STUD (WITH SW PART# HHN2000-8 2-8 HEAVY HEX NUT) |
| 4018-19 | SUCTION MANIFOLD CAP SCREW |
| 8582 | SUCTION MANIFOLD |
| SUCTION MANIFOLD SEAL | |
| 8482-26 | SUCTION MODULE |
| 8482-27 | DISCHARGE MODULE |
| 8488-5 | DOWEL PIN |
| 4019-60 | DISCHARGE MANIFOLD STUD (WITH SW PART# HHN1250-7 1 ¼-7 HEAVY HEX NUT) |
| 8382-25 | DISCHARGE MANIFOLD |
| 2988 | DISCHARGE MANIFOLD SEAL |
| SIZE | LINER P/N |
| 5 | EL238 |
| 5-1/2 | EL220 |
| 6 | EL221 |
| 6-1/2 | EL222 |
| 7 | EL223 |
| 7-1/2 | EL224 |
| 8 | EL240 |
| 9 | EL254 |
| SIZE | PISTON P/N |
| 5 | EP290 |
| 5-1/2 | EP291 |
| 6 | EP292 |
| 6-1/2 | EP293 |
| 7 | EP294 |
| 7-1/2 | EP295 |
| 8 | EP296 |
| 9 | EP298 |
| SIZE | LINERE GASKET |
| 5 | EG132 |
| 5-1/2 | EG138 |
| 6 | EG139 |
| 6-1/2 | EG140 |
| 7 | EG136 |
| 7-1/2 | EG142 |
| 8 | EG144 |
| 9 | EG187 |

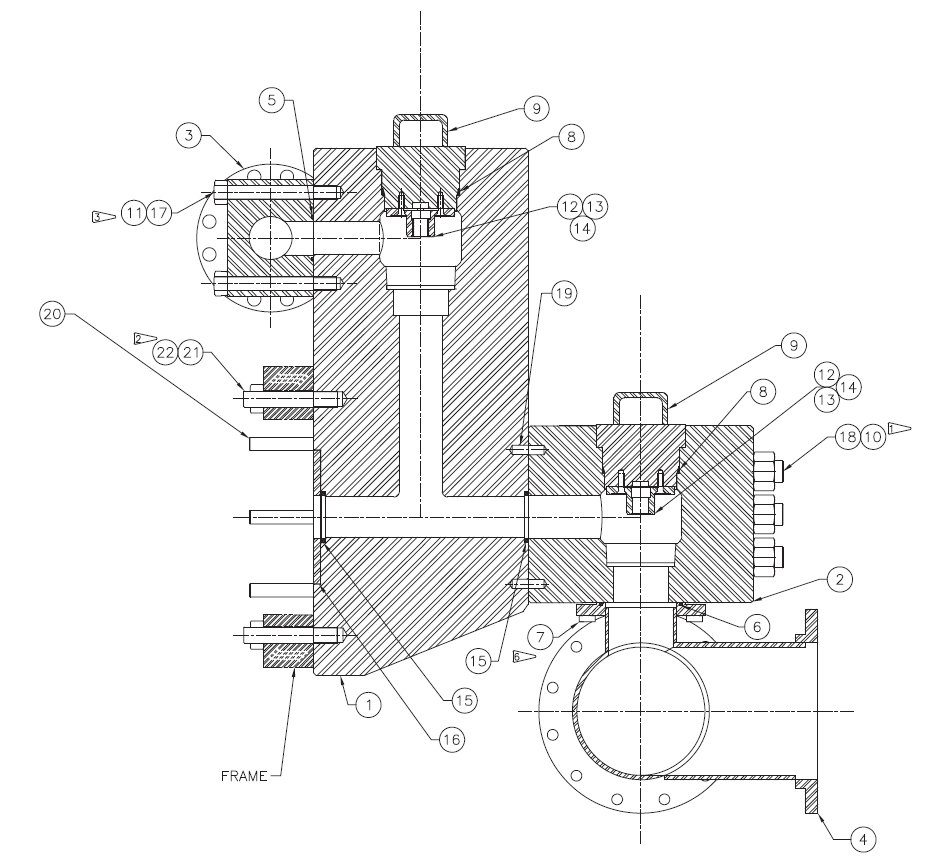

| GROUP — FLUID END SW STYLE W–2200 SIZE : D DWG NO. D 164775 REV 00 | |
| Part No. | DESCRIPTION |
| D164720 | MOUDLE–DISCHARGE, W2200 SW |
| D164721 | MODULE–SUCTION, W2200 SW |
| D164712 | MANIFOLD–DISCHARGE, W2200 |
| D164709 | MANIFOLD–SUCTION, W2200 SW |
| E0396 | O–RING 2–343 BUNA 70 |
| E0395 | O–RING 2–44 BUNA 70 |
| 002–1660 | BOLT HX .865 9NC 2.25 G8 |
| A167770 | SEAL–VALVE COVER |
| C164704 | COVER–VALVE POT, W–2200 SW |
| EN114 | NUT–HEX, HVY 2.000 8 UN A194-2H |
| EN115 | NUT–HEX, HVY 1.250 7 NC A194-2H |
| C164718 | GUIDE–VALVE, W2200 SW 12P 5K |
| A167708 | BUSHING–VALVE GUIDE |
| EC220 | CACR FLAT SK .500 UNC 1.00 |
| A167769 | SEAL–WEAR PLATE & MODULE BLK |
| B164706 | PLATE–WEAR, W2200 SW 14P 7.5K |
| ES420 | STUD 1.250 7UN 11.50 1.88 B7 |
| ES419 | STUD 2.000 8UN 26.50 B7 A-193 |
| A167722 | PIN, .875 DIA X 2.00 |
| ES421 | STUD, 1.250 7NC 7.00 2.00 B7 |
| ES417 | STUD, 1.500 6NC 9.00 B7 A-193 |
| 002–5784 | NUT–HEX, HVY 1.500 6 NC A194-2H |
| EV116 | SPRING–VALVE, 7 & 8 |
| EV190 | SEAT–VALVE, 7 NOI |
| EV178 | VALVE 7 |
| LEWCO W3000 Triplex Mud Pump Expendable Parts Manual List | |
| OEM STUDDED SUCTION MODULE FOR LEWCO W-3000 SIZE：B DWG. NO. 8413-52S REV.A | |
| PART NO. | DESCRIPTION |
| 8413-52 | SUCTION MODULE FOR LEWCO W-3000 |
| HHN1500-8 | 1 1/2″-8 HEAVY HEX NUT |
| 4020-99 | VALVE COVER & POWER END STUD |
| OEM STUDDED DISCHARGE MODULE FOR LEWCO W3000 SIZE：B DWG. NO. 8413-51D REV. A | |
| PART NO. | DESCRIPTION |
| 8413-51 | DISCHARGE MODULE |
| 4020-99 | VALVE COVER AND POWER END STUD |
| 4020-100 | LINER RETAINER STUD |
| 4020-101 | SUCTION MODULE STUD |
| 4020-102 | DISCHARGE MANIFOLD STUD |
| HHN1500-8 | 1-1/2 – 8 HEAVY HEX NUT |
| HHN1250-8 | 1-1/4 – 8 HEAVY HEX NUT |
| HHN2000-8 | 2-8 HEAVY HEX NUT |
| FLUID END TYPE OEM 7500 PSI MODEL OF PUMP LEWCO W-3000 SIZE OF PUMP 7-1/2″ X 12″ | |
| PART NO. | DESCRIPTION |
| D300338 | DISCHARGE MODULE |
| D300301 | SUCTION MODULE |
| D300335 | DISCHARGE MANIFOLD |
| D300322 | SUCTION MANIFOLD |
| ED152 | O-RING DISCHARGE |
| ED301 | O-RING SUCTION |
| 003-1784 | BOLT HEX 1-8UNC X 2.25 |
| C300310 | VALVE COVER |
| C300309 | FLANGE VALVE COVER |
| C300311 | VALVE COVER LOCK |
| B300312 | EYEBOLT |
| E0126 | GASKET VALVE COVER |
| A160327 | BUSHING VALVE GUIDE |
| C300305 | WEAR RING |
| VARIES | 5 1/2″ GRAYLOY LINER |
| 6″ GRAYLOY LINER | |
| 6 1/2″ GRAYLOY LINER | |
| 7 GRAYLOY LINER | |
| 5 1/2″ ZIRCONIA LINER | |
| 6″ ZIRCONIA LINER | |
| 6 1/2″ ZIRCONIA LINER | |
| 7″ ZIRCONIA LINER | |
| C300357 | LINER LOCK |
| D300306 | LINER LOCK RING |
| VARIES | GASKET LINER |
| EG125 | GASKET WEAR PLATE AND MODULE |
| VARIES | PISTON |
| EN101 | LOCK NUT NYLON INSERT |
| D300035 | PISTON ROD |
| A300333 | NUT HEX 1.250 NC HEAVY |
| A300334 | NUT HEX 1.500 NC HEAVY |
| B300313 | STUD VALVE COVER |
| B300314 | STUD LINER LOCK |
| B300316 | STUD SUCTION MODULE |
| B300341 | STUD DISCHARGE MANIFOLD |
| EV116 | VALVE SPRING |
| EV117 | VALVE |
| EV118 | VALVE SEAT |
| EN114 | NUT HEX 2.000 NC HEAVY |
| C300551 | BAFFLE STRUCTURE |
| 080-8476 | BOLT HEX 3/8-16UNC 1-1/4 GRADE 8 |
| EN125 | NUT HEX 3/8-16UNC GRADE 8 |
