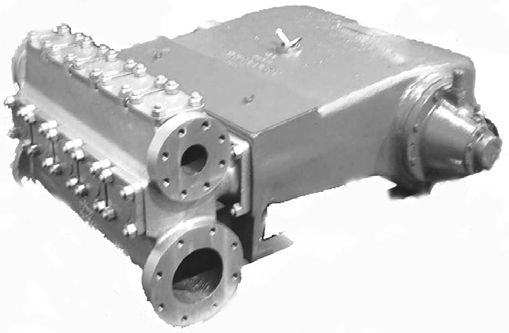

NOV 217Q-4 Multiplex Plunger Mud Pump Parts Manual List
| 217Q-4L Index and Check List: | |
| DWG. NUMBER |
DESCRIPTION |
| 118563 | ASSEMBLY, CAST FLUID END, BRONZE (L) |
| 118562 | ASSEMBLY, CAST FLUID END, DUCTILE IRON (L) |
| 118564 | ASSEMBLY, CAST FLUID END, DUCTILE IRON (L) |
| 118565 | ASSEMBLY, STEEL BILLET FLUID END (L) |
| 118567 | ASSEMBLY, CAST FLUID END, BRONZE (M) FLANGEDCONNECTION |
| 118566 | ASSEMBLY, CAST FLUID END, STAINLESS STEEL (M)FLANGED CONNECTION |
| 118568 | ASSEMBLY, CAST FLUID END, DUCTILE IRON (M) THREADEDCONNECTION |
| 118569 | ASSEMBLY, BLOCK FLUID END, STEEL (M) FLANGEDCONNECTION |
| 118570 | ASSEMBLY, BLOCK FLUID END, CLAMPED STUFING BOX,STAINLESS STEEL (H) FLANGED |
| 118571 | ASSEMBLY, BLOCK FLUID END, CLAMPED STUFFING BOX,STEEL (H) FLANGED |
| 118560 | ASSEMBLY, POWER END, 217Q-4 |
| 118561 | ASSEMBLY, CRANKSHAFT POWER END, 217Q-4 |
| 118572 | ASSEMBLY, GEAR REDUCER UNIT, 217Q-4 |
| 118607 | ASSEMBLY, GEAR REDUCER UNIT FOR LUBRICATOR, 217Q-4 |
| 118575 | ASSEMBLY, SPHERICAL VALVE, (L) |
| 118576 | ASSEMBLY, SPHERICAL VALVE, SEVERE DUTY (L) |
| 118577 | ASSEMBLY, DISC VALVE (L) |
| 118578 | ASSEMBLY, SEVERE DUTY VALVE (L) |
| 118579 | ASSEMBLY, SPHERICAL VALVE (M) |
| 118580 | ASSEMBLY, SPHERICAL VALVE, SEVERE DUTY (M) |
| 118581 | ASSEMBLY, DISC VALVE (M) |
| 118582 | ASSEMBLY, SEVERE DUTY VALVE (M) |
| 118583 | ASSEMBLY, SPHERICAL VALVE (H) |
| 118585 | ASSEMBLY, SPHERICAL VALVE, SEVERE DUTY (H) |
| 118586 | ASSEMBLY, DISC VALVE (H) |
| 118584 | ASSEMBLY, SEVERE DUTY VALVE (H) |
| 118587 | TOOL KIT, (L) CLASS FLUID END |
| 118588 | TOOL KIT, (M) CLASS FLUID END |
| 118589 | TOOL KIT, (H) CLASS FLUID END |
| 118590 | ASSEMBLY, PLUNGER KIT 2-3/4”– 3-3/8” J-STYLE PACKING (L)FLUID END |
| 118591 | ASSEMBLY, PLUNGER KIT 2-3/4” – 3-3/8” BRAID STYLEPACKING (L) FLUID END |
| 118592 | ASSEMBLY, PLUNGER KIT 2-3/4” – 3-3/8” SSF-4 STYLEPACKING (L) FLUID END |
| 118593 | ASSEMBLY, PLUNGER KIT 1-5/8”- 2-1/2” J-STYLE PACKING (M)FLUID END |
| 118594 | ASSEMBLY, PLUNGER KIT 1-5/8” – 2-1/2” BRAID STYLEPACKING (M) FLUID END |
| 118595 | ASSEMBLY, PLUNGER KIT 1-5/8” – 2-1/2” SSF-4 STYLEPACKING (M) FLUID END |
| 118596 | ASSEMBLY, PLUNGER KIT 1-1/4” – 1-3/4” J-STYLE PACKING,(H) FLUID END |
| 118597 | ASSEMBLY, PLUNGER KIT 1-1/4” – 1-3/4” BRAID STYLEPACKING, (H) FLUID END |
| 118598 | ASSEMBLY, PLUNGER KIT 1-1/4” – 1-3/4” SSF-4 STYLEPACKING, (H) FLUID END |
| 118599 | PLUNGERS, 2-3/4” THRU 3-3/8”, HARD SURFACE (L) |
| 118600 | PLUNGERS, 2-3/4” THRU 3-3/8”, CERAMIC (L) |
| 118601 | PLUNGERS, 1-5/8” THRU 2-1/2”, HARD SURFACE (M) |
| 118602 | PLUNGERS, 1-5/8” THRU 2-1/2”, CERAMIC (M) |
| 118603 | PLUNGERS, 1-1/4” THRU 1-3/4”, HARD SURFACE (H) |
| 118573 | ASSEMBLY, PACKING LUBRICATOR, 217Q-4 |
| 118574 | ASSEMBLY, PACKING LUBRICATOR, D.O. H. 217Q-4 |
| 118625 | ASSEMBLY,PACKING LUBRICATOR WITH GEAR REDUCER,217Q-4 |
| 118626 | ASSEMBLY, PACKING LUBRICATOR WITH GEAR REDUCER,D.O.H., 217Q-4 |
| 118604 | GENERAL DIMENSION, RHD, 163Q-4L |
| 118605 | GENERAL DIMENSION, RHD, 163Q-4M |
| 118606 | GENERAL DIMENSION, RHD, 163Q-4H |
| 118610 | GENERAL DIMENSION, LHD, WITH GEAR REDUCER, 217Q-4 |
| 118609 | GENERAL DIMENSION, LHD, WITH GEAR REDUCER ANDLUBRICATOR, 163Q-4H |
| ASSEMBLY,CAST FLUID END BRONZE, 2-3/4″ THRU 3-3/8″ PLUNGERS 217Q-4L, 163Q-4L ( HP 200AL,HP165AL ) DWG NO. 118563 | |
| Part No. | DESCRIPTION |
| AAD-115921-316 | FLUID END, CAST BRONZE |
| 102-034234-286 | STUD |
| 133-034010-286 | NUT |
| AAB-115922-316 | CYLINDER HEAD / VALVE COVER |
| 110-000345-201 | O-RING ( VALVE COVER / CYLINDER HEAD ) |
| 104-034300-286 | STUD ( VALVE COVER / CYLINDER HEAD ) |
| 133-034010-286 | NUT |
| 001-024959-316 | POWER END / FLUID END ADAPTER |
| 110-000246-200 | O-RING ( ADAPTER ) |
| See Plunger Kits | GLAND NUT, 2-3/4″ THRU 3-3/8″ |
| 001-007986-201 | BAFFLE DISC |
| 180-165000-220 | LUBE FITTING |
| DRAWING No: | VALVE ASSEMBLY: |
| 118577 | DISC VALVE (L) |
| 118575 | SPHERICAL VALVE (L) |
| 118576 | SPHERICAL VALVE (L) – SEVERE DUTY |
| 118578 | SEVERE DUTY (L) – (AR) |
| ASSEMBLY, CAST FLUID END,STAINLESS STEEL,2-3/4″ THRU 3-3/8″ PLUNGERS 217Q-4L, 163Q-4L, (HP200AL, HP165AL ) DWG NO. 118562 | |
| Part No. | DESCRIPTION |
| AAD-115921-594 | FLUID END, CAST STAINLESS STEEL |
| 102-034234-287 | STUD |
| 133-034010-287 | NUT |
| AAB-115922-594 | CYLINDER HEAD / VALVE COVER |
| 110-000345-201 | O-RING ( VALVE COVER / CYLINDER HEAD |
| 104-034300-287 | STUD ( VALVE COVER / CYLINDER HEAD ) |
| 133-034010-287 | NUT |
| 001-024959-278 | POWER END / FLUID END ADAPTER |
| 110-000246-200 | O-RING ( ADAPTER ) |
| See Plunger Kits | GLAND NUT |
| 001-007986-201 | BAFFLE DISC |
| 180-165000-220 | LUBE FITTING |
| DRAWING No: | VALVE ASSEMBLY: |
| 118577 | DISC VALVE (L) |
| 118575 | SPHERICAL VALVE (L) |
| 118576 | SPHERICAL VALVE (L) – SEVERE DUTY |
| 118578 | SEVERE DUTY (L) – (AR) |
| ASSEMBLY, CAST FLUID END DUCTILE IRON, 2-3/4″ THRU 3-3/8″ PLUNGERS 217Q-4L, 163Q-4L (HP200L, HP165L ) DWG NO. 118564 | |
| Part No. | DESCRIPTION |
| 008-025003-351 | FLUID END, CAST DUCTILE IRON |
| 102-034234-286 | STUD |
| 133-034010-286 | NUT |
| 189-034112-220 | WASHER |
| 002-028452-351 | CYLINDER HEAD / VALVE COVER |
| 110-000244-200 | O-RING ( VALVE COVER / CYLINDER HEAD ) |
| 001-024959-236 | POWER END / FLUID END ADAPTER |
| 110-000246-200 | O-RING ( ADAPTER ) |
| See Plunger Kits | GLAND NUT |
| 001-007986-201 | BAFFLE DISC |
| 180-165000-220 | LUBE FITTING |
| DRAWING No: | VALVE ASSEMBLY: |
| 118577 | DISC VALVE (L) |
| 118575 | SPHERICAL VALVE (L) |
| 118576 | SPHERICAL VALVE (L) – SEVERE DUTY |
| 118578 | SEVERE DUTY (L) – (AR) |
| ASSEMBLY, BILLET FLUID END STEEL, 2-3/4″ THRU 3-3/8″ PLUNGER 217Q-4L, 163Q-4L ( HP200AL, HP 165AL ) DWG NO. 118565 | |
| Part No. | DESCRIPTION |
| AAC-115661-H02 | FLUID END |
| AGB-030410-286 | STUD |
| 471-034010-286 | NUT |
| 170-034002-405 | DRAIN PLUG |
| AAB-115133-231 | CYLINDER HEAD / VALVE COVER |
| 110-000345-200 | O-RING ( VALVE COVER / CYLINDER HEAD ) |
| 104-034300-286 | STUD (VALVE COVER/CYLINDER HEAD) |
| 133-034010-286 | NUT (VALVE COVER/CYLINDER HEAD) |
| AAB-115660-270 | STUFFING BOX |
| See Plunger Kits | GLAND NUT |
| 001-007986-201 | BAFFLE DISC |
| 180-165000-220 | LUBE FITTING |
| DRAWING No: | VALVE ASSEMBLY: |
| 118577 | DISC VALVE (L) |
| 118575 | SPHERICAL VALVE (L) |
| 118576 | SPHERICAL VALVE (L) – SEVERE DUTY |
| 118578 | SEVERE DUTY (L) – (AR) |
| ASSEMBLY, CAST FLUID END BRONZE, 1-5/8″ THRU 2-1/2″ PLUNGER 217Q-4M, 163Q-4M, ( HP200AM, HP165AM ) DWG NO. 118567 | |
| Part No. | DESCRIPTION |
| AAD-029613-316 | FLUID END, CAST BRONZE |
| 102-034234-286 | STUD |
| 133-034010-286 | NUT |
| AAB-029608-316 | CYLINDER HEAD / VALVE COVER |
| 110-000236-200 | O-RING ( VALVE COVER / CYLINDER HEAD ) |
| 102-034314-286 | STUD ( CYLINDER HEAD / VALVE COVER ) |
| 133-034010-286 | NUT ( CYLINDER HEAD / VALVE COVER ) |
| 001-023574-316 | POWER END / FLUID END ADAPTER |
| 110-000238-201 | O-RING ( ADAPTER ) |
| See Plunger Kits | GLAND NUT |
| 001-007986-201 | BAFFLE DISC |
| 180-165000-220 | LUBE FITTING |
| DRAWING No: | VALVE ASSEMBLY: |
| 118581 | DISC VALVE (M) |
| 118579 | SPHERICAL VALVE (M) |
| 118580 | SPHERICAL VALVE (M) – SEVERE DUTY |
| 118582 | SEVERE DUTY (M) – (AR) |
| ASSEMBLY, CAST FLUID END STAINESS STEEL, 1-5/8″ THRU 2-1/2″ PLUNGER 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118566 | |
| Part No. | DESCRIPTION |
| AAD-029613-594 | FLUID END, CAST – STAINLESS STEEL |
| 102-034234-287 | STUD |
| 133-034010-287 | NUT |
| AAB-029608-594 | CYLINDER HEAD / VALVE COVER |
| 110-000236-200 | O-RING ( VALVE COVER / CYLINDER HEAD ) |
| 102-034314-287 | STUD ( CYLINDER HEAD / VALVE COVER ) |
| 133-034010-287 | NUT ( CYLINDER HEAD / VALVE COVER ) |
| 001-023574-278 | POWER END / FLUID END ADAPTER |
| 110-000238-201 | O-RING ( ADAPTER ) |
| See Plunger Kits | GLAND NUT |
| 001-007986-201 | BAFFLE DISC |
| 180-165000-220 | LUBE FITTING |
| DRAWING No: | VALVE ASSEMBLY: |
| 118581 | DISC VALVE (M) |
| 118579 | SPHERICAL VALVE (M) |
| 118580 | SPHERICAL VALVE (M) – SEVERE DUTY |
| 118582 | SEVERE DUTY (M) – (AR) |
| ASSEMBLY, CAST FLUID END DUCTILE IRON, 1-5/8″ THRU 2-1/2″ PLUNGER 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118568 | |
| Part No. | DESCRIPTION |
| 008-024255-351 | FLUID END, CAST DUCTILE IRON |
| 102-034234-286 | STUD |
| 133-034010-286 | NUT |
| 189-034112-220 | WASHER |
| 002-027612-351 | CYLINDER HEAD / VALVE COVER |
| 110-000237-200 | O-RING ( CYLINDER HEAD / VALVE COVER ) |
| 001-023574-236 | POWER END / FLUID END ADAPTER |
| 110-000238-201 | O-RING ( ADAPTER ) |
| See Plunger Kits | GLAND NUT |
| 001-007986-201 | BAFFLE DISC |
| 180-165000-220 | LUBE FITTING |
| DRAWING No: | VALVE ASSEMBLY: |
| 118581 | DISC VALVE (M) |
| 118579 | SPHERICAL VALVE (M) |
| 118580 | SPHERICAL VALVE (M) – SEVERE DUTY |
| 118582 | SEVERE DUTY (M) – (AR) |
| ASSEMBLY, BLOCK FLUID END STEEL, 1-5/8″ THRU 2-1/2″ PLUNGER 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO.. 118569 | |
| Part No. | DESCRIPTION |
| AAC-116323-H02 | FLUID END, PLATE STEEL |
| AAB-030410-286 | STUD |
| 133-034010-286 | NUT |
| 170-034002-278 | DRAIN PLUG |
| AAB-115123-231 | CYLINDER HEAD / VALVE COVER |
| 110-000236-200 | O-RING ( CYLINDER HEAD / VALVE COVER ) |
| AAC-116324-270 | STUFFING BOX |
| 110-000237-200 | O-RING ( STUFFING BOX ) |
| 102-034300-286 | STUD ( CYLINDER HEAD / VALVE COVER ) |
| 133-034010-286 | NUT ( CYLINDER HEAD / VALVE COVER ) |
| See Plunger Kits | GLAND NUT |
| 001-007986-201 | BAFFLE DISC |
| 180-165000-220 | LUBE FITTING |
| DRAWING No: | VALVE ASSEMBLY: |
| 118581 | DISC VALVE (M) |
| 118579 | SPHERICAL VALVE (M) |
| 118580 | SPHERICAL VALVE (M) – SEVERE DUTY |
| 118582 | SEVERE DUTY (M) – (AR) |
| ASSEMBLY, BLOCK FLUID END STAINLESS STEEL, 1-1/4″ THRU 1-3/4″ PLUNGER, 217Q-4H & 163Q-4H DWG NO. 118570 | |
| Part No. | DESCRIPTION |
| ABC-117767-276 | FLUID END, FORGED STAINLESS STEEL |
| APB-030410-287 | STUD |
| 471-034010-287 | NUT |
| 170-012002-278 | DRAIN PLUG |
| AAC-117768-276 | CYLINDER HEAD / VALVE COVER |
| 110-000337-200 | O-RING ( CYLINDER HEAD / VALVE COVER ) |
| AAC-118464-402 | STUFFING BOX |
| 110-000337-200 | O-RING ( STUFFING BOX ) |
| 102-114500-287 | STUD ( CYLINDER HEAD / VALVE COVER ) |
| 133-114007-287 | NUT ( CYLINDER HEAD / VALVE COVER ) |
| See Plunger Kits | GLAND NUT |
| 001-007986-201 | BAFFLE DISC |
| 001-028470-402 | ADAPTER ROD |
| 180-165000-220 | LUBE FITTING |
| DRAWING No: | VALVE ASSEMBLY: |
| 118586 | DISC VALVE (H) |
| 118583 | SPHERICAL VALVE (H) |
| 118585 | SPHERICAL VALVE (H) – SEVERE DUTY |
| 118584 | SEVERE DUTY (H) – (AR) |
| ASSEMBLY, BLOCK FLUID END FORGED STEEL, 1-1/4″ THRU 1-3/4″ PLUNGER, 217Q-4H & 163Q-4H DWG NO. 118571 | |
| Part No. | DESCRIPTION |
| AAD-118242-220 | FLUID END, FORGED STEEL |
| APB-030410-286 | STUD |
| 471-034010-286 | NUT |
| 170-012002-278 | DRAIN PLUG |
| AAC-117768-270 | CYLINDER HEAD / VALVE COVER |
| 110-000337-200 | O-RING ( CYLINDER HEAD / VALVE COVER ) |
| AAC-118464-270 | STUFFING BOX |
| 110-000337-200 | O-RING ( STUFFING BOX ) |
| 102-114500-286 | STUD ( CYLINDER HEAD / VALVE COVER ) |
| 133-114007-286 | NUT ( CYLINDER HEAD / VALVE COVER ) |
| See Plunger Kits | GLAND NUT |
| 001-007986-201 | BAFFLE DISC |
| 001-028470-402 | ADAPTER ROD |
| 180-165000-220 | LUBE FITTING |
| DRAWING No: | VALVE ASSEMBLY: |
| 118586 | DISC VALVE (H) |
| 118583 | SPHERICAL VALVE (H) |
| 118585 | SPHERICAL VALVE (H) – SEVERE DUTY |
| 118584 | SEVERE DUTY (H) – (AR) |
| ASSEMBLY, POWER END 217Q-4 ( HP 200 ) DWG NO. 118560 | |
| Part No. | DESCRIPTION |
| AAD-029630-356 | POWER FRAME |
| 170-012005-353 | DRAIN PLUG |
| 001-010803-999 | OIL LEVEL SITE GLASS |
| ABB-113766-000 | AIR BREATHER |
| 001-024270-231 | CRANK CASE COVER |
| 001-024271-204 | GASKET ( CRANKCASE COVER ) |
| 100-038034-290 | CAP SCREW ( CRANKCASE COVER ) |
| AAA-029923-231 | CRADLE COVER |
| 104-038100-286 | STUD ( CRADLE COVER ) |
| 187-038016-286 | WING NUT ( CRADLE COVER ) |
| 008-029261-348 | CRANKSHAFT |
| 998-Q42400-004 | CONN. ROD & CAP – COMPLETE ( SEE NOTE ) |
| 100-058314-290 | CAP SCREW (CONNECTING ROD) |
| 154-058108-286 | WASHER (CONNECTING ROD) |
| 002-028392-999 | SHELL BEARING (CONNECTING ROD |
| 004-028404-359 | CROSSHEAD |
| 001-028390-999 | WRIST PIN |
| 001-023129-302 | BUSHING (CONNECTING ROD) |
| 001-028408-263 | SNAP RING < * > |
| 002-025366-237 | WIPER BOX ( 3-SEAL / PACKING OPTION )-STL |
| 002-028308-260 | WIPER BOX ( 2 – SEAL OPTION )-SS |
| 110-000248-201 | O-RING (STUFFING BOX) |
| 145-158238-999 | 2 – SEAL WIPER BOX ( OPTION ) |
| 145-158238-999 | 3 – SEAL WIPER BOX ( OPTION ) |
| 001-028755-370 | PACKING ( OPTION ) |
| 002-025365-231 | GLAND |
| 104-038134-287 | STUD (GLAND) |
| 150-038016-306 | LOCK NUT (GLAND) |
| ASSEMBLY, CRANKSHAFT POWER END 217Q-4 ( HP200 ) DWG NO. 118561 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| AAD-029630-356 | POWER FRAME |
| 008-029261-348 | CRANKSHAFT < ** > |
| 998-Q42400-004 | CONNECTING ROD (COMPLETE) |
| 002-028318-356 | BEARING HOUSING ( DRIVE SIDE) |
| 145-438538-999 | OIL SEAL (CRANKSHAFT) |
| 100-012112-290 | CAP SCREW ( BEARING HOUSING ) |
| 120-450084-999 | MAIN BEARING ( END BEARING ) < ** > |
| 998-HP2000-037 | SHIM / GASKET KIT ( BEARING HOUSING ) |
| 110-000272-200 | O-RING ( BEARING HOUSING ) |
| 146-100900-236 | KEY (CRANKSHAFT ) < ** > |
| 170-114003-220 | PIPE PLUG (SOCKET HEAD) |
| 170-034003-220 | PIPE PLUG (SOCKET HEAD) |
| 002-016950-220 | LUBE OIL FILTER |
| 001-016981-237 | PLUG |
| 110-000210-201 | O-RING ( PLUG ) |
| 008-029252-350 | BEARING HOUSING (LUBE SIDE) |
| 001-012157–999 | LUBE PUMP |
| 100-516034-290 | CAP SCREW (LUBE PUMP) |
| 001-011122-999 | BUSHING (LUBE PUMP) |
| 001-014240-220 | DRIVE PIN (LUBE PUMP) |
| AAA-030205-999 | PRESSURE GAUGE |
| 469-080202-305 | ADAPTER (PRESSURE GAUGE |
| 227-014018-405 | PIPE BUSHING (PRESSURE GAUGE |
| 001-014244-278 | BODY (RELIEF VALVE) |
| 001-014241-363 | SPRING (RELIEF VALVE) |
| 001-014242-271 | ADJ. SCREW (RELIEF VALVE) |
| 001-0144251-206 | WASHER / GASKET (RELIEF VALVE |
| 130-078014-243 | JAM NUT (RELIEF VALVE) |
| 001-014243-271 | CAP (RELIEF VALVE) |
| ABB-113766-000 | AIR BREATHER |
| 002-024251-999 | MAIN BEARING |
| OPTIONAL PARTS AND KITS | |
| 998-HP2000-038 | POWER END GASKET KIT < * > |
| 998-Q42400-002 | CONN, ROD w/ NDL BEARING < * > |
| 998-Q42400-001 | WIPER BOX KIT ( 2-SEAL – SS ) < * > |
| 998-Q42400-003 | WIPER BOX KIT ( 3-SEAL – STL ) < * > |
| 998-Q42400-022 | WIPER BOX KIT ( PACKING ) < * > |
| GEAR REDUCDER UNIT POWER END, LEFT HAND DRIVE 217Q-4 ( HP 200 ) DWG NO. 118572 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| AAC-028959-350 | GEAR CASE ASSEMBLY |
| 170-034005-220 | DRAIN PLUG ( CASING ) < * > |
| 001-011039-999 | AIR BREATHER < * > |
| 100-012114-290 | CAP SCREW |
| 147-038100-220 | DOWELL PIN ( COVER, GEAR REDUCER ) |
| 001-010803-999 | OIL LEVEL GAUGE < * > |
| 147-012100-220 | DOWELL PIN |
| 254-260034-201 | O-RING ( COVER, GEAR REDUCER ) |
| 001-013788-204 | GASKET ( BEARING RETAINER COVER ) |
| 002-019883-231 | COVER, PINION SHAFT |
| 145-258358-999 | SEAL ( PINION SHAFT ) |
| – | PINION GEAR < SEE NOTE 1 > |
| 146-058312-236 | KEY ( PINION GEAR ) |
| 121-275059-999 | BEARING ( PINION GEAR ) |
| 100-012114-290 | CAP SCREW ( PINION COVER ) |
| 177-000600-999 | RETAINING RING |
| 110-000254-201 | O-RING ( BEARING RETAINER ) |
| 001-013787-231 | BEARING RETAINER ( PINION ) |
| 121-256055-999 | BEARING ( OUTER CRANKSHAFT ) |
| ABA-011592-236 | KEY ( CRANKSHAFT ) |
| AAC-028957-348 | CRANKSHAFT |
| 154-012078-220 | LOCK WASHER ( GEAR CASE ) |
| 102-012234-286 | STUD ( CASING, GEAR REDUCER ) |
| 151-012013-220 | NUT ( CASING, GEAR REDUCER ) |
| 110-000277-201 | O-RING ( BEARING HOUSING, MAIN ) |
| 120-450084-999 | END BEARING ( CRANKSHAFT ) |
| AAB-028958-356 | BEARING HOUSING, MAIN ( CRANKSHAFT ) |
| 145-438538-999 | OIL SEAL ( CRANKSHAFT ) |
| 154-034127-220 | LOCK WASHER ( BULL GEAR ) |
| 100-034134-290 | CAP SCREW ( BULL GEAR ) |
| AAB-115743-351 | HUB ( BULL GEAR ) |
| 001-025629-305 | OIL SCOOP |
| 170-012002-220 | PLUG ( OIL SCOOP ) |
| 001-012117-999 | THREAD SEAL ( OIL SCOOP ) |
| – | BULL GEAR < SEE NOTE 1 > |
| 001-013849-220 | ACCESS COVER < * > |
| 001-001873-204 | GASKET ( ACCESS COVER ) < * > |
| 100-038058-290 | CAP SCREW ( ACCESS COVER ) < * > |
| 001-014396-231 | RETAINER, ( PINION GEAR ) |
| 004-017140-351 | BEARING HOUSING ( OUTER CRANK SHAFT ) |
| 177-000550-999 | BEARING RETAINER |
| 001-011008-231 | COVER ( CRANKSHAFT ) |
| 001-011004-206 | GASKET ( CRANKSHAFT COVER ) |
| 100-038112-290 | CAP SCREW |
| GEAR REDUCDER UNIT LEFT HAND DRIVE, W/LUBRICATOR DRIVE SHAFT 217Q-4 ( HP 200 ) DWG NO. 118607 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| AAC-028959-350 | GEAR CASE ASSEMBLY |
| 170-034005-220 | DRAIN PLUG ( CASING ) < * > |
| 001-011039-999 | AIR BREATHER < * > |
| 100-012114-290 | CAP SCREW |
| 147-038100-220 | DOWELL PIN ( COVER, GEAR REDUCER ) |
| 001-010803-999 | OIL LEVEL GAUGE < * > |
| 147-012100-220 | DOWELL PIN |
| 254-260034-201 | O-RING ( COVER, GEAR REDUCER ) |
| 001-013788-204 | GASKET ( BEARING RETAINER COVER ) |
| 002-019883-231 | COVER, PINION SHAFT |
| 145-258358-999 | SEAL ( PINION SHAFT ) |
| – | PINION GEAR < SEE NOTE 1 > |
| 146-058312-236 | KEY ( PINION GEAR ) |
| 121-275059-999 | BEARING ( PINION GEAR ) |
| 100-012114-290 | CAP SCREW ( PINION COVER ) |
| 177-000600-999 | RETAINING RING |
| 110-000254-201 | O-RING ( BEARING RETAINER ) |
| 001-013787-231 | BEARING RETAINER ( PINION ) |
| 121-256055-999 | BEARING ( OUTER CRANKSHAFT ) |
| ABA-011592-236 | KEY ( CRANKSHAFT ) |
| AAC-116602-348 | CRANKSHAFT |
| 154-012078-220 | LOCK WASHER ( GEAR CASE ) |
| 102-012234-286 | STUD ( CASING, GEAR REDUCER ) |
| 151-012013-220 | NUT ( CASING, GEAR REDUCER ) |
| 110-000277-201 | O-RING ( BEARING HOUSING, MAIN ) |
| 120-450084-999 | END BEARING ( CRANKSHAFT ) |
| AAB-028958-356 | BEARING HOUSING, MAIN ( CRANKSHAFT ) |
| 145-438538-999 | OIL SEAL ( CRANKSHAFT ) |
| 154-034127-220 | LOCK WASHER ( BULL GEAR ) |
| 100-034134-290 | CAP SCREW ( BULL GEAR ) |
| AAB-115743-351 | HUB ( BULL GEAR ) |
| 001-025629-305 | OIL SCOOP |
| 170-012002-220 | PLUG ( OIL SCOOP ) |
| 001-012117-999 | THREAD SEAL ( OIL SCOOP ) |
| – | BULL GEAR < SEE NOTE 1 > |
| 001-013849-220 | ACCESS COVER < * > |
| 001-001873-204 | GASKET ( ACCESS COVER ) < * > |
| 100-038058-290 | CAP SCREW ( ACCESS COVER ) < * > |
| 001-014396-231 | RETAINER, ( PINION GEAR ) |
| 004-017140-351 | BEARING HOUSING ( OUTER CRANK SHAFT ) |
| 177-000550-999 | BEARING RETAINER |
| AAA-116601-231 | COVER ( CRANKSHAFT ) |
| 001-011004-206 | GASKET ( CRANKSHAFT COVER ) |
| 100-038112-290 | CAP SCREW |
| 145-100200-999 | OIL SEAL ( CRANKSHAFT EXTENSION ) |
| 001-010581-267 | EXTENSION, CRANKSHAFT |
| ASSEMBLY, SPHERICAL VALVE 217Q-4L, 163Q-4L ( HP 200AL, HP 165AL ) DWG NO. 118575 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| 179303625W | ASSEMBLY, SPHERICAL VALVE |
| 179303725 | SEAT < * > |
| 179302725 | BODY ( VALVE ) < * > |
| 1793026 | SPRING, INNER |
| 1793025 | SPRING, OUTER |
| 17930246WX | RETAINER |
| 9707082 | WAVE RING |
| ASSEMBLY, SPHERICAL VALVE SEVERE DUTY 217Q-4L, 163Q-4L ( HP 200AL, HP 165AL ) DWG NO. 118576 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| 179303625SD | ASSEMBLY, SPHERICAL, SEVERE DUTY |
| 179303725 | SEAT |
| 179302725SD | BODY ( VALVE ) |
| 1793026 | SPRING, INNER |
| 1793025 | SPRING, OUTER |
| 17930246WX | RETAINER |
| 9707082 | WAVE RING |
| 9707086 | VAVLE INSERT |
| ASSEMBLY, DISC VALVE 217Q-4L, 163Q-4L ( HP200AL, HP165AL ) DWG NO.118577 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| 001DP0809 | ASSEMBLY, DEL/CF8M DISC VALVE |
| ( DELRIN ) | |
| 0010809 | SEAT |
| 38178M | FASTENER |
| DP08 | DISC ( DELRIN ) |
| IS022 | SPRING, INNER |
| IS011 | SPRING, OUTER |
| SR01S | RETAINER |
| 001TP0809 | ASSEMBLY, TI/CF8M DISC VALVE |
| ( TITANIUM ) | |
| 0010809 | SEAT |
| 38178M | FASTENER |
| TP05 | DISC ( TITANIUM ) |
| IS022 | SPRING, INNER |
| IS011 | SPRING, OUTER |
| SR01S | RETAINER |
| ASSEMBLY, SEVERE DUTY 217Q-4L, 163Q-4L ( HP200AL, HP163AL ) DWG NO. 118578 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| 100SD0809 | ASSEMBLY, SEVERE DUTY |
| 1000809 | SEAT |
| SD08 | VALVE L/INSERT |
| SDI08 | INSERT |
| SDL09 | THREAD LOCK |
| IS011 | SPRING |
| SDR08 | RETAINER |
| ASSEMBLY, SPHERICAL VALVE 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118579 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| 179253425W | ASSEMBLY, SPHERICAL VALVE |
| 179253525 | SEAT < * > |
| 179252725 | BODY ( VALVE ) < * > |
| 1792525 | SPRING |
| 17925246W | RETAINER |
| 9707083 | WAVE RING |
| ASSEMBLY, SPHERICAL VALVE SEVERE DUTY 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118580 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| 179253425SD | ASSEMBLY, SPHERICAL, SEVERE DUTY |
| 179253525SD | SEAT |
| 179252725SD | BODY ( VALVE ) |
| 9707087 | VAVLE INSERT |
| 1792525 | SPRING |
| 17925246W | RETAINER |
| 9707083 | WAVE RING |
| ASSEMBLY, DISC VALVE 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO.118581 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| 001DP0402 | ASSEMBLY, DEL/CF8M DISC VALVE |
| ( DELRIN ) | |
| 0010402 | SEAT |
| 38178M | FASTENER |
| DP07 | DISC – DELRIN |
| IS022 | SPRING, INNER |
| IS011 | SPRING, OUTER |
| SR01S | RETAINER |
| 00ITP0402 | ASSEMBLY, TI/CF8M DISC VALVE |
| ( TITANIUM ) | |
| 0010402 | SEAT |
| 38178M | FASTENER |
| TP07 | DISC – TITANIUM |
| IS022 | SPRING, INNER |
| IS011 | SPRING, OUTER |
| SR01S | RETAINER |
| ASSEMBLY, SEVERE DUTY 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118582 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| 100SD0402 | ASSEMBLY, SEVERE DUTY |
| 1000402 | SEAT |
| SD07 | VALVE L/INSERT |
| SDI07 | INSERT |
| SDL07 | THREAD LOCK |
| SDS071 | SPRING |
| SDR07 | RETAINER |
| ASSEMBLY, SPHERICAL VALVE 217Q-4H, 163Q-4H DWG NO. 118583 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| 179100025M | ASSEMBLY, SPHERICAL VALVE |
| 179100125M | SEAT <*> |
| 179100225 | BODY ( VALVE ) <*> |
| 1792525 | SPRING |
| 17910036W | RETAINER |
| 9707072 | WAVE RING |
| ASSEMBLY, SPHERICAL VALVE “SEVERE DUTY” 217Q-4H, 163Q-4H DWG NO. 118585 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| 179100025SDM | ASSEMBLY, SPHERICAL, SEVERE DUTY |
| 179100125M | SEAT |
| 179100225SD | BODY ( VALVE ) |
| 9707071 | VALVE INSERT |
| 1792525 | SPRING |
| 17910036W | RETAINER |
| 9707072 | WAVE RING |
| ASSEMBLY, DISC VALVE 217Q-4H, 163Q-4H DWG NO. 118586 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| CAA-X5ST2S-130 | ASSEMBLY, TI/CF8M DISC VALVE |
| (TITANIUM) | |
| CAA-X5S130-000 | SEAT |
| 38178M | FASTENER |
| TP05 | DISC ( TITANIUM ) |
| IS022 | SPRING, INNER |
| IS011 | SPRING, OUTER |
| CAA-RT36S0-000 | RETAINER |
| ASSEMBLY, SEVERE DUTY 217Q-4H, 163Q-4H DWG NO. 118584 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| 100SD0513 | ASSEMBLY, SEVERE DUTY |
| 1000513 | SEAT |
| SD05 | VALVE L/INSERT |
| SDI05 | INSERT |
| SDL05 | THREAD LOCK |
| SDS051 | SPRING |
| SDR05 | RETAINER |
| TOOL SERVICE KIT “L”-CLASS FLUID ENDS 217Q-4L, 163Q-4L ( HP200AL, 165AL ) DWG NO. 118587 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| 998-Q4240L-091 | ASSEMBLY, VALVE SEAT PULLER – ( SEVERE DUTY ) |
| 008-028546-001 | BUMPER |
| 008-028546-002 | BUMPER STEM |
| 008-028546-016 | ADAPTER NUT |
| 008-028546-013 | HOLD DOWN NUT |
| 008-028546-035 | STRONG BACK |
| 008-028546-005 | PULLER STEM |
| 008-028546-022 | ECCENTRIC, PULLER |
| 008-028546-030 | PULLER GUIDE |
| 008-028546-044 | CAGE TOOL |
| 998-Q4240L-092 | ASSEMBLY, VALVE SEAT PULLER – ( DISC VALVE ) |
| 008-028546-001 | BUMPER |
| 008-028546-002 | BUMPER STEM |
| 008-028546-016 | ADAPTER NUT |
| 008-028546-013 | HOLD DOWN NUT |
| 008-028546-035 | STRONG BACK |
| 008-028546-005 | PULLER STEM |
| AAC-011956-275 | PULLER STEM |
| 180104127 | ASSEMBLY, VALVE SEAT PULLER – ( SPHERICAL ) |
| 75518308 | HOLD DOWN NUT |
| 20220194 | STRONG BACK |
| 20220159 | PULLER STEM |
| 181259300 | PULLER HEAD |
| 181205709 | SPACER |
| 1790034 | RETRIEVER |
| 001-027585-999 | WRENCH, VALVE COVER ( HAMMER WRENCH ) |
| AAB-051293-274 | WRENCH, GLAND NUT ( PIN TYPE – 0.545 HOLE ) |
| AAB-117875-270 | WRENCH, GLAND NUT ( PIN TYPE – 0.750 HOLE ) |
| 002-025720-231 | WRENCH, GLAND NUT ( STD. SPANNER ) |
| TOOL SERVICE KIT “M”-CLASS FLUID ENDS 217Q-4M, 163Q-4M ( HP200AM, 165AM ) DWG NO. 118588 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| 998-Q4240M-091 | ASSEMBLY, VALVE SEAT PULLER – ( SEVERE DUTY ) |
| 008-028546-001 | BUMPER |
| 008-028546-002 | BUMPER STEM |
| 008-028546-016 | ADAPTER NUT |
| 008-028546-013 | HOLD DOWN NUT |
| 008-028546-035 | STRONG BACK |
| 008-028546-005 | PULLER STEM |
| 008-028546-019 | ECCENTRIC, PULLER |
| 008-028546-027 | PULLER GUIDE |
| 008-028546-043 | CAGE TOOL |
| 998-Q4240M-092 | ASSEMBLY, VALVE SEAT PULLER – ( DISC VALVE ) |
| 008-028546-001 | BUMPER |
| 008-028546-002 | BUMPER STEM |
| 008-028546-015 | ADAPTER NUT |
| 008-028546-012 | HOLD DOWN NUT |
| 008-028546-035 | STRONG BACK |
| 008-028546-004 | PULLER STEM |
| 001-012497-274 | PULLER HEAD |
| 180104119 | ASSEMBLY, VALVE SEAT PULLER – ( SPHERICAL ) |
| 75518308 | HOLD DOWN NUT |
| 20220194 | STRONG BACK |
| 20220159 | PULLER STEM |
| 181259250 | PULLER HEAD |
| 181205709 | SPACER |
| 1790034 | RETRIEVER |
| 001-027584-999 | WRENCH, VALVE COVER ( HAMMER WRENCH ) |
| 002-051293-274 | WRENCH, GLAND NUT ( PIN TYPE – 0.545 HOLE ) |
| AAB-030945-274 | WRENCH, GLAND NUT ( PIN TYPE – 0.531 HOLE ) |
| 002-027780-351 | WRENCH, GLAND NUT ( DUCTILE IRON ) |
| TOOL SERVICE KIT “H”-CLASS FLUID ENDS 217Q-4H, 163Q-4H DWG NO. 118589 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| 998-Q3150M-091 | ASSEMBLY, VALVE SEAT PULLER – ( SEVERE DUTY ) |
| 008-028546-001 | BUMPER |
| 008-028546-002 | BUMPER STEM |
| 008-028546-015 | ADAPTER NUT |
| 008-028546-012 | HOLD DOWN NUT |
| 008-028546-035 | STRONG BACK |
| 008-028546-004 | PULLER STEM |
| 008-028546-020 | ECCENTRIC, PULLER |
| 008-028546-028 | PULLER GUIDE |
| 008-028546-043 | CAGE TOOL |
| 998-Q3150M-092 | ASSEMBLY, VALVE SEAT PULLER – ( DISC VALVE ) |
| 008-028546-001 | BUMPER |
| 008-028546-002 | BUMPER STEM |
| 008-028546-016 | ADAPTER NUT |
| 008-028546-013 | HOLD DOWN NUT |
| 008-028546-035 | STRONG BACK |
| 008-028546-005 | PULLER STEM |
| 001-019433-274 | PULLER HEAD |
| 181259226 | ASSEMBLY, VALVE SEAT PULLER – ( SPHERICAL ) |
| 75510312 | HOLD DOWN NUT |
| 20220332 | STRONG BACK |
| 20220331 | PULLER STEM |
| 181259225 | PULLER HEAD |
| 1790034 | RETRIEVER |
| AAB-030420-274 | WRENCH, GLAND NUT ( PIN TYPE – 0.531 HOLE ) |
| ASSEMBLY, PLUNGER KIT “J”-STYLE PKG, 2-3/4″ THRU 3-3/8″ PLUNGER 217Q-4L, 163Q-4L ( HP200AL, HP165AL ) DWG NO.118590 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 2-3/4″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 001-014155-310 | GLAND NUT |
| 001-014155-351 | |
| AAB-030494-E16 | <*> |
| 001-024973-302 | THROAT BUSHING |
| 001-024973-235 | |
| 001-024973-575 | |
| 001-024972-302 | LANTERN RING |
| 001-024972-235 | |
| 001-024972-575 | |
| 001-024959-316 | ADAPTER |
| 001-024959-236 | |
| 001-024959-278 | |
| 218-234318-370 | PACKING |
| 218-234318-386 | |
| 218-234318-374 | |
| 218-234318-477 | |
| 001-024974-302 | FOLLOWER |
| 001-024974-235 | |
| 001-024974-575 | |
| 110-000246-200 | O-RING |
| 180-165000-220 | LUBE FITTING |
| ASSEMBLY, PLUNGER KIT “J”-STYLE PKG, 2-3/4″ THRU 3-3/8″ PLUNGER 217Q-4L, 163Q-4L ( HP200AL, HP165AL ) DWG NO. 118590 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 2-7/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 001-014155-310 | GLAND NUT |
| 001-014155-351 | |
| AAB-030494-E16 | <*> |
| 001-028783-302 | THROAT BUSHING |
| 001-028783-235 | |
| 001-028783-575 | |
| 001-011194-302 | LANTERN RING |
| 001-011194-235 | |
| 001-011194-575 | |
| 001-024959-316 | ADAPTER |
| 01-024959-236 | |
| 001-024959-278 | |
| 218-278318-370 | PACKING |
| 218-278318-386 | |
| 218-278318-374 | |
| 218-278318-477 | |
| 001-008353-302 | FOLLOWER |
| 001-008353-235 | |
| BCC-116333-575 | |
| 110-000246-200 | O-RING |
| 180-165000-220 | LUBE FITTING |
| ASSEMBLY, PLUNGER KIT “J”-STYLE PKG, 2-3/4″ THRU 3-3/8″ PLUNGER 217Q-4L, 163Q-4L ( HP200AL, HP165AL ) DWG NO. 118590 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 3″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 001-014155-310 | GLAND NUT |
| 001-014155-351 | |
| AAB-030494-E16 | <*> |
| 001-025961-302 | THROAT BUSHING |
| 001-025961-235 | |
| 001-025961-575 | |
| 001-011195-302 | LANTERN RING |
| 001-011195-235 | |
| 001-011195-575 | |
| 001-024959-316 | ADAPTER |
| 001-024959-236 | |
| 001-024959-278 | |
| 218-300281-370 | PACKING |
| 218-300281-386 | |
| 218-300281-374 | |
| 218-300281-477 | |
| 001-011188-302 | FOLLOWER |
| 001-011188-235 | |
| BEC-116333-575 | |
| 110-000246-200 | O-RING |
| 180-165000-220 | LUBE FITTING |
| ASSEMBLY, PLUNGER KIT “J”-STYLE PKG, 2-3/4″ THRU 3-3/8″ PLUNGER 217Q-4L, 163Q-4L ( HP200AL, HP165AL ) DWG NO. 118590 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 3-1/4″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 001-014155-310 | GLAND NUT |
| 001-014155-351 | |
| AAB-030494-E16 | <*> |
| 001-025962-302 | THROAT BUSHING |
| 001-025962-235 | |
| 001-025962-575 | |
| 001-011197-302 | LANTERN RING |
| 001-011197-235 | |
| 001-011197-575 | |
| 001-024959-316 | ADAPTER |
| 001-024959-236 | |
| 001-024959-278 | |
| 218-314214-370 | PACKING |
| 218-314214-386 | |
| 218-314214-374 | |
| 218-314214-477 | |
| 001-011190-302 | FOLLOWER |
| 001-011190-235 | |
| BJC-116333-575 | |
| 110-000246-200 | O-RING |
| 180-165000-220 | LUBE FITTING |
| ASSEMBLY, PLUNGER KIT “J”-STYLE PKG, 2-3/4″ THRU 3-3/8″ PLUNGER 217Q-4L, 163Q-4L ( HP200AL, HP165AL ) DWG NO. 118590 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 3-3/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 001-014155-310 | GLAND NUT |
| 001-014155-351 | |
| AAB-030494-E16 | <*> |
| 001-024976-302 | THROAT BUSHING |
| 001-024976-235 | |
| 001-024976-575 | |
| 001-024975-302 | LANTERN RING |
| 001-024975-235 | |
| 001-024975-575 | |
| 001-024959-316 | ADAPTER |
| 001-024959-236 | |
| 001-024959-278 | |
| 218-338214-370 | PACKING |
| 218-338214-386 | |
| 218-338214-374 | |
| 218-338214-477 | |
| 001-024977-302 | FOLLOWER |
| 001-024977-235 | |
| 001-024977-575 | |
| 110-000246-200 | O-RING |
| 180-165000-220 | LUBE FITTING |
| ASSEMBLY, PLUNGER KIT BRAID STYLE PKG, 2-3/4″ – 3-3/8″ PLUNGER 217Q-4L, 163Q-4L ( HP200AL, HP165AL ) DWG NO. 118591 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 2-3/4″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 001-014155-310 | GLAND NUT |
| 001-024095-351 | |
| AAB-030494-E16 | <*> |
| 001-024973-302 | THROAT BUSHING |
| 001-027619-235 | |
| 001-024973-575 | |
| 170-018002-278 | PIPE PLUG |
| 170-018002-220 | |
| 001-024959-316 | ADAPTER |
| 001-024959-236 | |
| 001-024959-278 | |
| 437-234438-395 | PACKING |
| 437-234438-337 | |
| 437-234438-339 | |
| 437-234438-458 | |
| 001-024974-302 | FOLLOWER |
| 001-024974-235 | |
| 001-024974-575 | |
| 110-000246-200 | O-RING |
| ASSEMBLY, PLUNGER KIT BRAID STYLE PKG, 2-3/4″ – 3-3/8″ PLUNGER 217Q-4L, 163Q-4L ( HP200AL, HP165AL ) DWG NO. 118591 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 2-7/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 001-014155-310 | GLAND NUT |
| 001-014155-351 | |
| AAB-030494-E16 | <*> |
| 001-028783-302 | THROAT BUSHING |
| 001-028783-235 | |
| 001-028783-575 | |
| 170-018002-278 | PIPE PLUG |
| 170-018002-220 | |
| 001-024959-316 | ADAPTER |
| 001-024959-236 | |
| 001-024959-278 | |
| 437-278356-395 | PACKING |
| 437-278356-337 | |
| 437-278356-339 | |
| 437-278356-458 | |
| 001-008358-302 | FOLLOWER |
| 001-008358-235 | |
| BCC-116333-575 | |
| 110-000246-200 | O-RING |
| ASSEMBLY, PLUNGER KIT BRAID STYLE PKG, 2-3/4″ – 3-3/8″ PLUNGER 217Q-4L, 163Q-4L ( HP200AL, HP165AL ) DWG NO. 118591 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 3″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 001-014155-310 | GLAND NUT |
| 001-014155-351 | |
| AAB-030494-E16 | <*> |
| 001-025961-302 | THROAT BUSHING |
| 001-025961-235 | |
| 001-025961-575 | |
| 170-018002-278 | PIPE PLUG |
| 170-018002-220 | |
| 001-024959-316 | ADAPTER |
| 001-024959-236 | |
| 001-024959-278 | |
| 437-300438-395 | PACKING |
| 437-300438-337 | |
| 437-300438-339 | |
| 437-300438-458 | |
| 001-011188-302 | FOLLOWER |
| 001-011188-235 | |
| BEC-116333-575 | |
| 110-000246-200 | O-RING |
| ASSEMBLY, PLUNGER KIT BRAID STYLE PKG, 2-3/4″ – 3-3/8″ PLUNGER 217Q-4L, 163Q-4L ( HP200AL, HP165AL ) DWG NO. 118591 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 3-1/4″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 001-024095-310 | GLAND NUT |
| 001-014155-351 | |
| AAB-030494-E16 | <*> |
| 001-025962-302 | THROAT BUSHING |
| 001-025962-235 | |
| 001-025962-575 | |
| 170-018002-278 | PIPE PLUG |
| 170-018002-220 | |
| 001-024959-316 | ADAPTER |
| 001-024959-236 | |
| 001-024959-278 | |
| 437-314312-395 | PACKING |
| 437-314312-337 | |
| 437-314312-339 | |
| 437-314312-458 | |
| 001-011190-302 | FOLLOWER |
| 001-011190-235 | |
| 001-011190-575 | |
| 110-000246-200 | O-RING |
| ASSEMBLY, PLUNGER KIT BRAID STYLE PKG, 2-3/4″ – 3-3/8″ PLUNGER 217Q-4L, 163Q-4L ( HP200AL, HP165AL ) DWG NO. 118591 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 3-3/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 001-014155-310 | GLAND NUT |
| 001-014155-351 | |
| AAB-030494-E16 | <*> |
| 001-024976-302 | THROAT BUSHING |
| 001-024976-235 | |
| 001-024976-575 | |
| 170-018002-278 | PIPE PLUG |
| 170-018002-220 | |
| 001-024959-316 | ADAPTER |
| 001-024959-236 | |
| 001-024959-278 | |
| 437-338312-395 | PACKING |
| 437-338312-337 | |
| 437-338312-339 | |
| 437-338312-458 | |
| 001-024977-302 | FOLLOWER |
| 001-024977-235 | |
| 001-024977-575 | |
| 110-000246-200 | O-RING |
| ASSEMBLY, PLUNGER KIT “SSF-4″ STYLE PKG, 2-3/4″ – 3-3/8” PLUNGER 217Q-4L, 163Q-4L ( HP200AL, HP165AL ) DWG NO. 118592 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 2-3/4″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 001-024095-310 | GLAND NUT |
| 001-024095-351 | |
| AAB-030494-E16 | <*> |
| 001-024973-302 | THROAT BUSHING |
| 001-024973-235 | |
| 001-024973-575 | |
| 170-018002-278 | PIPE PLUG |
| 170-018002-220 | |
| 001-024959-316 | ADAPTER |
| 001-024959-236 | |
| 001-024959-278 | |
| 430-234378-340 | PACKING |
| 430-234378-473 | |
| 001-024974-302 | FOLLOWER |
| 001-024974-235 | |
| 001-024974-575 | |
| 110-000246-200 | O-RING |
| ASSEMBLY, PLUNGER KIT “SSF-4″ STYLE PKG, 2-3/4″ – 3-3/8” PLUNGER 217Q-4L, 163Q-4L ( HP200AL, HP165AL ) DWG NO. 118592 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 2-7/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 001-014155-310 | GLAND NUT |
| 001-014155-351 | |
| AAB-030494-E16 | <*> |
| 001-028783-302 | THROAT BUSHING |
| 001-028783-235 | |
| 001-028783-575 | |
| 170-018002-278 | PIPE PLUG |
| 170-018002-220 | |
| 001-024959-316 | ADAPTER |
| 001-024959-236 | |
| 001-024959-278 | |
| 430-278356-430 | PACKING |
| 430-278338-473 | |
| 001-008353-302 | FOLLOWER |
| 001-008353-235 | |
| BCC-116333-575 | |
| 110-000246-200 | O-RING |
| ASSEMBLY, PLUNGER KIT “SSF-4″ STYLE PKG, 2-3/4″ – 3-3/8” PLUNGER 217Q-4L, 163Q-4L ( HP200AL, HP165AL ) DWG NO. 118592 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 3″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 001-024095-310 | GLAND NUT |
| 001-024095-351 | |
| AAB-030494-E16 | <*> |
| 001-025961-302 | THROAT BUSHING |
| 001-025961-235 | |
| 001-025961-575 | |
| 170-018002-278 | PIPE PLUG |
| 170-018002-220 | |
| 001-024959-316 | ADAPTER |
| 001-024959-236 | |
| 001-024959-278 | |
| 430-300358-340 | PACKING |
| 430-300358-473 | |
| 001-027717-302 | FOLLOWER |
| 001-027717-235 | |
| 001-027717-575 | |
| 110-000246-200 | O-RING |
| ASSEMBLY, PLUNGER KIT “SSF-4″ STYLE PKG, 2-3/4″ – 3-3/8” PLUNGER 217Q-4L, 163Q-4L ( HP200AL, HP165AL ) DWG NO. 118592 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 3-1/4″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 001-024095-310 | GLAND NUT |
| 001-024095-351 | |
| AAB-030494-E16 | <*> |
| 001-025962-302 | THROAT BUSHING |
| 001-025962-235 | |
| 001-025962-575 | |
| 170-018002-278 | PIPE PLUG |
| 170-018002-220 | |
| 001-024959-302 | ADAPTER |
| 001-024959-236 | |
| 001-024959-278 | |
| 430-314300-340 | PACKING |
| 430-314300-473 | |
| 001-011190-302 | FOLLOWER |
| 001-011190-235 | |
| BJC-116333-575 | |
| 110-000246-200 | O-RING |
| ASSEMBLY, PLUNGER KIT “SSF-4″ STYLE PKG, 2-3/4″ – 3-3/8” PLUNGER 217Q-4L, 163Q-4L ( HP200AL, HP165AL ) DWG NO. 118592 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 3-3/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 001-024095-310 | GLAND NUT |
| 001-024095-351 | |
| AAB-030494-E16 | <*> |
| 001-024976-302 | THROAT BUSHING |
| 001-024976-235 | |
| 001-024976-575 | |
| 170-018002-278 | PIPE PLUG |
| 170-018002-220 | |
| 001-024959-316 | ADAPTER |
| 001-024959-236 | |
| 001-024959-278 | |
| 430-338319-340 | PACKING |
| 430-338319-473 | |
| 001-024976-302 | FOLLOWER |
| 001-024976-235 | |
| 001-024976-575 | |
| 110-000246-200 | O-RING |
| ASSEMBLY, PLUNGER KIT “J”- STYLE PKG, 1-5/8″ THRU 2-1/2″ PLUNGER 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118593 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-5/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-023662-302 | THROAT BUSHING |
| 001-023662-235 | |
| 001-023662-575 | |
| 001-023663-302 | LANTERN RING |
| 001-023663-235 | |
| 001-023663-575 | |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 181-158253-370 | PACKING |
| 181-158253-386 | |
| 181-158253-374 | |
| 181-158253-477 | |
| 001-023661-302 | FOLLOWER |
| 001-023661-235 | |
| 001-023661-575 | |
| 110-000238-201 | O-RING |
| 180-165000-220 | LUBE FITTING |
| ASSEMBLY, PLUNGER KIT “J” – STYLE PKG, 1-5/8″ THRU 2-1/2″ PLUNGER 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118593 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-3/4″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-010897-302 | THROAT BUSHING |
| 001-010897-235 | |
| 001-010897-575 | |
| 001-010990-302 | LANTERN RING |
| 001-010990-235 | |
| 001-010990-575 | |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 181-134244-370 | PACKING |
| 181-134244-386 | |
| 181-134244-374 | |
| 181-134244-477 | |
| 001-010933-302 | FOLLOWER |
| 001-010933-235 | |
| 001-010933-575 | |
| 110-000238-201 | O-RING |
| 180-165000-220 | LUBE FITTING |
| ASSEMBLY, PLUNGER KIT “J” – STYLE PKG, 1-5/8″ THRU 2-1/2″ PLUNGER 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118593 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-7/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-010899-302 | THROAT BUSHING |
| 001-010899-235 | |
| 001-010899-575 | |
| 001-014457-302 | LANTERN RING |
| 001-014457-235 | |
| 001-014457-575 | |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 181-178244-370 | PACKING |
| 181-178244-386 | |
| 181-178244-374 | |
| 181-178244-477 | |
| 001-014459-302 | FOLLOWER |
| 001-014459-235 | |
| 001-014459-575 | |
| 110-000238-201 | O-RING |
| 180-165000-220 | LUBE FITTING |
| ASSEMBLY, PLUNGER KIT “J” – STYLE PKG, 1-5/8″ THRU 2-1/2″ PLUNGER 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118593 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 2″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-010901-302 | THROAT BUSHING |
| 001-010901-235 | |
| 001-010901-575 | |
| 001-010991-302 | LANTERN RING |
| 001-010991-235 | |
| 001-010991-575 | |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 181-200214-370 | PACKING |
| 181-200214-386 | |
| 181-200214-374 | |
| 181-200214-477 | |
| 001-010931-302 | FOLLOWER |
| 001-010931-235 | |
| 001-010931-575 | |
| 110-000238-201 | O-RING |
| 180-165000-220 | LUBE FITTING |
| ASSEMBLY, PLUNGER KIT “J” – STYLE PKG, 1-5/8″ THRU 2-1/2″ PLUNGER 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118593 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 2-1/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-010902-302 | THROAT BUSHING |
| 001-010902-235 | |
| 001-010902-575 | |
| 001-014456-302 | LANTERN RING |
| 001-014456-235 | |
| 001-014456-575 | |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 181-218214-370 | PACKING |
| 181-218214-386 | |
| 181-218214-374 | |
| 181-218214-477 | |
| 001-014458-302 | FOLLOWER |
| 001-014458-235 | |
| 001-014458-575 | |
| 110-000238-201 | O-RING |
| 180-165002-220 | LUBE FITTING |
| ASSEMBLY, PLUNGER KIT “J” – STYLE PKG, 1-5/8″ THRU 2-1/2″ PLUNGER 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118593 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 2-1/4″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-007979-302 | THROAT BUSHING |
| 001-007979-235 | |
| 001-007979-575 | |
| 001-010266-302 | LANTERN RING |
| 001-010266-235 | |
| 001-010266-575 | |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 181-214214-370 | PACKING |
| 181-214214-386 | |
| 181-214214-374 | |
| 181-214214-477 | |
| 001-007983-302 | FOLLOWER |
| 001-007983-235 | |
| 001-007983-575 | |
| 110-000238-201 | O-RING |
| 180-165000-220 | LUBE FITTING |
| ASSEMBLY, PLUNGER KIT “J” – STYLE PKG, 1-5/8″ THRU 2-1/2″ PLUNGER 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118593 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 2-3/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-024394-302 | THROAT BUSHING |
| 001-024394-235 | |
| 001-024394-575 | |
| 001-028072-302 | LANTERN RING |
| 001-028072-235 | |
| 001-028072-575 | |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 181-238258-370 | PACKING |
| 181-238258-386 | |
| 181-238258-374 | |
| 181-238258-477 | |
| 001-024393-302 | FOLLOWER |
| 001-024393-235 | |
| 001-024393-575 | |
| 110-000238-201 | O-RING |
| 180-165000-220 | LUBE FITTING |
| ASSEMBLY, PLUNGER KIT “J” – STYLE PKG, 1-5/8″ THRU 2-1/2″ PLUNGER 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118593 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 2-1/2″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-025918-302 | THROAT BUSHING |
| 001-025918-235 | |
| 001-025918-575 | |
| 001-010904-302 | |
| 001-010904-235 | |
| 001-010904-575 | |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 181-212178-370 | PACKING |
| 181-212178-386 | |
| 181-212178-374 | |
| 181-212178-477 | |
| 001-008745-302 | FOLLOWER |
| 001-008745-235 | |
| 001-008745-575 | |
| 110-000238-201 | O-RING |
| 180-165000-220 | LUBE FITTING |
| ASSEMBLY, PLUNGER KIT BRAID STYLE PKG, 1-5/8″ THRU 2-1/2″ PLGR 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118594 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-5/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-023662-302 | THROAT BUSHING |
| 001-023662-235 | |
| 001-023662-575 | |
| 170-018002-278 | PIPE PLUG |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 288-158234-395 | PACKING |
| 288-158234-337 | |
| 288-158234-339 | |
| 288-158234-458 | |
| 001-023661-302 | FOLLOWER |
| 001-023661-235 | |
| 001-023661-575 | |
| 110-000238-201 | O-RING |
| ASSEMBLY, PLUNGER KIT BRAID STYLE PKG, 1-5/8″ THRU 2-1/2″ PLGR 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118594 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-3/4″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-010897-302 | THROAT BUSHING |
| 001-010897-235 | |
| 001-010897-575 | |
| 170-018002-278 | PIPE PLUG |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 288-134258-395 | PACKING |
| 288-134258-337 | |
| 288-134258-339 | |
| 288-134258-458 | |
| 001-010933-302 | FOLLOWER |
| 001-010933-235 | |
| 001-010933-575 | |
| 110-000238-201 | O-RING |
| ASSEMBLY, PLUNGER KIT BRAID STYLE PKG, 1-5/8″ THRU 2-1/2″ PLGR 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118594 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-7/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-010899-302 | THROAT BUSHING |
| 001-010899-235 | |
| 001-010899-575 | |
| 170-018002-278 | PIPE PLUG |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 288-178234-395 | PACKING |
| 288-178234-337 | |
| 288-178234-339 | |
| 288-178234-458 | |
| 001-014459-302 | FOLLOWER |
| 001-014459-235 | |
| 001-014459-575 | |
| 110-000238-201 | O-RING |
| ASSEMBLY, PLUNGER KIT BRAID STYLE PKG, 1-5/8″ THRU 2-1/2″ PLGR 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118594 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 2″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-010901-302 | THROAT BUSHING |
| 001-010901-235 | |
| 001-010901-575 | |
| 170-018002-278 | PIPE PLUG |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 288-200258-395 | PACKING |
| 288-200258-337 | |
| 288-200258-339 | |
| 288-200258-458 | |
| 001-010931-302 | FOLLOWER |
| 001-010931-235 | |
| 001-010931-575 | |
| 110-000238-201 | O-RING |
| ASSEMBLY, PLUNGER KIT BRAID STYLE PKG, 1-5/8″ THRU 2-1/2″ PLGR 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118594 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 2-1/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-010902-302 | THROAT BUSHING |
| 001-010902-235 | |
| 001-010902-575 | |
| 170-018002-278 | PIPE PLUG |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 288-218234-395 | PACKING |
| 288-218234-337 | |
| 288-218234-339 | |
| 288-218234-458 | |
| 001-014458-302 | FOLLOWER |
| 001-014458-235 | |
| 001-014458-575 | |
| 110-000238-201 | O-RING |
| ASSEMBLY, PLUNGER KIT BRAID STYLE PKG, 1-5/8″ THRU 2-1/2″ PLGR 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118594 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 2-1/4″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-007979-302 | THROAT BUSHING |
| 001-007979-235 | |
| 001-007979-575 | |
| 170-018002-278 | PIPE PLUG |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 288-214234-395 | PACKING |
| 288-214234-337 | |
| 288-214234-339 | |
| 288-214234-458 | |
| 001-007983-302 | FOLLOWER |
| 001-007983-235 | |
| 001-007983-575 | |
| 110-000238-201 | O-RING |
| ASSEMBLY, PLUNGER KIT BRAID STYLE PKG, 1-5/8″ – 2-1/2″ PLGR 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118594 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 2-3/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-024394-302 | THROAT BUSHING |
| 001-024394-235 | |
| 001-024394-575 | |
| 170-018002-278 | PIPE PLUG |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 288-238234-395 | PACKING |
| 288-238234-337 | |
| 288-238234-339 | |
| 288-238234-458 | |
| 001-024393-302 | FOLLOWER |
| 001-024393-235 | |
| 001-024393-575 | |
| 110-000238-201 | O-RING |
| ASSEMBLY, PLUNGER KIT BRAID STYLE PKG, 1-5/8″ THRU 2-1/2″ PLGR 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118594 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 2-1/2″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-025918-302 | THROAT BUSHING |
| 001-025918-235 | |
| 001-025918-575 | |
| 170-018002-278 | PIPE PLUG |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 288-212234-395 | PACKING |
| 288-212234-337 | |
| 288-212234-339 | |
| 288-212234-458 | |
| 001-008745-302 | FOLLOWER |
| 001-008745-235 | |
| 001-008745-575 | |
| 110-000238-201 | O-RING |
| ASSEMBLY, PLUNGER KIT “SSF-4″ STYLE PKG, 1-5/8″ THRU 2-1/2” PLGR 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118595 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-5/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-023662-302 | THROAT BUSHING |
| 001-023662-235 | |
| 001-023662-575 | |
| 170-018002-278 | PIPE PLUG |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 428-158212-340 | PACKING |
| 428-158212-473 | |
| 001-023661-302 | FOLLOWER |
| 001-023661-235 | |
| 001-023661-575 | |
| 110-000238-201 | O-RING |
| ASSEMBLY, PLUNGER KIT “SSF-4″ STYLE PKG, 1-5/8″ THRU 2-1/2” PLGR 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118595 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-3/4″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-010897-302 | THROAT BUSHING |
| 001-010897-235 | |
| 001-010897-575 | |
| 170-018002-278 | PIPE PLUG |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 428-134212-340 | PACKING |
| 428-134212-473 | |
| 001-010933-302 | FOLLOWER |
| 001-010933-235 | |
| 001-010933-575 | |
| 110-000238-201 | O-RING |
| ASSEMBLY, PLUNGER KIT “SSF-4″ STYLE PKG, 1-5/8″ THRU 2-1/2” PLGR 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118595 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-7/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-010899-302 | THROAT BUSHING |
| 001-010899-235 | |
| 001-010899-575 | |
| 170-018002-278 | PIPE PLUG |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 428-178212-340 | PACKING |
| 428-178212-473 | |
| 001-014459-302 | FOLLOWER |
| 001-014459-235 | |
| 001-014459-575 | |
| 110-000238-201 | O-RING |
| ASSEMBLY, PLUNGER KIT “SSF-4″ STYLE PKG, 1-5/8″ THRU 2-1/2” PLGR 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118595 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 2″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-010901-302 | THROAT BUSHING |
| 001-010901-235 | |
| 001-010901-575 | |
| 170-018002-278 | PIPE PLUG |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 428-200238-340 | PACKING |
| 428-200238-473 | |
| 001-010931-302 | FOLLOWER |
| 001-010931-235 | |
| 001-010931-575 | |
| 110-000238-201 | O-RING |
| ASSEMBLY, PLUNGER KIT “SSF-4″ STYLE PKG, 1-5/8″ THRU 2-1/2” PLGR 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118595 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 2-1/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-010902-302 | THROAT BUSHING |
| 001-010902-235 | |
| 001-010902-575 | |
| 170-018002-278 | PIPE PLUG |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 428-218212-340 | PACKING |
| 428-218212-473 | |
| 001-014458-302 | FOLLOWER |
| 001-014458-235 | |
| 001-014458-575 | |
| 110-000238-201 | O-RING |
| ASSEMBLY, PLUNGER KIT “SSF-4″ STYLE PKG, 1-5/8″ THRU 2-1/2” PLGR 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118595 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 2-1/4″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-007979-302 | THROAT BUSHING |
| 001-007979-235 | |
| 001-007979-575 | |
| 170-018002-278 | PIPE PLUG |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 428-214212-340 | PACKING |
| 428-214212-473 | |
| 001-007983-302 | FOLLOWER |
| 001-007983-235 | |
| 001-007983-575 | |
| 110-000238-201 | O-RING |
| ASSEMBLY, PLUNGER KIT “SSF-4″ STYLE PKG, 1-5/8″ THRU 2-1/2” PLGR 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118595 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 2-3/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-024394-302 | THROAT BUSHING |
| 001-024394-235 | |
| 001-024394-575 | |
| 170-018002-278 | PIPE PLUG |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 428-238212-340 | PACKING |
| 428-238212-473 | |
| 001-024393-302 | FOLLOWER |
| 001-024393-235 | |
| 001-024393-575 | |
| 110-000238-201 | O-RING |
| ASSEMBLY, PLUNGER KIT “SSF-4″ STYLE PKG, 1-5/8″ THRU 2-1/2” PLGR 217Q-4M, 163Q-4M ( HP200AM, HP165AM ) DWG NO. 118595 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 2-1/2″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| 002-007977-261 | GLAND NUT |
| 001-007977-351 | |
| 002-007977-E16 | <*> |
| 001-025918-302 | THROAT BUSHING |
| 001-025918-235 | |
| 001-025918-575 | |
| 170-018002-278 | PIPE PLUG |
| 001-023574-316 | ADAPTER |
| 001-023574-236 | |
| 001-023574-278 | |
| 428-212244-340 | PACKING |
| 428-212244-473 | |
| 001-008745-302 | FOLLOWER |
| 001-008745-235 | |
| 001-008745-575 | |
| 110-000238-201 | O-RING |
| ASSEMBLY, PLUNGER KIT “J” STYLE PACKING, 1-1/4″ THRU 1-3/4″ 217Q-4H & 163Q-4H DWG NO. 118596 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-1/4″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| AEC-013800-E16 | GLAND NUT |
| 001-010950-302 | THROAT BUSHING |
| 001-010950-235 | |
| 001-010950-575 | |
| 001-011212-302 | LANTERN RING |
| 001-011212-235 | |
| 001-011212-575 | |
| AAC-118464-270 | STUFFING BOX |
| AAC-118464-402 | |
| 110-000337-200 | SEAL |
| 182-114214-370 | PACKING |
| 182-114214-386 | |
| 182-114214-374 | |
| 182-114214-477 | |
| 001-028470-402 | ADAPTER ROD |
| 180-165000-220 | LUBE FITTING |
| ASSEMBLY, PLUNGER KIT “J” STYLE PACKING, 1-1/4″ THRU 1-3/4″ 217Q-4H & 163Q-4H DWG NO. 118596 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-3/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| ADC-013800-E16 | GLAND NUT |
| 001-008913-302 | THROAT BUSHING |
| 001-008913-235 | |
| 001-008913-575 | |
| 001-011221-302 | LANTERN RING |
| 001-011221-235 | |
| 001-011221-575 | |
| AAC-118464-270 | STUFFING BOX |
| AAC-118464-402 | |
| 110-000337-200 | SEAL |
| 182-138214-370 | PACKING |
| 182-138214-386 | |
| 182-138214-374 | |
| 182-138214-477 | |
| 001-028470-402 | ADAPTER ROD |
| 180-165000-220 | LUBE FITTING |
| ASSEMBLY, PLUNGER KIT “J” STYLE PACKING, 1-1/4″ THRU 1-3/4″ 217Q-4H & 163Q-4H DWG NO. 118596 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-1/2″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| ACC-013800-E16 | GLAND NUT |
| 001-010949-302 | THROAT BUSHING |
| 001-010949-235 | |
| 001-010949-575 | |
| 001-011218-302 | LANTERN RING |
| 001-011218-235 | |
| 001-011218-575 | |
| AAC-118464-270 | STUFFING BOX |
| AAC-118464-402 | |
| 110-000337-200 | SEAL |
| 182-112214-370 | PACKING |
| 182-112214-386 | |
| 182-112214-374 | |
| 182-112214-477 | |
| 001-028470-402 | ADAPTER ROD |
| 180-165000-220 | LUBE FITTING |
| ASSEMBLY, PLUNGER KIT “J” STYLE PACKING, 1-1/4″ THRU 1-3/4″ 217Q-4H & 163Q-4H DWG NO. 118596 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-5/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| ABC-013800-E16 | GLAND NUT |
| 001-010962-302 | THROAT BUSHING |
| 001-010962-235 | |
| 001-010962-575 | |
| 001-005305-302 | LANTERN RING |
| 001-005305-235 | |
| 001-005305-575 | |
| AAC-118464-270 | STUFFING BOX |
| AAC-118464-402 | |
| 110-000337-200 | SEAL |
| 182-158214-370 | PACKING |
| 182-158214-386 | |
| 182-158214-374 | |
| 182-158214-477 | |
| 001-028470-402 | ADAPTER ROD |
| 180-165000-220 | LUBE FITTING |
| ASSEMBLY, PLUNGER KIT “J” STYLE PACKING, 1-1/4″ THRU 1-3/4″ 217Q-4H & 163Q-4H DWG NO. 118596 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-3/4″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| AAC-013800-E16 | GLAND NUT |
| 001-010894-302 | THROAT BUSHING |
| 001-010894-235 | |
| 001-010894-575 | |
| 001-011220-302 | LANTERN RING |
| 001-011220-235 | |
| 001-011220-575 | |
| AAC-118464-270 | STUFFING BOX |
| AAC-118464-402 | |
| 110-000337-200 | SEAL |
| 182-134178-370 | PACKING |
| 182-134178-386 | |
| 182-134178-374 | |
| 182-134178-477 | |
| 001-028470-402 | ADAPTER ROD |
| 180-165000-220 | LUBE FITTING |
| ASSEMBLY, PLUNGER KIT BRAID STYLE PACKING, 1-1/4″ THRU 1-3/4″ 217Q-4H & 163Q-4H DWG NO. 118597 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-1/4″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| AEC-013800-E16 | GLAND NUT |
| 001-010950-302 | THROAT BUSHING |
| 001-010950-235 | |
| 001-010950-575 | |
| AAC-118464-270 | STUFFING BOX |
| AAC-118464-402 | |
| 110-000337-200 | SEAL |
| 287-114234-395 | PACKING |
| 287-114234-337 | |
| 287-114234-339 | |
| 287-114234-458 | |
| 001-028470-402 | ADAPTER ROD |
| 170-018002-278 | PIPE PLUG |
| ASSEMBLY, PLUNGER KIT BRAID STYLE PACKING, 1-1/4″ THRU 1-3/4″ 217Q-4H & 163Q-4H DWG NO. 118597 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-3/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| ADC-013800-E16 | GLAND NUT |
| 001-008913-302 | THROAT BUSHING |
| 001-008913-235 | |
| 001-008913-575 | |
| AAC-118464-270 | STUFFING BOX |
| AAC-118464-402 | |
| 110-000337-200 | SEAL |
| 287-138234-395 | PACKING |
| 287-138234-337 | |
| 287-138234-339 | |
| 287-138234-458 | |
| 001-028470-402 | ADAPTER ROD |
| 170-018002-278 | PIPE PLUG |
| ASSEMBLY, PLUNGER KIT BRAID STYLE PACKING, 1-1/4″ THRU 1-3/4″ 217Q-4H & 163Q-4H DWG NO. 118597 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-1/2″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| ACC-013800-E16 | GLAND NUT |
| 001-010949-302 | THROAT BUSHING |
| 001-010949-235 | |
| 001-010949-575 | |
| AAC-118464-270 | STUFFING BOX |
| AAC-118464-402 | |
| 110-000337-200 | SEAL |
| 287-112234-395 | PACKING |
| 287-112234-337 | |
| 287-112234-339 | |
| 287-112234-458 | |
| 001-028470-402 | ADAPTER ROD |
| 170-018002-278 | PIPE PLUG |
| ASSEMBLY, PLUNGER KIT BRAID STYLE PACKING, 1-1/4″ THRU 1-3/4″ 217Q-4H & 163Q-4H DWG NO. 118597 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-5/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| ABC-013800-E16 | GLAND NUT |
| 001-010962-302 | THROAT BUSHING |
| 001-010962-235 | |
| 001-010962-575 | |
| AAC-118464-270 | STUFFING BOX |
| AAC-118464-402 | |
| 110-000337-200 | SEAL |
| 287-158234-395 | PACKING |
| 287-158234-337 | |
| 287-158234-339 | |
| 287-158234-458 | |
| 001-028470-402 | ADAPTER ROD |
| 170-018002-278 | PIPE PLUG |
| ASSEMBLY, PLUNGER KIT BRAID STYLE PACKING, 1-1/4″ THRU 1-3/4″ 217Q-4H & 163Q-4H DWG NO. 118597 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-3/4″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| AAC-013800-E16 | GLAND NUT |
| 001-024096-302 | THROAT BUSHING |
| 001-024096-235 | |
| 001-024096-575 | |
| AAC-118464-270 | STUFFING BOX |
| AAC-118464-402 | |
| 110-000337-200 | SEAL |
| 287-134234-395 | PACKING |
| 287-134234-337 | |
| 287-134234-339 | |
| 287-134234-458 | |
| 001-028470-402 | ADAPTER ROD |
| 170-018002-278 | PIPE PLUG |
| ASSEMBLY, PLUNGER KIT “SSF-4″ STYLE PKG, 1-1/4″ THRU 1-3/4” PLGR 217Q-4H & 163Q-4H DWG NO. 118598 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-1/4″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| AEC-013800-E16 | GLAND NUT |
| 001-010950-302 | THROAT BUSHING |
| 001-010950-235 | |
| 001-010950-575 | |
| 170-018002-278 | PIPE PLUG |
| AAC-118464-270 | STUFFING BOX |
| AAC-118464-402 | |
| 432-114238-340 | PACKING |
| 432-114238-473 | |
| 001-028470-402 | ADAPTER ROD |
| ASSEMBLY, PLUNGER KIT “SSF-4″ STYLE PKG, 1-1/4″ THRU 1-3/4” PLGR 217Q-4H & 163Q-4H DWG NO. 118598 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-3/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| ADC-013800-E16 | GLAND NUT |
| 001-008913-302 | THROAT BUSHING |
| 001-008913-235 | |
| 001-008913-575 | |
| 170-018002-278 | PIPE PLUG |
| AAC-118464-270 | STUFFING BOX |
| AAC-118464-402 | |
| 432-138238-340 | PACKING |
| 432-138238-473 | |
| 001-028470-402 | ADAPTER ROD |
| ASSEMBLY, PLUNGER KIT “SSF-4″ STYLE PKG, 1-1/4″ THRU 1-3/4” PLGR 217Q-4H & 163Q-4H DWG NO. 118598 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-1/2″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| ACC-013800-E16 | GLAND NUT |
| 001-010949-302 | THROAT BUSHING |
| 001-010949-235 | |
| 001-010949-575 | |
| 170-018002-278 | PIPE PLUG |
| AAC-118464-270 | STUFFING BOX |
| AAC-118464-402 | |
| 432-112238-340 | PACKING |
| 432-112238-473 | PACKING |
| 001-028470-402 | ADAPTER ROD |
| ASSEMBLY, PLUNGER KIT “SSF-4″ STYLE PKG, 1-1/4″ THRU 1-3/4” PLGR 217Q-4H & 163Q-4H DWG NO. 118598 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-5/8″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| ABC-013800-E16 | GLAND NUT |
| 001-010962-302 | THROAT BUSHING |
| 001-010962-235 | |
| 001-010962-575 | |
| 170-018002-278 | PIPE PLUG |
| AAC-118464-270 | STUFFING BOX |
| AAC-118464-402 | |
| 432-158238-340 | PACKING |
| 432-158238-473 | |
| 001-028470-402 | ADAPTER ROD |
| ASSEMBLY, PLUNGER KIT “SSF-4″ STYLE PKG, 1-1/4″ THRU 1-3/4” PLGR 217Q-4H & 163Q-4H DWG NO. 118598 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| ( 1-3/4″ PLUNGER ) | |
| 001-007986-201 | BAFFLE DISC |
| AAC-013800-E16 | GLAND NUT |
| 001-024096-302 | THROAT BUSHING |
| 001-024096-235 | |
| 001-024096-575 | |
| 170-018002-278 | PIPE PLUG |
| AAC-118464-270 | STUFFING BOX |
| AAC-118464-402 | |
| 432-134238-340 | PACKING |
| 432-134238-473 | |
| 001-028470-402 | ADAPTER ROD |
| PLUNGERS 2-3/4″ THRU 3-3-/8″ HARD SURFACE 217Q-4L ( HP200-AL ) DWG NO. 118599 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| 2-3/4″ DIA. PLUNGERS | |
| 002-028496-E26 | 2-3/4″ DIA. PLUNGER, PREMIUM TUNGSTEN |
| 002-028496-999 | 2-3/4″ DIA. PLUNGER, TUNGSTEN |
| 002-028496-E23 | 2-3/4″ DIA. PLUNGER, COBALT |
| 002-028496-E24 | 2-3/4″ DIA. PLUNGER, CHROME OXIDE |
| 2-7/8″ DIA. PLUNGERS | |
| 002-028782-E26 | 2-7/8″ DIA. PLUNGER, PREMIUM TUNGSTEN |
| 002-028782-999 | 2-7/8″ DIA. PLUNGER, TUNGSTEN |
| 002-028782-E23 | 2-7/8″ DIA. PLUNGER, COBALT |
| 002-028782-E24 | 2-7/8″ DIA. PLUNGER, CHROME OXIDE |
| 3″ DIA. PLUNGERS | |
| 002-028497-E26 | 3″ DIA. PLUNGER, PREMIUM TUNGSTEN |
| 002-028479-999 | 3″ DIA. PLUNGER, TUNGSTEN |
| 002-028497-E23 | 3″ DIA. PLUNGER, COBALT |
| 002-028497-E24 | 3″ DIA. PLUNGER, CHROME OXIDE |
| 3-1/8″ DIA. PLUNGERS | |
| AEB-028496-E26 | 3″ DIA. PLUNGER, PREMIUM TUNGSTEN |
| AEB-028496-E22 | 3″ DIA. PLUNGER, TUNGSTEN |
| AEB-028496-E23 | 3″ DIA. PLUNGER, COBALT |
| AEB-028496-E24 | 3″ DIA. PLUNGER, CHROME OXIDE |
| 3-1/4″ DIA. PLUNGERS | |
| 002-028498-E26 | 3-1/4″ DIA. PLUNGER, PREMIUM TUNGSTEN |
| 002-028498-999 | 3-1/4″ DIA. PLUNGER, TUNGSTEN |
| 002-028498-E23 | 3-1/4″ DIA. PLUNGER, COBALT |
| 002-028498-E24 | 3-1/4″ DIA. PLUNGER, CHROME OXIDE |
| 3-3/8″ DIA. PLUNGERS | |
| 002-028499-E26 | 3-3/8″ DIA. PLUNGER, PREMIUM TUNGSTEN |
| 002-028499-999 | 3-3/8″ DIA. PLUNGER, TUNGSTEN |
| 002-028499-999 | 3-3/8″ DIA. PLUNGER, COBALT |
| 002-028499-E24 | 3-3/8″ DIA. PLUNGER, CHROME OXIDE |
| 001-028470-402 | ADAPTER ROD |
| PLUNGERS 2-3/4″ THRU 3-3/8″ CERAMIC 217Q-4L ( HP200-AL ) DWG NO. 118600 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| 2-3/4″ DIA. PLUNGERS | |
| 002-028500-999 | 2-3/4″ DIA. PLUNGER, CERAMIC |
| 2-7/8″ DIA. PLUNGERS | |
| ACB-028500-E33 | 2-7/8″ DIA. PLUNGER, CERAMIC |
| 3″ DIA. PLUNGERS | |
| 002-028501-999 | 3″ DIA. PLUNGER, CERAMIC |
| 3-1/8″ DIA. PLUNGERS | |
| AEB-028500-E33 | 3-1/8″ DIA. PLUNGER, CERAMIC |
| 3-1/4″ DIA. PLUNGERS | |
| 002-028502-999 | 3-1/4″ DIA. PLUNGER, CERAMIC |
| 3-3/8″ DIA. PLUNGERS | |
| 002-028503-999 | 3-3/8″ DIA. PLUNGER, CERAMIC |
| 001-028470-402 | ADAPTER ROD |
| PLUNGERS 1-5/8″ THRU 2-1/2″ HARD SURFACE 217Q-4M ( HP200-4M ) DWG NO. 118601 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| 1-5/8″ DIA. PLUNGER | |
| 002-028471-E26 | 1-5/8″ DIA. PLUNGER, PREMIUM TUNGSTEN |
| 002-028471-999 | 1-5/8″ DIA. PLUNGER, TUNGSTEN |
| 002-028471-E23 | 1-5/8″ DIA. PLUNGER, COBALT |
| 002-028852-999 | 1-5/8″ DIA. PLUNGER, CHROME OXIDE |
| 1-3/4″ DIA. PLUNGER | |
| 002-028472-E26 | 1-3/4″ DIA. PLUNGER, PREMIUM TUNGSTEN |
| 002-028472-999 | 1-3/4″ DIA. PLUNGER, TUNGSTEN |
| 002-028472-E23 | 1-3/4″ DIA. PLUNGER, COBALT |
| 002-028853-999 | 1-3/4″ DIA. PLUNGER, CHROME OXIDE |
| 1-7/8″ DIA. PLUNGER | |
| 002-028473-E26 | 1-7/8″ DIA. PLUNGER, PREMIUM TUNGSTEN |
| 002-028473-999 | 1-7/8″ DIA. PLUNGER, TUNGSTEN |
| 002-028473-E23 | 1-7/8″ DIA. PLUNGER, COBALT |
| 002-028854-999 | 1-7/8″ DIA. PLUNGER, CHROME OXIDE |
| 2″ DIA. PLUNGER | |
| 002-028474-E26 | 2″ DIA. PLUNGER, PREMIUM TUNGSTEN |
| 002-028474-999 | 2″ DIA. PLUNGER, TUNGSTEN |
| 002-028474-E23 | 2″ DIA. PLUNGER, COBALT |
| 002-028855-999 | 2″ DIA. PLUNGER, CHROME OXIDE |
| 2-1/8″ DIA. PLUNGER | |
| 002-028475-E26 | 2-1/8″ DIA. PLUNGER, PREMIUM TUNGSTEN |
| 002-028475-999 | 2-1/8″ DIA. PLUNGER, TUNGSTEN |
| 002-028475-E23 | 2-1/8″ DIA. PLUNGER, COBALT |
| 002-028856-999 | 2-1/8″ DIA. PLUNGER, CHROME OXIDE |
| 2-1/4″ DIA. PLUNGER | |
| 002-028476-E26 | 2-1/4″ DIA. PLUNGER, PREMIUM TUNGSTEN |
| 002-028476-999 | 2-1/4″ DIA. PLUNGER, TUNGSTEN |
| 002-028476-E23 | 2-1/4″ DIA. PLUNGER, COBALT |
| 002-028857-999 | 2-1/4″ DIA. PLUNGER, CHROME OXIDE |
| 2-3/8″ DIA. PLUNGER | |
| 002-028477-E26 | 2-3/8″ DIA. PLUNGER, PREMIUM TUNGSTEN |
| 002-028477-999 | 2-3/8″ DIA. PLUNGER, TUNGSTEN |
| 002-028477-E23 | 2-3/8″ DIA. PLUNGER, COBALT |
| 002-028858-999 | 2-3/8″ DIA. PLUNGER, CHROME OXIDE |
| 2-1/2″ DIA. PLUNGER | |
| 002-028478-E26 | 2-1/2″ DIA. PLUNGER, PREMIUM TUNGSTEN |
| 002-028478-999 | 2-1/2″ DIA. PLUNGER, TUNGSTEN |
| 002-028478-E23 | 2-1/2″ DIA. PLUNGER, COBALT |
| 002-028859-999 | 2-1/2″ DIA. PLUNGER, CHROME OXIDE |
| 002-028470-402 | ADAPTER ROD |
| PLUNGERS 1-5/8″ THRU 2-1/2″ CERAMIC 217Q-4M ( HP200-4M ) DWG NO. 118602 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| 1-5/8″ DIA. PLUNGERS | |
| 002-028483-999 | 1-5/8″ DIA. PLUNGER, CERAMIC |
| 1-3/4″ DIA. PLUNGERS | |
| 002-028484-999 | 1-3/4″ DIA. PLUNGER, CERAMIC |
| 1-7/8″ DIA. PLUNGERS | |
| 002-028485-999 | 1-7/8″ DIA. PLUNGER, CERAMIC |
| 2″ DIA. PLUNGERS | |
| 002-028486-999 | 2″ DIA. PLUNGER, CERAMIC |
| 2-1/8″ DIA. PLUNGERS | |
| 002-028487-999 | 2-1/8″ DIA. PLUNGER, CERAMIC |
| 2-1/4″ DIA. PLUNGERS | |
| 002-028488-999 | 2-1/4″ DIA. PLUNGER, CERAMIC |
| 2-3/8″ DIA. PLUNGERS | |
| 002-028489-999 | 2-3/8″ DIA. PLUNGER, CERAMIC |
| 2-1/2″ DIA. PLUNGERS | |
| 002-028490-999 | 2-1/2″ DIA. PLUNGER, CERAMIC |
| 002-028470-402 | ADAPTER ROD |
| PLUNGERS 1-1/4″ THRU 1-3/4″ HARD SURFACE 217Q-4H ( HP200-4H ) DWG NO. 118603 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| 1-1/4″ DIA. PLUNGER | |
| 002-029031-E26 | 1-1/4″ DIA. PLUNGER, PREMIUM TUNGSTEN |
| 002-029031-999 | 1-1/4″ DIA. PLUNGER, TUNGSTEN |
| 002-029031-E23 | 1-1/4″ DIA. PLUNGER, COBALT |
| 002-029031-E24 | 1-1/4″ DIA. PLUNGER, CHROME OXIDE |
| 1-3/8″ DIA. PLUNGER | |
| 002-029032-E26 | 1-3/8″ DIA. PLUNGER, PREMIUM TUNGSTEN |
| 002-029032-999 | 1-3/8″ DIA. PLUNGER, TUNGSTEN |
| 002-029032-E23 | 1-3/8″ DIA. PLUNGER, COBALT |
| 002-029032-E24 | 1-3/8″ DIA. PLUNGER, CHROME OXIDE |
| 1-1/2″ DIA. PLUNGER | |
| 002-029033-E26 | 1-1/2″ DIA. PLUNGER, PREMIUM TUNGSTEN |
| 002-029033-999 | 1-1/2″ DIA. PLUNGER, TUNGSTEN |
| 002-029033-E23 | 1-1/2″ DIA. PLUNGER, COBALT |
| 002-029033-E24 | 1-1/2″ DIA. PLUNGER, CHROME OXIDE |
| 1-5/8″ DIA. PLUNGER | |
| 002-029034-000 | 1-5/8″ DIA. PLUNGER, PREMIUM TUNGSTEN |
| 002-029034-999 | 1-5/8″ DIA. PLUNGER, TUNGSTEN |
| 002-029034-E23 | 1-5/8″ DIA. PLUNGER, COBALT |
| 002-029034-E24 | 1-5/8″ DIA. PLUNGER, CHROME OXIDE |
| 1-3/4″ DIA. PLUNGER | |
| 002-029035-000 | 1-3/4″ DIA. PLUNGER, PREMIUM TUNGSTEN |
| 002-029035-999 | 1-3/4″ DIA. PLUNGER, TUNGSTEN |
| 002-029035-E23 | 1-3/4″ DIA. PLUNGER, COBALT |
| 002-029035-E24 | 1-3/4″ DIA. PLUNGER, CHROME OXIDE |
| 001-028470-402 | ADAPTER ROD |
| ASSEMBLY, PACKING LUBRICATOR ( RHD OR LHD ) RHD SHOWN 217Q-4 ( HP200-4 ) DWG NO. 118573 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| GAS-105239-000 | LUBRICATOR, RHD, (5) FEED |
| 001-011154-999 | LUBRICATOR, LHD, (5) FEED |
| 001-001718-231 | LUBRICATOR BRACKET LH/RH |
| AAB-118614-C02 | BELT GUARD |
| 421-100420-001 | V-BELT |
| 133-038016-286 | NUT, ZINC PLATED 3/8″ |
| 104-038400-286 | STUD, 3/8″ X 4″ LG |
| 154-038068-286 | LOCK WASHER 3/8″ |
| 100-038114-405 | CAP SCREW 3/8″ X 1-1/4″ LG. |
| 155-038100-286 | WASHER, 3/8″ |
| 001-028429-231 | SHEAVE, DRIVER |
| 119-014012-220 | SET SCREW |
| 330-002003-365 | TUBING, 1/4″ |
| 001-025128-405 | LINE CLAMP |
| 126-006516-405 | DRIVE SCREW |
| 001-011597-999 | SHEAVE, DRIVEN |
| GAS-105240-000 | CHECK VALVE, 1/8″ NPT |
| 100-012434-290 | CAP SCREW 1/2″ x 4-3/4″ |
| REPLACEMENT PARTS | |
| GAS-105264-000 | PUMP ASSEMBLY w/ GASKET |
| GAS-105265-000 | SIGHT GLASS |
| ASSEMBLY, D.O.H. LUBRICATOR ( DRIP ON THE HEEL ) – ( RHD OR LHD ) 217Q-4 ( HP200-4 ) DWG NO. 118574 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| GAS-105239-000 | LUBRICATOR, RHD, (5) FEED |
| 001-011154-999 | LUBRICATOR, LHD, (5) FEED |
| 001-001718-231 | LUBRICATOR BRACKET LH/RH |
| AAB-118614-C02 | BELT GUARD |
| 421-100420-001 | V-BELT |
| 133-038016-286 | NUT, ZINC PLATED 3/8″ |
| 104-038400-286 | STUD, 3/8″ X 4″ LG |
| 154-038068-220 | LOCK WASHER 3/8″ |
| 100-038114-405 | CAP SCREW 3/8″ X 1-1/4″ LG. |
| 155-038100-286 | WASHER, 3/8″ |
| 001-028429-231 | SHEAVE, DRIVER |
| 119-014012-290 | SET SCREW |
| 330-002003-365 | TUBING, 1/4″ |
| 001-025128-405 | LINE CLAMP |
| 126-006516-405 | DRIVE SCREW, |
| 001-011597-999 | SHEAVE, DRIVEN |
| 469-020002-278 | PIPE TEE, 1/8″ NPT |
| 157-018112-278 | PIPE NIPPLE, 1/8″ NPT |
| 462-040022-278 | MALE CONN., 90 DEG 1/4″ TUBE x 1/8 NPT |
| 462-040012-278 | MALE CONN., STR., 1/4″ TUBE x 1/8 NPT |
| 100-012434-290 | CAP SCREW 1/2″ x 4-3/4″ |
| REPLACEMENT PARTS | |
| GAS-105264-000 | PUMP ASSEMBLY w/ GASKET |
| GAS-105265-000 | SIGHT GLASS |
| ASSEMBLY, PACKING LUBRICATOR W/GEAR REDUCER ( LHD ) MODEL: 217Q-4 ( HP200-4 ) DWG NO. 118625 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| 001-011154-999 | LUBRICATOR, LHD, (5) FEED |
| AAB-116600-231 | LUBRICATOR BRACKET |
| AAB-116599-C02 | BELT GUARD |
| 421-100420-008 | V-BELT |
| 133-038016-286 | NUT, ZINC PLATED 3/8″ |
| 104-038400-286 | STUD, 3/8″ X 4″ LG |
| 154-038068-286 | LOCK WASHER 3/8″ |
| 100-038058-290 | CAP SCREW 3/8″ X 5/8″ LG. |
| 155-038100-286 | WASHER, 3/8″ |
| 419-101032-999 | SHEAVE, DRIVER, 3.2″ DD |
| 420-011000-000 | HUB, PUMP DRIVER, 1″ BORE |
| 330-002003-365 | TUBING, 1/4″ |
| 001-025128-405 | LINE CLAMP |
| 126-006516-405 | DRIVE SCREW |
| 419-101050-999 | SHEAVE, DRIVEN, 5″ DD |
| 420-020509-019 | HUB, DRIVEN, 5/8″ BORE |
| 100-012134-290 | CAP SCREW 1/2″ x 1-3/4″ |
| 155-012138-286 | WASHER 1/2″ |
| 154-012087-286 | LOCK WASHER 1/2″ |
| GAS-105240-000 | CHECK VALVE, 1/8″ NPT |
| REPLACEMENT PARTS | |
| GAS-105264-000 | PUMP ASSEMBLY w/ GASKET |
| GAS-105265-000 | SIGHT GLASS |
| ASSEMBLY, PACKING LUBRICATOR W/GEAR REDUCER, D.O.H. ( LHD ) MODEL: 217Q-4 ( HP200 ) DWG NO. 118626 | |
| Part No. | DESCRIPTION |
| BILL OF MATERIAL | |
| 001-011154-999 | LUBRICATOR, LHD, (5) FEED |
| AAB-116600-231 | LUBRICATOR BRACKET |
| AAB-116599-C02 | BELT GUARD |
| 421-100420-008 | V-BELT |
| 133-038016-286 | NUT, ZINC PLATED 3/8″ |
| 104-038400-286 | STUD, 3/8″ X 4″ LG |
| 154-038068-286 | LOCK WASHER 3/8″ |
| 100-038058-290 | CAP SCREW 3/8″ X 5/8″ LG. |
| 155-038100-286 | WASHER, 3/8″ |
| 419-010032-999 | SHEAVE, DRIVER, 3.2″ DD |
| 420-011000-000 | HUB,PUMP DRIVER, 1″ BORE |
| 330-002003-365 | TUBING, 1/4″ |
| 001-025128-405 | LINE CLAMP |
| 126-006516-405 | DRIVE SCREW |
| 419-101050-999 | SHEAVE, DRIVEN, 5″ DD |
| 420-020509-019 | HUB,DRIVEN, 5/8″ BORE |
| 100-012134-290 | CAP SCREW 1/2″ x 1-3/4″ |
| 155-012138-286 | WASHER 1/2″ |
| 154-012087-286 | LOCK WASHER 1/2″ |
| 157-018112-278 | PIPE NIPPLE, 1/8″ NPT |
| 469-020002-278 | PIPE TEE, 1/8″ NPT |
| 462-040022-278 | MALE CONN., 90 DEG 14″ TUBE x 1/8″ NPT |
| 462-040012-278 | MALE CONN., STR., 1/4″ TUBE x 1/8″ NPT |
| REPLACEMENT PARTS | |
| GAS-105264-000 | PUMP ASSEMBLY w/ GASKET |
| GAS-105265-000 | SIGHT GLASS |
