NOV Continental EMSCO D125 D225 D375 D550 DB550 DA700 DA850 D1350 DC1650 Duplex Mud Pump Parts List Manual
| EMSCO D-125 DUPLEX MUD PUMP | |||

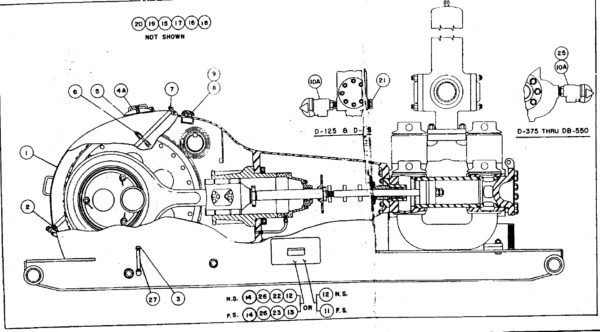

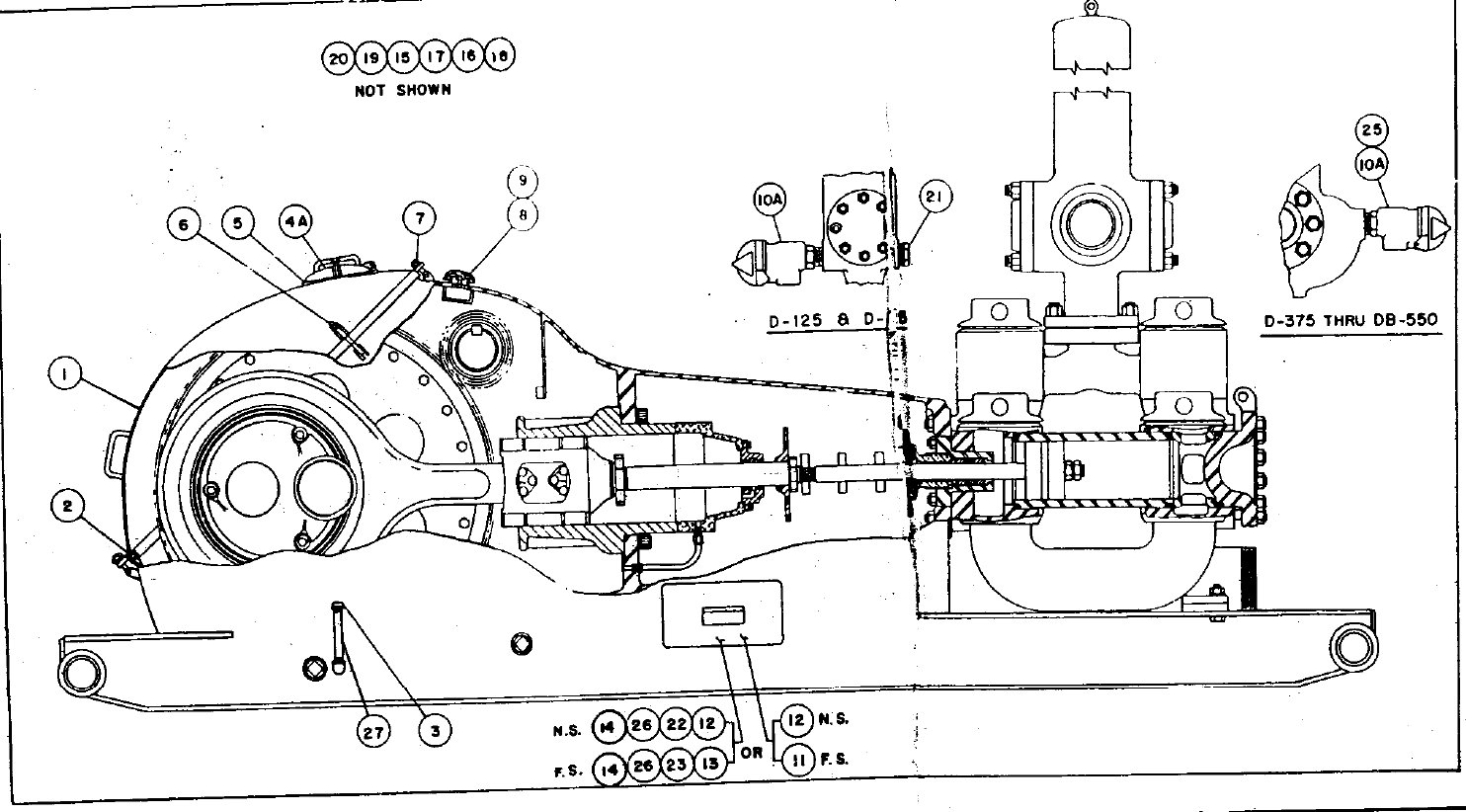

| MISCELLANEOUS ITEMS | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Gear Case Cover | 1 | 500407-D |
| 2 | Cover Gasket, 3/8″ x 1″ Neopr. Sponge | 1 | 7602-059011 |
| 3 | Oil Level Indicator | 2 | 6397-0182-00 |
| 4A | Inspection Door, C-E, see p.P-31-1 | 1 | 7510-0201-00 |
| or | Inspection Door, Mid-Co., see p.P-31-1 | 1 | 7510-0208-00 |
| 5 | Inspection Door Gasket | 1 | 7502-0103-00 |
| 6 | Hold-Down Bolt | 4 | 7501-2610-00 |
| 7 | Hold-Down Bolt | 4 | 7501-2621-00 |
| 8 | Breather Cap | 1 | 6397-0186-00 |
| 9 | Breather Cap Stud | 1 | 7507-0200-00 |
| 10A | Shear Relief Valve, See p.P-31-13 | 1 | 6923-0008-00 |
| 11 | Rod Lubricator Tank | 1 | — |
| 12 | Rod Lubricator Tank Cover, N.S. | 1 | 7510-0006-00 |
| 13 | Rod Lubricator Tank Cover, F.S. | 1 | 7510-0005-00 |
| 14 | Cover Gasket | 2 | 7502-0131-00 |
| 15 | Main Bearing Bolt Wrench | 1 | 3/4″ Allen Key-LS |
| 16 | Valve Pot Cover Bar | 1 | 6397-0719-00 |
| 17 | Proto X-Hvy Duty Socket | 1 | 7602-301016 |
| 18 | Proto Socket – Stuffing Box # 5548 | 1 | — |
| 19 | Proto Sliding Bar, 5685 | 1 | 7602-301013 |
| 20 | Proto 8″ Extension, 5661 | 1 | 7602-301014 |
| 21 | H.P. Steel, Pipe Plug, 2″ | 1 | 7601-259073 |
| 22 | Hex Hd Cap Screw, 1/2″ x 1-1/4″ | 4 | 7601-033050 |
| 23 | Hex Hd Cap Screw, 1/2″ x 1-1/2″ | 4 | 7601-033051 |
| 25 | Plpe Bushing, 3″ x 2″ | 1 | — |
| 26 | Lock Washer, 1/2″ | 8 | 7601-132016 |
| 27 | Galv Nipple, 1/2″ x —— | 2 | 7601-258137 6-1/2″ |
| FLUID END ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. API 6 VLV POT |
| 1 | Fluid End | 1 | 6397-0610-00 |
| 2 | Fluid End Stud | 16 | 7507-3404-00 |
| 3 | Fluid End Stud | 8 | 7507-1900-00 |
| 4 | Fluid End Stud | 20 | 7507-3405-00 |
| 5 | Suction Flange Stud | 12 | 7507-2003-00 |
| 6 | Discharge Flange Stud | 8 | 7507-1901-00 |
| 7A | Air Chamber Assembly | 1 | 6397-0073-00 |
| 8 | Air Chamber Body | 1 | 6397-0787-00 |
| 9 | Strainer | 1 | 6397-0129-00 |
| 10 | Strainer Cap | 1 | 6397-0665-00 |
| 11 | Gasket | 1 | 6397-0101-01 |
| 12 | Stud | 16 | 7507-1902-00 |
| 13 | Discharge Flange | 1 | 6397-0074-00 |
| 14 | Gasket | 1 | 6397-0001-01 |
| 15 | Cylinder Head | 2 | 6397-0599-00 |
| 16 | Cylinder Liner Cage | 2 | 6397-0597-00 |
| 17 | Liner Seal | 6 | 6397-0649-00 |
| 18 | Valve Pot Cover | 8 | 6397-0598-00 |
| 19 | Valve Pot Cover Gasket | 8 | 6397-0607-00 |
| 20 | Valve Guide | 8 | 6397-0602-00 |
| 21 | Valve Bumper | 8 | 6397-0148-00 |
| 22 | Valve Guide Retainer | 8 | 6397-0603-00 |
| 23 | Valve Guide Retainer Bolt | 32 | 7501-0051-00 |
| 24 | Valve Spring | 8 | 6397-0579-00 |
| 25 | Suction Flange | 1 | 6397-0233-00 |
| 26 | Suction Flange Gasket, ARP 568-447 | 1 | 7602-160057 |
| 27 | Shim Set | 2 | 6397-0716-00 |
| 28 | Hex Head Cap Screw | 4 | 3/4″ x 3″ |
| 7601-033100 | |||
| 29 | Hex Nut | 4 | 3/4″ |
| 7601-061014 | |||
| 30 | Hex Nut | 16 | 7/8″ |
| 7601-061016 | |||
| 31 | Hex Nut | 8 | 7/8″ – 9 Hvy |
| 7601-063023 | |||
| 32 | Hex Nut, 1″ – 8 Hvy | 12 | 7601-063020 |
| 33 | Hex Nut, 1-1/8″ – 8 Hvy | 36 | 7601-063026 |
| 34 | Hex Nut | 8 | 7/8″ – 9 Hvy |
| 7601-063023 | |||
| 35 | Lock Washer | 4 | 3/4“ |
| 7601-132018 | |||
| 36 | Teylor Blind Flange 4″ – 900 # | 1 | — |
| 37 | Air Chamber to Fluid End Gasket | 1 | 6397-0001-01 |
| 38 | Soft Iron Wire | 1/16″ Ø | |
| STUFFING BOX ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Diaphragm Stuffing Box Assembly | 2 | — |
| 2 | Diaphragm Stuffing Box | 2 | 6397-0625-00 |
| 3 | Diaphragm Stuffing Box Retainer | 2 | — |
| 4 | Diaphragm Stuffing Box Gasket | 2 | 7502-0597-00 |
| 5 | Diaphragm Stuffing Box Spacer Spring | 2 | 6397-0626-00 |
| 6 | Diaphragm Stuffing Box Lock Spring | 2 | 6397-0627-00 |
| 7 | Diaphragm Stuffing Box Oil Seal | 4 | 6397-1238-00 |
| 8 | Fluid Baffle | 2 | 6397-0118-01 |
| 9 | Fluid Stuffing Box | 2 | 6397-0354-02 |
| 10 | Fluid Stuffing Box Gland | 2 | 6397-0355-01 |
| 11 | Fluid Stuffing Box Gland Bushing | 2 | 6397-0614-00 |
| 12 | Fluid Stuffing Box Packing | 2 | 6397-1209-00 |
| 13 | Fluid Stuffing Box Junk Ring | 2 | 6397-0630-00 |
| 14 | Fluid Stuffing Box Gasket | 2 | 7602-160030 ARP 568-349 |
| 15 | #6-203 Hose Assembly | 2 | 7503-0160-30 |
| 16 | O – Ring | 2 | 7602-160024 ARP 568-341 |
| 17 | O – Ring | 2 | — |
| 19 | Hex Hd Cap Screw, 1/2″ x 1-1/2″ | 12 | 7601-033051 |
| 20 | Hex Hd Cap Screw, 3/8″ x 2-1/4″ | 12 | — |
| 21 | Hex Hd Cap Screw, 3/8″ x 1″ | 8 | — |
| 22 | 3/8″ Internal Tooth Lock Washer, Type B | 12 | — |
| 23 | Lock Washer | 12 | 7601-132016 1/2″ |
| CROSSHEAD ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Crosshead | 2 | 6397-0610-00 |
| 2 | Crosshead Pin | 2 | 6397-0112-00 |
| 3 | Crosshead Pin Retainer | 2 | 6397-0631-00 |
| 4 | Crosshead Pin Retainer Bolt | 7501-0004-00(4) | |
| 7 | Crosshead Bearing | 2 | 6397-0632-00 |
| 8 | Crosshead Guide | 2 | 6397-0609-00 |
| 9 | Crosshead Guide Extension | 2 | 6397-0623-00 |
| 10 | Crosshead Guide Seal | 2 | 6397-1236-00 |
| 11 | Crosshead Guide Frame Seal | 2 | 6397-1230-00 |
| 12 | Crosshead Extension | 2 | 6397-0619-00 |
| 13 | Crosshead Door, C-E | 2 | 500775-B |
| or | Crosshead Door, Mid-Co | 2 | 508443-D |
| 14 | Crosshead Door Gasket | 2 | 6397-0621-00 |
| 15 | #10-225 Hose Assembly | 2 | — |
| or | Copper Tubing As sembly | 2 | 7508-0070-50 |
| 16 | Hex Head Cap Screw | 1/2″ X 1-1/4″ ( 26 ) | |
| 7601-033050 | |||
| 17 | Hex Head Cap Screw | 12 | 1/2″ X 4-1/2″ |
| 7601-033061 | |||
| 18 | Socket Head Cap Screw | 1-1/8″ X 3″ ( 12 ) | |
| 7601-034071 | |||
| 19 | SAE Plain Washer | 7601-133004 ( 26 ) | |
| 20 | 1/2″ Internal Tooth Lock Washer, Type B | 12 | — |
| 21 | Galv Bushing, 1/2″ x 3/8″ | 4 | 7601-253033 |
| 22 | Soft Iron Wire | 11 Ga. | |
| 23 | Lock Washer, 1/2″ | 12 | 7601-132016 |
| 24 | STRATO HEX HOSE ADAPTOR | 2 | 1011-6.85 |
| PINION ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Pinion Shaft-Single Ext Straight | 1 | 6397-0620-01 |
| or | Pinion Shaft-Dbl Ext Straight | 1 | — |
| 2 | Pinion Shaft Key-Single Ext Straight | 1 | 7504-2118-00 |
| or | Pinion Shaft Key-Dbl Ext Straight | 1 | — |
| 3 | Pinion Shaft Cover-Dbl Ext Straight | 1 | — |
| 4 | Pinion Bearing Carrier | 2 | 6397-0613-10 |
| 5 | Pinion Bearing Carrier Gasket | 2 | 7502-0598-00 |
| 6 | Pinion Bearing Retainer | 2 | — |
| 7 | Bearing Retainer Gasket | 2 | — |
| 8 | Oil Seal Wear Ring | 2 | — |
| 9 | Pinion Bearing, Hyatt | 2 | A-5220-TS |
| 7602-021033 | |||
| 10 | Oil Seal, C/R | 2 | #38696 |
| 7602-213052 | |||
| 11 | Retainer Ring, Truarc, #5000-700 | 2 | 7602-204016 |
| 12 | Hex Hd Cap Screw | 6 | — |
| 13 | Hex Head Cap Screw | 16 | 5/8″ X 1-3/4″ (12) |
| 7601-033077 | |||
| 14 | Hex Hd Cap Screw, 3/8″ x 7/8″ | 6 | — |
| 15 | Lock Washer, 3/8″ | 6 | — |
| ECCENTRIC ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Main Bearing Carrier | 1 | 6397-0617-00 |
| 2 | Main Bearing Carrier | 1 | 6397-0618-00 |
| 3 | Main Bearing Cap, C-E | 2 | 6397-1237-00 |
| or | Main Bearing Cap, Min-Co. | 2 | 300458-B |
| 4 | Main Bearing Cap, Gasket | 2 | 7502-0596-00 |
| 5 | Main Bearing Retainer Bolt | 12 | 7501-0038-00 |
| 6 | Main Bearing Retainer Bolt | 6 | 502002-L |
| 7 | Main Bearing Retainer-Inner | 2 | 6397-0615-00 |
| 8 | Main Bearing Retainer-Outer | 2 | 6397-0616-00 |
| 9 | Main Bearing Carrler Bolt | 4 | 7501-1263-00 |
| 10 | Shim Bet | 4 | 7502-0320-00 |
| 11 | Eccentric Bearing | 2 | 6397-0260-00 |
| 12 | Eccentric Btrap | 2 | N-26441-10 |
| 13 | Eccentric Bearing Retainer – Outer | 2 | 6397-0612-00 |
| 14 | Eccentric Bearing Retainer – Inner | 6 | — |
| 15 | Bccentric Bearing Retainer Bolt | 6 | — |
| 16 | Eccentric Bearing Retainer Bolt | 16 | 7301-0066-00 |
| 17 | Eccentric Bear Ring | 1 | — |
| 18 | Eccentric Bear Hub | 1 | — |
| 19 | Eccentric Bear and Hub | 1 | 6397-0611-00 |
| 20 | Eccentric Bear Bolt | – | — |
| 21 | 2 | 7602-020008 122222-C | |
| 22 | Hex Head Cap Screw | 12 | 7601-033050 1/2″ X 1-1/4″ |
| 23 | 12 | 7601-133004 17/32″ X 1-1/16″ | |
| 24 | Socket Hd Cap Screw, 1/2″ x 5/8″ | 2 | 7601-034026 |
| 25 | – | — | |
| 27 | Soft lron Wire | – | 16 On. |
| 28 | Soft lron Wire | – | 11 On. |
| R1 | Main Bearing | 2 | — |
| ROD OILER ASSEMBLY W/HYPRO PUMP FOR SINGLE EXTENDED STRATGHT PINION SHAFT | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| Assembly | 500376-B | ||
| 1 | Belt Guard | 1 | 500680-B |
| 2 | Pump Support | 1 | H-75256-L |
| 3 | #12-225 Hose Assembly | 1 | 7503-0150-58 |
| 4 | #12-225 Hose Assembly | 1 | 7503-0240-58 |
| 5A | Hypro Pump w/Rubber Rollers, 40002, see p.P-31-9 | 1 | 7602-182007 |
| 6 | QD Driver Sheave, S.B. Hub w/2″ Bore | 1 | 7602-236206 |
| or | Drive Sheave | 1 | — |
| 7 | Driven Sheave 2″PD-“A” | 1 | 7602-236131 |
| 8 | V-Belt | 1 | 4L-630 |
| 7602-033184 | |||
| 9 | Galv Street Ell, 3/4″ x 90° | 4 | 7601-257090 |
| 10 | Galv Elbow, 3/4″ x 90° | 1 | — |
| 11 | Hex Hd Cap Screw, 5/16″ x 5/8″ | 4 | 7601-033016 |
| 12 | Hex Hd Cap Screw, 1/2″ x 1-1/2″ | 2 | 7601-033051 |
| 13 | Lock Washer, 5/16″ | 4 | 7601-132013 |
| 14 | Lock Washer, 1/2″ | 2 | 7601-132016 |
| 15 | Plain Washer, 1/2″ | 2 | 7601-134005 |
| 16 | Hex Hd Cap Screw, 1/2″ x 7″ | 3 | — |
| 17 | Lock Washer, 1/2″ | 3 | — |
| R1 | Rod Oiler Tank or Cover | 1 | See Miscellaneous Items-page PA-56-1 |
| R2 | Hex Hd Cap Screw, 1/2″ x 1″ | 1 | 7601-033049 |
| ROD OILER ASSEMBLY W/ BROWN & SHARPE PUMP FOR SINGLE EXTENDED STRAIGHT PINION SHAFT | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| Assembly | 515345-B | ||
| 1 | Belt Guard | 1 | 515341-B |
| 2 | Pump Support | 1 | 6397-0762-00 |
| 3 | #225-12 Hose Assembly | 1 | 7503-0150-58 |
| 4 | #203-12 Hose Assembly | 1 | 7503-0240-55 |
| 5 | Drive Sheave | 1 | 6397-0807-00 |
| 6 | #1 B&S Rotary Gear Pump, Foot Mtg w/o Relier Valve, 713-1-1 | 1 | 7602-184008 |
| 7 | Drive Sheave-1A Worthington w/Key, Bored to Fit 9/16″ Ø Shaft w/1/8″ x 1/16″ Keyway | 1 | 2″PD,BA-1-20 7602-236064 |
| 8 | V-Belt | 1 | 4L-630 7602-033184 |
| 9 | Hex Hd Cap Screw, 3/8″ x 1″ | 4 | 7601-033030 |
| 10 | Hex Hd Cap Screw, 1/2″ x 1-1/2″ | 2 | 7601-033051 |
| 11 | Cup Point Setscrew, 3/8″ x 3/4″ | 2 | 7601-037064 |
| 12 | Plain Washer, 9/16″ x 1-1/4″ | 1 | 7601-140001 |
| 13 | Lock Washer, 3/8″ | 4 | 7601-132014 |
| 14 | Lock Washer, 1/2″ | 2 | 7601-132016 |
| 15 | Galv Street Ell, 3/4″ x 90° | 2 | 7601-257090 |
| 16 | Galv Elbow, 3/4″ x 90° | 2 | 7601-257042 |
| 17 | Galv Close Nipple, 3/8″ | 2 | 7601-258106 |
| 18 | Galv Bushing, 3/4″ x 3/8″ | 2 | 7601-253037 |
| 19 | Hex Head Cap Screw, 1/2″ x 8″ | 3 | — |
| 20 | Lock Washer, 1/2″ | 3 | — |
| 21 | Stflx Adapter 1011-12-12B | 1 | 7601-209026 |
| R1 | Rod Lubricator Tank or Cover | 1 | See Misc. Items, p. PA-56-1 |
| R2 | Hex Head Cap Screw, 1/2″ x 1″ | 1 | 7601-033049 |

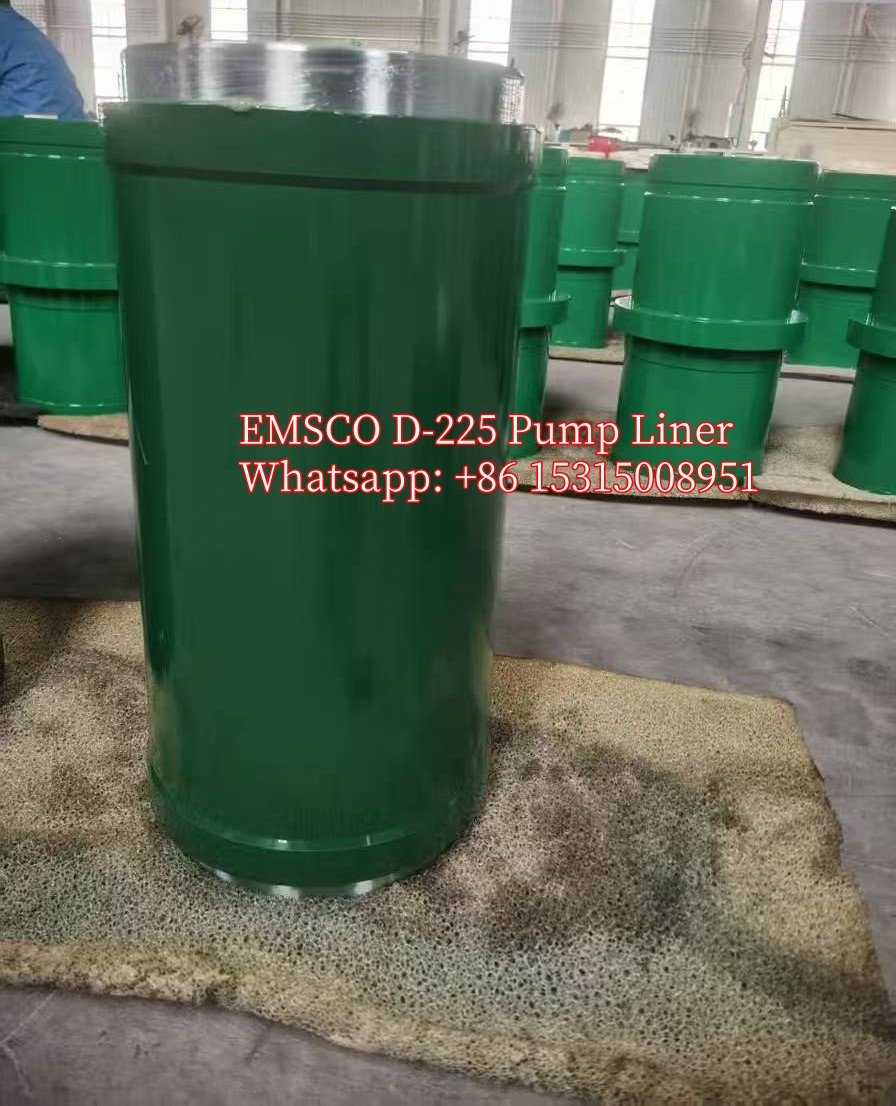

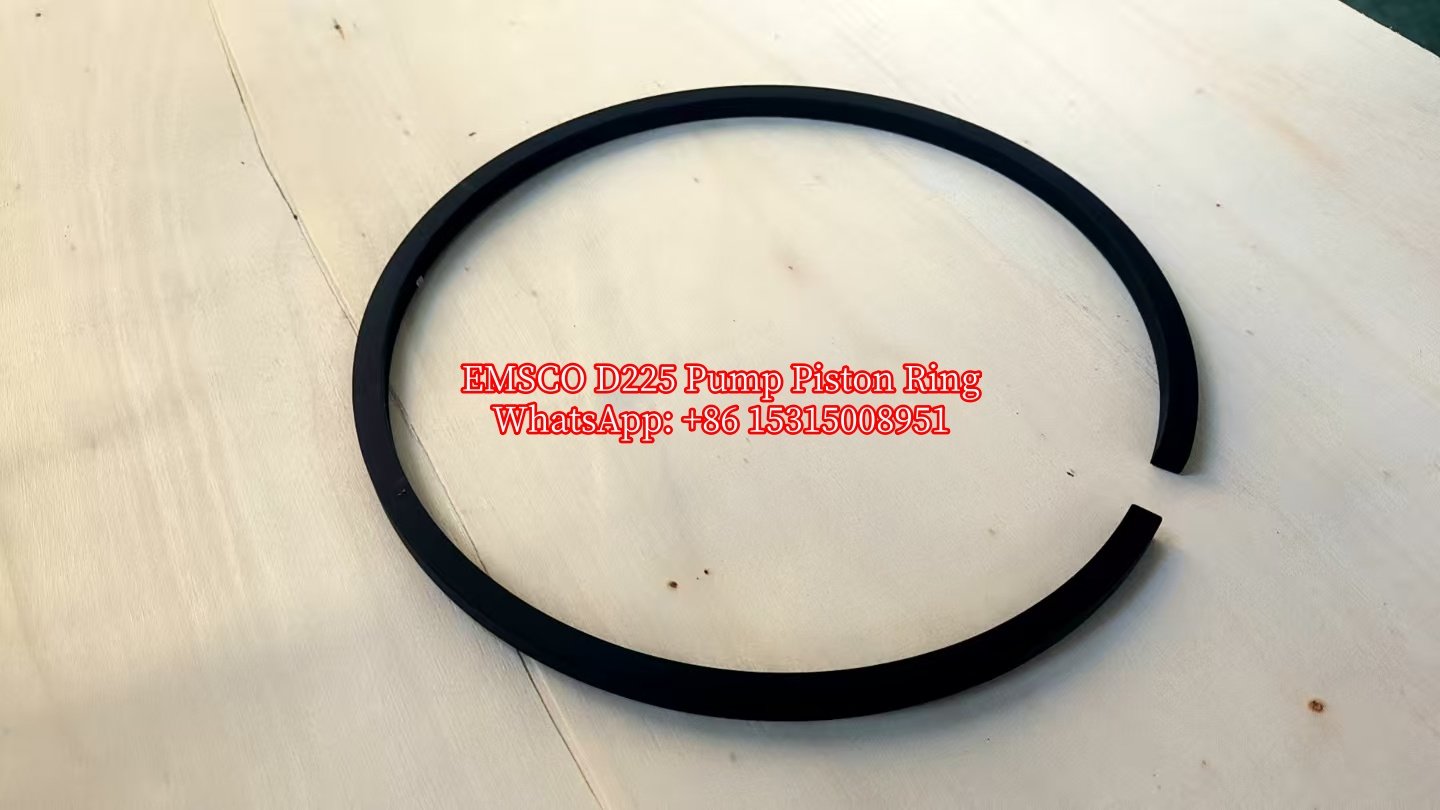

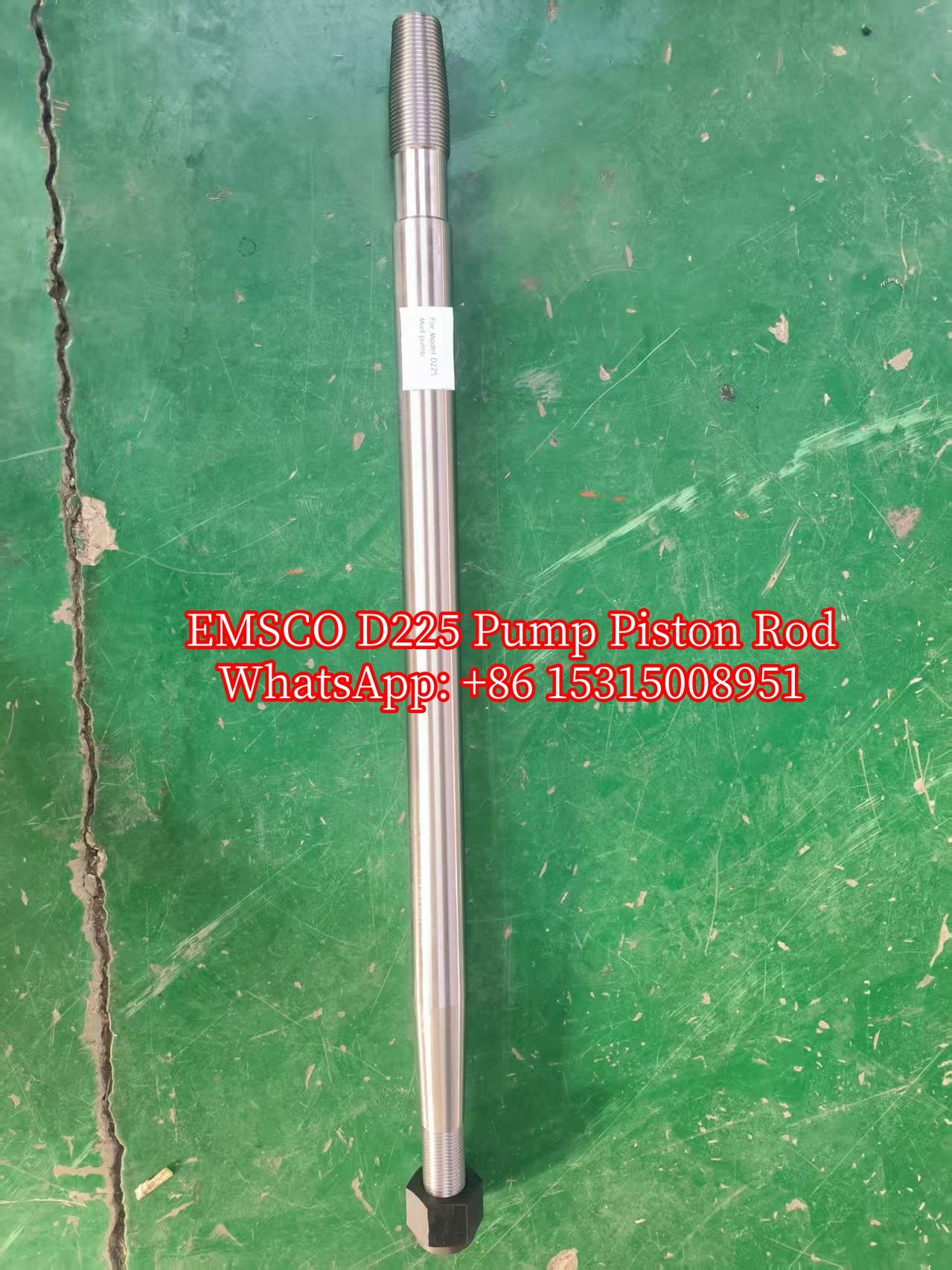

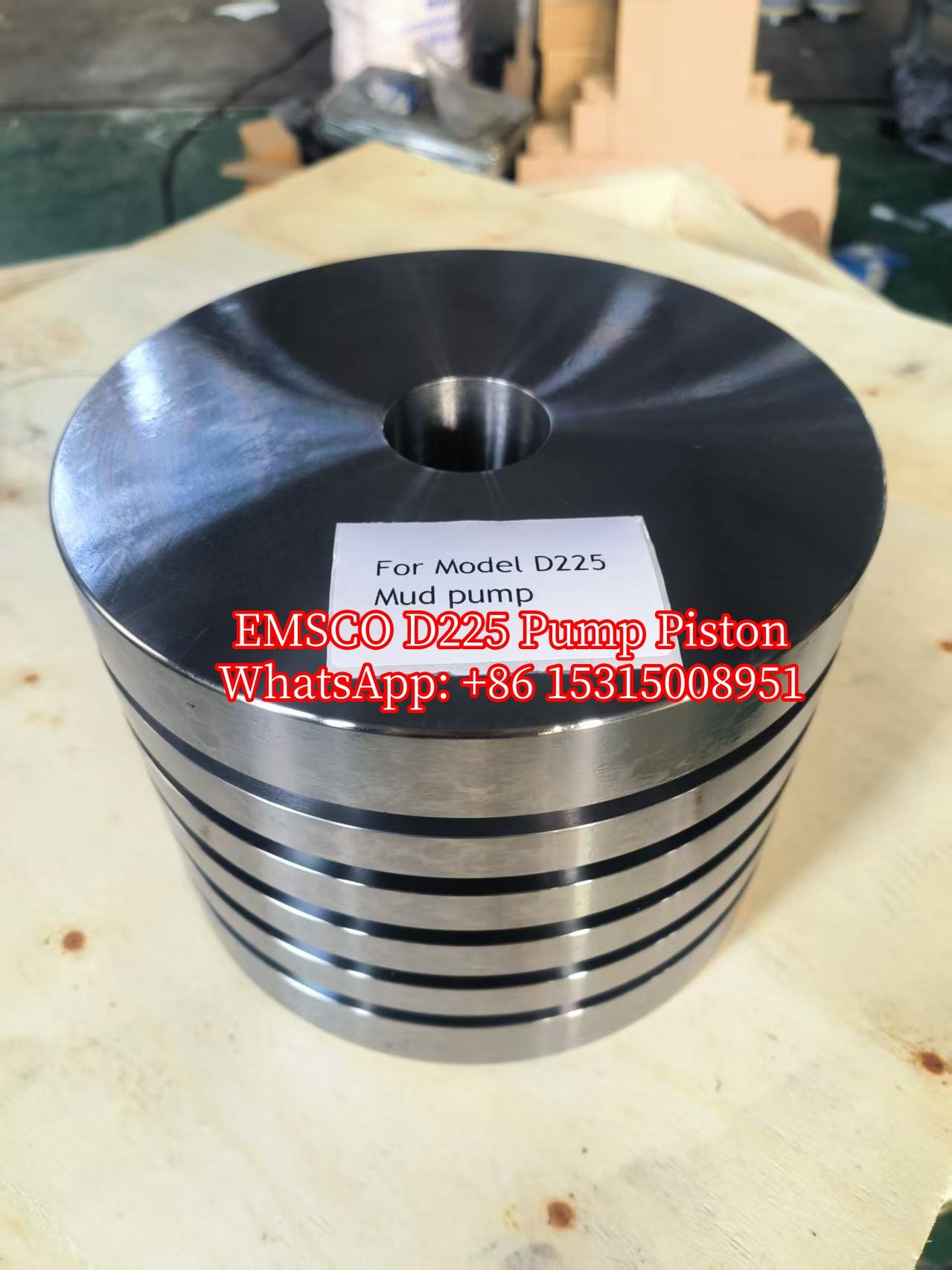

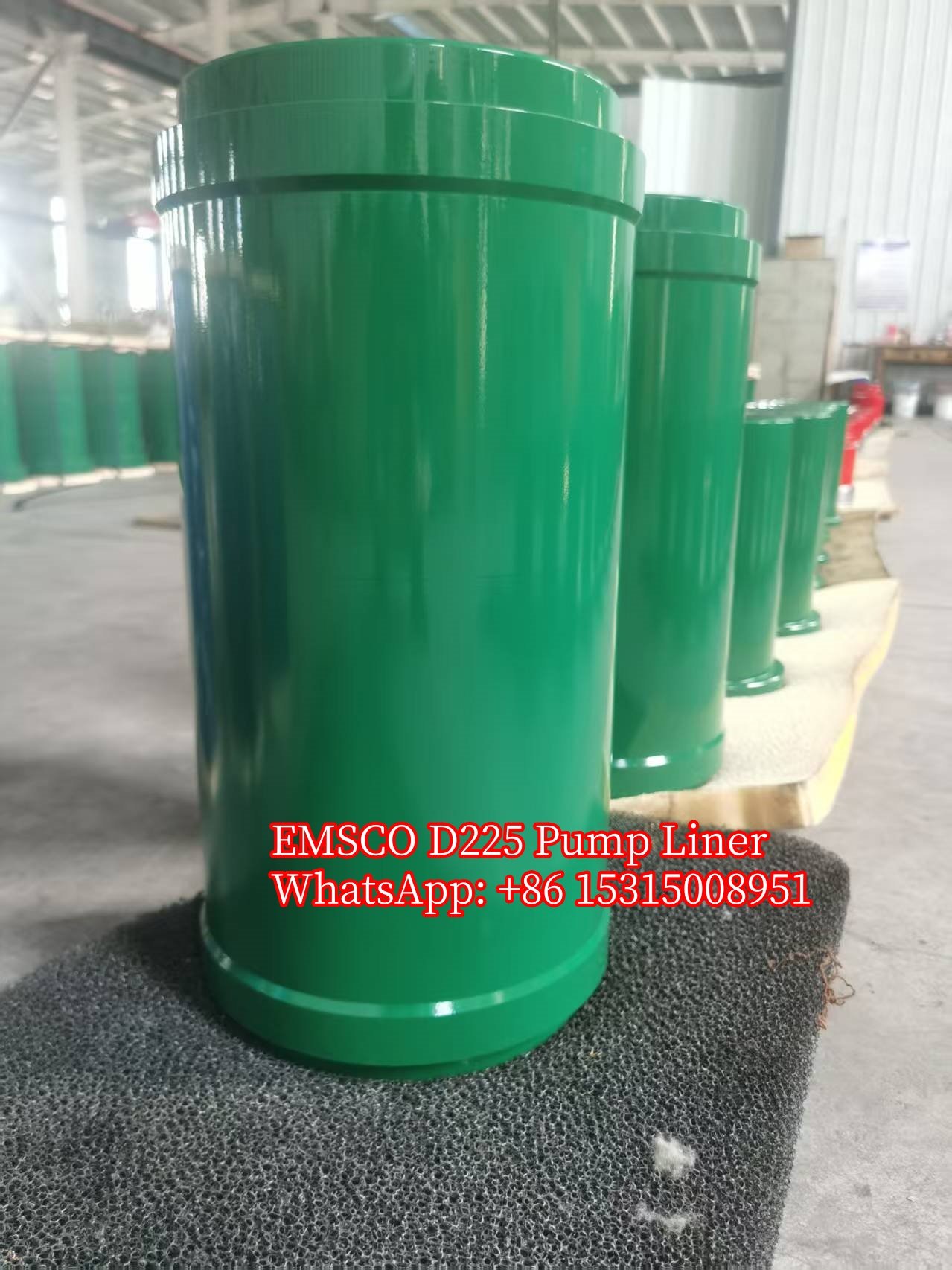

| EMSCO D-225 DUPLEX MUD PUMP | |||
| MISCELLANEOUS ITEMS | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Gear Case Cover | 1 | 6307-0003-00 |
| 2 | Cover Gasket, 3/8″ x 1″ Neopr. Sponge | 1 | 7602-059011 |
| 3 | Oil Level Indicator | 2 | 6397-0182-00 |
| 4A | Inspection Door, C-E, see p.P-31-1 | 1 | 7510-0201-00 |
| or | Inspection Door, Mid-Co., see p.P-31-1 | 1 | 7510-0208-00 |
| 5 | Inspection Door Gasket | 1 | 7502-0103-00 |
| 6 | Hold-Down Bolt | 4 | 7501-2610-00 |
| 7 | Hold-Down Bolt | 4 | 7501-2621-00 |
| 8 | Breather Cap | 1 | 6397-0186-00 |
| 9 | Breather Cap Stud | 1 | 7507-0200-00 |
| 10A | Shear Relief Valve, See p.P-31-13 | 1 | 6923-0008-00 |
| 11 | Rod Lubricator Tank | 1 | — |
| 12 | Rod Lubricator Tank Cover, N.S. | 1 | 7510-0006-00 |
| 13 | Rod Lubricator Tank Cover, F.S. | 1 | 7510-0005-00 |
| 14 | Cover Gasket | 2 | 7502-0131-00 |
| 15 | Main Bearing Bolt Wrench | 1 | 1″ Allen Key |
| 16 | Valve Pot Cover Bar | 1 | 6397-0719-00 |
| 17 | Proto X-Hvy Duty Socket | 1 | 7602-301016 |
| 18 | Proto Socket – Stuffing Box # 5548 | 1 | 7602-301035 |
| 19 | Proto Sliding Bar, 5685 | 1 | 7602-301013 |
| 20 | Proto 8″ Extension, 5661 | 1 | 7602-301014 |
| 21 | H.P. Steel, Pipe Plug, 2″ | 1 | 7601-259073 |
| 22 | Hex Hd Cap Screw, 1/2″ x 1-1/4″ | 4 | 7601-033050 |
| 23 | Hex Hd Cap Screw, 1/2″ x 1-1/2″ | 4 | 7601-033051 |
| 25 | Plpe Bushing, 3″ x 2″ | 1 | — |
| 26 | Lock Washer, 1/2″ | 8 | 7601-132016 |
| 27 | Galv Nipple, 1/2″ x —— | 2 | 7601-258137 6-1/2″ |
| FLUID END ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. API 6 VLV POT |
| 1 | Fluid End | 1 | 6397-0610-00 |
| 2 | Fluid End Stud | 16 | 7507-3404-00 |
| 3 | Fluid End Stud | 8 | 7507-1900-00 |
| 4 | Fluid End Stud | 20 | 7507-3405-00 |
| 5 | Suction Flange Stud | 12 | 7507-2003-00 |
| 6 | Discharge Flange Stud | 8 | 7507-1901-00 |
| 7A | Air Chamber Assembly | 1 | 6397-0073-00 |
| 8 | Air Chamber Body | 1 | 6397-0787-00 |
| 9 | Strainer | 1 | 6397-0129-00 |
| 10 | Strainer Cap | 1 | 6397-0665-00 |
| 11 | Gasket | 1 | 6397-0101-01 |
| 12 | Stud | 16 | 7507-1902-00 |
| 13 | Discharge Flange | 1 | 6397-0074-00 |
| 14 | Gasket | 1 | 6397-0001-01 |
| 15 | Cylinder Head | 2 | 6397-0599-00 |

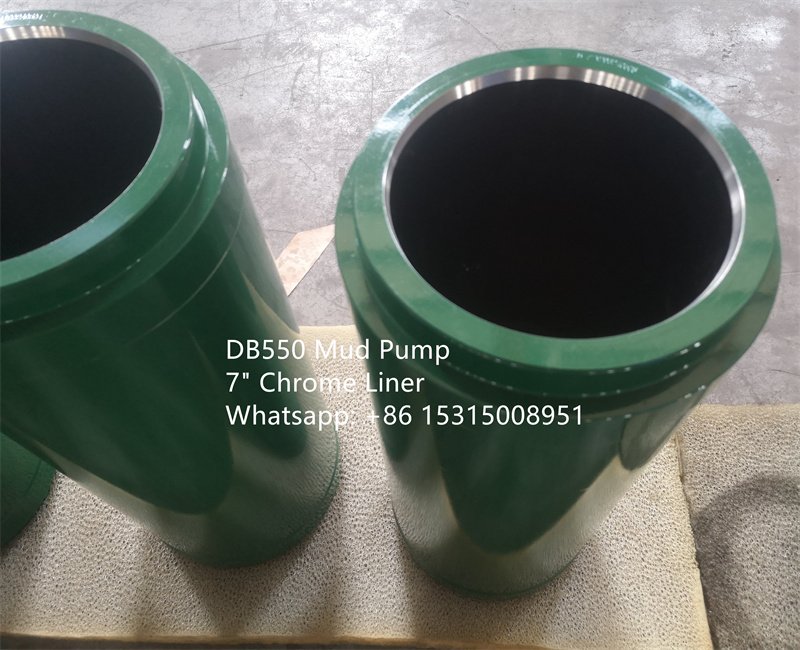

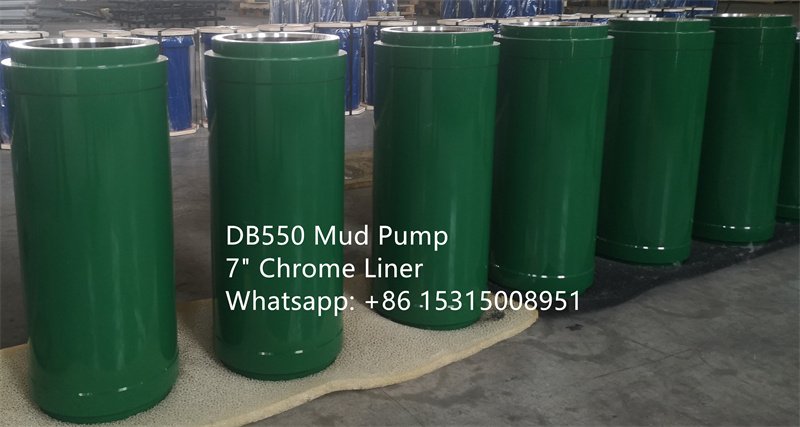

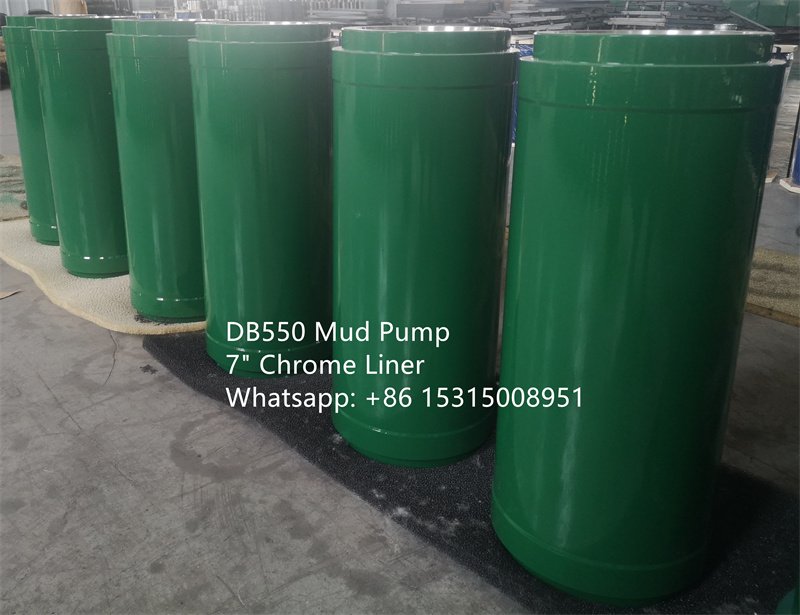

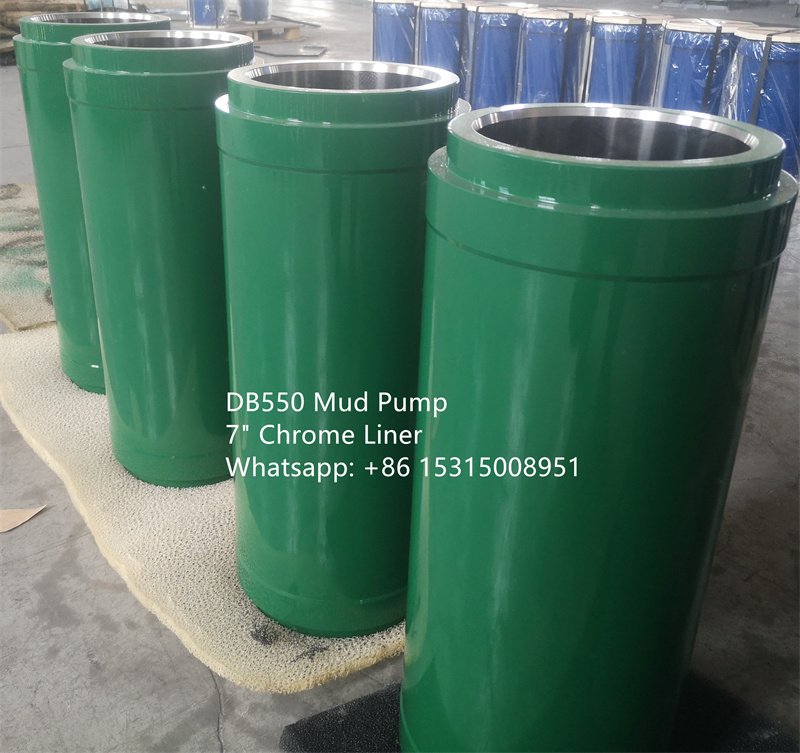

| 16 | Cylinder Liner Cage | 2 | 6397-0597-00 |
| 17 | Liner Seal | 6 | 6397-0649-00 |

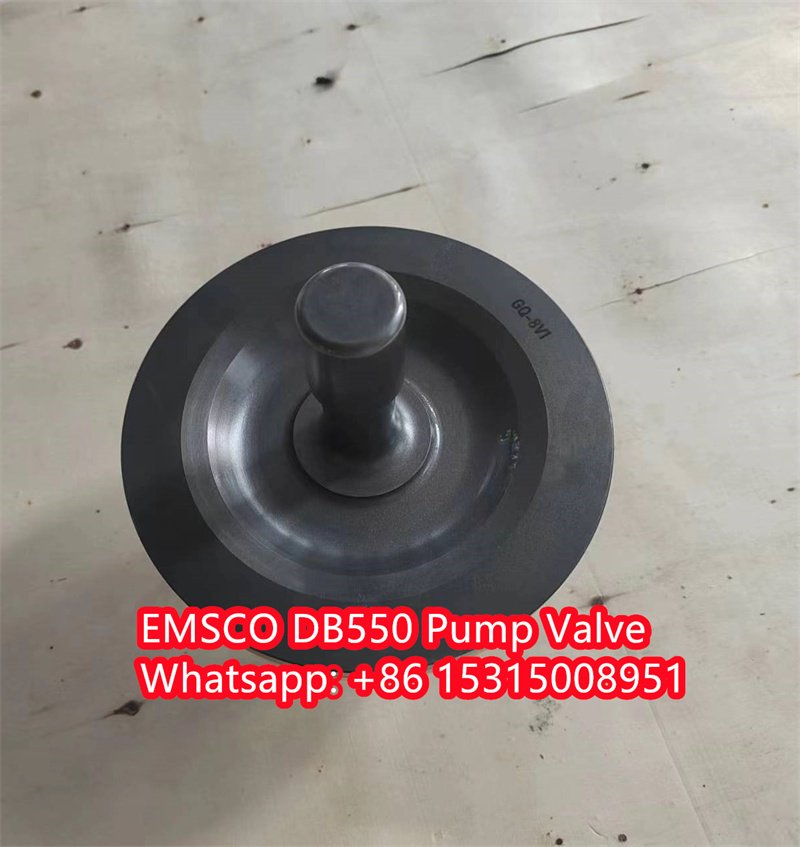

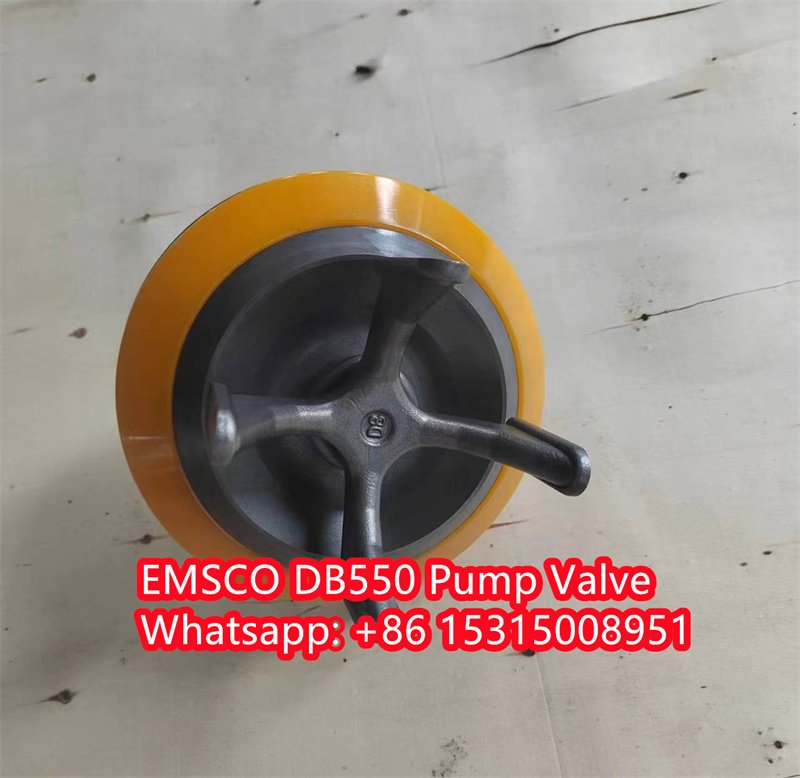

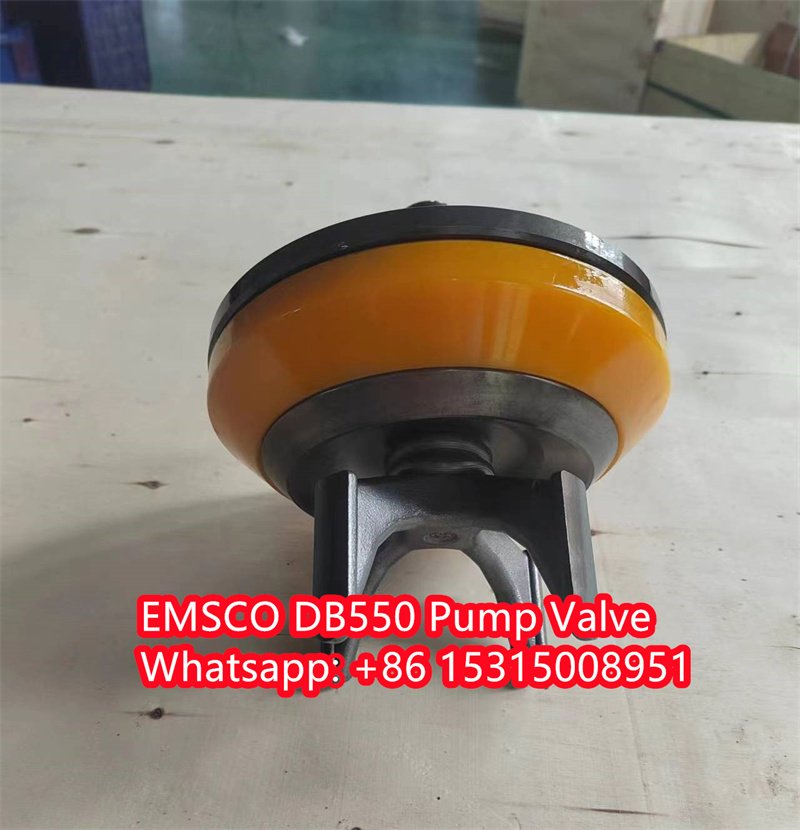

| 18 | Valve Pot Cover | 8 | 6397-0598-00 |
| 19 | Valve Pot Cover Gasket | 8 | 6397-0607-00 |
| 20 | Valve Guide | 8 | 6397-0602-00 |
| 21 | Valve Bumper | 8 | 6397-0148-00 |
| 22 | Valve Guide Retainer | 8 | 6397-0603-00 |
| 23 | Valve Guide Retainer Bolt | 32 | 7501-0051-00 |
| 24 | Valve Spring | 8 | 6397-0579-00 |
| 25 | Suction Flange | 1 | 6397-0233-00 |
| 26 | Suction Flange Gasket, ARP 568-447 | 1 | 7602-160057 |
| 27 | Shim Set | 2 | 6397-0716-00 |
| 28 | Hex Head Cap Screw | 4 | 3/4″ x 3″ |
| 7601-033100 | |||
| 29 | Hex Nut | 4 | 3/4″ |
| 7601-061014 | |||
| 30 | Hex Nut | 16 | 7/8″ |
| 7601-061016 | |||
| 31 | Hex Nut | 8 | 7/8″ – 9 Hvy |
| 7601-063023 | |||
| 32 | Hex Nut, 1″ – 8 Hvy | 12 | 7601-063020 |
| 33 | Hex Nut, 1-1/8″ – 8 Hvy | 36 | 7601-063026 |
| 34 | Hex Nut | 8 | 7/8″ – 9 Hvy |
| 7601-063023 | |||
| 35 | Lock Washer | 4 | 3/4“ |
| 7601-132018 | |||
| 36 | Teylor Blind Flange 4″ – 900 # | 1 | — |
| 37 | Air Chamber to Fluid End Gasket | 1 | 6397-0001-01 |
| 38 | Soft Iron Wire | 1/16″ Ø | |
| STUFFING BOX ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Diaphragm Stuffing Box Assembly | 2 | — |
| 2 | Diaphragm Stuffing Box | 2 | 6397-0593-00 |
| 3 | Diaphragm Stuffing Box Retainer | 2 | — |
| 4 | Diaphragm Stuffing Box Gasket | 2 | 7502-0595-00 |
| 5 | Diaphragm Stuffing Box Spacer Spring | 2 | 6397-0551-00 |
| 6 | Diaphragm Stuffing Box Lock Spring | 2 | 6397-0595-00 |
| 7 | Diaphragm Stuffing Box Oil Seal | 4 | 6307-0016-00 |
| 8 | Fluid Baffle | 2 | 6397-0159-00 |
| 9 | Fluid Stuffing Box | 2 | 6397-0354-02 |
| 10 | Fluid Stuffing Box Gland | 2 | 6397-0355-01 |
| 11 | Fluid Stuffing Box Gland Bushing | 2 | 6397-0015-00 |
| 12 | Fluid Stuffing Box Packing | 2 | 6397-0741-00 |
| 13 | Fluid Stuffing Box Junk Ring | 2 | 6397-0012-00 |
| 14 | Fluid Stuffing Box Gasket | 2 | 7602-160030 ARP 568-349 |
| 15 | #6-203 Hose Assembly | 2 | 7503-0200-30 |
| 16 | O – Ring | 2 | 7602-160025 ARP 568-343 |
| 17 | O – Ring | 2 | — |
| 19 | Hex Hd Cap Screw, 1/2″ x 1-1/2″ | 12 | 7601-033051 |
| 20 | Hex Hd Cap Screw, 3/8″ x 2-1/4″ | 12 | — |
| 21 | Hex Hd Cap Screw, 3/8″ x 1″ | 8 | — |
| 22 | 3/8″ Internal Tooth Lock Washer, Type B | 12 | — |
| 23 | Lock Washer | 12 | 7601-132016 1/2″ |
| CROSSHEAD ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Crosshead | 2 | 6397-0574-00 |
| 2 | Crosshead Pin | 2 | 6397-0570-00 |
| 3 | Crosshead Pin Retainer | 2 | 6397-0584-00 |
| 4 | Crosshead Pin Retainer Bolt | 7501-1258-00 (8) | |
| 7 | Crosshead Bearing | 2 | 6397-0633-00 |
| 8 | Crosshead Guide | 2 | 6397-0582-00 |
| 9 | Crosshead Guide Extension | 2 | 6397-0594-00 |
| 10 | Crosshead Guide Seal | 2 | 6397-0596-00 |
| 11 | Crosshead Guide Frame Seal | 2 | 6397-0606-00 |
| 12 | Crosshead Extension | 2 | 6397-0600-00 |
| 13 | Crosshead Door, C-E | 2 | 6397-0608-00 |
| or | Crosshead Door, Mid-Co | 2 | 6307-0017-00 |
| 14 | Crosshead Door Gasket | 2 | 6397-0622-00 |
| 15 | #10-225 Hose Assembly | 2 | — |
| or | Copper Tubing As sembly | 2 | 7508-0080-36 HOSE |
| 16 | Hex Head Cap Screw | 1/2″ X 1-1/4″ ( 26 ) | |
| 7601-033050 | |||
| 17 | Hex Head Cap Screw | 12 | 1/2″ X 4-1/4″ |
| 7601-033445 | |||
| 18 | Socket Head Cap Screw | 1-1/8″ X 4″ ( 15 ) | |
| 7601-034073 | |||
| 19 | SAE Plain Washer | 7601-133004 ( 36 ) | |
| 20 | 1/2″ Internal Tooth Lock Washer, Type B | 12 | 76-1-137008 |
| 21 | Galv Bushing, 1/2″ x 3/8″ | 4 | 7601-253033 |
| 22 | Soft Iron Wire | 11 Ga. | |
| 23 | Lock Washer, 1/2″ | 12 | — |
| 24 | STRATO HEX HOSE ADAPTOR | 2 | |
| PINION ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Pinion Shaft-Single Ext Straight | 1 | 6397-0585-01 |
| or | Pinion Shaft-Dbl Ext Straight | 1 | — |
| 2 | Pinion Shaft Key-Single Ext Straight | 1 | 7504-2118-00 |
| or | Pinion Shaft Key-Dbl Ext Straight | 1 | — |
| 3 | Pinion Shaft Cover-Dbl Ext Straight | 1 | — |
| 4 | Pinion Bearing Carrier | 2 | 6397-0583-10 |
| 5 | Pinion Bearing Carrier Gasket | 2 | 7502-0592-00 |
| 6 | Pinion Bearing Retainer | 2 | 6397-0587-10 |
| 7 | Bearing Retainer Gasket | 2 | 7502-0591-00 |
| 8 | Oil Seal Wear Ring | 2 | 6397-0592-00 |
| 9 | Pinion Bearing, Hyatt | 2 | A-5222-TS. |
| 7602-021034 | |||
| 10 | Oil Seal, C/R | 2 | #7381 |
| 7602-213069 | |||
| 11 | Retainer Ring, Truarc, #5000-700 | 2 | — |
| 12 | Hex Hd Cap Screw | 6 | 3/8″ X 1-1/2″ |
| 7601-033032 | |||
| 13 | Hex Head Cap Screw | 16 | 3/4″ X 2″ |
| 7601-033097 | |||
| 14 | Hex Hd Cap Screw, 3/8″ x 7/8″ | 6 | — |
| 15 | Lock Washer, 3/8″ | 6 | — |
| BCCENTRIC ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Main Bearing Carrier | 1 | 6397-0500-00 |
| 2 | Main Bearing Carrier | 1 | 6397-0509-00 |
| 3 | Main Bearing Cap, C-E | 2 | 6397-0030-00 |
| or | Main Bearing Cap, Min-Co. | 2 | 6397-0010-00 |
| 4 | Main Bearing Cap, Gasket | 2 | 7502-0594-00 |
| 5 | Main Bearing Retainer Bolt | 12 | 7501-0038-00 ( 10 ) |
| 6 | Main Bearing Retainer Bolt | 6 | 7501-0071-00 |
| 7 | Main Bearing Retainer-Inner | 2 | 6397-0603-00 |
| 8 | Main Bearing Retainer-Outer | 2 | 6397-0591-00 |
| 9 | Main Bearing Carrler Bolt | 4 | 7501-1261-00 |
| 10 | Shim Bet | 4 | 7502-0311-00 |
| 11 | Eccentric Bearing | 2 | 6397-0250-00 |
| 12 | Eccentric Btrap | 2 | 6397-0586-00 |
| 13 | Eccentric Bearing Retainer – Outer | 2 | 6397-0252-00 |
| 14 | Eccentric Bearing Retainer – Inner | 6 | — |
| 15 | Bccentric Bearing Retainer Bolt | 6 | — |
| 16 | Eccentric Bearing Retainer Bolt | 16 | 7501-1252-00 |
| 17 | Eccentric Bear Ring | 1 | 6397-0501-01 |
| 18 | Eccentric Bear Hub | 1 | 6397-0508-00 |
| 19 | Eccentric Bear and Hub | 1 | — |
| 20 | Eccentric Bear Bolt | – | 7601-033101 3/4″ X 3-1/4″ ( 10 ) |
| 21 | 2 | 7602-020038 123034-C | |
| 22 | Hex Head Cap Screw | 12 | 7601-033030 1/2″ X 1-3/4″ ( 16 ) |
| 23 | 12 | 7601-133004 17/32″ X 1-1/16″ (16 ) | |
| 24 | Socket Hd Cap Screw, 1/2″ x 5/8″ | 2 | 7601-034026 |
| 25 | – | 7601-072013 3/4″ ( 10 ) | |
| 49- ? -120 | |||
| 27 | Soft lron Wire | – | 16 On. |
| 28 | Soft lron Wire | – | 11 On. |
| R1 | Main Bearing | 2 | — |
| ROD OILER ASSEMBLY W/HYPRO PUMP FOR SINGLE EXTENDED STRATGHT PINION SHAFT | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| Assembly | 500190-B | ||
| 1 | Belt Guard | 1 | 500046-B |
| 2 | Pump Support | 1 | H-75256-L |
| 3 | #12-225 Hose Assembly | 1 | 7503-0220-58 |
| 4 | #12-225 Hose Assembly | 1 | 7503-0320-58 |
| 5A | Hypro Pump w/Rubber Rollers, 40002, see p.P-31-9 | 1 | 7602-182007 |
| 6 | QD Driver Sheave, S.B. Hub w/2″ Bore | 1 | 7602-236206 |
| or | Drive Sheave | 1 | — |
| 7 | Driven Sheave 2″PD-“A” | 1 | 7602-236131 |
| 8 | V-Belt | 1 | 4L-670 |
| 7602-033178 | |||
| 9 | Galv Street Ell, 3/4″ x 90° | 4 | 7601-257090 |
| 10 | Galv Elbow, 3/4″ x 90° | 1 | — |
| 11 | Hex Hd Cap Screw, 5/16″ x 5/8″ | 4 | 7601-033016 |
| 12 | Hex Hd Cap Screw, 1/2″ x 1-1/2″ | 2 | 7601-033051 |
| 13 | Lock Washer, 5/16″ | 4 | 7601-132013 |
| 14 | Lock Washer, 1/2″ | 2 | 7601-132016 |
| 15 | Plain Washer, 1/2″ | 2 | 7601-134005 |
| 16 | Hex Hd Cap Screw, 1/2″ x 7″ | 3 | — |
| 17 | Lock Washer, 1/2″ | 3 | — |
| R1 | Rod Oiler Tank or Cover | 1 | See Miscellaneous Items-page PA-56-1 |
| R2 | Hex Hd Cap Screw, 1/2″ x 1″ | 1 | 7601-033049 |
| ROD OILER ASSEMBLY W/ BROWN & SHARPE PUMP FOR SINGLE EXTENDED STRAIGHT PINION SHAFT | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| Assembly | 6307-0004-00 | ||
| 1 | Belt Guard | 1 | 6397-0838-00 |
| 2 | Pump Support | 1 | 6397-0762-00 |
| 3 | #225-12 Hose Assembly | 1 | 7503-0220-58 |
| 4 | #203-12 Hose Assembly | 1 | 7503-0264-55 |
| 5 | Drive Sheave | 1 | 6397-0807-00 |
| 6 | #1 B&S Rotary Gear Pump, Foot Mtg w/o Relier Valve, 713-1-1 | 1 | 7602-184008 |
| 7 | Drive Sheave-1A Worthington w/Key, Bored to Fit 9/16″ Ø Shaft w/1/8″ x 1/16″ Keyway | 1 | 2″PD,BA-1-20 7602-236064 |
| 8 | V-Belt | 1 | 4L-670 7602-033178 |
| 9 | Hex Hd Cap Screw, 3/8″ x 1″ | 4 | 7601-033030 |
| 10 | Hex Hd Cap Screw, 1/2″ x 1-1/2″ | 2 | 7601-033051 |
| 11 | Cup Point Setscrew, 3/8″ x 3/4″ | 2 | 7601-037064 |
| 12 | Plain Washer, 9/16″ x 1-1/4″ | 1 | 7601-140001 |
| 13 | Lock Washer, 3/8″ | 4 | 7601-132014 |
| 14 | Lock Washer, 1/2″ | 2 | 7601-132016 |
| 15 | Galv Street Ell, 3/4″ x 90° | 2 | 7601-257090 |
| 16 | Galv Elbow, 3/4″ x 90° | 2 | 7601-257042 |
| 17 | Galv Close Nipple, 3/8″ | 2 | 7601-258106 |
| 18 | Galv Bushing, 3/4″ x 3/8″ | 2 | 7601-253037 |
| 19 | Hex Head Cap Screw, 1/2″ x 8″ | 3 | — |
| 20 | Lock Washer, 1/2″ | 3 | — |
| 21 | Stflx Adapter 1011-12-12B | 1 | 7601-209026 |
| R1 | Rod Lubricator Tank or Cover | 1 | See Misc. Items, p. PA-56-1 |
| R2 | Hex Head Cap Screw, 1/2″ x 1″ | 1 | 7601-033049 |
| EMSCO D-375 DUPLEX MUD PUMP | |||
| MISCELLANEOUS ITEMS | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Gear Case Cover | 1 | 6397-0872-00 |
| 2 | Cover Gasket, 3/8″ x 1″ Neopr. Sponge | 1 | 7602-059015 |
| 3 | Oil Level Indicator | 2 | 6397-0668-00 |
| 4A | Inspection Door, C-E, see p.P-31-1 | 1 | 7510-0201-00 |
| or | Inspection Door, Mid-Co., see p.P-31-1 | 1 | 7510-0208-00 |
| 5 | Inspection Door Gasket | 1 | 7502-0103-00 |
| 6 | Hold-Down Bolt | 4 | 7501-2610-00 |
| 7 | Hold-Down Bolt | 4 | 7501-2621-00 |
| 8 | Breather Cap | 1 | 6397-0186-00 |
| 9 | Breather Cap Stud | 1 | 7507-0200-00 |
| 10A | Shear Relief Valve, See p.P-31-13 | 1 | 6923-0008-00 |
| 11 | Rod Lubricator Tank | 1 | 6397-0826-00 |
| 12 | Rod Lubricator Tank Cover, N.S. | 1 | 6397-0827-00 |
| 13 | Rod Lubricator Tank Cover, F.S. | 1 | — |
| 14 | Cover Gasket | 2 | — |
| 15 | Main Bearing Bolt Wrench | 1 | 6397-0578-00 |
| 16 | Valve Pot Cover Bar | 1 | 6397-0700-00 |
| 17 | Proto X-Hvy Duty Socket | 1 | 7602-301016 |
| 18 | Proto Socket – Stuffing Box # 5548 | 1 | 7602-3010 L1 |
| 19 | Proto Sliding Bar, 5685 | 1 | 7602-301013 |
| 20 | Proto 8″ Extension, 5661 | 1 | 7602-301014 |
| 21 | H.P. Steel, Pipe Plug, 2″ | 1 | — |
| 22 | Hex Hd Cap Screw, 1/2″ x 1-1/4″ | 4 | — |
| 23 | Hex Hd Cap Screw, 1/2″ x 1-1/2″ | 4 | — |
| 25 | Plpe Bushing, 3″ x 2″ | 1 | — |
| 26 | Lock Washer, 1/2″ | 8 | — |
| 27 | Galv Nipple, 1/2″ x —— | 2 | 7601-258394 7-1/2″ |
| FLUID END ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. API 7 VLV POT |
| 1 | Fluid End | 1 | 6397-0577-00 |
| 2 | Fluid End Stud | 16 | 7507-3405-00 ( 20 ) |
| 3 | Fluid End Stud | 8 | 7507-2003-00 ( 12 ) |
| 4 | Fluid End Stud | 20 | 7507-3405-00 ( 24 ) |
| 5 | Suction Flange Stud | 12 | — |
| 6 | Discharge Flange Stud | 8 | 7507-3404-00 |
| 7A | Air Chamber Assembly | 1 | 6397-0569-00 |
| 8 | Air Chamber Body | 1 | 6397-0784-00 |
| 9 | Strainer | 1 | 6397-0128-01 |
| 10 | Strainer Cap | 1 | 6397-0291-00 |
| 11 | Gasket | 1 | 7602-160040, ARP 568-439 |
| 12 | Stud | 16 | 7507-3400-00 |
| 13 | Discharge Flange | 1 | 6397-0098-00 |
| 14 | Gasket | 1 | 6397-0038-01 ( 2 ) |
| 15 | Cylinder Head | 2 | 6397-0536-00 |
| 16 | Cylinder Liner Cage | 2 | 6397-0537-00 |
| 17 | Liner Seal | 6 | 6397-0648-00 |
| 18 | Valve Pot Cover | 8 | 6397-0538-00 |
| 19 | Valve Pot Cover Gasket | 8 | 6397-0462-00 |
| 20 | Valve Guide | 8 | 6397-0575-00 |
| 21 | Valve Bumper | 8 | 6397-0148-00 |
| 22 | Valve Guide Retainer | 8 | 6397-0576-00 |
| 23 | Valve Guide Retainer Bolt | 32 | 7501-0051-00 |
| 24 | Valve Spring | 8 | 6397-0579-00 |
| 25 | Suction Flange | 1 | — |
| 26 | Suction Flange Gasket, ARP 568-447 | 1 | — |
| 27 | Shim Set | 2 | 6397-0452-00 |
| 28 | Hex Head Cap Screw | 4 | 1″ x 4″ |
| 7601-033137 | |||
| 29 | Hex Nut | 4 | 1″ |
| 7601-061018 | |||
| 30 | Hex Nut | 16 | 1-1/8″ |
| 7601-061021 | |||
| 31 | Hex Nut | 8 | 1″ (12) |
| 7601-OL101 | |||
| 32 | Hex Nut, 1″ – 8 Hvy | 12 | — |
| 33 | Hex Nut, 1-1/8″ – 8 Hvy | 36 | 7601-063026(44) |
| 34 | Hex Nut | 8 | 1-1/8″ – 8 Hvy |
| 7601-063026 | |||
| 35 | Lock Washer | 4 | 1“ |
| 7601-132033 | |||
| 36 | Teylor Blind Flange 4″ – 900 # | 1 | 7601-206034 |
| 37 | Air Chamber to Fluid End Gasket | 1 | 7602-160040 |
| 38 | Soft Iron Wire | 1/16″ Ø | |
| STUFFING BOX ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Diaphragm Stuffing Box Assembly | 2 | — |
| 2 | Diaphragm Stuffing Box | 2 | 6397-0590-00 |
| 3 | Diaphragm Stuffing Box Retainer | 2 | — |
| 4 | Diaphragm Stuffing Box Gasket | 2 | 7502-0593-00 |
| 5 | Diaphragm Stuffing Box Spacer Spring | 2 | 6397-0531-00 |
| 6 | Diaphragm Stuffing Box Lock Spring | 2 | 6397-0530-00 |
| 7 | Diaphragm Stuffing Box Oil Seal | 4 | 6306-0046-00 |
| 8 | Fluid Baffle | 2 | 6397-0055-01 |
| 9 | Fluid Stuffing Box | 2 | 6397-0254-10 |
| 10 | Fluid Stuffing Box Gland | 2 | 6397-0256-10 |
| 11 | Fluid Stuffing Box Gland Bushing | 2 | 6397-0199-00 |
| 12 | Fluid Stuffing Box Packing | 2 | 6397-0742-00 |
| 13 | Fluid Stuffing Box Junk Ring | 2 | 6397-0360-00 |
| 14 | Fluid Stuffing Box Gasket | 2 | 7602-160034 ARP 568-430 |
| 15 | #6-203 Hose Assembly | 2 | 7503-0170-30 |
| 16 | O – Ring | 2 | 7602-160026 ARP 568-345 |
| 17 | O – Ring | 2 | — |
| 19 | Hex Hd Cap Screw, 1/2″ x 1-1/2″ | 12 | 7601-033051 |
| 20 | Hex Hd Cap Screw, 3/8″ x 2-1/4″ | 12 | — |
| 21 | Hex Hd Cap Screw, 3/8″ x 1″ | 8 | — |
| 22 | 3/8″ Internal Tooth Lock Washer, Type B | 12 | — |
| 23 | Lock Washer | 12 | 7601-132016 1/2″ |
| CROSSHEAD ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Crosshead | 2 | 6397-0568-00 |
| 2 | Crosshead Pin | 2 | 6397-0242-01 |
| 3 | Crosshead Pin Retainer | 2 | 6397-0526-00 |
| 4 | Crosshead Pin Retainer Bolt | 7501-1262-00 (12) | |
| 7 | Crosshead Bearing | 2 | 6397-0245-00 |
| 8 | Crosshead Guide | 2 | 6397-0556-00 |
| 9 | Crosshead Guide Extension | 2 | 6397-0559-00 |
| 10 | Crosshead Guide Seal | 2 | 6397-0572-00 |
| 11 | Crosshead Guide Frame Seal | 2 | 6397-0573-00 |
| 12 | Crosshead Extension | 2 | 6397-0567-00 |
| 13 | Crosshead Door, C-E | 2 | 6397-0566-00 |
| or | Crosshead Door, Mid-Co | 2 | 6306-0034-00 |
| 14 | Crosshead Door Gasket | 2 | 6397-0571-00 |
| 15 | #10-225 Hose Assembly | 2 | — |
| or | Copper Tubing As sembly | 2 | 7508-0110-36 HOSE |
| 16 | Hex Head Cap Screw | 1/2″ X 1″ ( 28 ) | |
| 7601-033049 | |||
| 17 | Hex Head Cap Screw | 12 | 1/2″ X 5-1/2″ |
| 7601-033063 | |||
| 18 | Socket Head Cap Screw | 1-1/8″ X 4″ ( 20 ) | |
| 7601-034073 | |||
| 19 | SAE Plain Washer | 7601-133004 ( 28 ) | |
| 20 | 1/2″ Internal Tooth Lock Washer, Type B | 12 | 76-1-137008 |
| 21 | Galv Bushing, 1/2″ x 3/8″ | 4 | — |
| 22 | Soft Iron Wire | 16 Ga. | |
| 23 | Lock Washer, 1/2″ | 12 | — |
| 24 | STRATO HEX HOSE ADAPTOR | 2 | |
| PINION ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Pinion Shaft-Single Ext Straight | 1 | |
| or | Pinion Shaft-Dbl Ext Straight | 1 | 6397-0534-10 |
| 2 | Pinion Shaft Key-Single Ext Straight | 1 | 7504-2912-00 |
| or | Pinion Shaft Key-Dbl Ext Straight | 1 | 7504-2912-00 |
| 3 | Pinion Shaft Cover-Dbl Ext Straight | 1 | 6397-0053-00 |
| 4 | Pinion Bearing Carrier | 2 | 6397-0557-10 |
| 5 | Pinion Bearing Carrier Gasket | 2 | 7502-0590-00 |
| 6 | Pinion Bearing Retainer | 2 | 6397-0558-10 |
| 7 | Bearing Retainer Gasket | 2 | 7502-0589-00 |
| 8 | Oil Seal Wear Ring | 2 | 6397-0535-00 |
| 9 | Pinion Bearing, Hyatt | 2 | A-5226-TS. |
| 7602-021036 | |||
| 10 | Oil Seal, C/R | 2 | #53701 |
| 7602-213082 | |||
| 11 | Retainer Ring, Truarc, #5000-700 | 2 | — |
| 12 | Hex Hd Cap Screw | 6 | 1/2″ X 1-1/4″ |
| 7601-033050 | |||
| 13 | Hex Head Cap Screw | 16 | 3/4″ X 1-3/4″ ( 12 ) |
| 7601-033096 | |||
| 14 | Hex Hd Cap Screw, 3/8″ x 7/8″ | 6 | — |
| 15 | Lock Washer, 3/8″ | 6 | — |
| BCCENTRIC ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Main Bearing Carrier | 1 | 6397-0552-01 |
| 2 | Main Bearing Carrier | 1 | 6397-0552-00 |
| 3 | Main Bearing Cap, C-E | 2 | 6397-0554-00 |
| or | Main Bearing Cap, Min-Co. | 2 | 6306-0032-00 |
| 4 | Main Bearing Cap, Gasket | 2 | 7502-0687-00 |
| 5 | Main Bearing Retainer Bolt | 12 | 7501-0038-00 |
| 6 | Main Bearing Retainer Bolt | 6 | 7501-0003-00 |
| 7 | Main Bearing Retainer-Inner | 2 | 6397-0405-00 |
| 8 | Main Bearing Retainer-Outer | 2 | 6397-0553-00 |
| 9 | Main Bearing Carrler Bolt | 4 | 7501-2632-00 |
| 10 | Shim Bet | 4 | 7502-0310-00 |
| 11 | Eccentric Bearing | 2 | 6397-0259-00 |
| 12 | Eccentric Btrap | 2 | 6397-0238-01 |
| 13 | Eccentric Bearing Retainer – Outer | 2 | 6397-0253-00 |
| 14 | Eccentric Bearing Retainer – Inner | 6 | 7304-0013-00 |
| 15 | Bccentric Bearing Retainer Bolt | 6 | 7301-0056-00 |
| 16 | Eccentric Bearing Retainer Bolt | 16 | 7501-1252-00 |
| 17 | Eccentric Bear Ring | 1 | 6397-0532-01 |
| 18 | Eccentric Bear Hub | 1 | 6397-0481-02 |
| 19 | Eccentric Bear and Hub | 1 | — |
| 20 | Eccentric Bear Bolt | – | 7601-033501 1/4″ X 4-1/4″ ( 24 ) |
| 21 | 2 | 7602-020015 122236-C | |
| 22 | Hex Head Cap Screw | 12 | 7601-033086 3/4″ X 1-3/4″ |
| 23 | 12 | 7601-133006 13/16″ X 1-1/2″ | |
| 24 | Socket Hd Cap Screw, 1/2″ x 5/8″ | 2 | — |
| 25 | – | 7601-022013 3/4″ ( 24 ) | |
| 49- ? -120 | |||
| 27 | Soft lron Wire | – | 16 On. |
| 28 | Soft lron Wire | – | 11 On. |
| R1 | Main Bearing | 2 | 6397-0711-00 |
| ROD OILER ASSEMBLY W/HYPRO PUMP FOR SINGLE EXTENDED STRATGHT PINION SHAFT | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| Assembly | H-76720-B | ||
| 1 | Belt Guard | 1 | H-76836-B |
| 2 | Pump Support | 1 | H-75256-L |
| 3 | #12-225 Hose Assembly | 1 | 7503-0320-58 |
| 4 | #12-225 Hose Assembly | 1 | 7503-0220-58 |
| 5A | Hypro Pump w/Rubber Rollers, 40002, see p.P-31-9 | 1 | 7602-182007 |
| 6 | QD Driver Sheave, S.B. Hub w/2″ Bore | 1 | — |
| or | Drive Sheave | 1 | 6397-1239-00 |
| 7 | Driven Sheave 2″PD-“A” | 1 | 7602-236131 |
| 8 | V-Belt | 1 | A-85 |
| 7602-033028 | |||
| 9 | Galv Street Ell, 3/4″ x 90° | 4 | 7601-257090 (3) |
| 10 | Galv Elbow, 3/4″ x 90° | 1 | 7601-257042 |
| 11 | Hex Hd Cap Screw, 5/16″ x 5/8″ | 4 | 7601-033016 |
| 12 | Hex Hd Cap Screw, 1/2″ x 1-1/2″ | 2 | 7601-033051 |
| 13 | Lock Washer, 5/16″ | 4 | 7601-132013 |
| 14 | Lock Washer, 1/2″ | 2 | 7601-132016 |
| 15 | Plain Washer, 1/2″ | 2 | 7601-134005 |
| 16 | Hex Hd Cap Screw, 1/2″ x 7″ | 3 | 7601-033066 |
| 17 | Lock Washer, 1/2″ | 3 | 7601-132016 |
| R1 | Rod Oiler Tank or Cover | 1 | See Miscellaneous Items-page PA-56-1 |
| R2 | Hex Hd Cap Screw, 1/2″ x 1″ | 1 | 7601-033049 |
| ROD OILER ASSEMBLY W/ BROWN & SHARPE PUMP FOR SINGLE EXTENDED STRAIGHT PINION SHAFT | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| Assembly | 6306-0031-00 | ||
| 1 | Belt Guard | 1 | 6397-0837-00 |
| 2 | Pump Support | 1 | 6397-0762-00 |
| 3 | #225-12 Hose Assembly | 1 | 7503-0320-58 |
| 4 | #203-12 Hose Assembly | 1 | 7503-0220-55 |
| 5 | Drive Sheave | 1 | 6306-0033-00 |
| 6 | #1 B&S Rotary Gear Pump, Foot Mtg w/o Relier Valve, 713-1-1 | 1 | 7602-184008 |
| 7 | Drive Sheave-1A Worthington w/Key, Bored to Fit 9/16″ Ø Shaft w/1/8″ x 1/16″ Keyway | 1 | 3″PD,BA-1-30 7602-236055 |
| 8 | V-Belt | 1 | A-85 7602-033028 |
| 9 | Hex Hd Cap Screw, 3/8″ x 1″ | 4 | 7601-033030 |
| 10 | Hex Hd Cap Screw, 1/2″ x 1-1/2″ | 2 | 7601-033051 |
| 11 | Cup Point Setscrew, 3/8″ x 3/4″ | 2 | — |
| 12 | Plain Washer, 9/16″ x 1-1/4″ | 1 | 7601-140001 |
| 13 | Lock Washer, 3/8″ | 4 | 7601-132014 |
| 14 | Lock Washer, 1/2″ | 2 | 7601-132016 |
| 15 | Galv Street Ell, 3/4″ x 90° | 2 | 7601-257090 (1) |
| 16 | Galv Elbow, 3/4″ x 90° | 2 | 7601-257042 (3) |
| 17 | Galv Close Nipple, 3/8″ | 2 | 7601-258106 |
| 18 | Galv Bushing, 3/4″ x 3/8″ | 2 | 7601-253037 |
| 19 | Hex Head Cap Screw, 1/2″ x 8″ | 3 | 7601-033067 |
| 20 | Lock Washer, 1/2″ | 3 | 7601-132016 |
| 21 | Stflx Adapter 1011-12-12B | 1 | 7601-209026 |
| R1 | Rod Lubricator Tank or Cover | 1 | |
| R2 | Hex Head Cap Screw, 1/2″ x 1″ | 1 | 7601-033049 |
| EMSCO D-550 DUPLEX MUD PUMP | |||
| MISCELLANEOUS ITEMS | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Gear Case Cover | 1 | 6397-0871-00 |
| 2 | Cover Gasket, 3/8″ x 1″ Neopr. Sponge | 1 | 7602-059019 |
| 3 | Oil Level Indicator | 2 | 6397-0707-00 |
| 4A | Inspection Door, C-E, see p.P-31-1 | 1 | 7510-0201-00 (2) |
| or | Inspection Door, Mid-Co., see p.P-31-1 | 1 | 7510-0208-00 (2) |
| 5 | Inspection Door Gasket | 1 | 7502-0103-00 (2) |
| 6 | Hold-Down Bolt | 4 | 7501-2610-00 (5) |
| 7 | Hold-Down Bolt | 4 | 7501-2621-00 |
| 8 | Breather Cap | 1 | 6397-0186-00 |
| 9 | Breather Cap Stud | 1 | 7507-0200-00 |
| 10A | Shear Relief Valve, See p.P-31-13 | 1 | 6923-0008-00 |
| 11 | Rod Lubricator Tank | 1 | 6397-0820-00 |
| 12 | Rod Lubricator Tank Cover, N.S. | 1 | 6397-0819-00 |
| 13 | Rod Lubricator Tank Cover, F.S. | 1 | — |
| 14 | Cover Gasket | 2 | — |
| 15 | Main Bearing Bolt Wrench | 1 | 6397-0418-00 |
| 16 | Valve Pot Cover Bar | 1 | 6397-0700-00 |
| 17 | Proto X-Hvy Duty Socket | 1 | 7602-301012 |
| 18 | Proto Socket – Stuffing Box # 5548 | 1 | 7602-301036 |
| 19 | Proto Sliding Bar, 5685 | 1 | 7602-301013 |
| 20 | Proto 8″ Extension, 5661 | 1 | 7602-301014 |
| 21 | H.P. Steel, Pipe Plug, 2″ | 1 | — |
| 22 | Hex Hd Cap Screw, 1/2″ x 1-1/4″ | 4 | — |
| 23 | Hex Hd Cap Screw, 1/2″ x 1-1/2″ | 4 | — |
| 25 | Plpe Bushing, 3″ x 2″ | 1 | 7601-253085 |
| 26 | Lock Washer, 1/2″ | 8 | — |
| 27 | Galv Nipple, 1/2″ x —— | 2 | 7601-258367 ( 10″ ) |
| FLUID END ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Fluid End, R.H. – Studded | 1 | 6397-0513-00 |
| 2 | Fluid End, L.H. – Studded | 1 | 6397-0512-00 |
| 3 | Fluid End Stud | 20 | 7507-2003-00 (12) |
| 4 | Fluid End Stud | 20 | 7507-2101-00 |
| 5 | Fluid End Stud | 24 | 7507-2102-00 |
| 6 | Suction Manifold Assembly | 1 | 6397-0511-00 |
| 7 | Suction Manifold Gasket | 4 | 7602-160065 ARP 568-444 |
| 8A | Discharge Manifold Assembly, See PA-51-5 | 1 | 6397-0510-10 |
| 9 | Discharge Manifold Gasket, ARP 568-347 | 2 | 7602-160028 |
| 10 | Discharge Manifold Bolt | 8 | 7501-2631-00 |
| 11 | Cylinder Head | 2 | 6397-0764-00 |
| 12 | Cylinder Liner Cage | 2 | 6397-0779-00 |
| 13 | Liner Seal | 6 | 6397-0648-00 |
| 14 | Valve Pot Cover | 8 | 6397-0426-00 |
| 15 | Valve Pot Cover Gasket | 8 | 6397-0461-00 |
| 16 | Valve Guide Retainer Bolt | 32 | 7501-0051-00 |
| 17 | Valve Spring | 8 | 6397-0428-00 |
| 18 | Valve Guide Retainer | 8 | 6397-0147-00 |
| 19 | Valve Guide | 8 | 6397-0432-00 |
| 20 | Valve Pot Bumper | 8 | 6397-0148-00 |
| 21 | Fluid End Shim Set | 2 | 6397-0519-00 |
| 22 | Fluid End Shim Set | 2 | 6397-0517-00 |
| 23 | Ferry Counter-Bor Screw, 1″ x 3″ | 28 | 7601-036013 |
| 24 | Hex Head Cap Screw | 4 | 7601-033116 7/8″ x 3″ |
| 25 | Hex Head Cap Screw | 4 | 7601-033116 7/8″ x 3″ |
| 26 | Hex Nut 7/8″ | 8 | 7601-061016 |
| 27 | Hex Nut 1-1/4″-8 Hvy | 8 | 7601-063024 |
| 28 | Hex Nut | 20 | 7601-063020 1″-8 Hvy (12) |
| 29 | Hex Nut | 20 | 7601-063024 1-1/4″-8 Hvy |
| 30 | Hex Nut | 24 | 7601-063024 1-1/4″-8 Hvy |
| 31 | Lock Washer, 7/8″ | 8 | 7601-132019 |
| 32 | Soft Iron Wire | 1/16″ | |
| 33 | Hex Hd Steel Pipe Plug 3/4″ | 4 | 7601-259036 |
| AIR CHAMBER ASSEMBLY | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Air Chamber Body | 1 | 6397-1215-00 |
| 2 | Manifold Adapter Flange | 1 | 6397-0431-00 |
| 3 | Stud | 8 | 7507-3404-00 |
| 4 | Ladish Ring Joint R-37 | 1 | 7602-066002 |
| 5 | 1-1/8″ – 7UNC -2B Hvy Hex Nut | 8 | 7601-063025 |
| STUFFING BOX ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Diaphragm Stuffing Box Assembly | 2 | 6397-0550-00 |
| 2 | Diaphragm Stuffing Box | 2 | 6397-0560-00 |
| 3 | Diaphragm Stuffing Box Retainer | 2 | 6397-0561-00 |
| 4 | Diaphragm Stuffing Box Gasket | 2 | 7502-0588-00 |
| 5 | Diaphragm Stuffing Box Spacer Spring | 2 | 6397-0564-00 |
| 6 | Diaphragm Stuffing Box Lock Spring | 2 | 6397-0565-00 |
| 7 | Diaphragm Stuffing Box Oil Seal | 4 | 6305-0071-00 |
| 8 | Fluid Baffle | 2 | 6397-0094-01 |
| 9 | Fluid Stuffing Box | 2 | 6397-0254-01 |
| 10 | Fluid Stuffing Box Gland | 2 | 6397-0256-00 |
| 11 | Fluid Stuffing Box Gland Bushing | 2 | 6397-0089-00 |
| 12 | Fluid Stuffing Box Packing | 2 | 6397-0743-00 |
| 13 | Fluid Stuffing Box Junk Ring | 2 | 6397-0255-00 |
| 14 | Fluid Stuffing Box Gasket | 2 | 7602-160034 ARP 568-430 |
| 15 | #6-203 Hose Assembly | 2 | 7503-0190-30 |
| 16 | O – Ring | 2 | 7602-160033 ARP 568-429 |
| 17 | O – Ring | 2 | 7602-161020 ARP 568-259 |
| 19 | Hex Hd Cap Screw, 1/2″ x 1-1/2″ | 12 | — |
| 20 | Hex Hd Cap Screw, 3/8″ x 2-1/4″ | 12 | 7601-033035 |
| 21 | Hex Hd Cap Screw, 3/8″ x 1″ | 8 | 7601-033030 |
| 22 | 3/8″ Internal Tooth Lock Washer, Type B | 12 | 7601-137007 |
| 23 | Lock Washer | 12 | 7601-132014 3/8″ ( 8 Reqd ) |
| CROSSHEAD ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Crosshead | 2 | 6397-0499-00 |
| 2 | Crosshead Pin | 2 | 6397-0236-00 |
| 3 | Crosshead Pin Retainer | 2 | 6397-0507-00 |
| 4 | Crosshead Pin Retainer Bolt | 7501-1250-00 (12) | |
| 7 | Crosshead Bearing | 2 | 6397-0237-00 |
| 8 | Crosshead Guide | 2 | 6397-0476-00 |
| 9 | Crosshead Guide Extension | 2 | 6397-0508-00 |
| 10 | Crosshead Guide Seal | 2 | 6397-0490-00 |
| 11 | Crosshead Guide Frame Seal | 2 | 6397-0525-00 |
| 12 | Crosshead Extension | 2 | 6397-0506-00 |
| 13 | Crosshead Door, C-E | 2 | 6397-0514-00 |
| or | Crosshead Door, Mid-Co | 2 | 6305-0072-00 |
| 14 | Crosshead Door Gasket | 2 | 7502-0123-00 |
| 15 | #10-225 Hose Assembly | 2 | 7503-0090-50 |
| or | Copper Tubing As sembly | 2 | — |
| 16 | Hex Head Cap Screw | 1/2″ X 1″ ( 24 ) | |
| 7601-033049 | |||
| 17 | Hex Head Cap Screw | 12 | 1/2″ X 5-1/2″ |
| 7601-033063 | |||
| 18 | Socket Head Cap Screw | 1/4″ X 5″ ( 20 ) | |
| 7601-034078 | |||
| 19 | SAE Plain Washer | 7601-140001 ( 24 ) | |
| 20 | 1/2″ Internal Tooth Lock Washer, Type B | 12 | 76-1-137008 |
| 21 | Galv Bushing, 1/2″ x 3/8″ | 4 | — |
| 22 | Soft Iron Wire | 16 Ga. | |
| 23 | Lock Washer, 1/2″ | 12 | — |
| 24 | STRATO HEX HOSE ADAPTOR | 2 | |
| PINION ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Pinion Shaft-Single Ext Straight | 1 | — |
| or | Pinion Shaft-Dbl Ext Straight | 1 | 6397-0504-01 |
| 2 | Pinion Shaft Key-Single Ext Straight | 1 | — |
| or | Pinion Shaft Key-Dbl Ext Straight | 1 | 7504-3409-00 |
| 3 | Pinion Shaft Cover-Dbl Ext Straight | 1 | 6305-0060-00 |
| 4 | Pinion Bearing Carrier | 2 | 6397-0501-10 |
| 5 | Pinion Bearing Carrier Gasket | 2 | 7502-0574-00 |
| 6 | Pinion Bearing Retainer | 2 | 6397-0502-01 |
| 7 | Bearing Retainer Gasket | 2 | 7502-0587-00 |
| 8 | Oil Seal Wear Ring | 2 | 6397-0489-00 |
| 9 | Pinion Bearing, Hyatt | 2 | A-5232-TS. |
| 7602-021039 | |||
| 10 | Oil Seal, C/R | 2 | #63751 |
| 7602-213093 | |||
| 11 | Retainer Ring, Truarc, #5000-700 | 2 | — |
| 12 | Hex Hd Cap Screw | 6 | 1/2″ X 1-1/4″ |
| 7601-033050 | |||
| 13 | Hex Head Cap Screw | 16 | 3/4″ X 1-3/4″ |
| 7601-033096 | |||
| 14 | Hex Hd Cap Screw, 3/8″ x 7/8″ | 6 | 7601-033029 |
| 15 | Lock Washer, 3/8″ | 6 | 7601-132014 |
| ROD OILER ASSEMBLY W/ BROWN & SHARPE PUMP FOR DOUBLE EXTENED STRAIGHT PINION SHAFT | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| Assembly | 6305-0052-00 | ||
| 1 | Belt Guard | 1 | 6397-0821-00 |
| 2 | Pump Support | 1 | 6397-0762-00 |
| 3 | #225-12 Hose Assembly | 1 | 7503-0510-58 |
| 4 | #203-12 Hose Assembly | 1 | 7503-0260-55 |
| 5 | #1 B&S Rotary Gear Pump, Foot Mtg | 1 | 7602-184008 |
| w/o Relief Valve, 713-1-1 | |||
| 6 | 1-A Worthington Sheave w/Key, Bored | 1 | 2.5″PD-BA-1-25 |
| to Fit 9/16 Shaft, 1/8″ x 1/16″ Keyway | 7602-236057 | ||
| 7 | V-Belt, A-75 | 1 | 7602-033025 |
| 8 | Hex Head Cap Screw, 3/8″ x 1″ | 4 | 7601-033030 |
| 9 | Hex Head Cap Screw, 1/2″ x 1-1/2″ | 2 | 7601-033050 |
| 10 | Plain Washer, 9/16″ x 1-1/4″ | 2 | 7601-140001 |
| 11 | Lock Washer, 3/8″ | 4 | 7601-132014 |
| 12 | Lock Washer, 1/2″ | 2 | 7601-132016 |
| 13 | Galv Close Nipple, 3/8″ | 2 | 7601-258106 |
| 14 | Galv Bushing, 3/4″ x 3/8″ | 2 | 7601-253037 |
| 15 | Galv Street Ell, 3/4″ x 90° | 1 | 7601-257090 |
| 16 | Galv Elbow, 3/4″ x 90° | 3 | 7601-257042 |
| 17 | Stflx Adapter 1011-12-12B | 1 | 7601-209046 |
| R1 | Rod Oiler Tank | 1 | p.PA-56-1 |
| R2 | Hex Head Cap Screw, 1/2″ x 1″ | 1 | 7601-033049 |
| BCCENTRIC ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Main Bearing Carrier | 1 | 6397-0776-01 |
| 2 | Main Bearing Carrier | 1 | 6397-0776-00 |
| 3 | Main Bearing Cap, C-E | 2 | 6397-0488-00 |
| or | Main Bearing Cap, Min-Co. | 2 | 6305-0064-00 |
| 4 | Main Bearing Cap, Gasket | 2 | 7502-0646-00 |
| 5 | Main Bearing Retainer Bolt | 12 | 7501-0038-00 |
| 6 | Main Bearing Retainer Bolt | 6 | 7501-0033-00 |
| 7 | Main Bearing Retainer-Inner | 2 | 6397-0477-00 |
| 8 | Main Bearing Retainer-Outer | 2 | 6397-0699-00 |
| 9 | Main Bearing Carrler Bolt | 4 | 7501-2627-00 |
| 10 | Shim Bet | 4 | 7502-0300-00 |
| 11 | Eccentric Bearing | 2 | 6397-0257-00 |
| 12 | Eccentric Btrap | 2 | 6397-0300-00 |
| 13 | Eccentric Bearing Retainer – Outer | 2 | 6397-0290-00 |
| 14 | Eccentric Bearing Retainer – Inner | 6 | 7304-0015-00 |
| 15 | Bccentric Bearing Retainer Bolt | 6 | 7301-0056-00 |
| 16 | Eccentric Bearing Retainer Bolt | 16 | 7501-1251-00 ( 24 ) |
| 17 | Eccentric Bear Ring | 1 | 6397-0505-01 |
| 18 | Eccentric Bear Hub | 1 | 6397-0503-00 |
| 19 | Eccentric Bear and Hub | 1 | — |
| 20 | Eccentric Bear Bolt | – | 7601-033501 1″ X 4-1/2″ ( 12 ) |
| 21 | 2 | 7602-020015 122240-C | |
| 22 | Hex Head Cap Screw | 12 | 7601-033096 3/4″ X 1-3/4″ |
| 23 | 12 | 7601-133006 13/16″ X 1-1/2″ | |
| 24 | Socket Hd Cap Screw, 1/2″ x 5/8″ | 2 | — |
| 25 | – | 7601-022017 1″ ( 24 ) | |
| 49- ? -168 | |||
| 27 | Soft lron Wire | – | 16 On. |
| 28 | Soft lron Wire | – | 11 On. |
| R1 | Main Bearing | 2 | 6397-0479-00 |

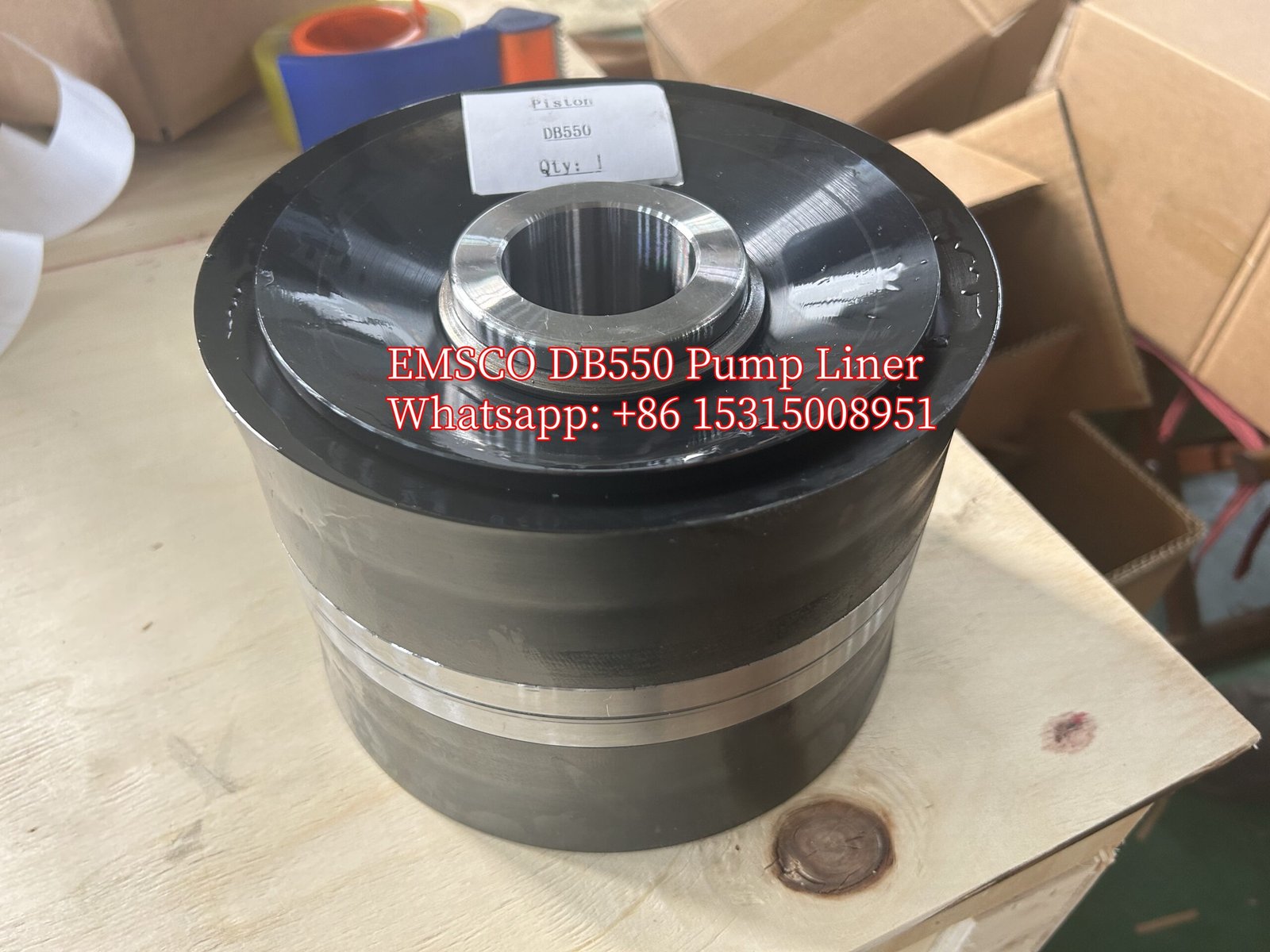

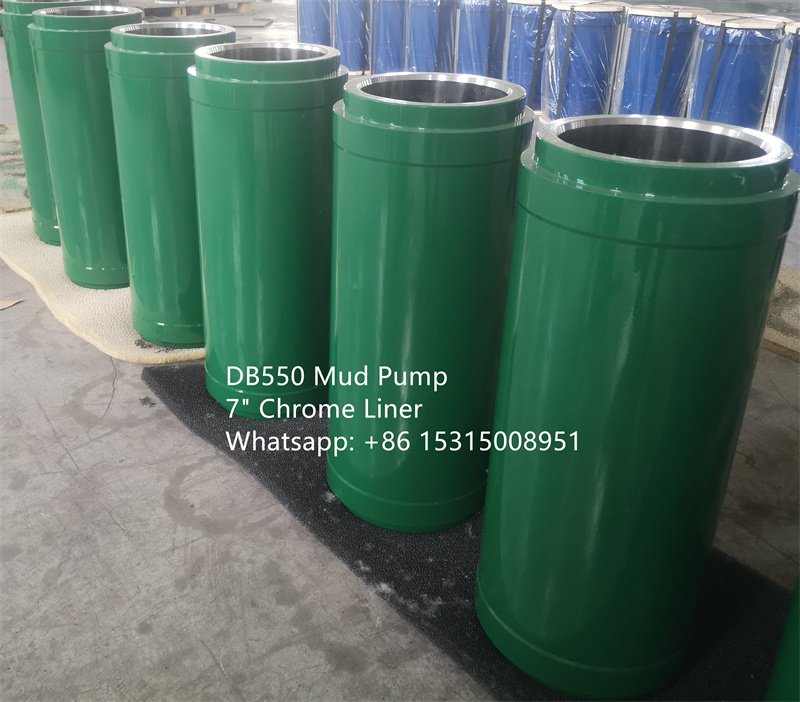

| EMSCO DB-550 DUPLEX MUD PUMP | |||
| MISCELLANEOUS ITEMS | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Gear Case Cover | 1 | 6397-0871-00 |
| 2 | Cover Gasket, 3/8″ x 1″ Neopr. Sponge | 1 | 7602-059019 |
| 3 | Oil Level Indicator | 2 | 6397-0707-00 |
| 4A | Inspection Door, C-E, see p.P-31-1 | 1 | 7510-0201-00 (2) |
| or | Inspection Door, Mid-Co., see p.P-31-1 | 1 | 7510-0208-00 (2) |
| 5 | Inspection Door Gasket | 1 | 7502-0103-00 (2) |
| 6 | Hold-Down Bolt | 4 | 7501-2610-00 |
| 7 | Hold-Down Bolt | 4 | 7501-2621-00 (5) |
| 8 | Breather Cap | 1 | 6397-0186-00 |
| 9 | Breather Cap Stud | 1 | 7507-0200-00 |
| 10A | Shear Relief Valve, See p.P-31-13 | 1 | 6923-0008-00 |
| 11 | Rod Lubricator Tank | 1 | 6397-0820-00 |
| 12 | Rod Lubricator Tank Cover, N.S. | 1 | 6397-0819-00 |
| 13 | Rod Lubricator Tank Cover, F.S. | 1 | — |
| 14 | Cover Gasket | 2 | — |
| 15 | Main Bearing Bolt Wrench | 1 | 6397-0418-00 |
| 16 | Valve Pot Cover Bar | 1 | 6397-0700-00 |
| 17 | Proto X-Hvy Duty Socket | 1 | 7602-301012 |
| 18 | Proto Socket – Stuffing Box # 5548 | 1 | 7602-301036 |
| 19 | Proto Sliding Bar, 5685 | 1 | 7602-301013 |
| 20 | Proto 8″ Extension, 5661 | 1 | 7602-301014 |
| 21 | H.P. Steel, Pipe Plug, 2″ | 1 | — |
| 22 | Hex Hd Cap Screw, 1/2″ x 1-1/4″ | 4 | — |
| 23 | Hex Hd Cap Screw, 1/2″ x 1-1/2″ | 4 | — |
| 25 | Plpe Bushing, 3″ x 2″ | 1 | 7601-253085 |
| 26 | Lock Washer, 1/2″ | 8 | — |
| 27 | Galv Nipple, 1/2″ x —— | 2 | 7601-258367 ( 10″ ) |

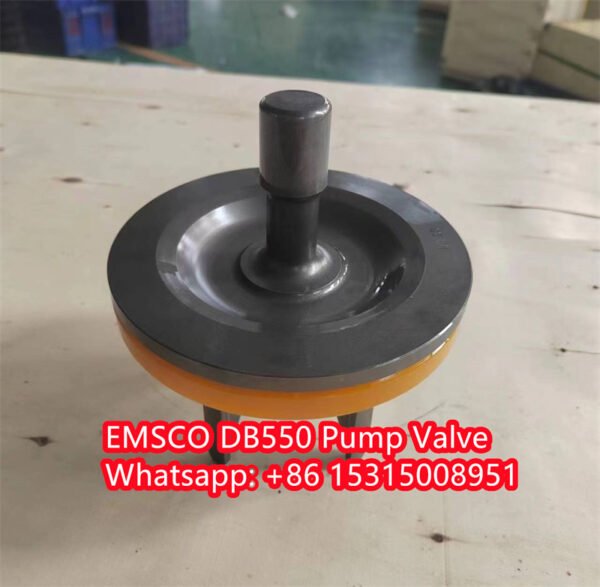

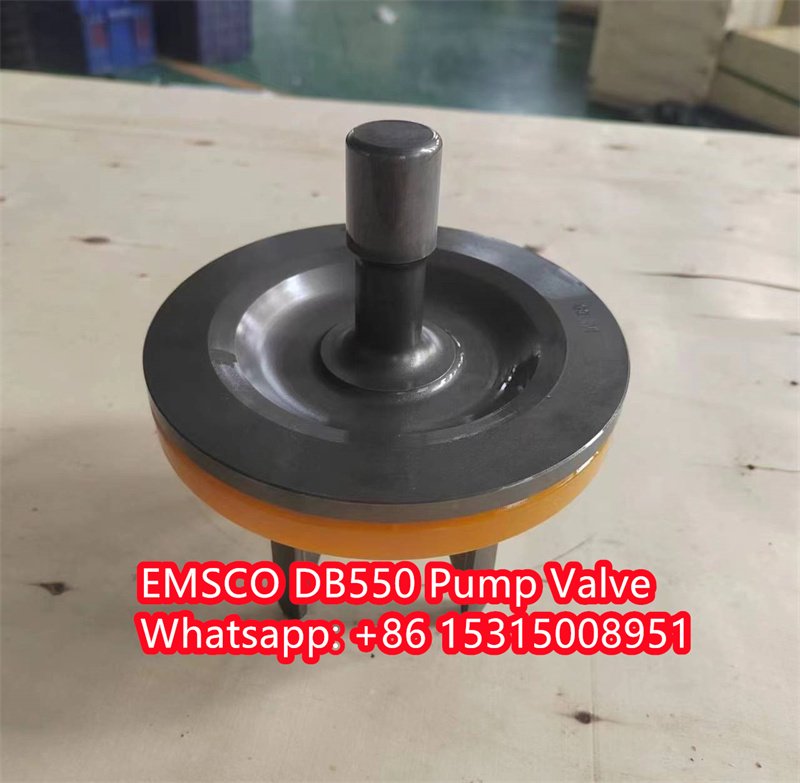

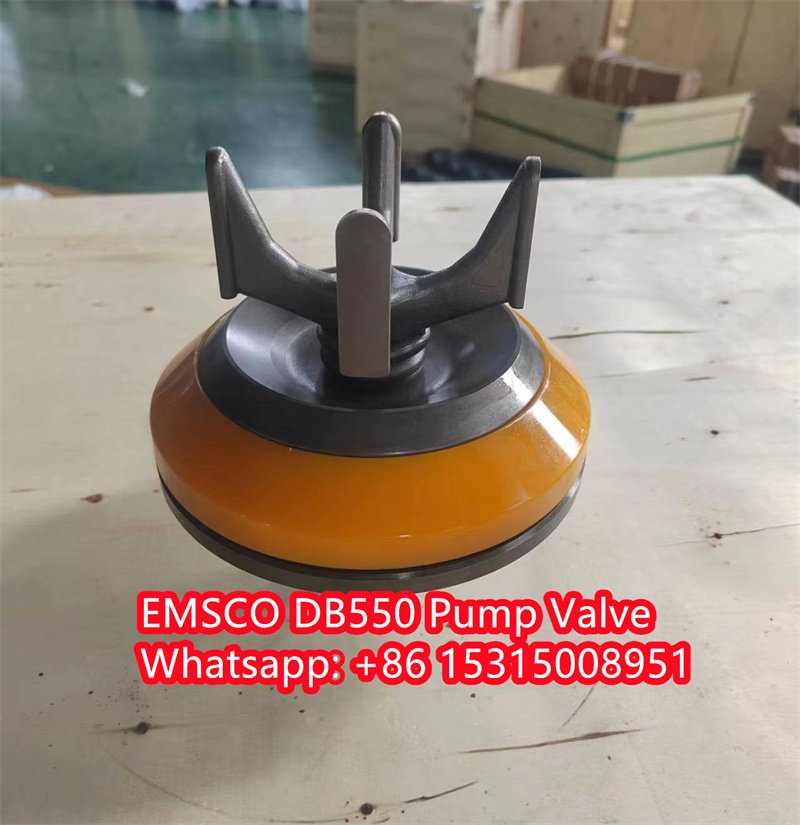

| FLUID END ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Fluid End, R.H. – Studded | 1 | 6305-0065-00 |
| 2 | Fluid End, L.H. – Studded | 1 | 6305-0053-00 |
| 3 | Fluid End Stud | 20 | 7507-2003-00 (12) |
| 4 | Fluid End Stud | 20 | 7507-2101-00 |
| 5 | Fluid End Stud | 24 | 7507-2102-00 |
| 6 | Suction Manifold Assembly | 1 | 6397-0511-00 |
| 7 | Suction Manifold Gasket | 4 | 7602-160065 ARP 568-444 |
| 8A | Discharge Manifold Assembly, See PA-51-5 | 1 | 6397-0510-10 |
| 9 | Discharge Manifold Gasket, ARP 568-347 | 2 | 7602-160028 |
| 10 | Discharge Manifold Bolt | 8 | 7501-2631-00 |
| 11 | Cylinder Head | 2 | 6397-0764-00 |

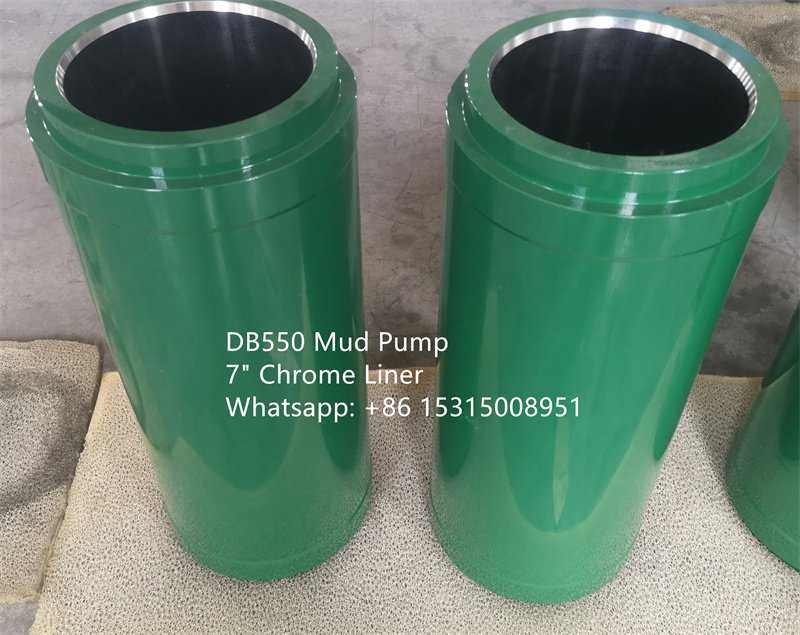

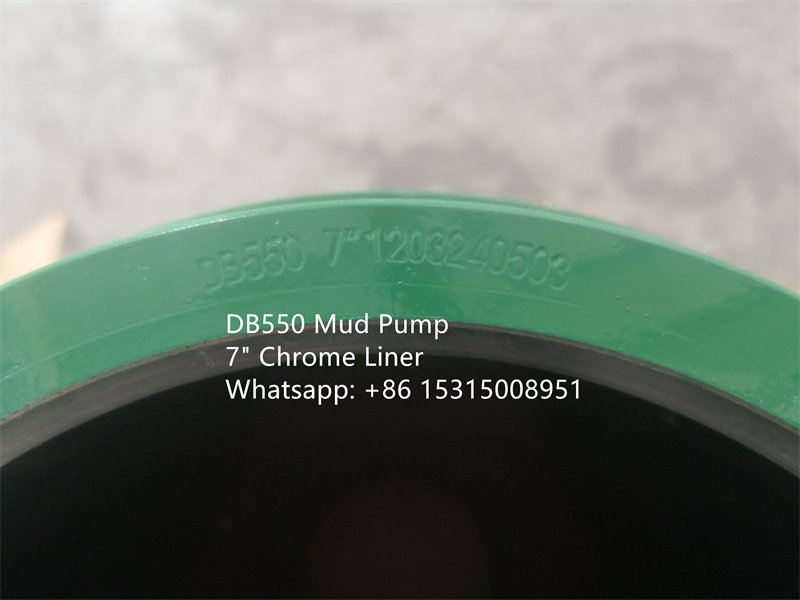

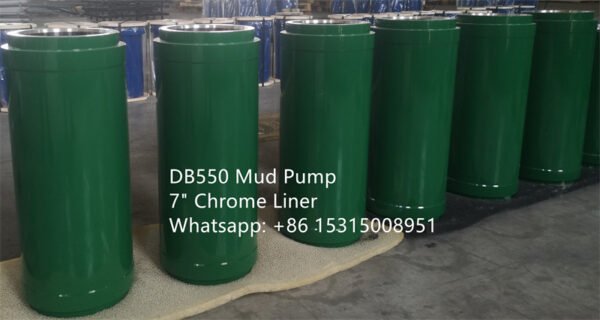

| 12 | Cylinder Liner Cage | 2 | 6397-0779-00 |
| 13 | Liner Seal | 6 | 6397-0648-00 |
| 14 | Valve Pot Cover | 8 | 6397-0834-00 |
| 15 | Valve Pot Cover Gasket | 8 | 6397-0461-00 |
| 16 | Valve Guide Retainer Bolt | 32 | 7501-0051-00 |
| 17 | Valve Spring | 8 | 6397-0428-00 |
| 18 | Valve Guide Retainer | 8 | 6397-0147-00 |
| 19 | Valve Guide | 8 | 6397-0432-00 |
| 20 | Valve Pot Bumper | 8 | 6397-0148-00 |
| 21 | Fluid End Shim Set | 2 | 6397-0519-00 |
| 22 | Fluid End Shim Set | 2 | 6397-0517-00 |
| 23 | Ferry Counter-Bor Screw, 1″ x 3″ | 28 | 7601-036013 |
| 24 | Hex Head Cap Screw | 4 | 7601-033116 7/8″ x 3″ |
| 25 | Hex Head Cap Screw | 4 | 7601-033116 7/8″ x 3″ |
| 26 | Hex Nut 7/8″ | 8 | 7601-061016 |
| 27 | Hex Nut 1-1/4″-8 Hvy | 8 | 7601-063024 |
| 28 | Hex Nut | 20 | 7601-063020 1″-8 Hvy (12) |
| 29 | Hex Nut | 20 | 7601-063024 1-1/4″-8 Hvy |
| 30 | Hex Nut | 24 | 7601-063024 1-1/4″-8 Hvy |
| 31 | Lock Washer, 7/8″ | 8 | 7601-132019 |
| 32 | Soft Iron Wire | 1/16″ | |
| 33 | Hex Hd Steel Pipe Plug 3/4″ | 4 | 7601-259036 |
| AIR CHAMBER ASSEMBLY | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Air Chamber Body | 1 | 6397-1215-00 |
| 2 | Manifold Adapter Flange | 1 | 6397-0431-00 |
| 3 | Stud | 8 | 7507-3404-00 |
| 4 | Ladish Ring Joint R-37 | 1 | 7602-066002 |
| 5 | 1-1/8″ – 7UNC -2B Hvy Hex Nut | 8 | 7601-063025 |
| DISCHARGE MANIFOLDS | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1A | Screwed Discharge Manifold Assembly | 1 | 6397-0510-10 |
| 2A | Flgd Discharge Manifold Assembly-5″ Std | 1 | |
| OR | Flgd Discharge Manifold Assembly-6″ | 1 | |
| 3 | Discharge Manifold | 1 | 6397-1086-00 |
| 4 | Strainer Housing | 1 | 6397-0663-00 |
| 5 | Unibolt Nut Member TC-15 | 1 | 7601-255088 |
| 6 | Unibolt Ring Gasket TC-578 | 1 | 7601-255087 |
| 7 | Discharge Manifold | 1 | |
| 8 | Strainer Housing-5″ Flg, Std | 1 | |
| OR | Strainer Housing-6″ Flg | 1 | |
| 9 | 6″ Grayloc Clamp #49508 | 1 | |
| 10 | 6″ Grayloc Seal Ring #50598 | 1 | |
| 11 | R.J. Gasket, R-39, See Note | 1 | |
| 12A | Disch, Manifold Strainer Assembly | 1 | 6397-0290-00 |
| 13 | Strainer Cap | 1 | 6397-0291-00 |
| 14 | Strainer | 1 | 6397-0293-01 |
| 15 | Strainer Gasket ARP 568-439 (See Note) | 1 | 7602-160040 |
| R1 | Stud – 5″ Flg | 8 | |
| OR | Stud – 6″ Flg | 12 | |
| R2 | Heavy Hex Nut, 1-1/2″ – 8, 5″ Flg | 8 | |
| OR | Heavy Hex Nut, 1-3/8″ – 8, 6″ Flg | 12 | |
| R3 | R.J. Gasket, R-44, 5″ Flg (See Note) | 1 | |
| OR | R.J. Gasket, R-46, 6″ Flg (See Note) | 1 | |
| R4 | Unibolt Coupling #1669 | 1 | 7601-255076 |
| STUFFING BOX ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Diaphragm Stuffing Box Assembly | 2 | 6397-0550-00 |
| 2 | Diaphragm Stuffing Box | 2 | 6397-0560-00 |
| 3 | Diaphragm Stuffing Box Retainer | 2 | 6397-0561-00 |
| 4 | Diaphragm Stuffing Box Gasket | 2 | 7502-0588-00 |
| 5 | Diaphragm Stuffing Box Spacer Spring | 2 | 6397-0564-00 |
| 6 | Diaphragm Stuffing Box Lock Spring | 2 | 6397-0565-00 |
| 7 | Diaphragm Stuffing Box Oil Seal | 4 | 6305-0071-00 |
| 8 | Fluid Baffle | 2 | 6397-0094-01 |
| 9 | Fluid Stuffing Box | 2 | 6397-0254-01 |
| 10 | Fluid Stuffing Box Gland | 2 | 6397-0256-00 |
| 11 | Fluid Stuffing Box Gland Bushing | 2 | 6397-0089-00 |
| 12 | Fluid Stuffing Box Packing | 2 | 6397-0743-00 |
| 13 | Fluid Stuffing Box Junk Ring | 2 | 6397-0255-00 |
| 14 | Fluid Stuffing Box Gasket | 2 | 7602-160034 ARP 568-430 |
| 15 | #6-203 Hose Assembly | 2 | 7503-0190-30 |
| 16 | O – Ring | 2 | 7602-160033 ARP 568-429 |
| 17 | O – Ring | 2 | 7602-161020 ARP 568-259 |
| 19 | Hex Hd Cap Screw, 1/2″ x 1-1/2″ | 12 | — |
| 20 | Hex Hd Cap Screw, 3/8″ x 2-1/4″ | 12 | 7601-033035 |
| 21 | Hex Hd Cap Screw, 3/8″ x 1″ | 8 | 7601-033030 |
| 22 | 3/8″ Internal Tooth Lock Washer, Type B | 12 | 7601-137007 |
| 23 | Lock Washer | 12 | 7601-132014 3/8″ ( 8 Reqd ) |
| CROSSHEAD ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Crosshead | 2 | 6397-0499-00 |
| 2 | Crosshead Pin | 2 | 6397-0236-00 |
| 3 | Crosshead Pin Retainer | 2 | 6397-0507-00 |
| 4 | Crosshead Pin Retainer Bolt | 7501-1250-00 (12) | |
| 7 | Crosshead Bearing | 2 | 6397-0237-00 |
| 8 | Crosshead Guide | 2 | 6397-0476-00 |
| 9 | Crosshead Guide Extension | 2 | 6397-0508-00 |
| 10 | Crosshead Guide Seal | 2 | 6397-0490-00 |
| 11 | Crosshead Guide Frame Seal | 2 | 6397-0525-00 |
| 12 | Crosshead Extension | 2 | 6397-0506-00 |
| 13 | Crosshead Door, C-E | 2 | 6397-0514-00 |
| or | Crosshead Door, Mid-Co | 2 | 6305-0072-00 |
| 14 | Crosshead Door Gasket | 2 | 7502-0123-00 |
| 15 | #10-225 Hose Assembly | 2 | 7503-0090-50 |
| or | Copper Tubing As sembly | 2 | — |
| 16 | Hex Head Cap Screw | 1/2″ X 1″ ( 24 ) | |
| 7601-033049 | |||
| 17 | Hex Head Cap Screw | 12 | 1/2″ X 5-1/2″ |
| 7601-033063 | |||
| 18 | Socket Head Cap Screw | 1-1/4″ X 5″ ( 20 ) | |
| 7601-034078 | |||
| 19 | SAE Plain Washer | 7601-140001 ( 24 ) | |
| 20 | 1/2″ Internal Tooth Lock Washer, Type B | 12 | 76-1-137008 |
| 21 | Galv Bushing, 1/2″ x 3/8″ | 4 | — |
| 22 | Soft Iron Wire | 16 Ga. | |
| 23 | Lock Washer, 1/2″ | 12 | — |
| 24 | STRATO HEX HOSE ADAPTOR | 2 | |
| PINION ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Pinion Shaft-Single Ext Straight | 1 | — |
| or | Pinion Shaft-Dbl Ext Straight | 1 | 6397-0504-01 |
| 2 | Pinion Shaft Key-Single Ext Straight | 1 | — |
| or | Pinion Shaft Key-Dbl Ext Straight | 1 | 7504-3409-00 |
| 3 | Pinion Shaft Cover-Dbl Ext Straight | 1 | 6305-0060-00 |
| 4 | Pinion Bearing Carrier | 2 | 6397-0501-10 |
| 5 | Pinion Bearing Carrier Gasket | 2 | 7502-0574-00 |
| 6 | Pinion Bearing Retainer | 2 | 6397-0502-01 |
| 7 | Bearing Retainer Gasket | 2 | 7502-0587-00 |
| 8 | Oil Seal Wear Ring | 2 | 6397-0489-00 |
| 9 | Pinion Bearing, Hyatt | 2 | A-5232-TS |
| 7602-021039 | |||
| 10 | Oil Seal, C/R | 2 | #63751 |
| 7602-213093 | |||
| 11 | Retainer Ring, Truarc, #5000-700 | 2 | — |
| 12 | Hex Hd Cap Screw | 6 | 1/2″ X 1-1/4″ |
| 7601-033050 | |||
| 13 | Hex Head Cap Screw | 16 | 3/4″ X 1-3/4″ |
| 7601-033096 | |||
| 14 | Hex Hd Cap Screw, 3/8″ x 7/8″ | 6 | 7601-033029 |
| 15 | Lock Washer, 3/8″ | 6 | 7601-132014 |
| ROD OILER ASSEMBLY W/ BROWN & SHARPE PUMP FOR DOUBLE EXTENED STRAIGHT PINION SHAFT | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| Assembly | 6305-0052-00 | ||
| 1 | Belt Guard | 1 | 6397-0821-00 |
| 2 | Pump Support | 1 | 6397-0762-00 |
| 3 | #225-12 Hose Assembly | 1 | 7503-0510-58 |
| 4 | #203-12 Hose Assembly | 1 | 7503-0260-55 |
| 5 | #1 B&S Rotary Gear Pump, Foot Mtg | 1 | 7602-184008 |
| w/o Relief Valve, 713-1-1 | |||
| 6 | 1-A Worthington Sheave w/Key, Bored | 1 | 2.5″PD-BA-1-25 |
| to Fit 9/16 Shaft, 1/8″ x 1/16″ Keyway | 7602-236057 | ||
| 7 | V-Belt, A-75 | 1 | 7602-033025 |
| 8 | Hex Head Cap Screw, 3/8″ x 1″ | 4 | 7601-033030 |
| 9 | Hex Head Cap Screw, 1/2″ x 1-1/2″ | 2 | 7601-033050 |
| 10 | Plain Washer, 9/16″ x 1-1/4″ | 2 | 7601-140001 |
| 11 | Lock Washer, 3/8″ | 4 | 7601-132014 |
| 12 | Lock Washer, 1/2″ | 2 | 7601-132016 |
| 13 | Galv Close Nipple, 3/8″ | 2 | 7601-258106 |
| 14 | Galv Bushing, 3/4″ x 3/8″ | 2 | 7601-253037 |
| 15 | Galv Street Ell, 3/4″ x 90° | 1 | 7601-257090 |
| 16 | Galv Elbow, 3/4″ x 90° | 3 | 7601-257042 |
| 17 | Stflx Adapter 1011-12-12B | 1 | 7601-209046 |
| R1 | Rod Oiler Tank | 1 | p.PA-56-1 |
| R2 | Hex Head Cap Screw, 1/2″ x 1″ | 1 | 7601-033049 |
| BCCENTRIC ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Main Bearing Carrier | 1 | 6397-0776-01 |
| 2 | Main Bearing Carrier | 1 | 6397-0776-00 |
| 3 | Main Bearing Cap, C-E | 2 | 6397-0488-10 |
| or | Main Bearing Cap, Min-Co. | 2 | 6305-0064-10 |
| 4 | Main Bearing Cap, Gasket | 2 | 7502-0646-00 |
| 5 | Main Bearing Retainer Bolt | 12 | 7501-0038-00 |
| 6 | Main Bearing Retainer Bolt | 6 | 7501-0033-00 |
| 7 | Main Bearing Retainer-Inner | 2 | 6397-0477-00 |
| 8 | Main Bearing Retainer-Outer | 2 | 6397-0699-00 |
| 9 | Main Bearing Carrler Bolt | 4 | 7501-2627-00 |
| 10 | Shim Bet | 4 | 7502-0300-00 |
| 11 | Eccentric Bearing | 2 | 6397-0257-00 |
| 12 | Eccentric Btrap | 2 | 6397-0500-00 |
| 13 | Eccentric Bearing Retainer – Outer | 2 | 6397-0290-00 |
| 14 | Eccentric Bearing Retainer – Inner | 6 | 7304-0015-00 |
| 15 | Bccentric Bearing Retainer Bolt | 6 | 7301-0056-00 |
| 16 | Eccentric Bearing Retainer Bolt | 16 | 7501-1251-00 ( 24 ) |
| 17 | Eccentric Bear Ring | 1 | 6397-0505-01 |
| 18 | Eccentric Bear Hub | 1 | 6397-0503-00 |
| 19 | Eccentric Bear and Hub | 1 | — |
| 20 | Eccentric Bear Bolt | – | 7601-033501 1″ X 4-1/2″ ( 12 ) |
| 21 | 2 | 7602-020015 122240-C | |
| 22 | Hex Head Cap Screw | 12 | 7601-033096 3/4″ X 1-3/4″ |
| 23 | 12 | 7601-133006 13/16″ X 1-1/2″ | |
| 24 | Socket Hd Cap Screw, 1/2″ x 5/8″ | 2 | — |
| 25 | – | 7601-022017 1″ ( 24 ) | |
| 49- ? -168 | |||
| 27 | Soft lron Wire | – | 16 On. |
| 28 | Soft lron Wire | – | 11 On. |
| R1 | Main Bearing | 2 | 6397-0479-00 |
| EMSCO DA-700 DUPLEX MUD PUMP | |||
| FLUID END ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Fluid End, R.H. – Studded | 1 | 6397-0629-00 |
| 2 | Fluid End, L.H. – Studded | 1 | 6397-0628-00 |
| 3 | Fluid End Stud | 20 | 7507-3403-00 |
| 4 | Fluid End Stud | 20 | 7507-2201-00 |
| 5 | Fluid End Stud | 24 | 7507-2201-00 |
| 6 | Suction Manifold Assembly | 1 | 6397-0624-00 |
| 7 | Suction Manifold Gasket | 4 | 7602-160065 ARP 568-446 |
| 8A | Discharge Manifold Assembly, See PA-51-5 | 1 | 6397-0510-10 |
| 9 | Discharge Manifold Gasket, ARP 568-347 | 2 | 7602-160028 |
| 10 | Discharge Manifold Bolt | 8 | 7501-2631-00 |
| 11 | Cylinder Head | 2 | 6397-0377-00 |
| 12 | Cylinder Liner Cage | 2 | 6397-0362-00 |
| 13 | Liner Seal | 6 | 6397-0644-00 |
| 14 | Valve Pot Cover | 8 | 6397-0292-00 |
| 15 | Valve Pot Cover Gasket | 8 | 6397-0449-00 |
| 16 | Valve Guide Retainer Bolt | 32 | 7501-0051-00 |
| 17 | Valve Spring | 8 | 6397-0427-00 |
| 18 | Valve Guide Retainer | 8 | 6397-0289-00 |
| 19 | Valve Guide | 8 | 6397-0429-00 |
| 20 | Valve Pot Bumper | 8 | 6397-0148-00 |
| 21 | Fluid End Shim Set | 2 | 6397-0519-00 |
| 22 | Fluid End Shim Set | 2 | 6397-0517-00 |
| 23 | Ferry Counter-Bor Screw, 1″ x 3″ | 28 | 7601-036013 |
| 24 | Hex Head Cap Screw | 4 | 7601-033115 7/8″ x 2-3/4″ |
| 25 | Hex Head Cap Screw | 4 | 7601-033117 7/8″ x 3-1/4″ |
| 26 | Hex Nut 7/8″ | 8 | 7601-061016 |
| 27 | Hex Nut 1-1/4″-8 Hvy | 8 | 7601-063024 |
| 28 | Hex Nut | 20 | 7601-063026 1-1/8″-8 Hvy |
| 29 | Hex Nut | 20 | 7601-063017 1-1/2″-8 Hvy |
| 30 | Hex Nut | 24 | 7601-063017 1-1/2″-8 Hvy |
| 31 | Lock Washer, 7/8″ | 8 | 7601-132019 |
| 32 | Soft Iron Wire | 1/16″ | |
| 33 | Hex Hd Steel Pipe Plug 3/4″ | 4 | 7601-259036 |
| DISCHARGE MANIFOLDS | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1A | Screwed Discharge Manifold Assembly | 1 | 6397-0510-10 |
| 2A | Flgd Discharge Manifold Assembly-5″ Std | 1 | |
| OR | Flgd Discharge Manifold Assembly-6″ | 1 | |
| 3 | Discharge Manifold | 1 | 6397-1086-00 |
| 4 | Strainer Housing | 1 | 6397-0663-00 |
| 5 | Unibolt Nut Member TC-15 | 1 | 7601-255088 |
| 6 | Unibolt Ring Gasket TC-578 | 1 | 7601-255087 |
| 7 | Discharge Manifold | 1 | |
| 8 | Strainer Housing-5″ Flg, Std | 1 | |
| OR | Strainer Housing-6″ Flg | 1 | |
| 9 | 6″ Grayloc Clamp #49508 | 1 | |
| 10 | 6″ Grayloc Seal Ring #50598 | 1 | |
| 11 | R.J. Gasket, R-39, See Note | 1 | |
| 12A | Disch, Manifold Strainer Assembly | 1 | 6397-0290-00 |
| 13 | Strainer Cap | 1 | 6397-0291-00 |
| 14 | Strainer | 1 | 6397-0293-01 |
| 15 | Strainer Gasket ARP 568-439 (See Note) | 1 | 7602-160040 |
| R1 | Stud – 5″ Flg | 8 | |
| OR | Stud – 6″ Flg | 12 | |
| R2 | Heavy Hex Nut, 1-1/2″ – 8, 5″ Flg | 8 | |
| OR | Heavy Hex Nut, 1-3/8″ – 8, 6″ Flg | 12 | |
| R3 | R.J. Gasket, R-44, 5″ Flg (See Note) | 1 | |
| OR | R.J. Gasket, R-46, 6″ Flg (See Note) | 1 | |
| R4 | Unibolt Coupling #1669 | 1 | 7601-255076 |
| EMSCO DB-700 DUPLEX MUD PUMP | |||
| FLUID END ASSEMBLIES | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1 | Fluid End, R.H. – Studded | 1 | 6397-0804-00 |
| 2 | Fluid End, L.H. – Studded | 1 | 6397-0803-00 |
| 3 | Fluid End Stud | 20 | 7507-3403-00 |
| 4 | Fluid End Stud | 20 | 7507-2201-00 |
| 5 | Fluid End Stud | 24 | 7507-2102-00 |
| 6 | Suction Manifold Assembly | 1 | 6397-0624-00 |
| 7 | Suction Manifold Gasket | 4 | 7602-160065 ARP 568-446 |
| 8A | Discharge Manifold Assembly, See PA-51-5 | 1 | 6397-0510-10 |
| 9 | Discharge Manifold Gasket, ARP 568-347 | 2 | 7602-160028 |
| 10 | Discharge Manifold Bolt | 8 | 7501-2631-00 |
| 11 | Cylinder Head | 2 | 6397-0764-00 |
| 12 | Cylinder Liner Cage | 2 | 6397-0424-00 |
| 13 | Liner Seal | 6 | 6397-0648-00 |
| 14 | Valve Pot Cover | 8 | 6397-0834-00 |
| 15 | Valve Pot Cover Gasket | 8 | 6397-0461-00 |
| 16 | Valve Guide Retainer Bolt | 32 | 7501-0051-00 |
| 17 | Valve Spring | 8 | 6397-0428-00 |
| 18 | Valve Guide Retainer | 8 | 6397-0147-00 |
| 19 | Valve Guide | 8 | 6397-0432-00 |
| 20 | Valve Pot Bumper | 8 | 6397-0148-00 |
| 21 | Fluid End Shim Set | 2 | 6397-0519-00 |
| 22 | Fluid End Shim Set | 2 | 6397-0517-00 |
| 23 | Ferry Counter-Bor Screw, 1″ x 3″ | 28 | 7601-036013 |
| 24 | Hex Head Cap Screw | 4 | 7601-033115 7/8″ x 2-3/4″ |
| 25 | Hex Head Cap Screw | 4 | 7601-033117 7/8″ x 3-1/4″ |
| 26 | Hex Nut 7/8″ | 8 | 7601-061016 |
| 27 | Hex Nut 1-1/4″-8 Hvy | 8 | 7601-063024 |
| 28 | Hex Nut | 20 | 7601-063026 1-1/8″-8 Hvy |
| 29 | Hex Nut | 20 | 7601-063017 1-1/2″-8 Hvy |
| 30 | Hex Nut | 24 | 7601-063024 1-1/4″-8 Hvy |
| 31 | Lock Washer, 7/8″ | 8 | 7601-132019 |
| 32 | Soft Iron Wire | 1/16″ | |
| 33 | Hex Hd Steel Pipe Plug 3/4″ | 4 | 7601-259036 |
| DISCHARGE MANIFOLDS | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1A | Screwed Discharge Manifold Assembly | 1 | 6397-0510-10 |
| 2A | Flgd Discharge Manifold Assembly-5″ Std | 1 | |
| OR | Flgd Discharge Manifold Assembly-6″ | 1 | |
| 3 | Discharge Manifold | 1 | 6397-1086-00 |
| 4 | Strainer Housing | 1 | 6397-0663-00 |
| 5 | Unibolt Nut Member TC-15 | 1 | 7601-255088 |
| 6 | Unibolt Ring Gasket TC-578 | 1 | 7601-255087 |
| 7 | Discharge Manifold | 1 | |
| 8 | Strainer Housing-5″ Flg, Std | 1 | |
| OR | Strainer Housing-6″ Flg | 1 | |
| 9 | 6″ Grayloc Clamp #49508 | 1 | |
| 10 | 6″ Grayloc Seal Ring #50598 | 1 | |
| 11 | R.J. Gasket, R-39, See Note | 1 | |
| 12A | Disch, Manifold Strainer Assembly | 1 | 6397-0290-00 |
| 13 | Strainer Cap | 1 | 6397-0291-00 |
| 14 | Strainer | 1 | 6397-0293-01 |
| 15 | Strainer Gasket ARP 568-439 (See Note) | 1 | 7602-160040 |
| R1 | Stud – 5″ Flg | 8 | |
| OR | Stud – 6″ Flg | 12 | |
| R2 | Heavy Hex Nut, 1-1/2″ – 8, 5″ Flg | 8 | |
| OR | Heavy Hex Nut, 1-3/8″ – 8, 6″ Flg | 12 | |
| R3 | R.J. Gasket, R-44, 5″ Flg (See Note) | 1 | |
| OR | R.J. Gasket, R-46, 6″ Flg (See Note) | 1 | |
| R4 | Unibolt Coupling #1669 | 1 | 7601-255076 |
| EMSCO DA-850 DUPLEX MUD PUMP | |||
| DISCHARGE MANIFOLDS | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1A | Screwed Discharge Manifold Assembly | 1 | 6397-0295-10 |
| 2A | Flgd Discharge Manifold Assembly-5″ Std | 1 | 6397-1152-10 |
| OR | Flgd Discharge Manifold Assembly-6″ | 1 | 6397-1152-00 |
| 3 | Discharge Manifold | 1 | 6397-0647-00 |
| 4 | Strainer Housing | 1 | 6397-0663-00 |
| 5 | Unibolt Nut Member TC-15 | 1 | 7601-255088 |
| 6 | Unibolt Ring Gasket TC-578 | 1 | 7601-255087 |
| 7 | Discharge Manifold | 1 | 6397-1152-01 |
| 8 | Strainer Housing-5″ Flg, Std | 1 | 6397-1152-16 |
| OR | Strainer Housing-6″ Flg | 1 | 6397-1152-06 |
| 9 | 6″ Grayloc Clamp #49508 | 1 | 7601-255081 |
| 10 | 6″ Grayloc Seal Ring #50598 | 1 | 7601-255082 |
| 11 | R.J. Gasket, R-39, See Note | 1 | 7602-066003 |
| 12A | Disch, Manifold Strainer Assembly | 1 | 6397-0290-00 |
| 13 | Strainer Cap | 1 | 6397-0291-00 |
| 14 | Strainer | 1 | 6397-0293-01 |
| 15 | Strainer Gasket ARP 568-439 (See Note) | 1 | 7602-160040 |
| R1 | Stud – 5″ Flg | 8 | 7507-2201-00 |
| OR | Stud – 6″ Flg | 12 | 7507-2743-00 |
| R2 | Heavy Hex Nut, 1-1/2″ – 8, 5″ Flg | 8 | 7601-063017 |
| OR | Heavy Hex Nut, 1-3/8″ – 8, 6″ Flg | 12 | 7601-063028 |
| R3 | R.J. Gasket, R-44, 5″ Flg (See Note) | 1 | 7602-066111 |
| OR | R.J. Gasket, R-46, 6″ Flg (See Note) | 1 | 7602-066005 |
| R4 | Unibolt Coupling #1669 | 1 | 7601-255076 |
| EMSCO DC-1000 DUPLEX MUD PUMP | |||
| DISCHARGE MANIFOLDS | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1A | Screwed Discharge Manifold Assembly | 1 | 6397-0295-10 |
| 2A | Flgd Discharge Manifold Assembly-5″ Std | 1 | 6397-1152-10 |
| OR | Flgd Discharge Manifold Assembly-6″ | 1 | 6397-1152-00 |
| 3 | Discharge Manifold | 1 | 6397-0647-00 |
| 4 | Strainer Housing | 1 | 6397-0663-00 |
| 5 | Unibolt Nut Member TC-15 | 1 | 7601-255088 |
| 6 | Unibolt Ring Gasket TC-578 | 1 | 7601-255087 |
| 7 | Discharge Manifold | 1 | 6397-1152-01 |
| 8 | Strainer Housing-5″ Flg, Std | 1 | 6397-1152-16 |
| OR | Strainer Housing-6″ Flg | 1 | 6397-1152-06 |
| 9 | 6″ Grayloc Clamp #49508 | 1 | 7601-255081 |
| 10 | 6″ Grayloc Seal Ring #50598 | 1 | 7601-255082 |
| 11 | R.J. Gasket, R-39, See Note | 1 | 7602-066003 |
| 12A | Disch, Manifold Strainer Assembly | 1 | 6397-0290-00 |
| 13 | Strainer Cap | 1 | 6397-0291-00 |
| 14 | Strainer | 1 | 6397-0293-01 |
| 15 | Strainer Gasket ARP 568-439 (See Note) | 1 | 7602-160040 |
| R1 | Stud – 5″ Flg | 8 | 7507-2201-00 |
| OR | Stud – 6″ Flg | 12 | 7507-2743-00 |
| R2 | Heavy Hex Nut, 1-1/2″ – 8, 5″ Flg | 8 | 7601-063017 |
| OR | Heavy Hex Nut, 1-3/8″ – 8, 6″ Flg | 12 | 7601-063028 |
| R3 | R.J. Gasket, R-44, 5″ Flg (See Note) | 1 | 7602-066111 |
| OR | R.J. Gasket, R-46, 6″ Flg (See Note) | 1 | 7602-066005 |
| R4 | Unibolt Coupling #1669 | 1 | 7601-255076 |
| EMSCO D-1350 DUPLEX MUD PUMP | |||
| DISCHARGE MANIFOLDS | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1A | Screwed Discharge Manifold Assembly | 1 | 6301-0011-00 |
| 2A | Flgd Discharge Manifold Assembly-5″ Std | 1 | 6397-1117-10 |
| OR | Flgd Discharge Manifold Assembly-6″ | 1 | 6397-1117-10 |
| 3 | Discharge Manifold | 1 | 6301-0102-00 |
| 4 | Strainer Housing | 1 | 6397-0663-00 |
| 5 | Unibolt Nut Member TC-15 | 1 | 7601-255088 |
| 6 | Unibolt Ring Gasket TC-578 | 1 | 7601-255087 |
| 7 | Discharge Manifold | 1 | 6397-1117-01 |
| 8 | Strainer Housing-5″ Flg, Std | 1 | 6397-1117-16 |
| OR | Strainer Housing-6″ Flg | 1 | 6397-1117-06 |
| 9 | 6″ Grayloc Clamp #49508 | 1 | 7601-255081 |
| 10 | 6″ Grayloc Seal Ring #50598 | 1 | 7601-255082 |
| 11 | R.J. Gasket, R-39, See Note | 1 | 7602-066003 |
| 12A | Disch, Manifold Strainer Assembly | 1 | 6397-0290-00 |
| 13 | Strainer Cap | 1 | 6397-0291-00 |
| 14 | Strainer | 1 | 6397-0293-01 |
| 15 | Strainer Gasket ARP 568-439 (See Note) | 1 | 7602-160040 |
| R1 | Stud – 5″ Flg | 8 | 7507-2201-00 |
| OR | Stud – 6″ Flg | 12 | 7507-2743-00 |
| R2 | Heavy Hex Nut, 1-1/2″ – 8, 5″ Flg | 8 | 7601-063017 |
| OR | Heavy Hex Nut, 1-3/8″ – 8, 6″ Flg | 12 | 7602-063028 |
| R3 | R.J. Gasket, R-44, 5″ Flg (See Note) | 1 | 7602-066111 |
| OR | R.J. Gasket, R-46, 6″ Flg (See Note) | 1 | 7602-066005 |
| R4 | Unibolt Coupling #1669 | 1 | 7601-255076 |
| EMSCO DC-1650 DUPLEX MUD PUMP | |||
| DISCHARGE MANIFOLDS | |||
| ITEM NO. | DESCRIPTION | NO. REQD. | PART NO. |
| 1A | Screwed Discharge Manifold Assembly | 1 | 6301-0011-00 |
| 2A | Flgd Discharge Manifold Assembly-5″ Std | 1 | 6397-1117-10 |
| OR | Flgd Discharge Manifold Assembly-6″ | 1 | 6397-1117-10 |
| 3 | Discharge Manifold | 1 | 6301-0102-00 |
| 4 | Strainer Housing | 1 | 6397-0663-00 |
| 5 | Unibolt Nut Member TC-15 | 1 | 7601-255088 |
| 6 | Unibolt Ring Gasket TC-578 | 1 | 7601-255087 |
| 7 | Discharge Manifold | 1 | 6397-1117-01 |
| 8 | Strainer Housing-5″ Flg, Std | 1 | 6397-1117-16 |
| OR | Strainer Housing-6″ Flg | 1 | 6397-1117-06 |
| 9 | 6″ Grayloc Clamp #49508 | 1 | 7601-255081 |
| 10 | 6″ Grayloc Seal Ring #50598 | 1 | 7601-255082 |
| 11 | R.J. Gasket, R-39, See Note | 1 | 7602-066003 |
| 12A | Disch, Manifold Strainer Assembly | 1 | 6397-0290-00 |
| 13 | Strainer Cap | 1 | 6397-0291-00 |
| 14 | Strainer | 1 | 6397-0293-01 |
| 15 | Strainer Gasket ARP 568-439 (See Note) | 1 | 7602-160040 |
| R1 | Stud – 5″ Flg | 8 | 7507-2201-00 |
| OR | Stud – 6″ Flg | 12 | 7507-2743-00 |
| R2 | Heavy Hex Nut, 1-1/2″ – 8, 5″ Flg | 8 | 7601-063017 |
| OR | Heavy Hex Nut, 1-3/8″ – 8, 6″ Flg | 12 | 7602-063028 |
| R3 | R.J. Gasket, R-44, 5″ Flg (See Note) | 1 | 7602-066111 |
| OR | R.J. Gasket, R-46, 6″ Flg (See Note) | 1 | 7602-066005 |
| R4 | Unibolt Coupling #1669 | 1 | 7601-255076 |
