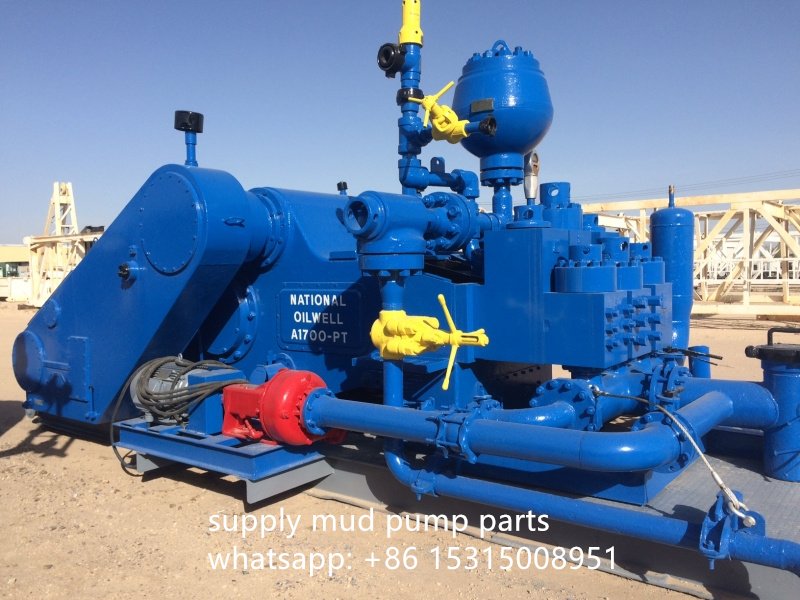

Oilwell A1700PT Triplex Mud Pump Parts Manual List

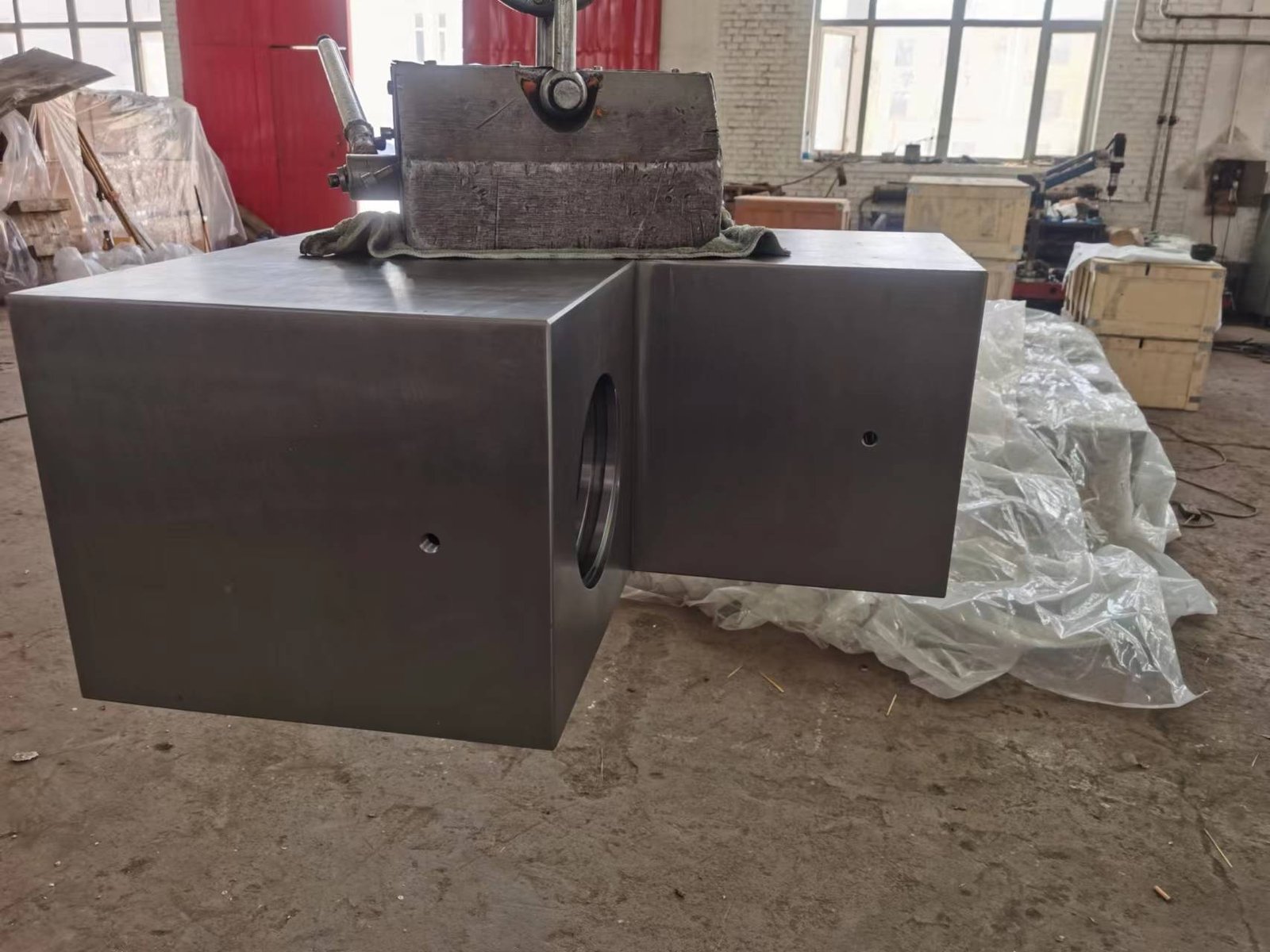

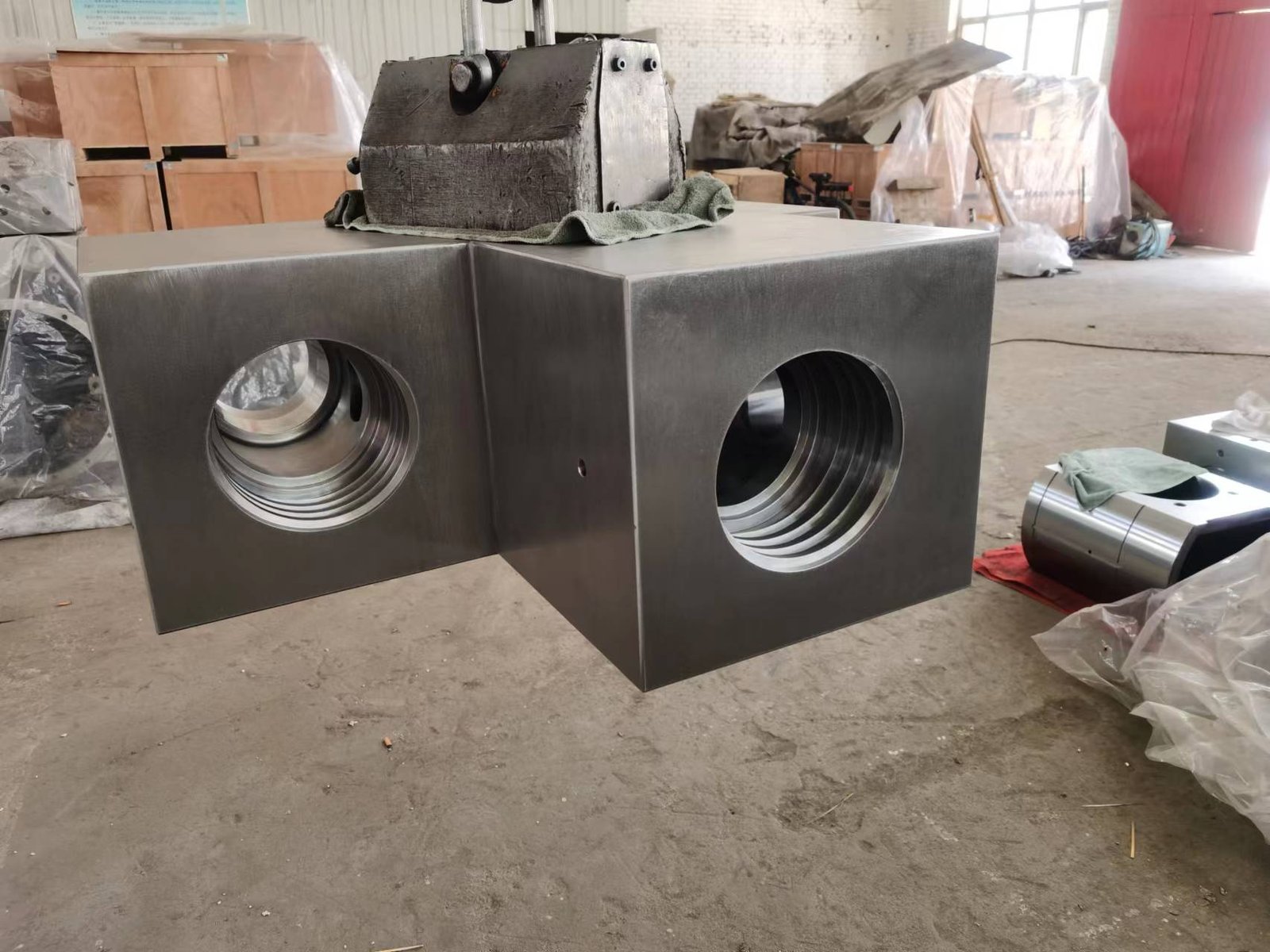

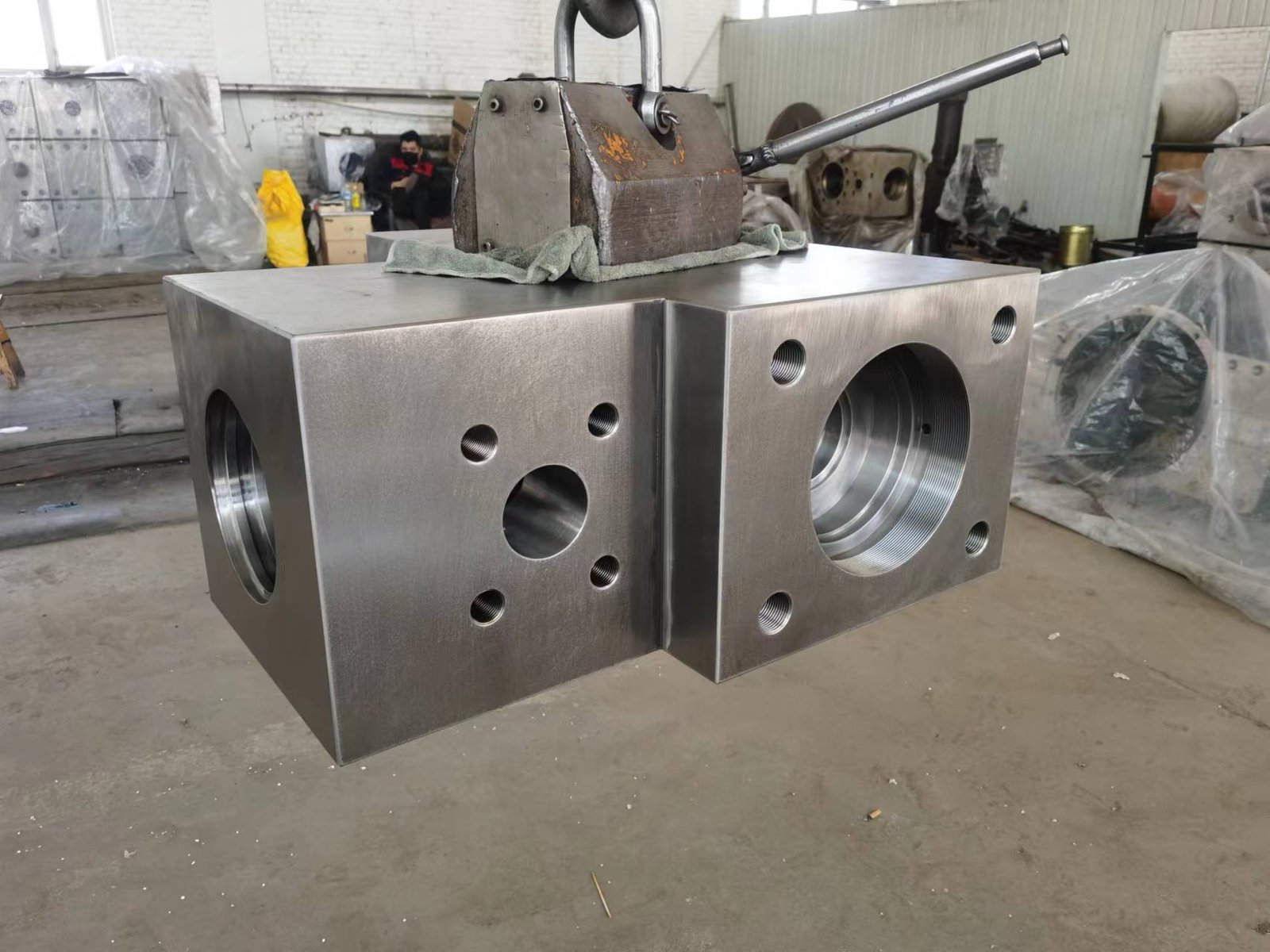

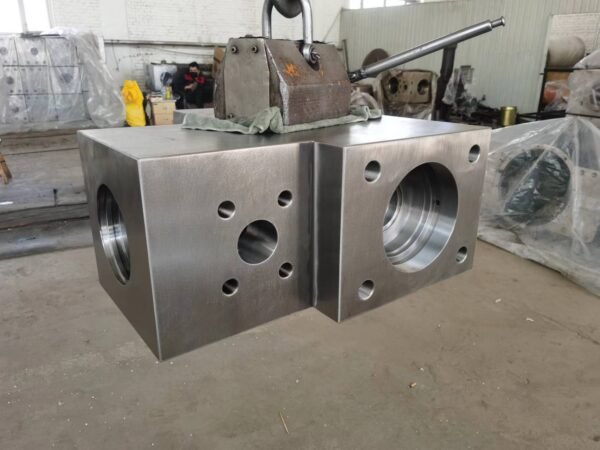

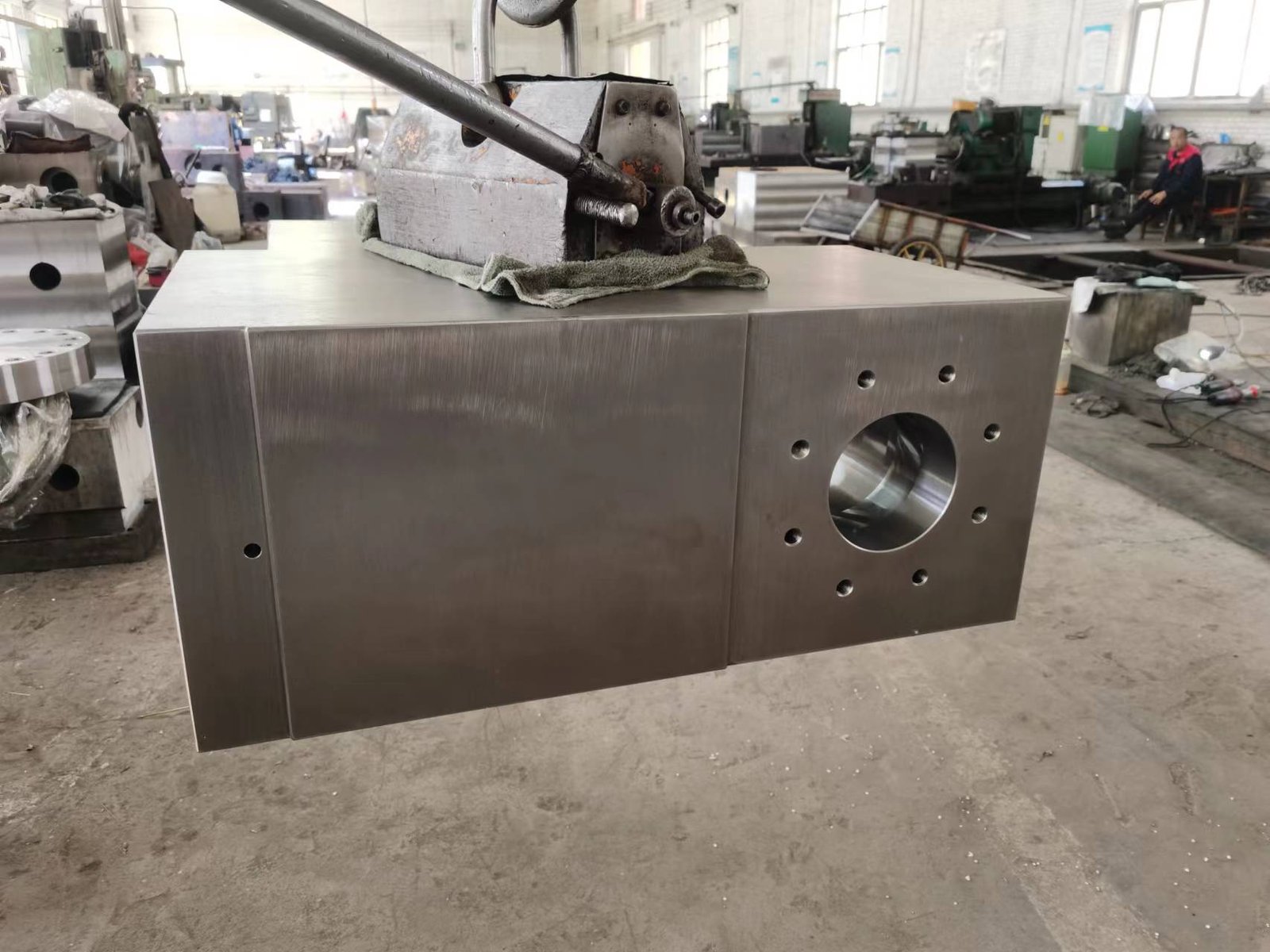

FLUID END A 1700 – PT TRIPLEX PISTON PUMP
COMM NO. DESCRIPTION
10-300-181 FLUID END, STUDDED ( INCLS. ITEMS 2 THRU 8 )
49-001-292 1-3/8–8 X 4-1/2 STUD
75-511-754 1-3/8–8 HEAVY HEX NUT
49-002-837 1-3/4–8 X 7-1/2 STUD
75-510-126 1-3/4–8 HEAVY HEX NUT
86-342-102 1/4 150 # BLK MI STREET ELBOW
10-300-184 PLATE, LINER WEAR
20-100-008 GASKET, LINER WEAR PLATE
10-300-005 COVER, VALVE
10-300-011 GASKET, VALVE COVER
10-300-004 SLEEVE, VALVE COVER
20-200-004 BUSHING, VALVE COVER SLEEVE
75-632-234 5/8–11 X 1-1/4 SELF–LOCKING CAPSCREW
20-160-928 VALVE COMPLETE W/POLYURETHANE DISC ( INCLS, ITEMS 15 & 16 )
20-160-929 VALVE COMPLETE W/BUNS “N” DISC ( INCLS, ITEMS 15 & 16 )
20-180-049 VALVE DISC ( POL YURETHANE )
20-160-050 VALVE DISC ( BUNS “N” )
20-860-044 NUT, VALVE
20-220-105 SEAT, VALVE ( INCLS, ITEM 18 )
20-101-767 BUSHING, VALVE SEAT
20-160-225 SPRING, VALVE
10-300-340 MANIFOLD, DISCHARGE
99-609-345 “O”–RING ( 4-3/8 X 4″ X 3/16 )
10-300-193 MANIFOLD, SUCTION
10-300-201 GASKET
75-634-382 3/4–10 X 2″ HEX HD HT CAPSCREW
98-029-039 10″ 150 # RAISED FACE THREADED FLANGE
98-031-039 10″ 150 # RAISED FACE BLIND FLANGE
45-804-096 GASKET, SUCTION FLANGE
75-634-405 7/8–9 X 3-1/2 HEX HD HT CAPSCREW
75-510-314 7/8–9 HEAVY HEX NUT
10-300-202 PLATE NAME
75-632-022 NO.2 X 3/8 DRIVE SCREW
LINER & PISTON ASSEMBLY A 1700 – PT TRIPLEX PISTON PUMP
COMM NO. DESCRIPTION
20-020-502 5″ ( SERIES “B” ) PISTON COMPLETE
20-020-503 5-1/2 ( SERIES “B” ) PISTON COMPLETE
20-020-504 5-3/4 ( SERIES “B” ) PISTON COMPLETE
20-020-505 6″ ( SERIES “B” ) PISTON COMPLETE
20-020-507 6-1/2 ( SERIES “L” ) PISTON COMPLETE
20-020-508 6-3/4 ( SERIES “L” ) PISTON COMPLETE
20-020-509 7′ ( SERIES “L” ) PISTON COMPLETE
20-020-510 7-1/4 ( SERIES “L” ) PISTON COMPLETE
20-020-511 7-1/2 ( SERIES “L” ) PISTON COMPLETE
20-020-512 7-3/4 ( SERIES “L” ) PISTON COMPLETE
20-040-005 5″ PISTON RUBBER
20-040-009 5-1/2 PISTON RUBBER
20-040-011 5-3/4 PISTON RUBBER
20-040-013 6″ PISTON RUBBER
20-040-037 6-1/2 PISTON RUBBER
20-040-039 6-3/4 PISTON RUBBER
20-040-041 7″ PISTON RUBBER
20-040-043 7-1/4 PISTON RUBBER
20-040-045 7-1/2 PISTON RUBBER
20-040-047 7-3/4 PISTON RUBBER
99-607-325 “O”–RING ( 1-1/2 X 17/8 X 3/16 )
20-150-123 PISTON ROD ( INCLS ITEM 19 )
20-150-142 NUT, PISTON RETAINING
07-326-500 5″ SUPER DI — HARD LINER
07-326-550 5-1/2 SUPER DI — HARD LINER
07-326-575 5-3/4 SUPER DI — HARD LINER
07-326-600 6″ SUPER DI — HARD LINER
07-326-651 6-1/2 SUPER DI — HARD LINER
07-326-675 6-3/4 SUPER DI — HARD LINER
07-325-700 7″ SUPER DI — HARD LINER
07-326-725 7-1/4 SUPER DI — HARD LINER
07-326-750 7-1/2 SUPER DI — HARD LINER
07-326-775 7-3/4 SUPER DI — HARD LINER
20-100-008 5″ LINER GASKET
20-100-009 5-1/2 LINER GASKET
20-100-010 5-3/4 LINER GASKET
20-100-011 6″ LINER GASKET
20-100-012 6-1/2 LINER GASKET
20-100-016 6-3/4 LINER GASKET
20-100-017 7″ LINER GASKET
20-100-018 7-1/4 LINER GASKET
20-100-019 7-1/2 LINER GASKET
20-100-020 7-3/4 LINER GASKET
10-300-182 ADAPTER, LINER
10-300-183 NUT, LINER ADAPTER
10-300-185 RING, SPACER
10-300-186 RING, SPACER
75-632-758 3/4–10 X 1-3/4 SETSCREW
75-632-760 3/4–10 X 2-1/1 SETSCREW
20-460-668 SHIELD, LINER FLUSHING
20-150-125 ROD, EXTENSION
20-150-132 CLAMP COMPLETE ( INCLS ITEMS 17 & 18 )
75-074-694 5/8–11 X 6″ HEX HD CAD PLTD BOLT
75-510-438 5/6–11 S.S. HEX NUT
10-305-203 STUD, PISTON ROD
STRAINER BLOCK ASSEMBLY A 1700 – PT TRIPLEX PISTON PUMP
COMM NO. DESCRIPTION
10-307-005 BLOCK, STRAINER ( INCLS. ITEMS 2 & 3 )
45-810-062 1-1/2 — 8 X 6-1/2 STUD
75-510-323 1-1/2 — 8 HEAVY STL. HEX HUT
06-511-998 SUPPORT, STRAINER BLOCK
75-635-091 1″ — 8 X 2″ HEX HD HT CAPSCREW
75-634-408 1″ — 8 X 3″ HEX HD HT CAPSCREW
75-510-316 1″ — 8 HEAVY STL, HEX NUT
10-307-064 SHIM SET ( 2 REQ’D ) CONSISTS OF THE FOLLOWNG
10-307-065 SHIM ( 16 GA. THK )
10-307-066 SHIM ( 11 GA. THK )
10-307-009 COVER, STRAINER
10-307-010 STRAINER, DISCHARGE
99-609-258 “O”–RING ( 6 X 6-1/4 X 1/8 )
99-609-249 “O”–RING ( 4-7/8 X 5-1/8 X 3/8 )
06-512-130 BRACKET, STRAINER SUPPORT
78-206-544 R–44 OVAL RING GASKET
98-032-122 5″ API 5000# R.T.J. BLIND FLANGE
75-770-478 1″ EXTERANL SHAKEPROOF LOCKWASHER
POWER END A 1700 – PT TRIPLEX PISTON PUMPSIZE
COMM NO. DESCRIPTION
10-300-259 FRAME END, STUDDED ( INCLS, ITEMS 2 & 3 )
29-000-777 1/2–13 X 1-3/4 STUD
29-000-700 3/4–10 X 2-1/2 STUD
10-300-272 GASKET, CRANKCASE COVER
10-300-274 COVER, CRANKCASE
75-510-410 3/4–10 HEAVY STL, HEX NUT
75-634-373 3/4–10 X 1-1/2 HEX HD HT CAPSCREW
06-506-869 GASKET, INSPECTION COVER
75-510-406 1/2–13 HEAVY STL, HEX NUT
10-300-065 GASKET, DIAPHRAGM SUPPORT ( R.H. )
10-300-064 GASKET, DIAPHRAGM SUPPORT ( L.H. )
10-300-066 GASKET, DIAPHRAGM SUPPORT ( CENTER )
10-300-062 GASKET, DIAPHRAGM
10-300-020 DIAPHRAGM
10-300-021 CAP, DIAPHRAGM
75-634-352 1/2–13 X 1-1/2 HEX HD HT CAPSCREW
75-770-474 1/2 EXTERNAL SHAKEPROOF LOCKWASHER
10-300-142 ROD, EXTENSION
45-142-703 3/4–10 X 1-3/4 DRLD HEX HD HT CAPSCREW
59-800-016 16 GA. ANNEALED STL WIRE
45-127-305 3/8 X 3/4 DOWEL PIN
20-100-015 ROD, WIPERS
10-300-022 LANTERN RING
10-300-082 SHIM SET ( 12 REQ’D ) CONSISTS OF THE FOLLOWNG
10-300-081 SHIM, ( .005″ THK )
10-300-230 CLAMP, CENTER CROSSHE AD GUIDE
10-300-100 CLAMP, SIDE CROSSHEAD GUIDE
45-142-600 7/8–9 X 3″ DRLD HEX HD HT CAPSCREW
10-300-103 WASHER
45-142-603 7/8–9 X 2″ DRLD HEX HD HT CAPSCREW
10-300-132 CROSSHEAD
10-300-131 PIN, CROSSHEAD
65-725-957 BEARING, CROSSHEAD PIN
10-300-054 PLATE, CROSSHEAD PIN RETAINING
45-142-701 3/4–10 X 1-1/2 DRLD HEX HD HT CAPSCREW
10-300-141 GUIDE, CROSSHEAD UPPER
10-300-232 SHOE, CROSSHEAD
10-300-233 GUIDE, CROSSHEAD LOWER
10-301-207 DOOR, A 1700-PT FRAME
10-300-254 COVER, INSPECTION
10-300-061 GASKET, FRAM DOOR
75-634-351 1/2–13 x 1-1/4 HEX HD HT CAPSCREW
75-633-119 1/2–13 X 1-1/4 FLAT HD BRASS MACHINE SCREW
10-300-071 CONNECTING ROD ( INCLS, ITEMS 44 & 45 )
10-300-155 BOLT, CONNECTING ROD
75-513-114 1″–8 HEAVY STL SLOTTED HEX NUT
75-104-007 3/16 X 2 STL COTTER
10-300-083 RETAINER, ECCENTRIC BEARING CONNECTING ROD
64-229-100 BREATHER
86-486-112 1-1/2 3000 # F.S. SQ HD SOLID PIPE PLUG
10-300-123 TROUGH, CONNECTING ROD OIL
75-634-415 1/2–13 X 3/4 HEX HD HT CAPSCREW
86-429-001 2 X CLOSE SCH 40 BW STL PIPE NIPPLE
83-803-512 2 DRAIN COCK
10-300-203 PLATE, INSTRUCTION
10-300-240 PLATE, LUBRICATION INSTRUCTION
10-300-125 PLATE, MUD TRAP INSTRUCTION
75-632-012 NO.2 X 1/4 STL DRIVE SCREW
45-803-400 PLATE, NAME
75-632-022 NO.10 X 3/8 STL DRIVE SCREW
86-486-104 1/2 CI CORED SQ HD PIPE PLUG
78-558-103 3/8 CI SOLID SQ HD PIPE PLUG
86-486-116 2″ CI SOLID SQ HD PIPE PLUG
10-300-258 COVER, OVERFLOW
10-300-317 PLATE, CAUTION
75-514-117 1/2–13 STL, LOCKNUT
86-486-120 2-1/2 CI SOLD SQ HD PIPE PLUG
SHAFT ASSEMBLIES A 1700 – PT TRIPLEX PISTON PUMP
COMM NO. DESCRIPTION
10-301-004 SHAFT WITH INTEGRAL PINION ( 24 TEETH )
65-725-032 BEARING, PINION SHAFT
10-306-027 HOUSING, PINION SHAFT BEARING
45-803-730 GASKET, BEARING HOUSING
75-634-402 7/8–9 X 2-1/2 HEX HEAD HT CAPSCREW
45-803-732 SHIM SET ( 2 REQ’D ) CONSISTS OF THE FOLLOWING
45-803-733 SHIM ( .005″ THICK )
45-803-734 SHIM ( .007″ THICK )
45-803-735 SHIM ( .020″ THICK )
45-803-736 SHIM ( 16 GAUGE )
10-300-027 RETAINER, BEARING
75-634-383 3/4–10 X 2-1/4 HEX HEAD HT CAPSCREW
10-300-088 KEY ( 1-3/4 X 2-1/2 X 13-1/2 )
10-300-028 SLEEVE, PINION SHAFT
68-631-025 OIL SEAL
10-300-154 CRANKSHAFT
65-725-034 BEARING, MAIN
10-300-024 HOUSING, MAIN BEARING
45-803-739 SHIM SET ( 2 REQ’D ) CONSISTS OF THE FOLLOWING
45-803-740 SHIM ( .005″ THICK )
45-803-741 SHIM ( .007″ THICK )
45-803-742 SHIM ( .020″ THICK )
45-803-743 SHIM ( 16 GAUGE )
10-300-025 RETAINER, MAIN BEARING
65-725-936 BEARING, CRANKSHAFT
10-300-060 GEAR, CRANKSHAFT ( 108 TEETH )
75-634-409 1″–8 X4″ HEX HEAD HT CAPSCREW
75-514-120 1″–8 HEX STEEL LOCKNUT
10-301-012 COVER, PINION SHAFT EXTENSION
10-300-156 RING, RETAINING ( INCLUDES ITEM 23 )
75-632-445 1/2–13 X 2-1/4 SOCKET HEAD SELF-LOCKING CAPSCREW
10-302-246 1-1/4–8 X 6″ STUD
75-510-121 1-1/4–8 HEAVY STEEL HEX NUT
JACKSHAFT ASSEMBLY A 1700 – PT TRIPLEX PISTON PUMP
COMM NO. DESCRIPTION
10-300-030 JACKSHAFT
65-725-031 BEARING, JACKSHAFT
10-300-032 RETAINER, JACKSHAFT BEARING
45-803-797 GASKET, RETAINER
75-660-073 RETAINING RING
68-630-235 OIL SEAL
10-300-098 CATCHER, OIL
75-634-352 1/2–13 X 1-1/2 HEX HD HT CAPSCREW
10-300-034 SPACER, BEARING
10-300-031 BRACKET, JACKSHAFT
45-803-729 GASKET, JACKSHAFT BRACKET
75-634-359 5/8–11 X 1-1/2 HEX HD HT CAPSCREW
68-097-451 10.6 O.D. 3–V TWO GROOVE DRIVE SHEAVE
45-802-800 KEY ( 1/2 X 1/2 X 2″ )
10-300-033 SPACER, BEARING
10-300-068 PINION JACKSHAFT
45-803-362 KEY ( 1/2 X 1/2 X 3/4 )
10-300-035 WASHER, JACKSHAFT
75-513-018 1-1/4–7 SLOTTED HEX NUT
75-104-013 3/16 X 2-1/2 STL COTTER
75-770-475 5/8 EXTERNAL SHAKEPROOF LOCKWASHER
10-300-099 SLINGER, OIL
75-770-474 1/2 EXTERNAL SHAKEPROOF LOCKWASHER
68-028-560 3V – 560 V – BELT
INTERNAL LUNRICATION SYSTEM A 1700 – PT TRIPLEX PISTON PUMP
COMM NO. DESCRIPTION
10-300-037 NIPPLE, STRAINER
86-132-008 1″ 150 # BLK MI PIPE CAP
10-300-049 TROUGH, ( R.H. ) OIL
10-300-050 TROUGH, ( L.H. ) OIL
45-143-001 1/2–13 X 3/4 DRLD HEX HD HT CAPSCREW
75-770-204 1/2 HEAVY PLATE WASHER
59-800-016 16 GA. ANNEALED STL WIRE
10-300-260 TROUGH, OIL DISTRIBUTING
33-077-010 5/8–11 X 1″ DRLD HEX HD HT CAPSCREW
75-772-305 5/8 PLATE WASHER
86-425-013 3/4 X 4 SCH 40 BW STL PIPE NIPPLE
86-336-106 3/4 X 90° 150 # BLK MI PIPE ELBOW
86-336-104 1/2 X 90° 150 # BLK MI PIPE ELBOW
45-001-585 1/2 X 14 SCH 40 BW STL PIPE
78-104-108 1″ 3000 # F.S. TAPER TAPPED PIPE COUPLING
86-426-027 1″ X 9 SCH 40 BW STL PIPE NIPPLE
86-339-108 1″ X 45° 150 # BLK MI ELBOW
86-336-108 1″ X 90° 150 # BLK MI ELBOW
1″ X 7-7/8 SCH 40 BW STL PIPE NIPPLE
1″ X 13-1/8 SCH 40 BW STL PIPE NIPPLE
45-804-371 1/2 X 38-7/8 HOSE ASSEMBLY
86-641-108 1″ 150 # MI FEMALE GROUND JOINT PIPE UNION
1″ X 13 SCH 40 BW STL PIPE
86-486-108 1″ CI SOLID SQ HD PIPE PLUG
1/2 X 4-3/8 SCH 40 BW STL PIPE NIPPLE
1/2 X 7-5/8 SCH 40 BW STL PIPE NIPPLE
86-424-001 1/2 X COLSE SCH 40 BW STL PIPE NIPPLE
86-600-010 3/4 X 1/2 150 # MI REDUCING COUPING
78-104-104 1/2 3000 # F.S. TAPER TAPPED PIPE COUPLING
86-339-104 1″ X 45° 150 # BLK MI PIPE ELBOW
64-271-212 3/4 MALE HOSE ADAPTER
86-424-013 1/2 X 4″ SCH 40 BW STL PIPE NIPPLE
1/2 X 6-1/2 SCH 40 BW STL PIPE NIPPLE
86-424-025 1/2 X 8 SCH 40 BW STL PIPE NIPPLE
86-543-104 1/2 150 # MI PIPE TEE
86-543-108 1″ 150 # NI PIPE TEE
86-061-014 1″ X 1/2 STD CI BLK HEX PIPE BUSHING
86-342-108 1″ X 90° 150 # BLK MI STREET ELBOW
86-426-021 1″ X 6 SCH 40 BW STL PIPE NIPPLE
1″ 17 SCH 40 BW STL PIPE
86-342-103 3/8 X 90° 150 # BLK MI STREET ELBOW
64-271-214 1/2 X 90° MALE ADAPTER ELBOW
86-061-006 1/2 X 3/8 STD CI BLK HEX PIPE BUSHING
86-423-003 3/8 X 1-1/2 SCH 40 BW STL PIPE NIPPLE
86-422-005 1/4 X 2 SCH 40 BW STL PIPE NIPPLE
86-600-005 1/2 X 1/4 150 # MI REDUCING COUPLING
45-804-366 3/4 X 19-1/2 HOSE ASSEMBLY
45-804-374 1/2 X 16-7/8 HOSE ASSEMBLY
45-804-370 1/2 X 31-7/8 HOSE ASSEMBLY
45-804-369 1/2 X 13-3/8 HOSE ASSEMBLY
45-804-373 1/2 X 11-1/8 HOSE ASSEMBLY
86-336-102 1/4 X 90° 150 # BLK MI ELBOW
64-271-208 1/2 MALE HOSE ADAPTER
86-422-001 1/4 X CLOSE SCH 40 BW STL PIPE NIPPLE
1″ X 10-1/4 SCH 40 BW STL PIPE NIPPLE
86-426-009 1″ X 3 SCH 40 BW STL PIPE NIPPLE
86-426-017 1″ X 5 SCH 40 BW STL PIPE NIPPLE
EXTERNAL LUBRICATION SYSTEM ( ELECTRICAL ) A 1700 – PT TRIPLEX PISTON PUMP
COMM NO. DESCRIPTION
74-450-830 ELECTRIC MOTOR
64-182-010 OIL PUMP
68-103-991 FLEXIBLE COUPLING
06-510-607 GUARD, COUPLING
10-300-310 BASE, MOTOR & FILTER
75-633-740 3/8–16 X 1-1/4 HEX HD HT CAPSCREW
75-770-472 3/8 EXTERNAL SHAKEPROOF LOCKWASHER
75-633-707 1/4–20 X 5/8 HEX HD HT CAPSCREW
75-770-470 1/4 EXTERNAL SHAKEPROOF LOCKWASHER
64-212-832 OIL FILTER
64-212-003 MAGNETIC OIL FILTER
75-510-404 3/8–16 HEAVY HEX STL NUT
16-385-012 HEAT EXCHANGER
75-634-335 3/8–16 X 5/8 HEX HD HT CAPSCREW
45-804-150 3/8 U — BOLT
78-256-532 2-1/2 PRESSURE GAUGE ( 0–200 P.S.I. )
78-684-250 3″ THE RMOMETER ( 0–250° F. )
86-061-008 3/4 X 1/4 CI BLK HEX PIPE BUSHING
86-061-010 3/4 X 1/2 CI BLK HEX PIPE BUSHING
86-061-014 1″ X 1/2 CI BLK HEX PIPE BUSHING
86-061-015 1″ X 3/4 CI BLK HEX PIPE BUSHING
86-061-026 1-1/2 X 3/4 CI BLK HEX PIPE BUSHING
57-000-006 3/4 X 150 # MI TAPPED PIPE COUPLING
78-176-002 1/4 X90° 2000 # F.S. PIPE ELBOW
86-336-106 3/4 X90° 150 # BLK MI PIPE ELBOW
86-336-108 1″ X90° 150 # BLK MI PIPE ELBOW
86-339-108 1″ X45° 150 # BLK MI PIPE ELBOW
86-342-108 1″ X90° 150 # BLK MI PIPE ELBOW
86-486-106 3/4 CI CORED SQ HD PIPE PLUG
86-485-508 1″ CI CORED SQ HD PIPE PLUG
86-543-106 3/4 150 # NI PIPE TEE
86-543-108 1″ 150 # MI PIPE TEE
86-600-008 3/4 X 1/4 150 # MI REDUCING PIPE COUPLING
86-600-014 1″ X 1/2 150 # MI REDUCING PIPE COUPLING
86-422-002 1/4 X CLOSE SCH 80 BW STL PIPE NIPPLE
86-424-007 1/2 X 2-1/2 SCH 40 BW STL PIPE NIPPLE
86-425-001 3/4 X CLOSE SCH 40 BW STL PIPE NIPPLE
86-425-009 3/4 X 3″ SCH 40 BW STL PIPE NIPPLE
86-425-013 3/4 X 4″ SCH 40 BW STL PIPE NIPPLE
86-425-017 3/4 X 5″ SCH 40 BW STL PIPE NIPPLE
86-426-001 1″ X CLOSE SCH 40 BW STL PIPE NIPPLE
86-426-007 1″ X 2-1/2 SCH 40 BW STL PIPE NIPPLE
86-426-013 1″ X 4″ SCH 40 BW STL PIPE NIPPLE
64-289-324 3/4 HOSE UNION ADAPTER
64-289-326 1″ HOSE UNION ADAPTER
45-804-717 3/4 X 12-1/2 HOSE ASSEMBLY
64-270-012 3/4 HOSE
64-271-014 1″ HOSE
64-271-012 3/4 MALE HOSE COUPING
64-212-848 ELEMENT, OIL FILTER
64-271-226 1″ MALE HOSE COUPLING
45-124-506 KEY ( 3/16 X 3/16 X 1″ )
45-194-207 SHIM SET ( 1 REQ’D ) CONSISTS OF THE FOLLOWING
45-194-208 SHIM ( .002″ THK )
06-015-462 SHIM ( 16 GA. THK. )
10-300-311 PLATE, HEAT EXCHANGER BASE
· ELECTRIC MOTOR IS: 1-1/2 hp, 900 rpm, 230/460 volt, 3–phase, 60 hertz 184 T explosion proof motor.
EXTERNAL LUBRICATION SYSTEM ( MECHANICAL ) A 1700 – PT TRIPLEX PISTON PUMP
COMM NO. DESCRIPTION
10-300-144 GUARD, BELT
64-182-042 OIL PUMP
75-634-314 3/8–16 X 1″ HEX HD HT CAPSCREW
75-770-472 3/8 EXTERNAL SHAKEPROOF LOCKWASHER
86-342-108 1″ 150 # BLK MI STREET ELBOW
86-359-016 1/2 X 3/4 150 # BLK MI REDUCING ELBOW
86-600-014 1/2 X 1″ 150 # BLK MI REDUCING COUPLING
86-426-001 1″ X CLOSE SCH 40 BW STL PIPE NIPPLE
86-341-006 1″ X 45° 150 # BLK MI PIPE ELBOW
86-061-015 1″ X 3/4 CI BLK HEX PIPE BUSHING
45-171-917 3/4 x 12 HOSE ASSEMBLY
64-289-324 3/4 MALE ADAPTER UNION
86-336-106 3/4 X 90° 150 # BLK MI ELBOW
86-425-031 3/4 X 11 SCH 40 BW STL PIPE NIPPLE
86-424-001 1/2 X CLOSE SCH 40 BW STL PIPE NIPPLE
86-425-013 3/4 X 4″ SCH 40 BW STL PIPE NIPPLE
86-336-108 1″ X 90° 150 # BLK MI PIPE ELBOW
45-804-050 3/4 M.P.T. X 3/4 F.P.T. X 26 HOSE ASSEMBLY
86-339-106 3/4 X 45° 150 # BLK MI PIPE ELBOW
3/4 X 30 SCH 40 BW STL PIPE
57-000-006 3/4 150 # MI TAPPED PIPE COUPLING
3/4 X 28 SCH 40 BW STL PIPE
86-425-025 3/4 X 8″ SCH 40 BW STL PIPE
86-425-029 3/4 X 10 SCH 40 BW STL PIPE NIPPLE
3/4 X 16 SCH 40 BW STL PIPE NIPPLE
86-425-019 3/4 X 5-1/2 SCH 40 BW STL PIPE
86-240-106 3/4 150 # BLK MI PIPE CROSS
86-641-106 3/4 150 # MI GROUND JOINT PIPE UNION
83-898-802 3/4 BALL VALVE
86-425-001 3/4 CLOSE SCH 40 BW STL PIPE NIPPLE
86-486-106 3/4 CI BLK SOLID SQ HD PIPE PLUG
86-425-005 3/4 X 2″ SCH 40 BW STL PIPE NIPPLE
86-425-007 3/4 X 2-1/2 SCH 40 BW STL PIPE NIPPLE
86-425-013 3/4 X 4″ SCH 40 BW STL PIPE NIPPLE
86-061-008 3/4 X 1/4 CI BLK HEX PIPE BUSHING
78-256-532 PRESSURE GAUGE ( 0–200 P.S.I. )
86-426-009 1″ x 3″ SCH 40 BW STL PIPE NIPPLE
64-212-003 MAGNETIC OIL FILTER
64-212-832 OIL FILTER
75-068-020 5/8 — 11 X 1-3/4 MACHINE BOLT
75-510-408 5/8 — 11 HEX NUT
75-770-475 5/8 EXTERNAL SHAKEPROOF LOCKWASHER
64-212-848 OIL FILTER ELEMENT
64-270-030 SPRING GUARD
10-300-040 BRACKET, OIL PUMP
45-804-103 1″ X 42 HOSE ASSEMBLY
64-271-234 1″ HOSE ADAPTER
86-543-106 3/4 150 # BLK MI PIPE TEE
45-804-245 3/4 X 8-1/4 SCH 40 BW STL PIPE NIPPLE
68-097-458 6.5 O.D. 3V SINGLE GROOVE DRIVEN SHEAVE
45-803-774 KEY ( 3/16 X 3/16 X 1-3/4 )
10-303-074 PLATE, INSTRUCTION
75-632-012 NO. 2 X 1/4 DRIVE SCREW
68-028-560 3V – 560 V – BELT
OIL LEVEL ASSEMBLY A 1700 – PT TRIPLEX PISTON PUMP
COMM NO. DESCRIPTION
86-336-104 1/2 X 90° 150 # BLK MI PIPE ELBOW
86-424-001 1/2 X CLOSE SCH 40 BW STL PIPE NIPPLE
86-061-032 2″ X 1/2 CI STD BLK HEX PIPE BUSHING
86-424-029 1/2 X 10 SCH 40 BW STL PIPE NIPPLE
06-109-007 STICK, OIL LEVEL DIP
10-305-112 PLATE, INSTRUCTION
75-632-012 NO. 2 X 1/4 DRIVE SCREW
LINER FLUSHING SYSTEM A 1700 – PT TRIPLEX PISTON PUMP
COMM NO. DESCRIPTION
95-999-050 CENTRIFUGAL PUMP
68-103-964 COUPLING, SHAFT
74-450-826 ELECTRIC MOTOR
10-300-343 BASE, PUMP
75-634-361 5/8 — 11 X 2″ HEX HD HT CAPSCREW
75-510-408 5/8 — 11 STL HEX NUT
75-770-205 5/8 PLATE WASHER
75-770-475 5/8 EXTERNAL SHAKEPROOF LOCKWASHER
76-634-343 3/8 — 16 1-3/4 HEX HD HT CAPSCREW
75-770-472 3/8 EXTERNAL SHAKEPROOF LOCKWASHER
29-001-153 SHIM SET PACK
10-300-344 GUARD, PUMP
98-029-012 1-1/2 150 # F.S. RAISE FACE THREADED FLANGE
78-208-036 FLANGE GASKET
75-634-353 1/2 — 13 X 2″ HEX HD HT CAPSCREW
75-510-406 1/2 — 13 STL HEX NUT
75-770-474 1/2 EXTERNAL SHAKEPROOF LOCKWASHER
99-287-816 2″ I.D. X 5″ RADIATOR HOSE
99-094-086 HOSE CLAMP
86-342-112 1-1/2 X 90° 150 # BLK MI STREET ELBOW
45-003-181 1-1/2 X 3″ SCH 40 BW STL PIPE NIPPLE
98-029-006 1″ 150 # F.S. THREADED RAISE FACE FLANGE
78-208-012 GASKET, FLANGE
75-634-345 1/2 — 13 X 1-3/4 HEX HD HT CAPSCREW
64-289-326 1″ MALE ADAPTER UNION
06-511-873 1″ X 37″ HOSE ASSEMBLY
64-228-103 PIPE STRAP
75-634-317 5/16 — 18 X 1/2 HEX HD HT CAPSCREW
86-336-108 1″ X90° 150 # BLK MI PIPE ELBOW
86-426-029 1″ X 10″ SCH 40 BW STL PIPE NIPPLE
1″ X 16″ SCH 40 BW STL PIPE
86-543-108 1“ 150 # BLK MI PIPE TEE
86-061-014 1″ X 1/2 CI BLK HEX PIPE BUSHING
64-289-320 1/2 MALE ADAPTER UNION
06-510-761 1/2 X 48″ HOSE ASSEMBLY
86-600-005 1/2 X 1/4 150 # BLK MI PIPE REDUCER
86-422-007 1/4 X 2-1/2 SCH 40 BW STL PIPE NIPPLE
86-426-009 1″ X 3″ SCH 40 BW STL PIPE NIPPLE
86-426-025 1″ X 8″ SCH 04 BW STL PIPE NIPPLE
86-339-108 1″ X 45° 150 # BLK MI PIPE ELBOW
75-634-313 3/8 — 16 X 3/4 HEX HD HT CAPSCREW
86-428-009 1-1/2 X 3″ SCH 40 BW STL PIPE NIPPLE
86-061-036 2″ X 1-1/2 CI STD BLK HEX PIPE BUSHING
86-429-017 2″ X 5″ SCH 40 BW STL PIPE NIPPLE
86-336-116 2″ X 90° 150 # BLK MI PIPE ELBOW
75-510-404 3/8 — 16 HEX NUT
10-300-313 SUPPORT, PUMP
75-634-384 3/4 — 10 X 2-1/2 HEX HD HT CAPSCREW
75-770-476 3/4 EXTERNAL SHAKEPROOF LOCKWASHER
75-510-410 3/4 — 10 HEX NUT
CHARGING PUMP A 1700 – PT TRIPLEX PISTON PUMP
COMM NO. DESCRIPTION
95-999-067 6 X 8R CENTRIFUGAL CHARGING PUMP
10-300-205 GUARD, BELT
68-097-465 10.3 O.D. 5V SIX GROOVE DRIVE SHEAVE
68-029-085 5V850V — BELT ( MATCHED SET )
68-097-467 9″ O.D. 5V SIX GROOVE DRIVEN SHEAVE
10-300-204 BRACKET, PUMP MOUNTING
06-509-871 MANIFOLD
45-802-038 GASKET, MANIFOLD FLANGE
75-659-066 3/4 — 10 X 3-3/4 ALL — THREAD STUD W/TWO NUTS
78-106-063 6″ DRESSER COUPLING
10-300-275 6″ FABRICATED SUCTION CHARGING PIPE
75-635-028 5/8 — 11 X 5″ HEX HD HT CAPSCREW
75-770-475 5/8 EXTERNAL SHAKEPROOF LOCKWASHER
75-510-408 5/8 — 11 HEAVY STL. HEX NUT
45-802-800 KEY ( 1/2 X 1/2 X 2″ )
75-634-536 1/2 — 13 X 4″ SQ HD CUP POIN SETSCREW
75-510-506 1/2 — 13 STL. HEX JAM NUT
75-634-367 5/8 — 11 X 3-1/4 HEX HD HT CAPSCREW
10-300-093 RETAINER, CENTRIFUGAL PUMP
10-300-094 SHIM BLOCK
