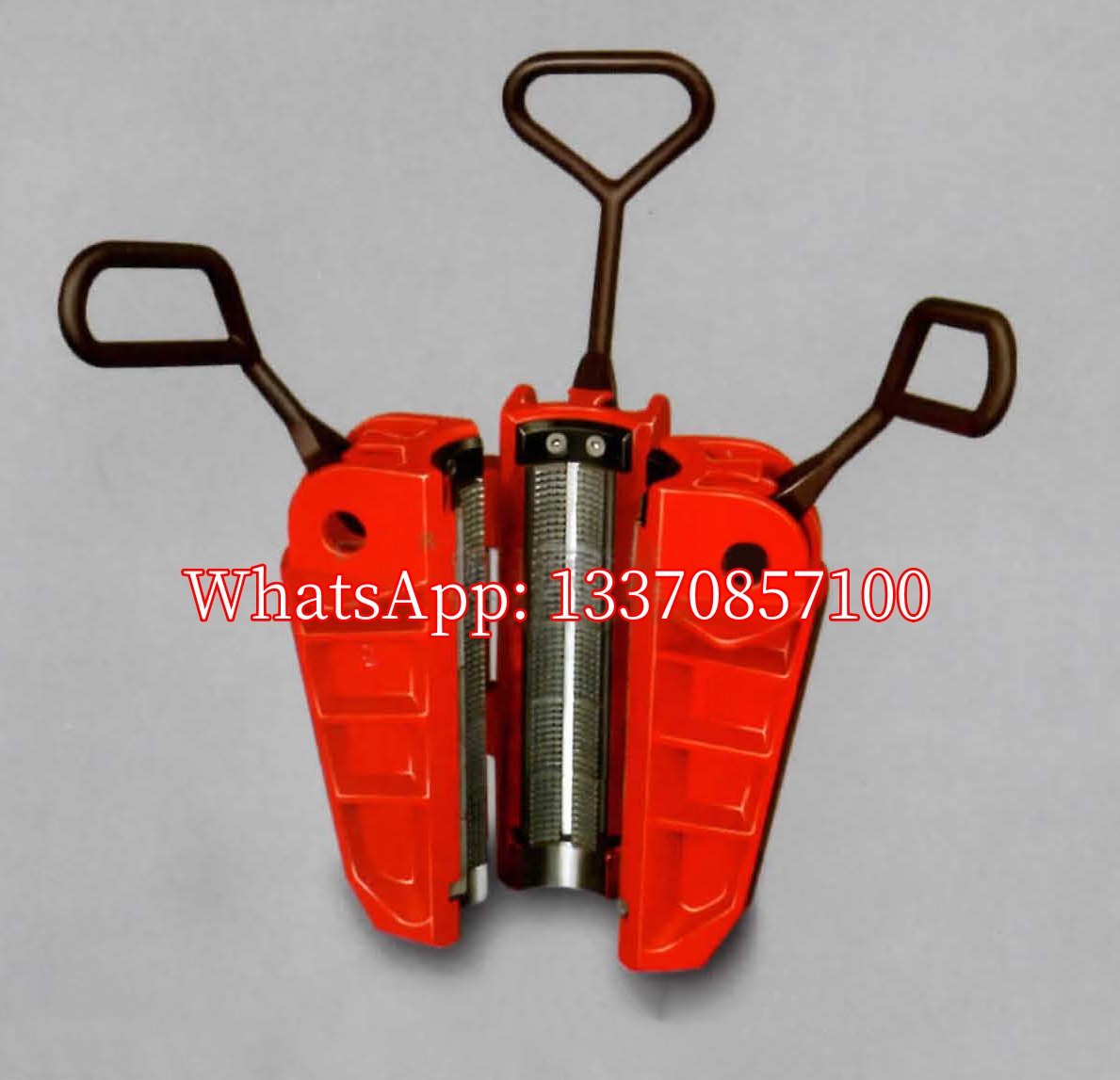

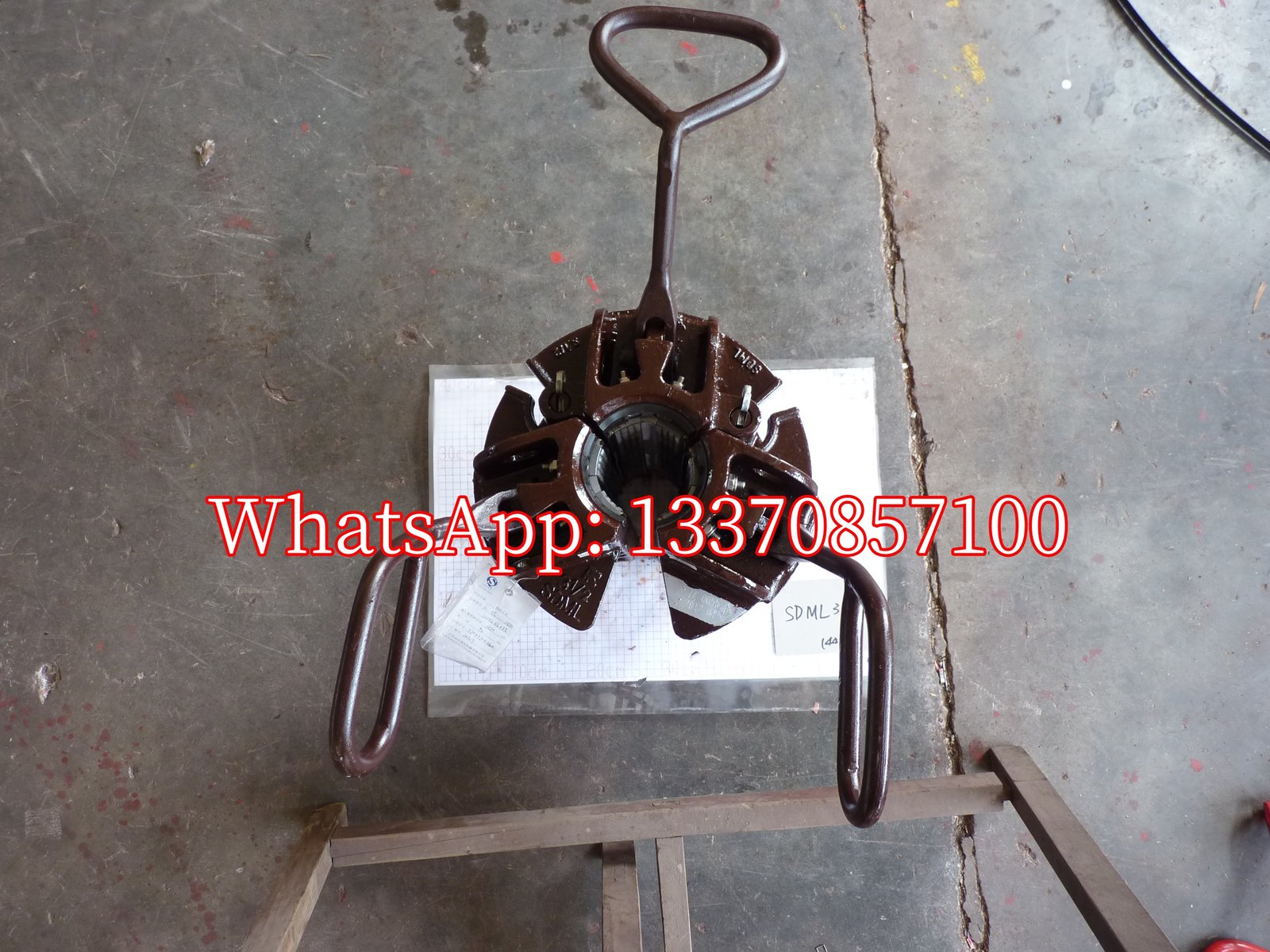

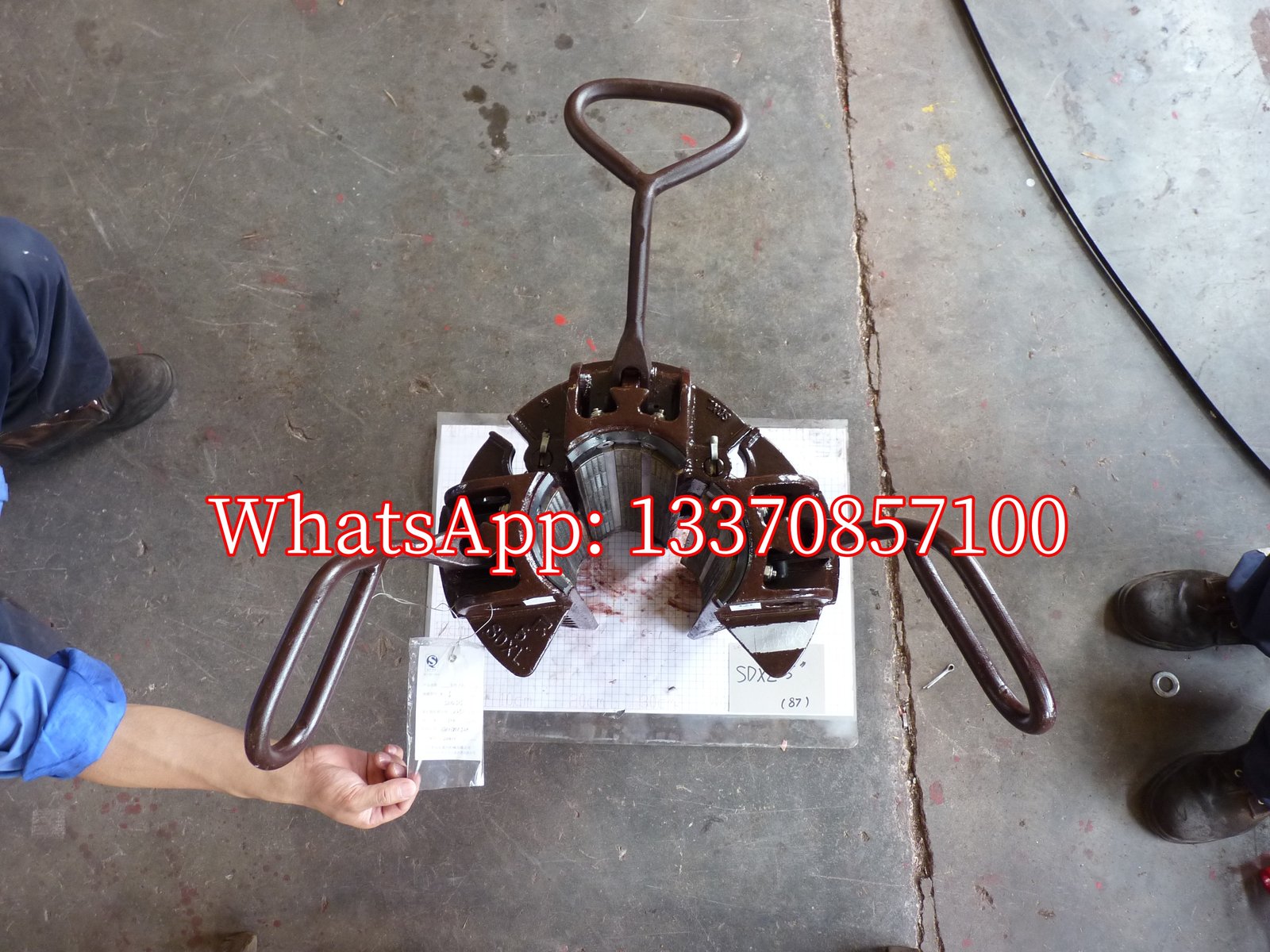

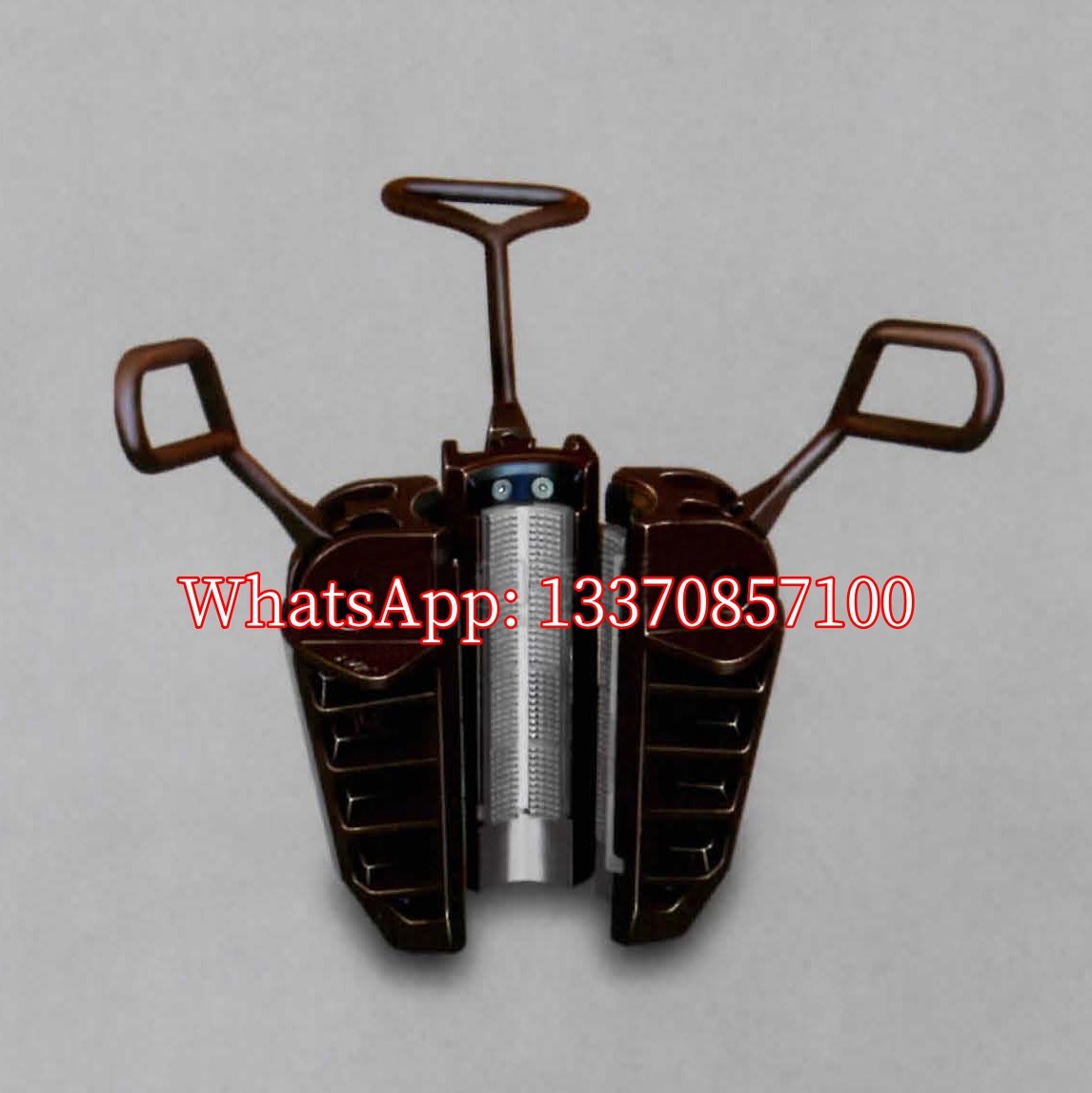

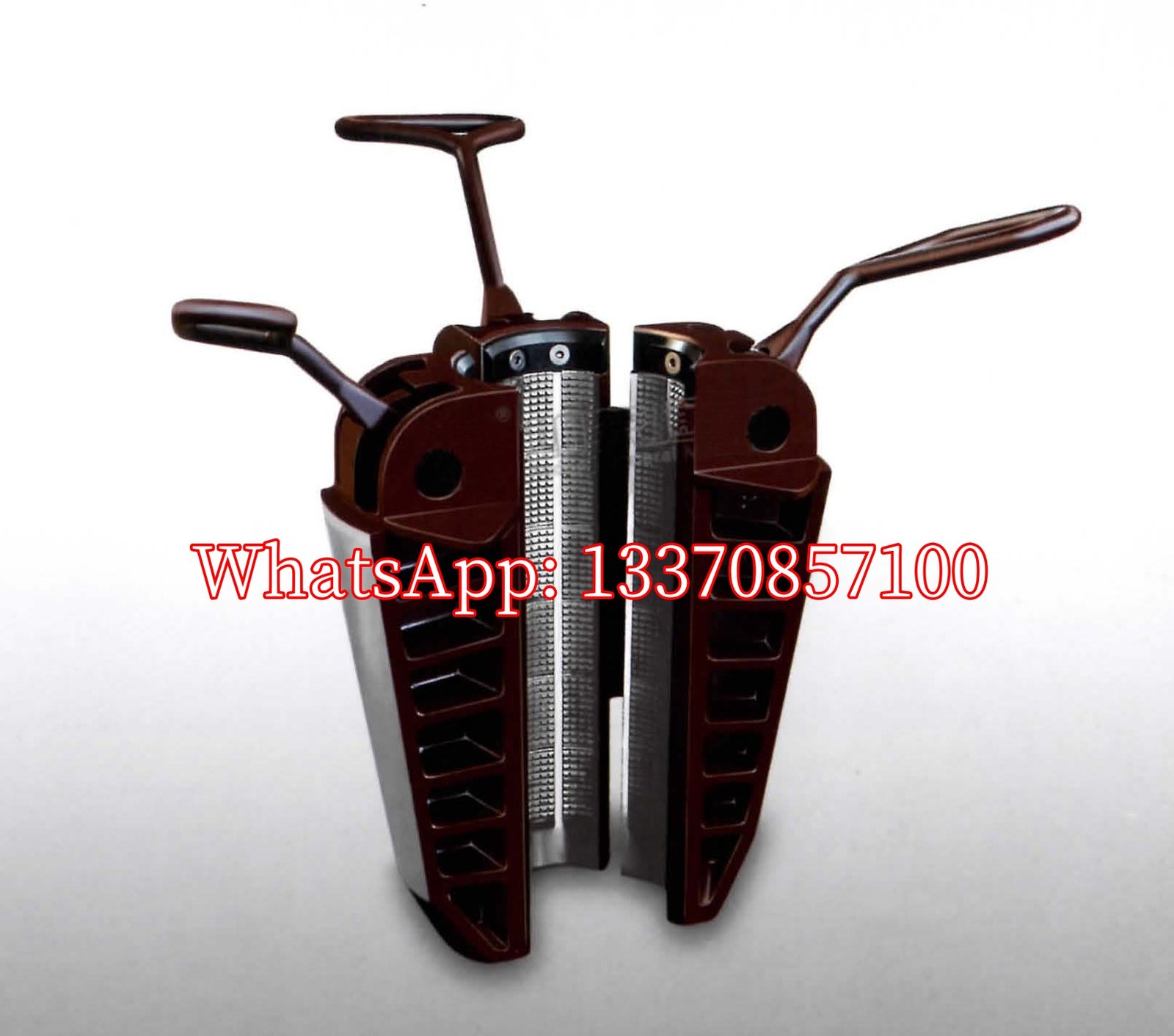

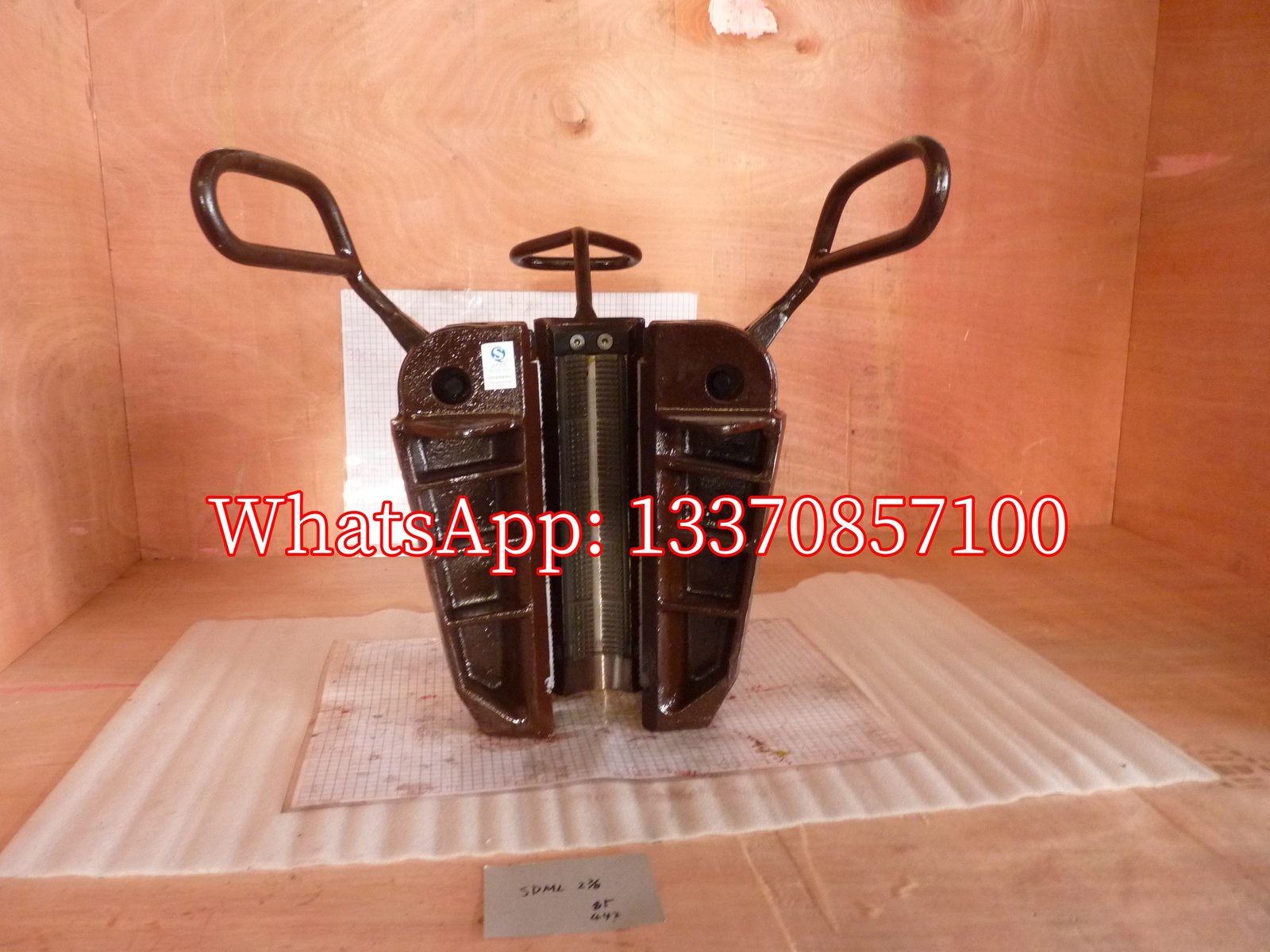

Drill Pipe Slips Type SD SDS SDML SDXL Slip

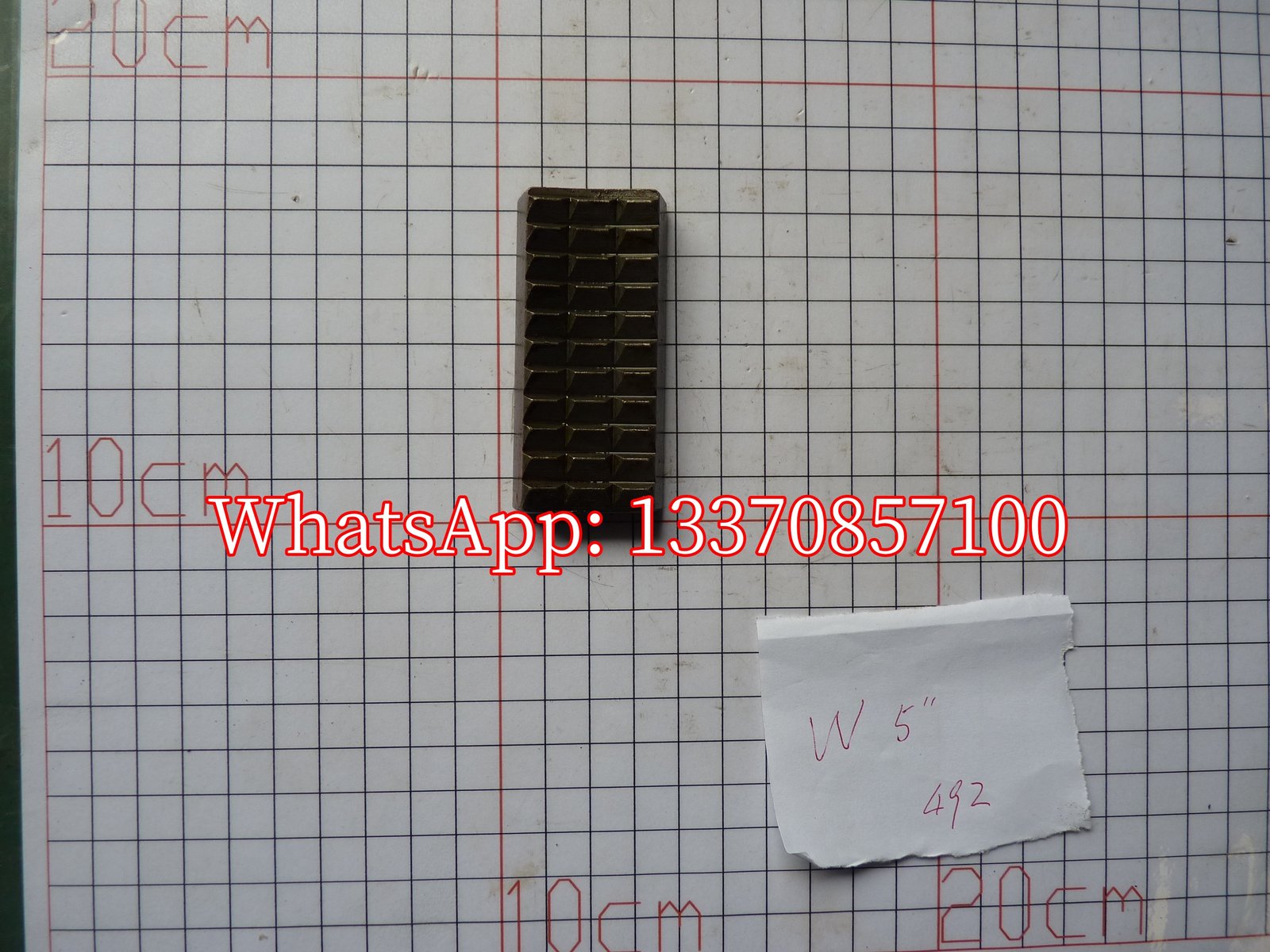

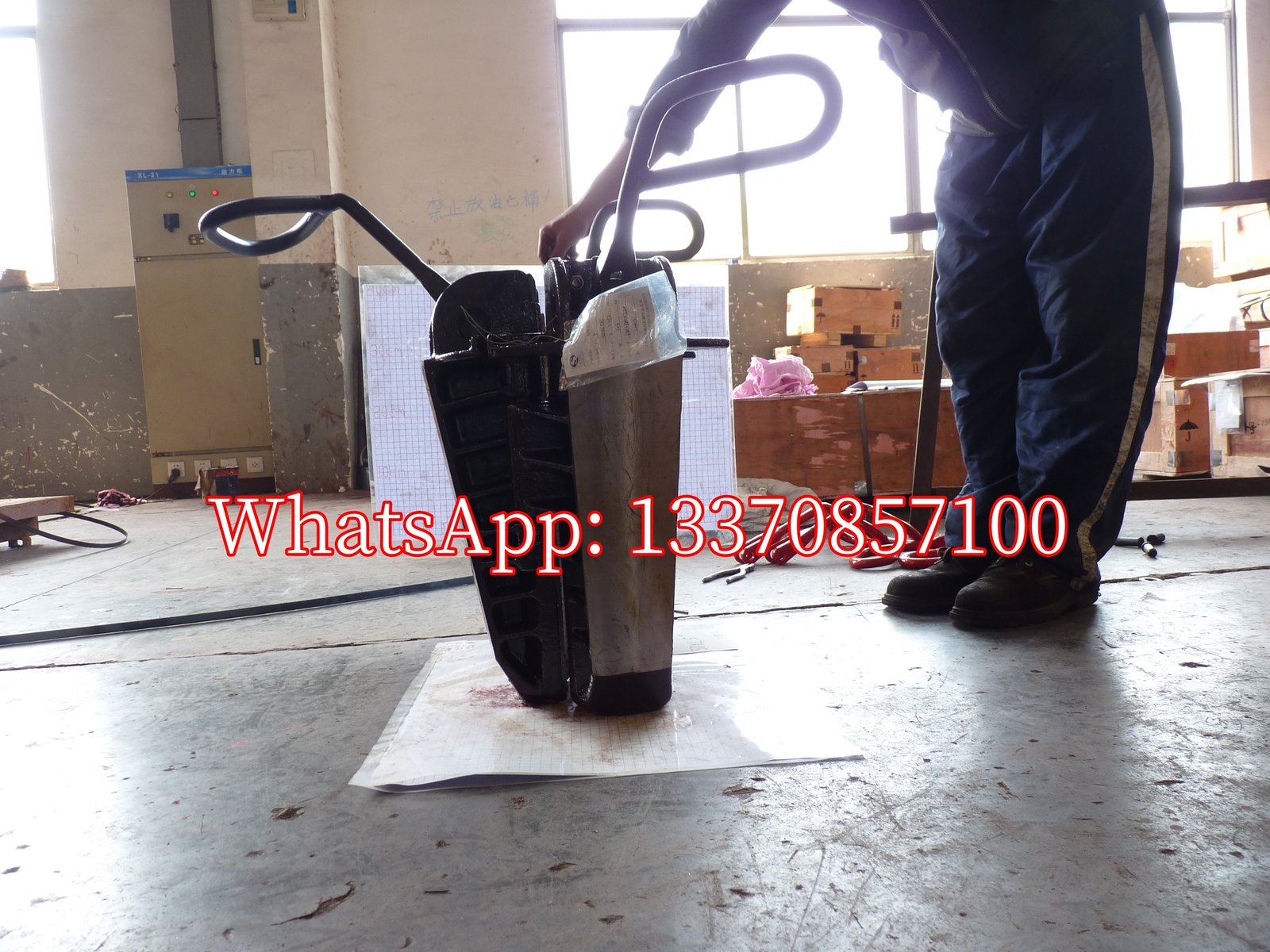

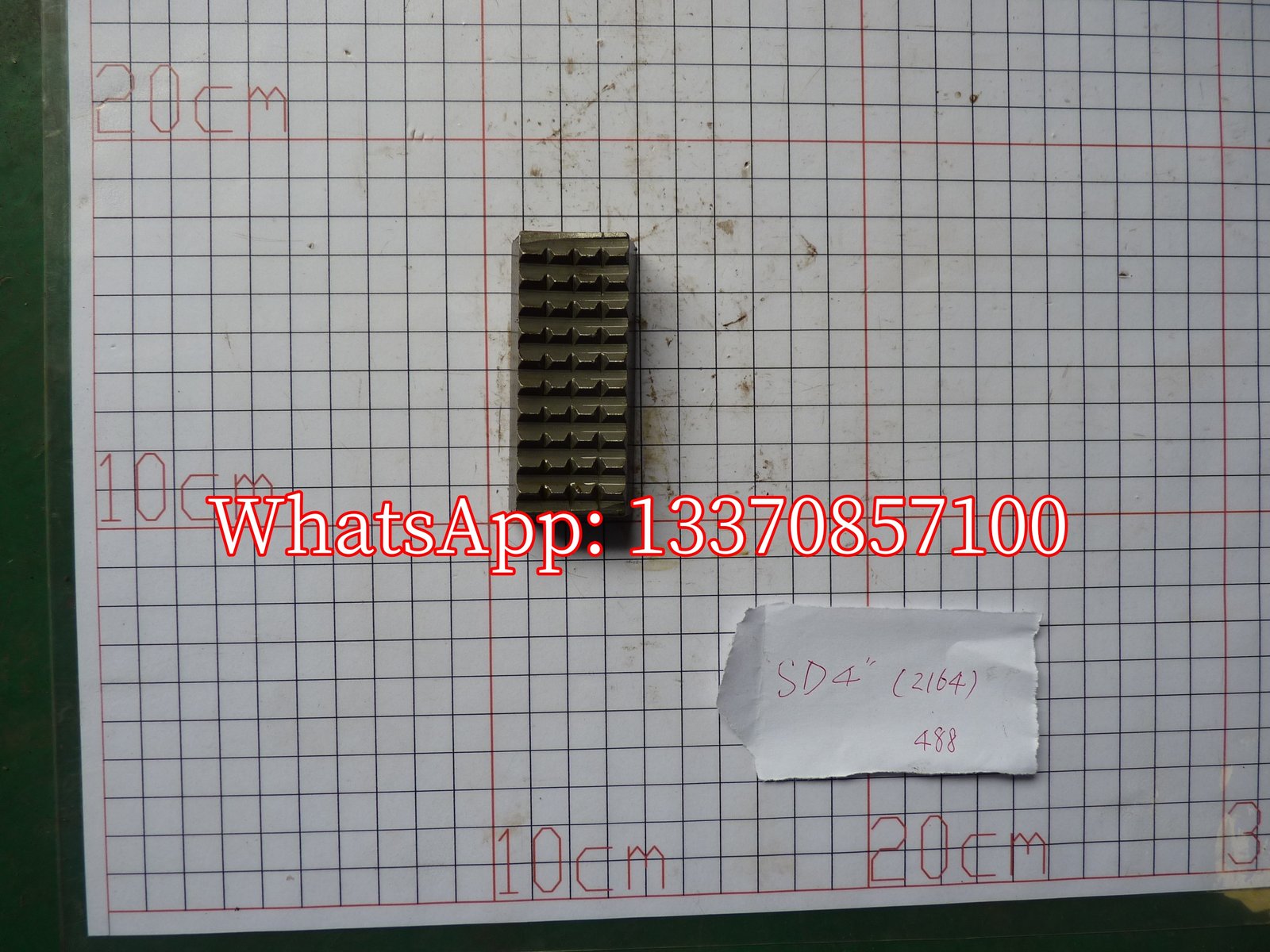

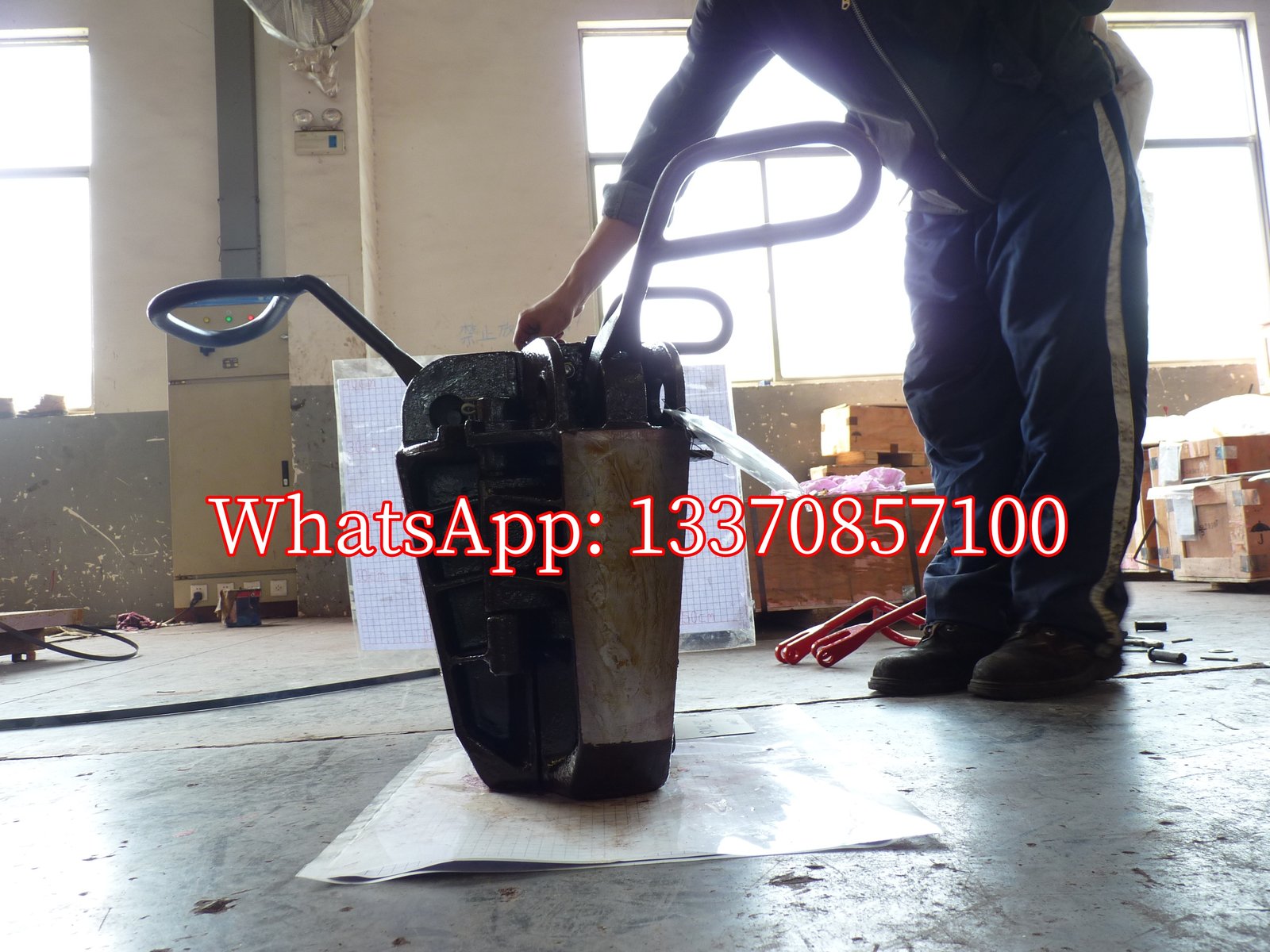

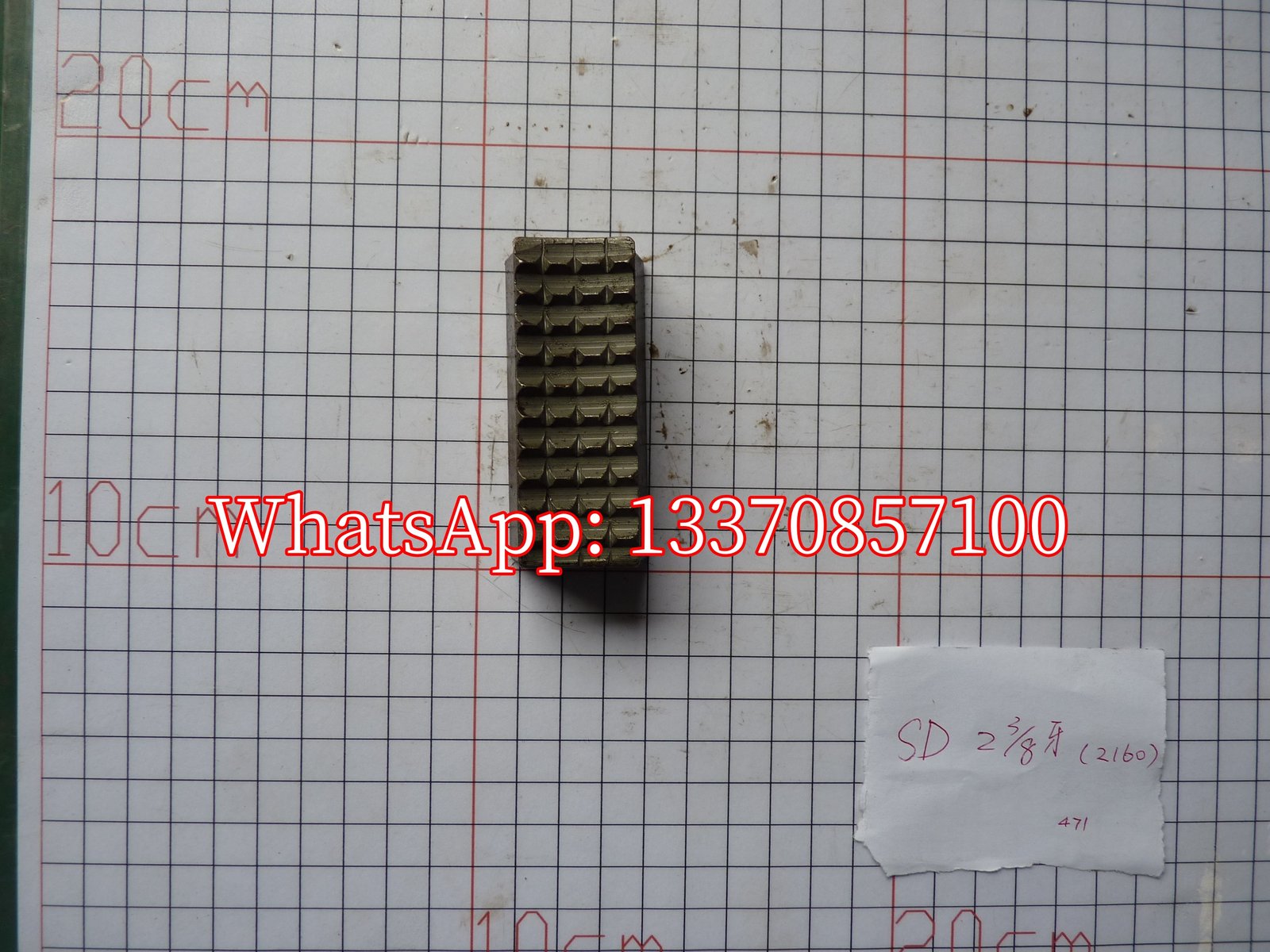

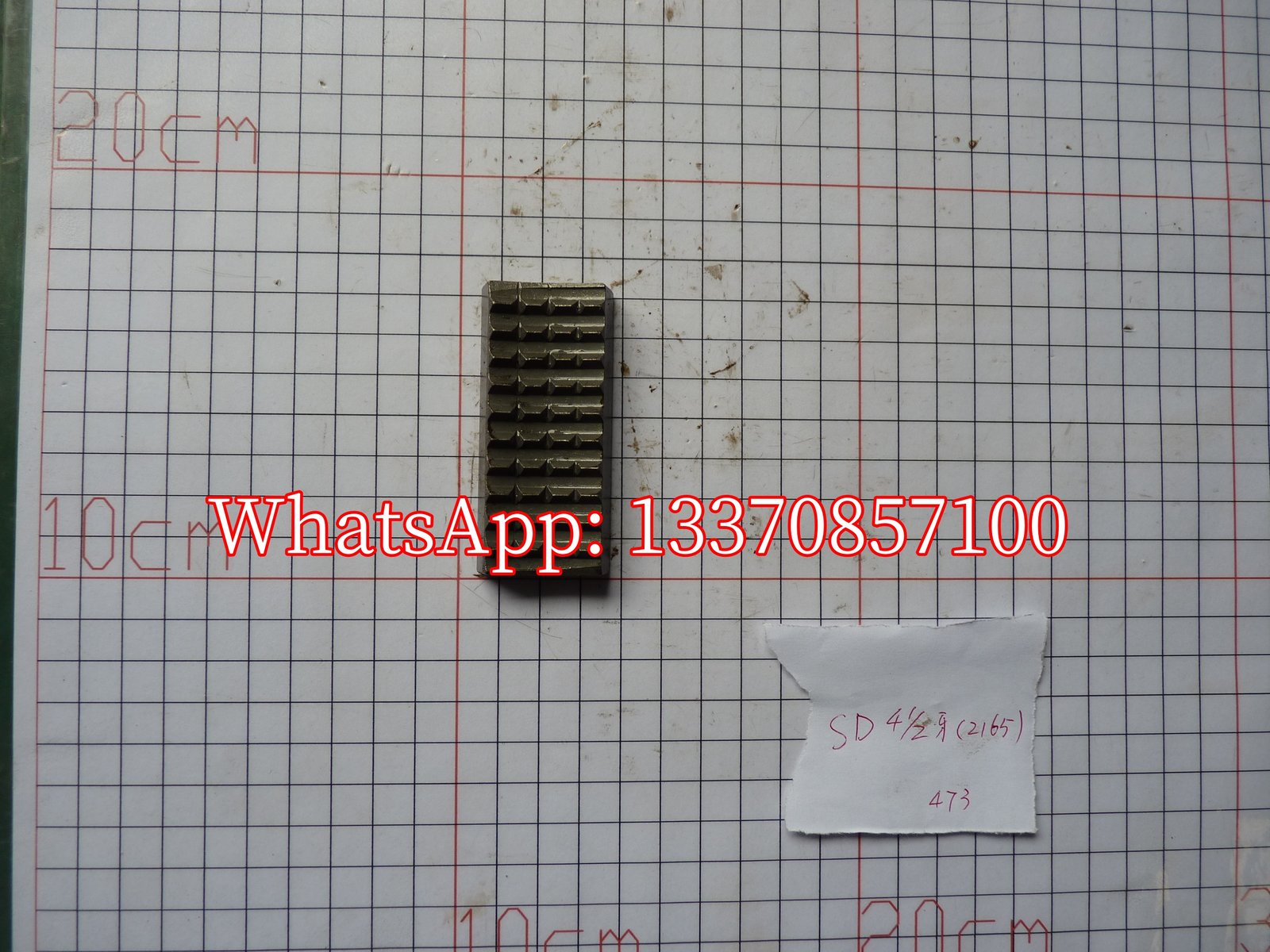

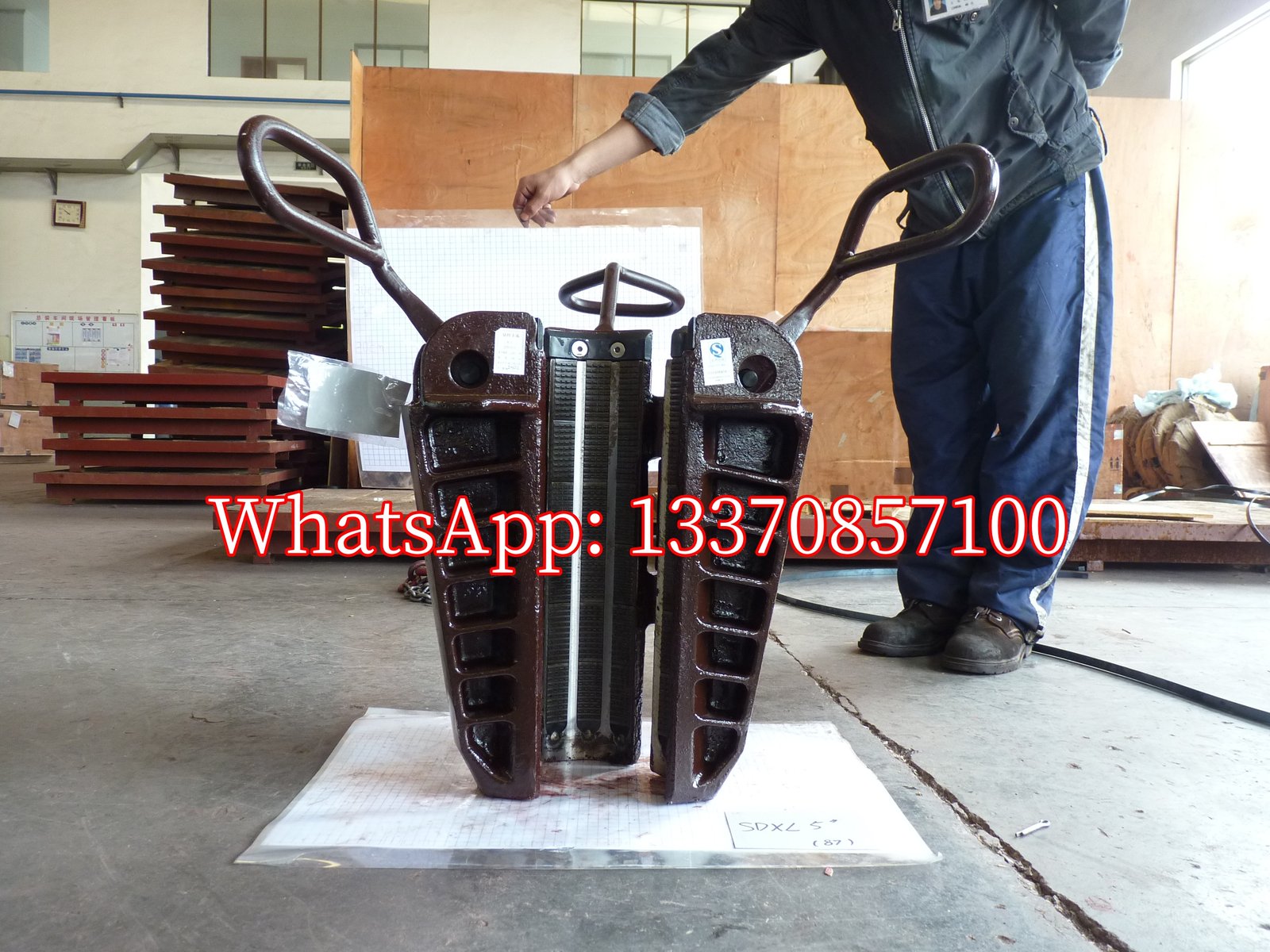

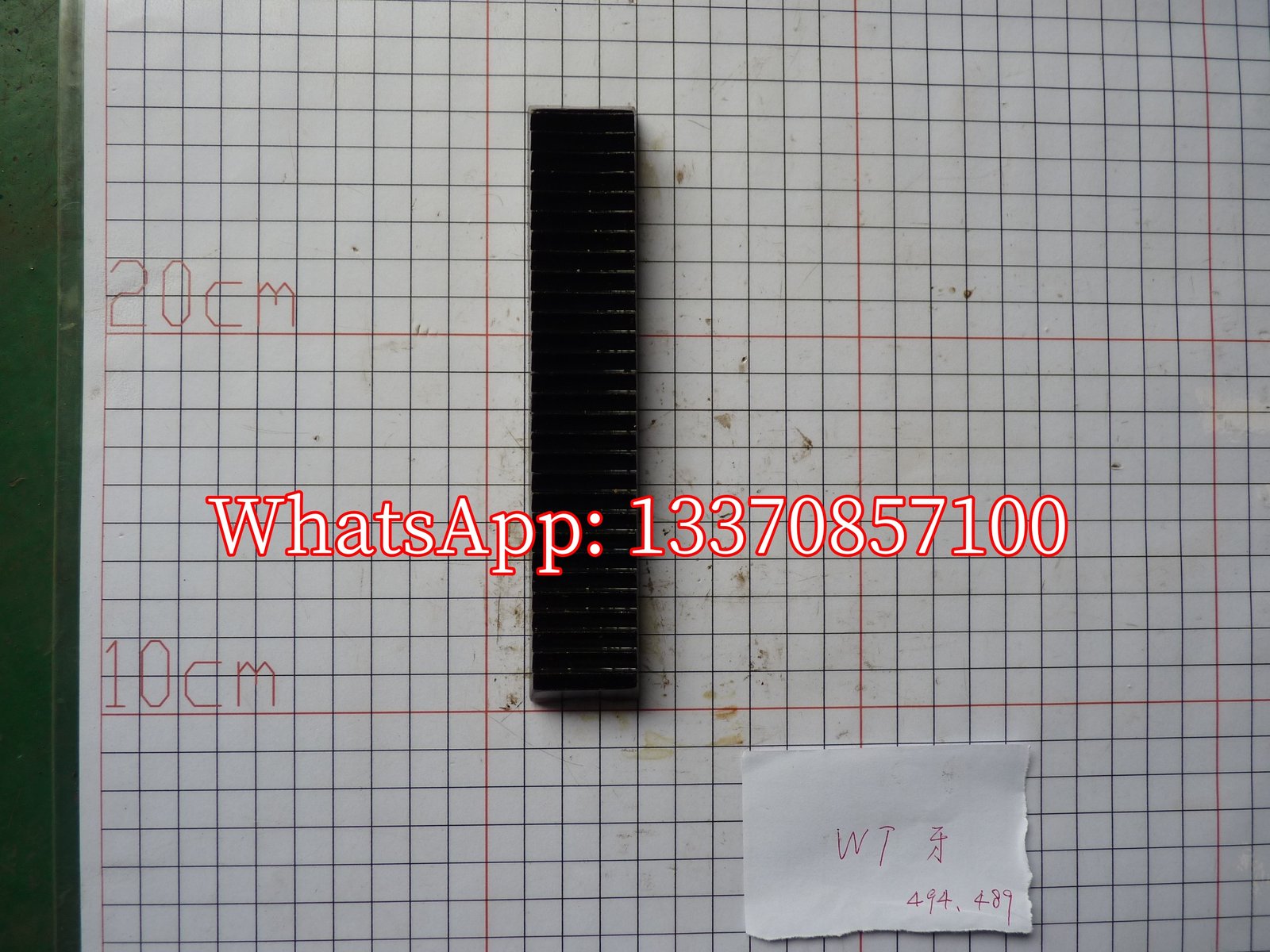

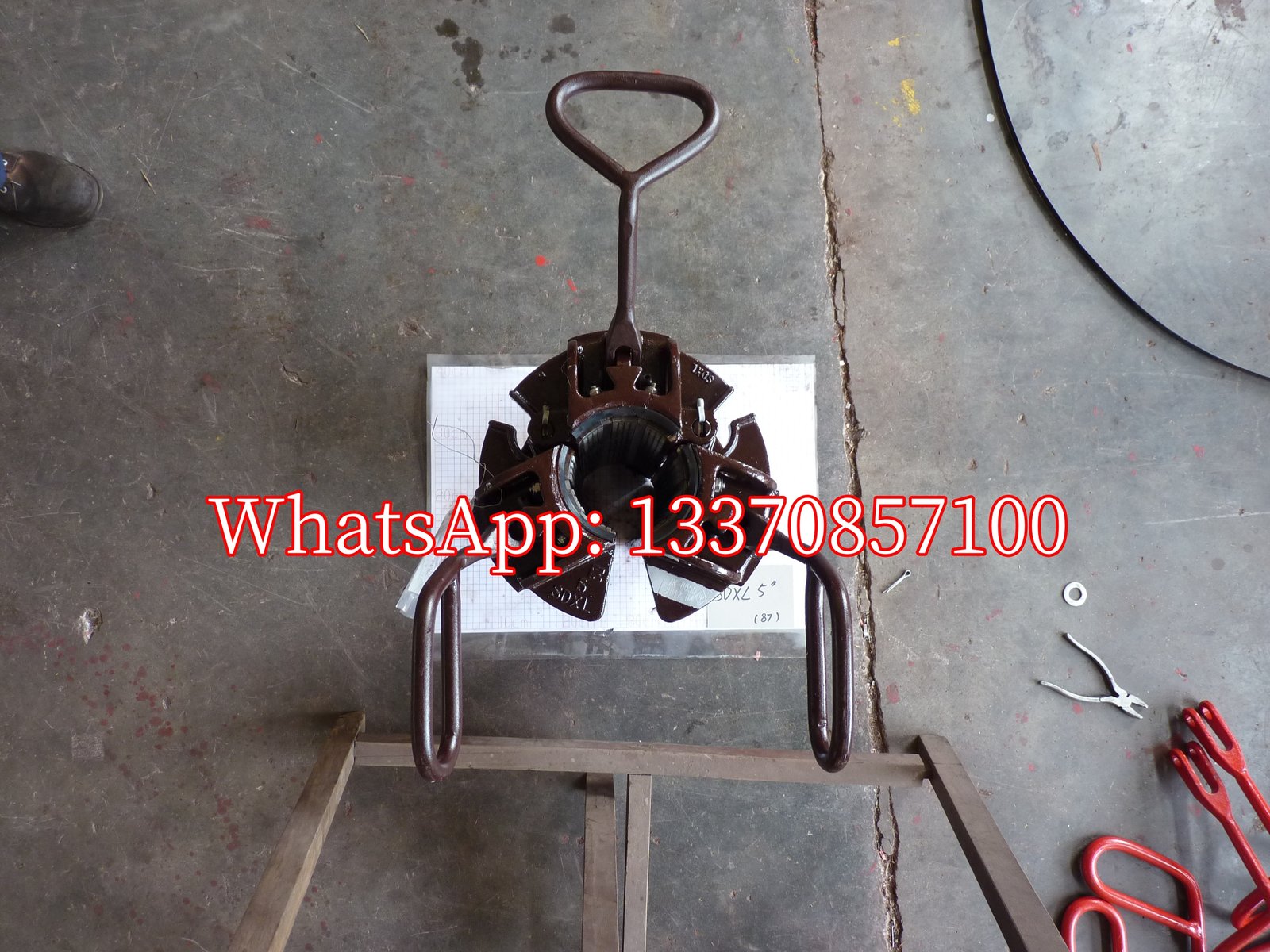

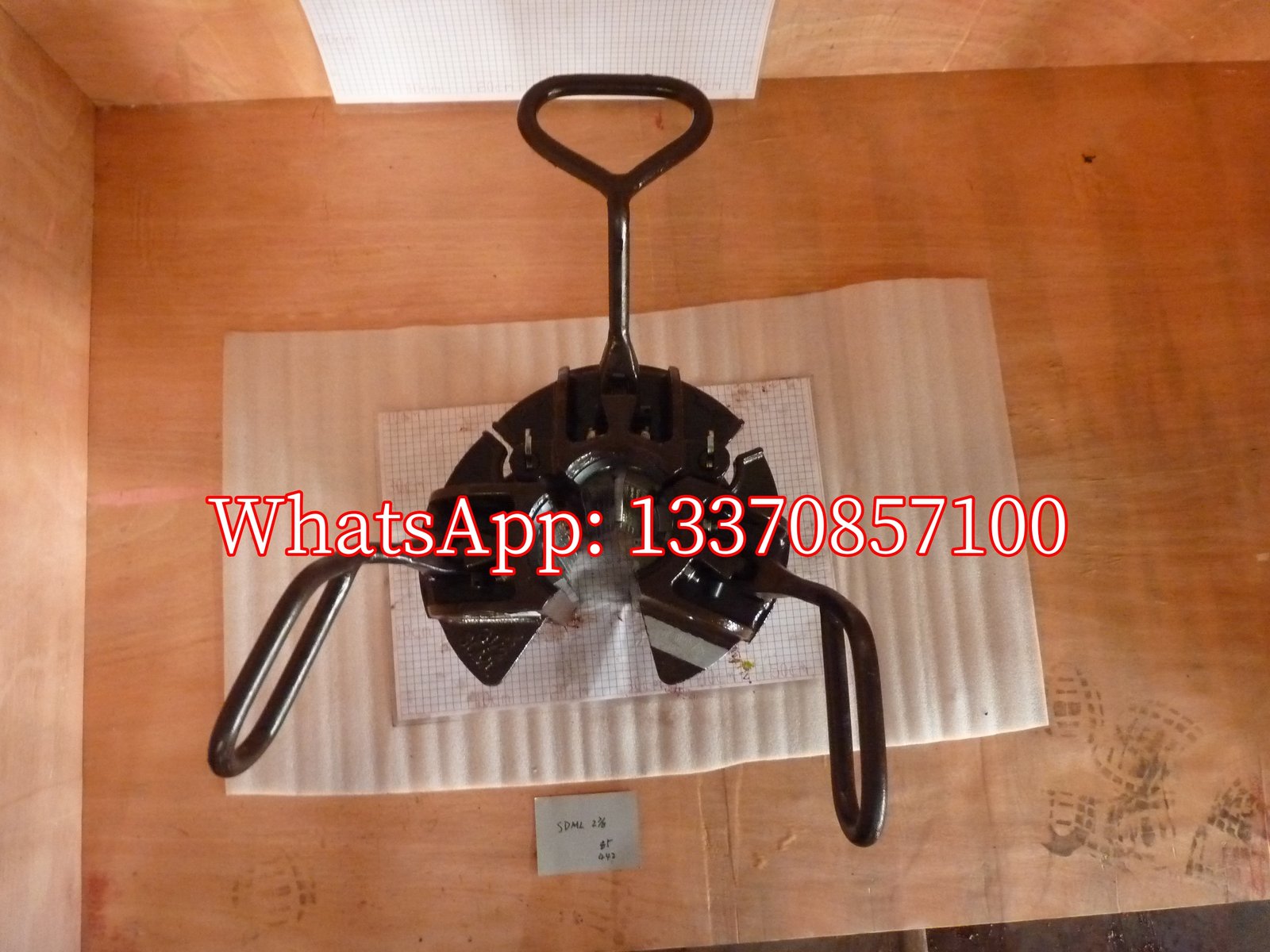

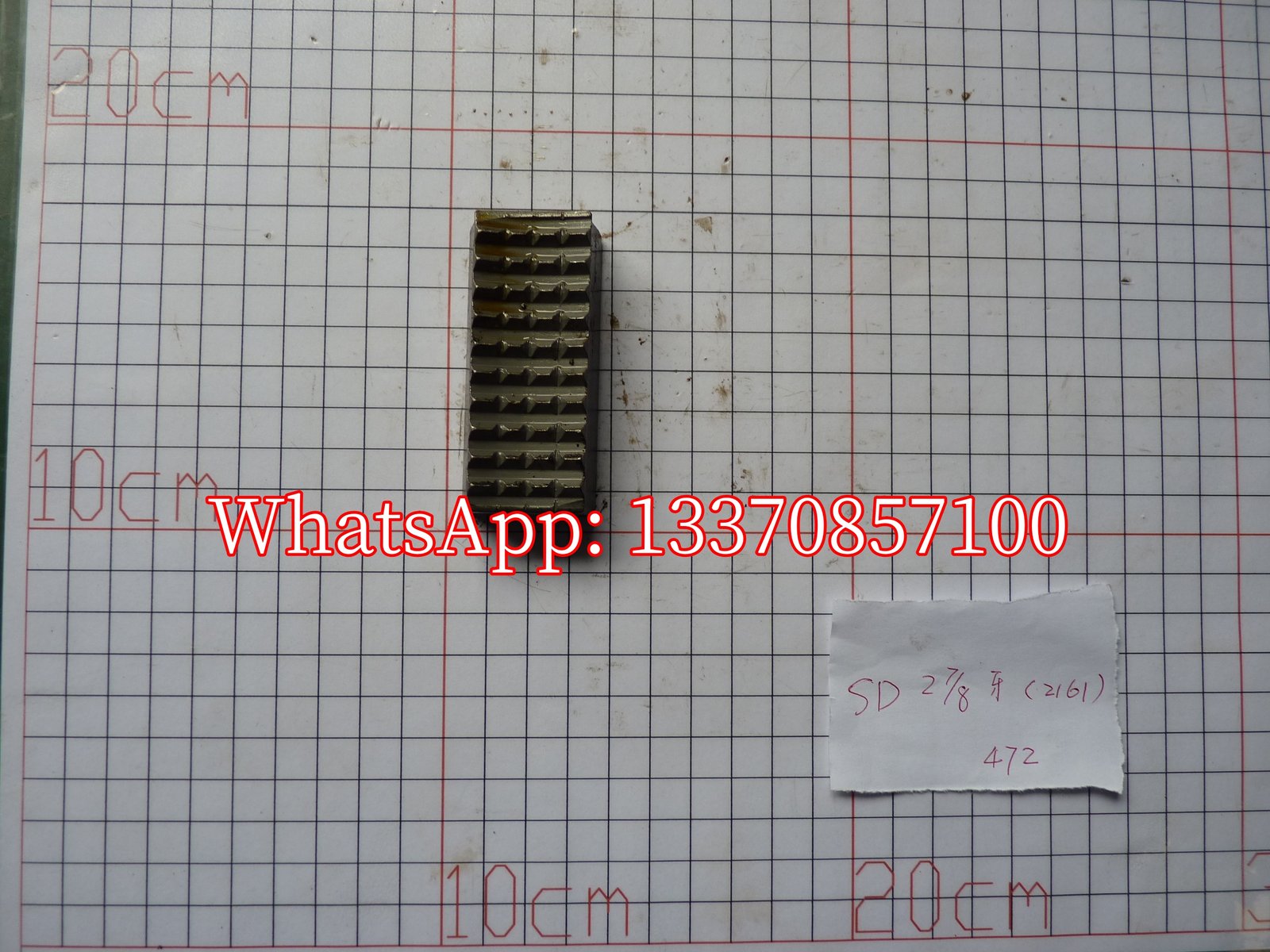

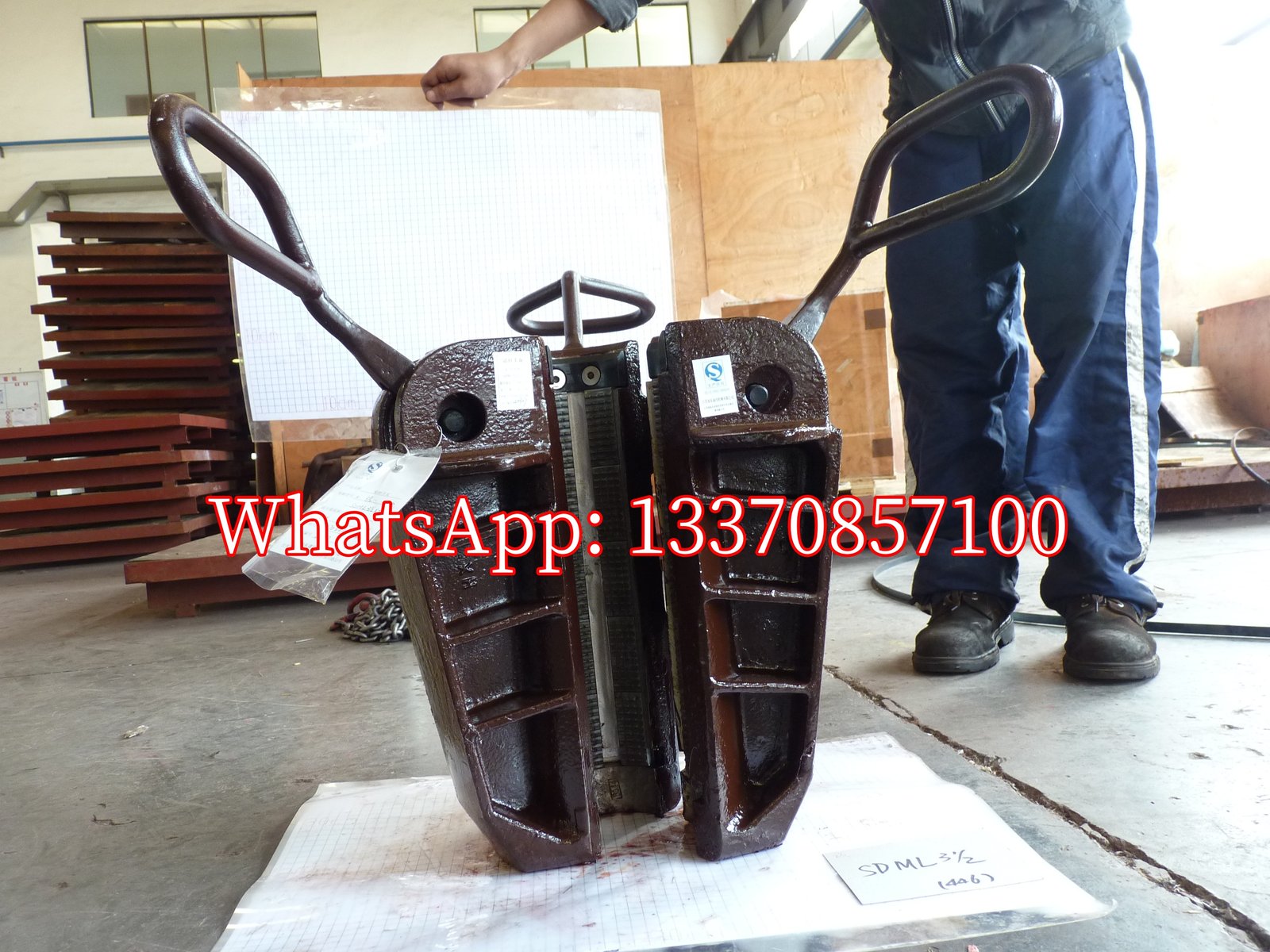

Drill Pipe Slips Type SD can accommodate drill pipes from 2 3/8 to 7 inch(60.3 to 177.8mm). They are classified as type Short(SDS),Medium(SDML),Extra Long(SDXL)according to gripping length. SDS slips are designed for shallow hole drilling, SDML slips are the perfect choice for all medium depth drilling and SDXL slips are designed for deep drilling. They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.
| Main Technical Parameters | |||||
| Model | Size of Slip Bodies 3 1/2″ | ||||
| SDS | DP OD. | in | 2 3/8 | 2 7/8 | 3 1/2 |
| mm | 60.3 | 73.0 | 88.9 | ||
| Weight | kg | 53.1 | 50.3 | 48.5 | |
| lb | 117 | 111 | 107 | ||
| SDML | DP OD. | in | 2 3/8 | 2 7/8 | 3 1/2 |
| mm | 60.3 | 73.0 | 88.9 | ||
| Weight | kg | 87.5 | 85.3 | 81.6 | |
| lb | 193 | 188 | 180 | ||
| SDXL | DP OD. | in | – | – | – |
| mm | – | – | – | ||
| Weight | kg | – | – | – | |
| lb | – | – | – | ||
| Model | Size of Slip Bodies 4 1/2″ | ||||
| SDS | DP OD. | in | 3 1/2 | 4 | 4 1/2 |
| mm | 88.9 | 101.6 | 114.3 | ||
| Weight | kg | 64.9 | 61.7 | 57.6 | |
| lb | 143 | 136 | 127 | ||
| SDML | DP OD. | in | 3 1/2 | 4 | 4 1/2 |
| mm | 88.9 | 101.6 | 114.3 | ||
| Weight | kg | 94 | 90.3 | 85.3 | |
| lb | 207 | 199 | 188 | ||
| SDXL | DP OD. | in | 3 1/2 | 4 | 4 1/2 |
| mm | 88.9 | 101.6 | 114.3 | ||
| Weight | kg | 103.9 | 99.3 | 93 | |
| lb | 229 | 219 | 205 | ||
| Model | Size of Slip Bodies 5″ | ||||
| SDS | DP OD. | in | 4 | 4 1/2 | 5 |
| mm | 101.6 | 114.3 | 127 | ||
| Weight | kg | 82 | 79 | 75 | |
| lb | 181 | 174 | 165 | ||
| SDML | DP OD. | in | 4 | 4 1/2 | 5 |
| mm | 101.6 | 114.3 | 127 | ||
| Weight | kg | 92.5 | 88.9 | 84 | |
| lb | 204 | 196 | 185 | ||
| SDXL | DP OD. | in | 4 | 4 1/2 | 5 |
| mm | 101.6 | 114.3 | 127 | ||
| Weight | kg | 107.5 | 103 | 96.6 | |
| lb | 237 | 227 | 213 | ||
| Model | Size of Slip Bodies 5 1/2″ | ||||
| SDS | DP OD. | in | – | – | – |
| mm | – | – | – | ||
| Weight | kg | – | – | – | |
| lb | – | – | – | ||
| SDML | DP OD. | in | 4 1/2 | 5 | 5 1/2 |
| mm | 114.3 | 127 | 139.7 | ||
| Weight | kg | 101 | 97 | 92 | |
| lb | 223 | 214 | 203 | ||
| SDXL | DP OD. | in | 4 | 4 1/2 | 5 1/2 |
| mm | 114.3 | 127 | 139.7 | ||
| Weight | kg | 116 | 111 | 112 | |
| lb | 256 | 245 | 247 | ||
| Model | Size of Slip Bodies 5 7/8″ | ||||
| SDS | DP OD. | in | – | – | – |
| mm | – | – | – | ||
| Weight | kg | – | – | – | |
| lb | – | – | – | ||
| SDML | DP OD. | in | – | – | – |
| mm | – | – | – | ||
| Weight | kg | – | – | – | |
| lb | – | – | – | ||
| SDXL | DP OD. | in | – | 5 3/4 | 5 7/8 |
| mm | – | 146.05 | 149.2 | ||
| Weight | kg | – | |||
| lb | – | ||||
| Model | Size of Slip Bodies 7″ | ||||
| SDS | DP OD. | in | – | – | – |
| mm | – | – | – | ||
| Weight | kg | – | – | – | |
| lb | – | – | – | ||
| SDML | DP OD. | in | – | – | – |
| mm | – | – | – | ||
| Weight | kg | – | – | – | |
| lb | – | – | – | ||
| SDXL | DP OD. | in | – | 6 5/8 | 7 |
| mm | – | 168.3 | 177.8 | ||
| Weight | kg | – | |||
| lb | – | ||||
