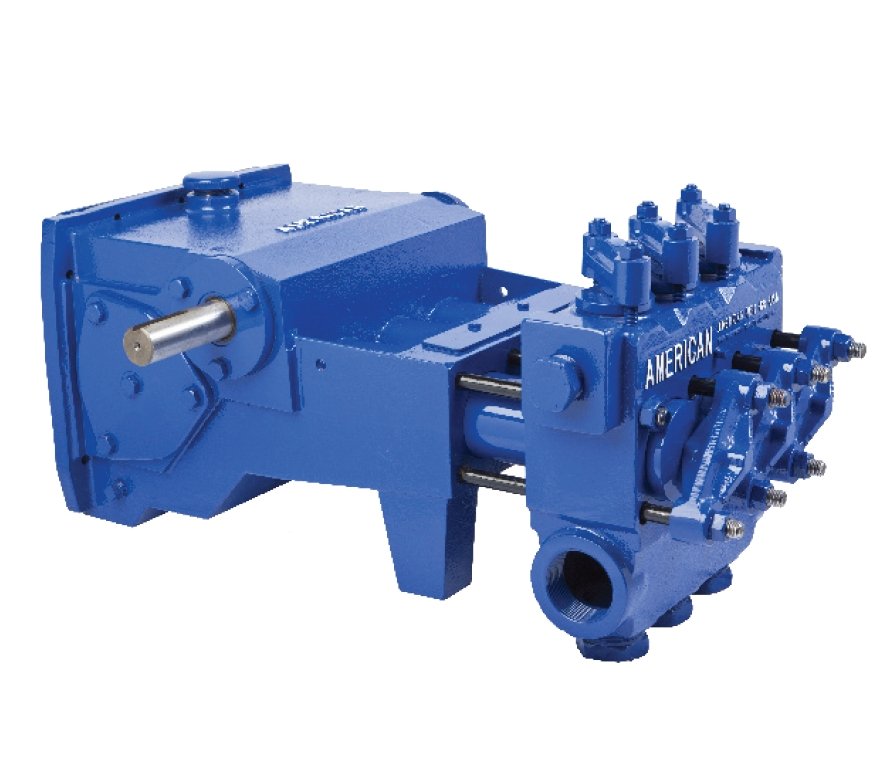

FMC AL0918 Triplex Piston Pump Operation And Maintenance Manual Parts List
AL0918BCD Component Item Numbers
Item # Component Description Part # Qty
1 Power Frame PPFMC 5260537 1
2 Crankshaft PPFMC 1279071 1
3 Pinion Shaft PPFMC 1265098 1
4 Connecting Rod Assembly PPFMC 18710 3
5 Rod Bearing PPFMC P506697 3
6 Wrist Pin PPFMC A5006 3
7 Crosshead Assembly PPFMC 1250876 3
8 Seal Holder PPFMC 1283601 3
9 Oil Seal, Piston Rod PPFMC 1283603 6
10 Seal Retainer Nut PPFMC 1283600 3
11 Gasket, Seal Retainer PPFMC 1283602 3
12 Bearing Housing, Blind PPFMC 1279064 2
13 Shim, Bearing Housing PPFMC 1252594 5
14 Gasket, Bearing Housing PPFMC A5025 2
15 Back Cover PPFMC 1279063 1
16 Gasket, Back Cover PPFMC 1279065 1
17 Pinion Housing, Drive PPFMC A5005 1
18 Pinion Housing, Blind PPFMC 1225769 1
19 Petcock PPFMC 1187039 1
20 Gasket, Pinion PPFMC A5026 2
21 Nameplate PPFMC 5262738 1
22 Lube Fitting PPFMC 1100759 3
23 Bearing Cone, Crank PPFMC 1101242 2
24 Bearing Cup, Crank PPFMC 1177287 2
25 Bearing, Pinion PPFMC 1104444 2
26 Key PPFMC 1187577 1
27 Cap Screw, Pinion Bearing PPFMC 1100068 12
28 Screw PPFMC 1187413 2
29 Cap Screw, Back Cover PPFMC 1106910 14
30 Set Screw PPFMC 1103470 3
31 Plate, Inspection PPFMC 1214260 1
32 Pipe Plug, Power End PPFMC 1187048 2
33 Filler Cap or Vent PPFMC A5054 1
34 Screw PPFMC 1106980 2
38 Fluid Chamber PPFMC 1255266 3
39 Valve Seat PPFMC 1225327 6
40 Piston Cup PPFMC 5260052 3
41 Piston Holder PPFMC 8495 3
42 Hex Nut PPFMC 8309 3
43 Nut Retainer PPFMC A5016 3
44 Piston Retainer PPFMC 1207289 3
45 O-Ring, Rod Seal PPFMC 1101176 3
46 Gasket, Fluid Chamber PPFMC 1280024 6
47 Plug, Pipe PPFMC P501267 6
48 Plug, Suction PPFMC 1105105 2
49 Valve Cover PPFMC A5003 3
50 Gasket, Valve Cover PPFMC 1280026 3
51 Clamp, Valve Cover PPFMC 1271716 3
52 Stud, Valve Cover PPFMC A5012 6
53 Hex Nut, Valve Cover PPFMC 1121511 6
54 Cylinder Cover PPFMC A5002 3
55 Gasket, Cylinder Cover PPFMC 1280025 3
56 Cylinder PPFMC 1272060 3
57 Clamp, Cylinder PPFMC 1271415 3
58 Stud, Cylinder Cover PPFMC A5011 6
59 Stud PPFMC A5009 2
60 Seal Holder PPFMC 1281655 3
61 Hex, Nut, Cylinder PPFMC 1121511 8
62 Ball PPFMC 1101418 6
FMC AL1122 Triplex Piston Pump Operation And Maintenance Manual Parts List
AL1122 Component Item Numbers
Item # Component Description Part # Qty
1 Power Frame PPFMC 5257698 1
2 Crankshaft PPFMC 1285094 1
3 Pinion Shaft PPFMC P511596 1
4 Connecting Rod Assembly PPFMC 5266814 3
5 Rod Bearing PPFMC P514965 3
6 Wrist Pin PPFMC A91014 3
7 Crosshead Assembly PPFMC 1252939 3
8 Seal Holder PPFMC 3268369 3
9 Oil Seal, Piston Rod PPFMC 1177489 9
10 Seal Retainer Nut PPFMC 1266323 3
11 Gasket, Seal Retainer PPFMC 3268418 3
12 Bearing Housing, Blind PPFMC 1248369 2
13 Shim, Bearing Housing PPFMC 1252595 6
14 Gasket, Bearing Housing PPFMC A91675 2
15 Back Cover PPFMC P508969 1
16 Gasket, Back Cover PPFMC P508966 1
17 Pinion Housing, Drive PPFMC 5257338 1
18 Pinion Housing, Blind PPFMC P508916 1
19 Oil Seal, Rotating PPFMC 5257339 1
20 Gasket, Pinion PPFMC A91674 2
21 Screw Set PPFMC 1182004 3
22 Name Plate* PPAM A000440000 1
22 Name Plate** PPAM A000438000
23 Bearing Cone, Crank PPFMC 1177473 2
24 Bearing Cup, Crank PPFMC 1177474 2
25 Bearing, Pinion PPFMC P511746 2
26 Key PPFMC 1104349 1
27 Cap screw, Pinion Bearing PPFMC 1100054 12
28 Cap Screw PPFMC 1100804 2
29 O-Ring PPFMC 3226710 2
30 Screw Self Tapping PPFMC 1187413 2
31 Plate, Inspection PPFMC 5260567 1
32 Pipe Plug, Power End PPFMC 1187048 2
33 Filler Cap or Vent PPFMC A5054 1
34 Screw PPFMC 1106980 20
35 Petcock PPFMC 1187039 1
36 Pipe Plug PPFMC 1109973 4
37 Fluid Chamber PPFMC 5257262 1
38A Ball, Valve* PPFMC 1101419 6
38A Seat, Valve* PPFMC 1284740 6
38B Disc Valve Assembly** PPFMC 5255419 6
39 Cylinder PPFMC 1267586 3
40 Piston Cup PPFMC A268N 3
41 Piston Holder PPFMC A91663 3
42 Hex Nut PPFMC 8309 3
43 Nut Retainer PPFMC A5016 3
44 Piston Retainer PPFMC 1216753 3
45 O-Ring, Rod Seal PPFMC 1101176 3
46 Gasket, Fluid Cylinder PPFMC 1279676 6
47 Plug, Suction PPFMC 1105121 3
48 Hex Nut PPFMC 1121513 8
49 Valve Cover PPFMC 1283530 3
50 O-Ring Valve Cover PPFMC 1181154 3
51 Clamp, Valve Cover PPFMC 1247716 3
52 Stud, Valve Cover PPFMC 1248372 6
53 Hex Nut, Valve Cover PPFMC 1121511 6
54 Cylinder Cover PPFMC 1283531 3
55 O-Ring Cylinder Cover PPFMC 1177476 3
56 Stud, Fluid Cylinder PPFMC 1248349 2
57 Clamp, Cylinder PPFMC A80392 3
58 Stud, Cylinder Cover PPFMC 5251859 6
AL1122 Spline Shaft Components
Item # Component Description Part # Qty
1 Power Frame PPFMC 3269402 1
3 Pinion Shaft Splined PPFMC 3269385 1
17 Motor Mounting Plate PPFMC 3269351 1
19 Oil Seal PPFMC 3269370 1
20 Gasket PPFMC 3269398 2
25 Bearing PPFMC 3269369 2
27 Screw PPFMC 3268086 4
FMC AW1122 Triplex Piston Pump Operation And Maintenance Manual Parts List
AL1122 Component Item Numbers
Item # Component Description Part # Qty
1 Power Frame PPFMC 5257698 1
2 Crankshaft PPFMC 1285094 1
3 Pinion Shaft PPFMC P511596 1
4 Connecting Rod Assembly PPFMC 5266814 3
5 Rod Bearing PPFMC P514965 3
6 Wrist Pin PPFMC A91014 3
7 Crosshead Assembly PPFMC 1252939 3
8 Seal Holder PPFMC 3268369 3
9 Oil Seal, Piston Rod PPFMC 1177489 9
10 Seal Retainer Nut PPFMC 1266323 3
11 Gasket, Seal Retainer PPFMC 3268418 3
12 Bearing Housing, Blind PPFMC 1248369 2
13 Shim, Bearing Housing PPFMC 1252595 6
14 Gasket, Bearing Housing PPFMC A91675 2
15 Back Cover PPFMC P508969 1
16 Gasket, Back Cover PPFMC P508966 1
17 Pinion Housing, Drive PPFMC 5257338 1
18 Pinion Housing, Blind PPFMC P508916 1
19 Oil Seal, Rotating PPFMC 5257339 1
20 Gasket, Pinion PPFMC A91674 2
21 Screw Set PPFMC 1182004 3
22 Name Plate* PPAM A000441000 1
22 Name Plate** PPFMC 5277981 1
23 Bearing Cone, Crank PPFMC 1177473 2
24 Bearing Cup, Crank PPFMC 1177474 2
25 Bearing, Pinion PPFMC P511746 2
26 Key PPFMC 1104349 1
27 Cap screw, Pinion Bearing PPFMC 1100054 12
28 Cap Screw, Inspection Plate PPFMC 1100804 2
29 O-Ring, Bearing PPFMC 3226710 2
30 Screw Self Tapping PPFMC 1187413 2
31 Plate, Inspection PPFMC 5260567 1
32 Pipe Plug, Power End PPFMC 1187048 2
33 Filler Cap or Vent PPFMC A5054 1
34 Screw PPFMC 1106980 20
35 Petcock PPFMC 1187039 1
37 Fluid Chamber PPFMC 1284777 1
38A Ball, Valve* PPFMC 1278104 6
38B Seat, Valve* PPFMC 1284740 6
38B Disc Valve Assembly** PPFMC 1101419 6
39 Cylinder PPFMC 1267586 3
40 Piston Cup PPFMC A268N 3
41 Piston Holder PPFMC A91663 3
42 Hex Nut PPFMC 8309 3
43 Nut Retainer PPFMC A5016 3
44 Piston Retainer PPFMC 1216753 3
45 O-Ring, Rod Seal PPFMC 1101176 3
46 Gasket, Fluid Cylinder PPFMC 1279676 6
47 Stud, Fluid Cylinder PPFMC A91672 3
48 Hex Nut PPFMC 1121513 8
49 Valve Cover PPFMC 1285113 3
50 O-Ring Valve Cover PPFMC 1279675 3
51 Clamp, Valve Cover PPFMC A80391 3
52 Stud, Valve Cover PPFMC A5076 6
53 Hex Nut, Valve Cover PPFMC 1121511 6
54 Cylinder Cover PPFMC 1285112 3
55 Gasket, Cylinder Cover PPFMC 1279674 3
56 Suction Plug PPFMC 1105121 2
57 Clamp, Cylinder PPFMC A80392 3
58 Stud, Cylinder Cover PPFMC 1279602 6
AL1122 Spline Shaft Components
Item # Component Description Part # Qty
1 Power Frame PPFMC 3269402 1
3 Pinion Shaft Splined PPFMC 3269385 1
17 Motor Mounting Plate PPFMC 3269351 1
19 Oil Seal PPFMC 3269370 1
20 Gasket PPFMC 3269398 2
25 Bearing PPFMC 3269369 2
27 Screw PPFMC 3268086 4
