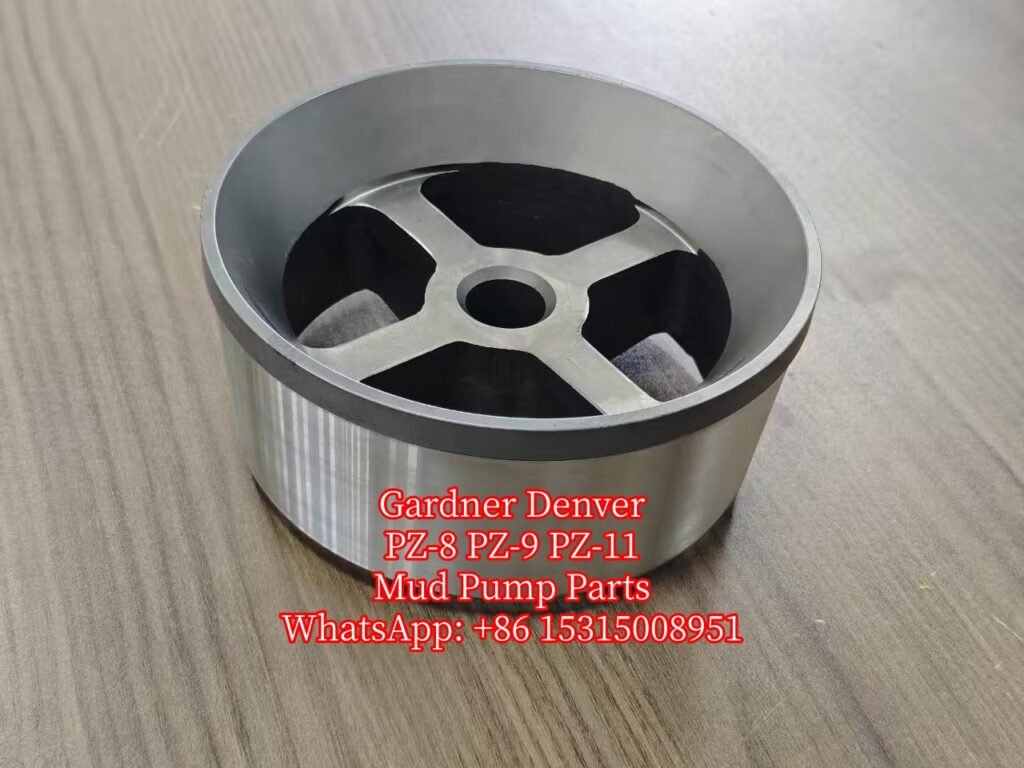

200PZL039, SEAT, VALVE, 4-RIB (MK 61101507)(MK MK-7DD-B1) F/PZ-8,9&11 200PZL039

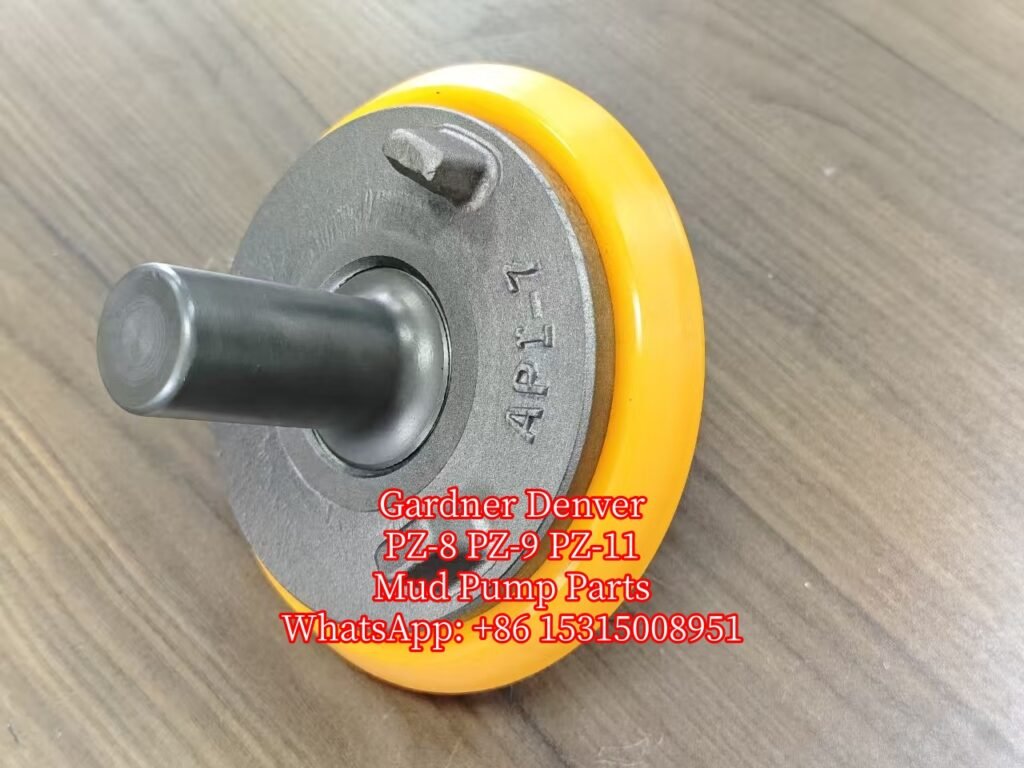

200PZL482A, VALVE ASSY, 4-RIBS(MK 60155041)(MK-U5C-EEF) F/PZ8,9,11 200PZL482

FRAME & MISCELLANEOUS PARTS
Qty. Description Part No.
1 FRAME ASSEMBLY, Includes Reference Numbers 2 thru 9 PZ172A
2 PLUG-SqHd PIPE 64A27
1 PLUG-SqHd PIPE 64AA9
2 STUD, Crosshead Inspection Plate 79A238
2 NUT, Crosshead Inspection Stud 50B5
1 PLUG-SqHd PIPE 64A5
3 PLUG-MAGNETIC, Oil Drain 66D13
2 STUD, Hood 79A75
2 NUT, Hood Stud 50B7
2 GASKET, Crosshead Inspection Plate PZ715
2 PLATE-INSPECTION, Crosshead 1PZ723
10 SCREW, Crosshead Inspection Plate 655EE060
1 PLATE-BEARING RETAINER 200PZH253
12 SCREW, Bearing Retainer Plate 655EG050
2 HOUSING-BEARING, Eccentric PZ1280
2 GASKET, Bearing Cover Plate 1PZ715N
1 PLATE-BEARING COVER (Rigid Side) PZ196
48 SCREW, Bearing Cover Plate 655EG070
2 GASKET, Inspection Plate 25C1788N
1 PLATE-INSPECTION 202FXT052
6 SCREW, Inspection Plate 655EF050
1 GAUGE, Oil Level Sight 40L17
1 GAUGE-Temperature 27H11
1 BUSHING-PIPE 64E2
6 SLIDE-CROSSHEAD PZ222
24 SCREW, Crosshead Slide to Frame 75K72
12 SEAL-FASTENER 60DD35
24 LOCKNUT 50V41
4 STUD, Spacer to Frame PZ872
4 KEY, Spacer to Frame 35C24
4 PLATE PZ1128
8 NUT, Spacer to Frame 50B37
1 PLATE-BEARING COVER (Floating Side) 1PZ196
1 HOOD PZ246
30 SCREW, Hood to Frame 655EF050
1 Gasket, Hood 2PZ715
1 BREATHER 5C24
1 PLATE-INSPECTION KXG842
1 GASKET, Inspection Plate 25C1818
8 SCREW, Inspection Plate 655EF040
8 GASKET, Inspection Plate Screw 25F13
3 PLATE-INSPECTION 206PZL052
6 GASKET, Inspection Plate 25C1839
24 SCREW, Inspection Plate 655ED040
1 PLATE-INSPECTION, Piston Rod 2006929
1 PLATE-INSPECTION, Piston Rod PZ842
1 PLATE-INSPECTION, Piston Rod 1PZ842
2 PLUG-CSK PIPE 64AA7
4 SHIM-Frame to Skid Mounting 77E27
4 SHIM-Frame to Skid Mounting 77E28

DRIVE PARTS
Qty. Description Part No.
1 JACKSHAFT. 1PZ371
1 KEY-JACKSHAFT 35B380
2 SPACER, Jackshaft Bearing PZ649
2 SLEAVE-WEAR 80L3
2 GASKET, Bearing Housing to Frame 25C2377
2 HOUSING-BEARING PZ368
16 SCREW, Bearing to Frame 75A52
2 BEARING-ROLLER, Jackshaft 12W60
2 GASKET, Retainer Plate to Bearing Housing 25C2692
2 PLATE, Bearing Retainer PZ370
16 SCREW, Retainer Plate to Bearing Housing 655EF060
2 SEAL-OIL 60G242
1 ECCENTRIC 2013705
1 GEAR-DRIVEN 1PZ180
12 SCREW, Gear to Eccentric 75B150
144″ WIRE 97A29
2 BEARING-ROLLER, Eccentric 12GF36
2 SHIM (.062″) 77C55
2 PLATE-RETAINER, Eccentric Bearing PZ1206
12 SCREW, Retainer to Eccentric 75B28
48″ WIRE 97A29
3 CONNECTING ROD Includes Ref Nos 28 & 29 PZ417
6 BOLT-CONNECTING ROD PZ890
6 NUT, Connecting Rod Bolt 50B34
6 LOCKNUT, Connecting Rod Bolt 50M3
3 BEARING, Connecting Rod to Eccentric 12W84
1 RING-RETAINING, Connecting Rod Bearing 2009808
14 PLATE-RETAINING, Bearing to Eccentric 1PZ1400
14 SCREW, Bearing to Eccentric 655EF05D
384″ WIRE 97A29
22 PLATE-RETAINING, Bearing to Connecting Rod PZ1400
2 PLATE-RETAINING, Bearing to Connecting Rod 203PZL253
48 SCREW, Bearing to Connecting Rod 75B41
288″ WIRE 97A29
3 BEARING-ROLLER, Crosshead Pin 12AM3
3 PIN-LOCK PZ838
3 SET SCREW 76F10
3 CROSSHEAD 200PZJ005
3 PIN-CROSSHEAD PZ189
3 RING-RETAINING, Bearing 16AUX203
3 PLATE-RETAINER, Crosshead Pin 201PZJ168
18 SCREW, Crosshead Pin Retain 75AG17
72″ WIRE 97A29
3 ROD-EXTENSION PZ183
18 SCREW, Rod to Crosshead PV701
72″ WIRE 97A29
6 PLATE-RETAINER, Oil Stop Head to Frame 200PZJ168
3 GASKET, Oil Stop Head 25C2693
3 HEAD-OIL STOP 1PZ226
24 GASKET 25F9
24 SCREW, Oil Stop Head to Frame 655EE080
6 SEAL, Oil Stop Head 2011872
6 RING-RETAINER, Oil Stop Head Seal 1PV1398
18 SCREW, Seal Retainer to Oil Stop Head 75A102
3 BAFFLE ROD PZ840
1 ADAPTOR, For Rotating Shaft 2PO1398
2 SCREW, Adaptor to Shaft 655EF050

FLUID CYLINDER & MANIFOLDS
Qty. Description Part No.
3 FLUID CYLINDER ASSEMBLY, Includes Reference Numbers 2 thru 9) 205PZL029D
24 STUD, Cylinder to Frame & Liner Clamp 79L188
48 NUT, Cylinder to Frame & Liner Stud 50B36
12 STUD, Cylinder to Frame 79L73
12 NUT, Cylinder to Frame Stud 50AQ30
48 STUD, Vlave Cover to Cylinder 79AL6
48 NUT, Valve Cover Ring to Cylinder Stud 50B34
12 STUD, Cylinder to Discharge Manifold 202PZL110
12 NUT, Cylinder to Discharge Manifold Stud 50B34
6 RING-RETAINER, Valve Cover Gasket 2011861
6 GASKET, Valve Cover 2011862
9 BUSHING, Suction & Discharge Valve Cover 2007674
6 COVER-VALVE 2011860
6 RING-VALVE COVER 2011699
6 LOCK-COVER, Valve 2011857
3 VALVE GUIDE ASSEMBLY, Includes Reference Numbers 17 thru 21 2011706
3 PLATE-RETAINER 2011701
3 GUIDE-VALVE, Suction 2011700
3 BUSHING, Suction Valve Guide 2007674
6 LOCKWASHER 95W2
6 SCREW 655EE06S
1 MANIFOLD-SUCTION 200PZJ069
3 GASKET, Suction Manifold to Cylinder 25G41
24 SCREW, Suction Manifold to Cylinder 655EG08N
1 GASKET, Suction Manifold Flange 25C1154N
1 FLANGE, Suction 64CU12
12 SCREW, Suction Flange 75A150
12 NUT 50B5
1 MANIFOLD-DISCHARGE 200PZJ071
3 GASKET, Discharge Manifold to Cylinder 25AL35
16 STUD, Discharge Manifold Flange 209PZL110
32 NUT, Discharge Manifold Flange Stud 50AW11
2 GASKET-RING JOINT, Discharge Manifold Flange 25V24
1 FLANGE, Discharge 64EB15
1 FLANGE-BLIND 64EB240

STEEL-FITTED CENTER GUIDED VALVE ( WITH POLYURETHANE INSERT)
Qty. Description Part No.
6 FLUID VALVE ASSEMBLY, Includes Ref. Nos. 2 thru 5 202PZL482A
6 SPRING 78H44
6 LOCKNUT 50V27
6 WASHER-VALVE 201PZL279
6 INSERT(Polyurethane) 201PZL106
6 VALVE-FLUID 202PZL482
6 SEAT-VALVE 202PZL039

STEEL-FITTED CENTER GUIDED VALVE ( WITH CARBOXYLATED NITRILE INSERT)
Qty. Description Part No.
6 FLUID VALVE ASSEMBLY, Includes Red. Nos. 2 thru 5 202PZL482B
6 SPRING 78H44
6 LOCKNUT 50V27
6 WASHER-VALVE 201PZL279
6 INSERT(Carboxylated) 202PZL106
6 VALVE-FLUID 202PZL482
6 SEAT-VALVE 202PZL039

PLUNGER COUPLING & PISTON ROD
Qty. Description Part No.
3 PLUNGER COUPLING ASSEMBLY Includes Ref. Numbers 1, 2 & 3 200PZJ4065
6 COUPLING-PLUNGER 200PZJ092
6 SCREW, Coupling Plunger 655EE22S
6 NUT, Flanged 50AW35
3 PISTON ROD, Includes Red. No.5 1PZ183
3 LOCKNUT 50V14
3 CLAMP-LINER 1PV14
3 GASKET, Liner to Cylinder 25AT37
1 WRENCH 99L11

PISTON & LINER
Qty. Description Part No.
3 LINER-FLUID 7″ 207PZJ456
3 LINER-FLUID 6-1/2″ 200PZJ456
3 LINER-FLUID 6-1/4″ 201PZJ456
3 LINER-FLUID 6″ 202PZJ456
3 LINER-FLUID 5-1/2″ 203PZJ456
3 LINER-FLUID 5″ 204PZJ456
3 LINER-FLUID 4-1/2″ 205PZJ456
3 LINER-FLUID 4″ 206PZJ456
3 O-RING 7″ 25AH1
3 O-RING 6-1/2″ 25AH1
3 O-RING 6-1/4″ 25AH1
3 O-RING 6″ 25AH1
3 O-RING 5-1/2″ 25AH1
3 O-RING 5″ 25AH1
3 O-RING 4-1/2″ 25AH1
3 O-RING 4″ 25AH1
3 PISTON ASSEMBLY 7″ 202TBL045A
3 PISTON ASSEMBLY 6-1/2″ 201TBL045A
3 PISTON ASSEMBLY 6-1/4″ 200TBL045A
3 PISTON ASSEMBLY 6″ 245TBB045A
3 PISTON ASSEMBLY 5-1/2″ 243TBB045A
3 PISTON ASSEMBLY 5″ 241TBB045A
3 PISTON ASSEMBLY 4-1/2″ 239TBB045A
3 PISTON ASSEMBLY 4″ 231TBK045A
3 INSERT GROUP 7″ TBL77586
INSERT GROUP 6-1/2″ TBL77585
INSERT GROUP 6-1/4″ TBL77584
3 INSERT GROUP 6″ TBB76028
3 INSERT GROUP 5-1/2″ TBB76026
3 INSERT GROUP 5″ TBB76024
3 INSERT GROUP 4-1/2″ TBB76022
3 INSERT GROUP 4″ TBK90428

PISTON LUBRICATING PUMP
Qty. Description Part No.
PUMP ASSEMBLY, Includes All Parts Shown CA122
1 CASING C1K2A1
2 PLUG-SqHd PIPE 64AA6
1 COCK, Drain 90C31
1 IMPELLER ASSEMBLY, SHAFT & PIN C1K1A1A
1 KEY 35B4
1 SEAL 60BT11
1 GASKET 25D212
1 FRAME C1H4A2
8 SCREW 75A130
1 BEARING-BALL (Inner) Includes Retaining Ring 12AK3
1 BEARING-BALL (Outer) Includes Retaining Ring 12AK3

OIL PUMP
Qty. Description Part No.
1 PUMP, Incl. All the Following Items 46C21
1 BODY
1 HEAD
1 CAP, END
1 GASKET 2010024
1 KEY, Drive
2 BEARING, Shaft 2010025
1 RING, Snap
1 BEARING, Thrust 2010026
1 RING, Snap
1 SCREW, Drain Plug
4 SCREW, Hex Head
1 SEAL 2010027
1 KEY, Rotor
1 RING, Eccentric
1 ROTOR SET 2010208
2 PIN, Eccentric
1 PIN, Locating
2 RETAINER, Key
8 SCREW, Hex Head
1 SHAFT

OIL PUMP & PIPING
Qty. Description Part No.
1 SCREEN-OIL 3WAJ511
1 ELBOW 64S12
1 NIPPLE 63H4
1 PUMP-OIL 46C21
1 ADAPTOR, Oil Pump to Frame PZ1398
6 SCREW, Adaptor to Oil Pump 655ED04D
4 SCREW, Adaptor to Frame 655EF05D
4 WASHER 95U7
1 BUSHING-HUB, Gear, Includes Ref. Number 11 22F12SD
1 GEAR-DRIVEN, Oil Pump 2013884
6 SCREW, Gear to Bushing(Included with Reference Number 9)
12″ WIRE, Adaptor to Oil Pump 97A29
24″ WIRE, Adaptor to Frame Screw 97A29
Oil Pump to Filter Group
1 BUSHING-PIPE 64E16
1 ADAPTOR-HOSE 29Q17
1 HYDRAULIC HOSE ASSEMBLY 29N1
1 VALVE-LIQUID RELIEF 90AR28
NIPPLE 63U12x16
1 TEE 64G7
1 NIPPLE 63U12X34
1 FILTER-OIL 26C18
1 NIPPLE 63U12X50
1 UNION-STRAIGHT 64Z8
Filter to Heat Exchanger Group
1 HYDRAULIC HOSE ASSEMBLY 29N1
1 ADAPTOR-HOSE 29Q17
1 BUSHING-PIPE 64E16
1 CONNECTOR, Frame 78AUX113
1 ADAPTOR-HOSE 29Q10
1 HYDRAULIC HOSE ASSEMBLY 2009270
1 ADAPTOR-HOSE 29Q10
1 BUSHING-PIPE 64E11
1 HEAT EXCHANGER 2013457
4 SCREW, Heat Exchanger to Skid 655EE060
4 LOCKWASHER 95B5
4 NUT 50B5
1 PLUG-ZINC, Heat Exchanger Protector 2008076
Heat Exchanger to Oil Trough Group
1 BUSHING-PIPE 64E11
1 ADAPTOR-HOSE 29Q10
1 HYDRAULIC HOSE ASSEMBLY 29Z2
1 ADAPTOR-HOSE 29Q10
1 CONNECTOR, Frame 78AUX113
1 BUSHING-PIPE 64E16
1 ADAPTOR-HOSE 29Q17
1 CLAMP, Hose to Frame PZ1301
1 SCREW, Hose to Frame Clamp 655EF040
1 HYDRAULIC HOSE ASSEMBLY 29Z5
1 ADAPTOR-HOSE 29Q16
1 ELBOW 64C5
1 TROUGH, Oil Feed 2PZ1254
2 SCREW, Oil Feed Trough to Frame 655EF040
Oil Trough to Main Bearings
2 ADAPTOR-HOSE 29Q54
2 HYDRAULIC HOSE ASSEMBLY 29Z99
2 ELBOW-PIPE 64D4
2 NIPPLE, Oil Feed Trough to Jackshaft Oil Trough 63AJ6X144
2 TROUGH, Jackshaft Bearing Oil PZ1254
6 SCREW, Jackshaft Oil Trough 655ED04D
1 CLAMP, Hose to Main Bearing Housing PZ1301
1 SCREW, Clamp 655EG04N
1 WASHER, Clamp Screw 95A8
96″ WIRE, Trough Screw 97A29
Thermostat Valve to Heat Exchanger Group
1 VALVE-THERMOSTATIC 90K165
1 BUSHING-PIPE 64E14
1 NIPPLE 63F21
1 ELBOW 64C4
1 NIPPLE 63F21
1 UNION 64Z3
1 NIPPLE 63AJ8X40
2 CLAMP-HOSE 29B31
22″ HOSE-OIL R14G
1 NIPPLE 63AJX840
1 ELBOW 64C4
1 NIPPLE 63F21
1 BUSHING 64E29

PISTON LUBRICATING PIPING
Qty. Description Part No.
Lube Oil Tank to Pump Group
1 SCREEN-OIL 2WAJ511
1 NIPPLE 63H25
1 UNION-HAMMER, Wing 64EB1
1 NIPPLE 63H25
1 VALVE 90A36
1 NIPPLE 63H25
1 TEE 64G8G
1 NIPPLE 63H25
1 VALVE 90A36
1 ADAPTOR-HOSE 29Q9
1 HYDRAULIC HOSE ASSEMBLY 2009270
1 NIPPLE 63H2
1 ELBOW 64C6
1 PUMP PISTON LUBRICATING CA122
1 KEY 35B4
4 SCREW, Pump to Skid 655ED040
4 LOCKWASHER, Pump to Skid 95B3
4 WASHER, PUMP to Skid 95A3
1 SHEAVE 73K1A30
1 BUSHING-HUB 22E16B
1 BELT 13C27
1 AUXILIARY SHEAVE ASSEMBLY 2006102
2 SET SCREW, Sheave 76F30
Pump to Liner Group
1 ADAPTOR-HOSE 29Q10
1 HYDRAULIC HOSE ASSEMBLY 2009247
1 ADAPTOR-HOSE 29Q27
1 REDUCER-PIPE 64N3
1 VALVE 90A25
1 ELBOW-PIPE 64C5
1 NIPPLE 63G12
1 TEE 64P39
2 CLAMP 98H5
2 WASHER 95B3
2 SCREW 75A68
1 NIPPLE 63N12X144
1 TEE 64P39
1 NIPPLE 63N12X144
1 TEE 64P39
1 PLUG 64A5
3 HYDRAULIC HOSE ASSEMBLY 29R32
3 ADAPTOR-HOSE 29Q83
3 COUPLING-PIPE 64BK3
3 BAFFLE 200PZJ840
6 NUT-ACORN 50Q30
Frame to Lube Oil Tank Group
1 NIPPLE 63L9
1 ELBOW 64C9
2 NIPPLE 63AJ32X134
2 CLAMP 29B32
1 HOSE 29Z186
1 UNION-HAMMER, Wing 2009242
1 NIPPLE 63L9
1 TANK-LUBE OIL 2012639
2 PLUG 64A7
4 SCREW, Lube Tank to Skid 655EE040
4 WASHER 95A5
1 PLUG 64A6
1 COVER-LUBE OIL TANK 200PZH249
2 NUT-WING 50H1
1 PLUG 64A9
1 NIPPLE 63L1
1 ELBOW 64V9

OIL FILTER
Qty. Description Part No.
1 OIL FILTER ASSEMBLY, Includes Reference Numbers 1 thru 4 26C18
1 ELEMENT ASSEMBLY, Includes Reference Number 3 5E30
1 COVER 2109770
1 GASKET 2109771
4 SCREW 75A54
1 GASKET, Filter to Frame 25C1788N
6 SCREW-SoHd CAP, Filter to Frame 75P95

VALVE SEAT PULLER-CENTER GUIDED TYPE (OPTIONAL)
Qty. Description Part No.
1 HEAD 100E13
1 VALVE SEAT PULLER ASSEMBLY 100E12
1 HYDRAULIC JACK 2116728
1 CENTER STEM 2117314
1 CENTER STEM NUT 2117315
1 PULLER H BAR BASE 2116727
1 CENTER BUSHING #5 2117316
1 CENTER BUSHING #6 2117517
1 HYDRAULIC HOSE 2117318
1 HYDRAULIC PUMP 2117319
1 GAUGE ADAPTOR 2117320
1 GAUGE COUPLER 2117322
1 GAUGE COUPLER 2117321
1 GAUGE 170 TON 2117323
1 CARRYING CASE 2117055

OPTIONAL EQUIPMENT
Qty. Description Part No.
1 BAR, Valve Cover Tightening 62L62
1 PIN, Valve Cover Tightening Bar 2009526
1 HYDRIL DAMPENER (K10-5000) 200PZL622
1 HOSE, For Charging HYDRIL Dampener 200PZL127
1 TOOL, Piston Rod Nut Removal 200PZL074
1 PRESSURE GAUGE GROUP, Includes Next 3 Items PZL75283
1 GAUGE (0 – 6000 PSI) 27P70
1 NIPPLE 63V32X60
1 ELBOW 64EB241
1 RELIEF VALVE GROUP, Includes Next 4 Items PZL75284
1 RELIEF VALVE Shear Type (1000 PSI to 5000 PSI) 201559
1 NIPPLE 63V48X60
1 ELBOW 64EB242
1 ELBOW 64D14
1 BLOCK SUPPORT & DISCHARGE CROSS GROUP PZJ75285
1 BLOCK GROUP 301PZG4067
2 GASKET 25V24
2 GASKET 25V17
1 FLANGE 191161
1 FLANGE 64EB240
1 FLANGE 64EB50
1 BLOCK GROUP 300PZG4067
1 BLOCK 205PZL231
24 STUD 206PZL110
24 NUT 50AW11
16 STUD 208PZL110
16 NUT 50AW13
2 SUPPORT GROUP PZJ74823
1 BASE 195100
2 BASE 5015475
2 SUPPORT 201845T2
2 SCREW 201853
2 NUT 50W12
2 PIN 62R98
1 NIPPLE 201846
1 SCREW 655EJ200

E 75647 FOR LIST OF PARTS SEE PAGE 3.
“MODEL PZJD
COMM NO.” “MODELS
PZ9A PZ9B PZJC
COMM NO.” DESCRIPTION FRAME
200PZJ001A PZ172A ASM FRAME, Incl. Ref. # 2 thru 9
64A27 None PLUG – SqHd PIPE
64AA9 None PLUG – SqHd PIPE
79A238 (12) 79A238 (2) STUD, Crosshead Inspection Plate
50B5 (12) 50B5 (2) NUT, Crosshead Inspection Plate Stud
64A5 64A5 PLUG – SqHd PIPE
66D13 66D13 PLUG – MAGNETIC, Oil Drain
79A75 79A75 STUD, Hood
50B7 50B7 STUD, Hood Stud
PZ715 PZ715 GASKET, Crosshead Inspection Plate
1PZ723 1PZ723 PLATE – INSPECTION, Crosshead
None 75A20 SCREW, Crosshead Inspection Plate
200PZJ253 200PZJ253 PLATE – BEARING RETAINER
75A196 75A196 SCREW, Bearing Retainer Plate
PZ1280 PZ1280 HOUSING – BEARING, Eccentric
1PZ715 1PZ715 GASKET, Bearing Cover Plate
PZ196 PZ196 PLATE – BEARING COVER ( Right Side )
75A57 75A57 SCREW, Bearing Cover Plate
25C1788 25C1788 GASKET, Inspection Plate
4PO237 4PO237 PLATE – INSPECTION
75A18 75A18 SCREW, Inspection Plate
40L17 40L17 GAUGE, Oil Level Sight
27H11 27H11 GAUGE – TEMPERATURE
64E2 64E2 BUSHING – PIPE
200PZL122 200PZL122 SHIELD, Oil Gauges
PZ222 PZ222 SHIELD – CROSSHEAD
75K72 75K72 SCREW, Crosshead Slide to Frame
60DD36 60DD36 SEAL – FASTENER
50V41 50V41 LOCKNUT
PZ872 PZ872 STUD, Spacer to Frame
35C24 35C24 KEY, Spacer to Frame
PZ1128 PZ1128 PLATE
50B37 50B37 NUT, Spacer to Frame
1PZ196 1PZ196 PLATE – BEARING COVER ( Floating Side )
PZ246 PZ246 HOOD
75A18 75A18 SCREW, Hood to Frame
2PZ715 2PZ715 GASKET, Hood
5C24 5C24 BREATHER
KXG842 KXG842 PLATE – INSPECTION
25C1818 25C1818 GASKET, Inspection Plate
75A195 75A195 SCREW, Inspection Plate
25F13 25F13 GASKET, Inspection Plate Screw
206PZL052 206PZL052 PLATE – INSPECTION
25C1839 25C1839 GASKET, Inspection Plate
75A1 75A1 SCREW, Inspection Plate
None 2006929 PLATE – INSPECTION, Piston Rod
None PZ842 PLATE – INSPECTION, Piston Rod
None 1PZ842 PLATE – INSPECTION, Piston Rod
E75439 FOR LIST OF PARTS SEE PAGE 7.
“MODEL PZJC
COMM NO.” “MODELS
PZJD COMM NO.” DESCRIPTION FLUID CYLINDER & MANIFOLDS
205PZL029D * ASM FLUID CYLINDER, Incl. Ref. No. 2 thru 9
79L188 79L188 STUD ( 1-1/4 ), Cylinder to Frame & Liner Clamp
50B36 50B36 NUT ( 1-1/4 ), Cylinder to Frame & Liner Clamp Stud
79L73 79L73 STUD ( 7/8 ), Cylinder to Frame
50AQ30 50AQ30 NUT ( 7/8 ), Cylinder to Frame Stud
79AL6 79AL6 STUD, Valve Cover Ring to Cylinder
50B34 50B34 NUT, Valve Cover Ring to Clinder Stud
202PZL110 202PZL110 STUD, Cylinder to Discharge Manifold
50B34 50B34 NUT, Cylinder to Discharge Manifold Stud
50B36 50B36 NUT, Liner Clamp
2011861 2011861 RING – RETAINING, Valve Cover Gasket
2011862 2011862 GASKET, Valve Cover
2007674 2007674 BUSHING, Discharge Valve Cover
2011860 2011860 COVER – VALVE
2011699 2011699 RING – VALVE COVER
2011857 2011857 LOCK – COVER, Valave
2011706 2011706 ASM VALVE GUIDE, Incl. Ref. No. 17 thru 21
2011701 2011701 PLATE – RETAINER
2011700 2011700 GUIDE – VALVE, Suction
2007674 2007674 BUSHING
95W2 95W2 WASHER – LOCK
75AA178 75AA178 SCREW
200PZJ069 200PZJ069 MANIFOLD – SUCTION
25G41 25G41 GASKET, Suction Manifold to Cylinder
75A74N 75A74N SCREW, Suction Manifold to Cylinder
25C1154 25C1154 GASKET, Suction Manifold Flange
64CU12 64CU12 FLANGE, Suction
75A150 75A150 SCREW, Suction Flange
50B9 50B9 NUT
200PZJ071 200PZJ071 MANIFOLD – DISCHARGE
25AL35 25AL35 GASKET, Discharge Manifold to Cylinder
209PZL110 209PZL110 STUD, Discharge Manifold Flange
50AW11 50AW11 NUT, Discharge Manifold Flange Stud
25V24 25V24 GASKET, Discharge Manifold Flange
64EB15 64EB15 FLANGE – DISCHARGE

The Fluid Cylinder Assembly originally furnished for Model PZJC is no longer available, For repair order 20 5PZL029D Fluid Cylinder Assembly
D75681
“MODEL PZJC*
COMM NO.” “MODELS PZJD
COMM NO.” DESCRIPTION PISTON & LINER WASHING PIPING
( Lube Oil Tank to Pump Group )
2WAJ511 2WAJ511 SCREEN – OIL
63H25 63H25 NIPPLE – PIPE
64EB1 64EB1 UNION – HAMMER, Wing
63H2 63H2 NIPPLE – PIPE
64C6 64C6 ELBOW – PIPE
63H25 63H25 NIPPLE – PIPE
90A36 90A36 VALVE
63H25 63H25 NIPPLE – PIPE
64G8 64G8 TEE – PIPE
63H25 63H25 NIPPLE – PIPE
90A36 90A36 VALVE
29Q9 29Q9 ADAPTOR – HOSE
2009270 2009270 ASM HYDRAULIC HOSE
** ** PUMP – CIRCULATING, Incl. Ref. No.13
35B4 35B4 KEY
75A1 75A1 SCREW, Pump to Skid
95B3 95B3 WASHER – LOCK, Pump to Skid
95A3 95A3 WASHER, Pump to Skid
73K1A30 73K1A30 SHEAVE – DRIVEN
22E16B 22E16B BUSHING – HUB, Driven Sheave
13C77 13C77 BELT
2006102 2006102 ASM AUXILIARY SHEAVE
( Pump to Liner Group )
29Q10 29Q10 ADAPTOR – HOSE
2009247 2009247 ASM HYDRAULIC HOSE
29Q27 29Q27 ADAPTOR – HOSE
64N3 64N3 REDUCER – PIPE
90A25 90A25 VALVE
64C5 64C5 ELBOW – PIPE
63G12 63G12 NIPPLE – PIPE
64P39 64P39 TEE – PIPE
95H5 95H5 CLAMP – PIPE
95A3 95A3 WASHER
75A68 75A68 SCREW
63N12X144 63N12X144 NIPPLE – PIPE
64P39 64P39 TEE – PIPE
63N12X144 63N12X144 NIPPLE – PIPE
64P39 64P39 TEE – PIPE
64A5 64A5 PLUG – SqHd PIPE
29R32 29R32 ASM HYDRAULIC HOSE
29Q83 29Q83 ADAPTOR – HOSE
64BK3 64BK3 COUPLING – PIPE
1PZ840 1PZ840 BAFFLE
50Q30 50Q30 NUT – ACORN
( Frame to Lube Oil Tank Group )
63L9 63L9 NIPPLE – PIPE
64C9 64C9 ELBOW – PIPE
63AJ32X40 63AJ32X40 NIPPLE – PIPE
29B32 29B32 CLAMP – HOSE
29A314 29Z135 HOSE
2009242 2009242 UNION – HAMMER, Wing
63L1 63L1 NIPPLE – PIPE
64V9 64V9 ELBOW – PIPE
63L9 63L9 NIPPLE – PIPE
2012639 2012639 TANK – LUB OIL
64A7 64A7 PLUG – SqHd PIPE
75A4 75A4 SCREW, Lube Tank to Skid
95A5 95A5 WASHER
64A6 64A6 PLUG – SqHd PIPE
200PZH249 200PZH249 COVER – LUBE OIL TANK
50H1 50H1 NUT – WING
64A9 64A9 PLUG – PIPE
For Model PZJC Pumps with Serial Numbers 721733 thru 721736, 734803, 734804, 736415, 741950, 743791, 743792, 743802, 743803, 750914 thru 740917, and all higher serial numbers.

** For Circulating Pump and component parts see page 14.
B75885
“MODELS
PZJC PZJD
Part No. * ( Three – Rib Valves )” “MODELS
PZJC PZJD
Part No. * ( Four – Rib Valves )” DESCRIPTION VALVE SEAT PULLER OPTIONAL EQUIPMENT
100E11 100E10 HEAD ( Not included with 100E9 Puller )
100E9 100E9 ASM VALVE SEAT PULLER, Incl. Ref. No. 2 thru 11
NUT
GAUGE
HOSE COUPLING ( Male )
2109166 2109166 HOSE COUPLING ( Female )
BUSHING
HYDRAULIC PUMP
2109167 2109167 STEM
2109168 2109168 HYDRAULIC HOSE
HYDRAULIC JACK
PULLER CROSSBAR

Part Numbers listed only for those parts normally furnished for repairs.

FRAME & MISCELLANEOUS PARTS
Qty. Description Part No.
1 FRAME ASSEMBLY, Includes Reference Numbers 2 thru 9 PZH74431
2 PLUG-SqHd PIPE 64A27
1 PLUG-SqHd PIPE 64AA9
2 STUD, Crosshead Inspection Plate 79A238
2 NUT, Crosshead Inspection Stud 50B5
1 PLUG-SqHd PIPE 64A5
3 PLUG-MAGNETIC, Oil Drain 66D13
2 STUD, Hood 79A75
2 NUT, Hood Stud 50B7
2 GASKET, Crosshead Inspection Plate PZ715
2 PLATE-INSPECTION, Crosshead 2012703
10 SCREW, Crosshead Inspection Plate 655EE060
1 PLATE-BEARING RETAINER 200PZH253
12 SCREW, Bearing Retainer Plate 655EG050
2 HOUSING-BEARING, Eccentric 2012512
2 GASKET, Bearing Cover Plate 201252N
1 PLATE-BEARING COVER (Rigid Side) 2012514
48 SCREW, Bearing Cover Plate 655EG070
2 GASKET, Inspection Plate 25C1788N
1 PLATE-INSPECTION 202FXT052
6 SCREW, Inspection Plate 655EF050
1 GAUGE, Oil Level Sight 40L17
1 GAUGE-Temperature 27H11
1 BUSHING-PIPE 64E2
6 SLIDE-CROSSHEAD 2012509
24 SCREW, Crosshead Slide to Frame 75LM6
12 SEAL-FASTENER 60DD35
24 LOCKNUT 50V44
4 STUD, Spacer to Frame 2012526
4 KEY, Spacer to Frame 35C19
4 PLATE 2012524
8 NUT, Spacer to Frame 50B34
1 PLATE-BEARING COVER (Floating Side) 2012515
1 HOOD 2012505
30 SCREW, Hood to Frame 655EF050
1 BREATHER 5C24
1 PLATE-INSPECTION KXG842
1 GASKET, Inspection Plate 25C1818
8 SCREW, Inspection Plate 655EF040
8 GASKET, Inspection Plate Screw 25F13
3 PLATE-INSPECTION 206PZL052
6 GASKET, Inspection Plate 25C1839
24 SCREW, Inspection Plate 655ED040
1 PLATE-INSPECTION, Piston Rod 2012598
1 PLATE-INSPECTION, Piston Rod 2012596
1 PLATE-INSPECTION, Piston Rod 2012587
2 PLUG-CSK PIPE 64B6

DRIVE PARTS
Qty. Description Part No.
1 JACKSHAFT. 2012507
1 KEY-JACKSHAFT 35B380
2 SPACER, Jackshaft Bearing 2012522
2 SLEAVE-WEAR 2009632
2 GASKET, Bearing Housing to Frame 25C1771
2 HOUSING-BEARING KXF368
16 SCREW, Bearing Housing 655EG080
2 BEARING-ROLLER, Jackshaft 12W58
2 GASKET, Retainer Plate to Bearing Housing 25C2562
2 PLATE, Bearing Retainer KXF370
2 PLUNG-SqHd PIPE 64AA5
16 SCREW, Retainer Plate to Bearing Housing 75P95
2 SEAL-OIL 2009633
1 ECCENTRIC 2012503
1 GEAR-DRIVEN 2012508
12 SCREW, Gear to Eccentric 75B150
144″ WIRE 97A29
2 BEARING-ROLLER, Eccentric 12GF38
6 SHIM (.002″) 2012752
6 SHIM (.005″) 2012751
6 SHIM (.007″) 2012750
8 SHIM (.020″) 2012749
2 PLATE-RETAINER, Eccentric Bearing 2012516
12 SCREW, Retainer to Eccentric 75B28
48″ WIRE 97A29
2 PLUNG-SqHd PIPE 64AC4
3 CONNECTING ROD Includes Ref Nos 28 & 29 2012506
6 BOLT-CONNECTING ROD 2012518
6 NUT, Connecting Rod Bolt 50B34
6 LOCKNUT, Connecting Rod Bolt 50M3
3 BEARING, Connecting Rod to Eccentric 12W85
1 RING-RETAINING, Connecting Rod Bearing 2009794
14 PLATE-RETAINING, Bearing to Eccentric 1PZ1400
14 SCREW, Bearing to Eccentric 655EF05D
384″ WIRE 97A29
22 PLATE-RETAINING, Bearing to Connecting Rod PZ1400
2 PLATE-RETAINING, Bearing to Connecting Rod 201PZH253
48 SCREW, Bearing to Connecting Rod 75B41
288″ WIRE 97A29
3 BEARING-ROLLER, Crosshead Pin 12BA44
3 PIN-LOCK PZ838
3 SET SCREW 76F10
3 CROSSHEAD 200PZH005
3 PIN-CROSSHEAD 200PZH189
3 PLATE-RETAINER, Crosshead Pin 202PZH168
18 SCREW, Retainer Plate to Crosshead 75AG17
72″ WIRE 97A29
3 ROD-EXTENSION 1PO183
18 SCREW, Rod to Crosshead PO701
72″ WIRE 97A29
6 PLATE-RETAINER, Oil Stop Head to Frame 2012010
3 GASKET, Oil Stop Head 2009634N
3 HEAD-OIL STOP 2012513
24 GASKET 25F9
24 SCREW, Oil Stop Head to Frame 655EE080
6 SEAL 2011872
6 RING-RETAINER, Oil Stop Head Seal 1PV1398
18 SCREW, Seal Retainer to Oil Stop Head 75A102
3 BAFFLE ROD PZ840
1 ADAPTOR, Rotating Shaft 2PO1398
2 SCREW, Adaptor to Shaft 655EF050

FLUID CYLINDER & MANIFOLDS
Qty. Description Part No.
3 FLUID CYLINDER ASSEMBLY, Includes Reference Numbers 2 thru 9) 205PZL029D
24 STUD, Cylinder to Frame & Liner Clamp 79L188
48 NUT, Cylinder to Frame & Liner Stud 50B36
12 STUD, Cylinder to Frame 79L73
12 NUT, Cylinder to Frame Stud 50AQ30
48 STUD, Vlave Cover to Cylinder 79AL6
48 NUT, Valve Cover Ring to Cylinder Stud 50B34
12 STUD, Cylinder to Discharge Manifold 202PZL110
12 NUT, Cylinder to Discharge Manifold Stud 50B34
6 RING-RETAINER, Valve Cover Gasket 2011861
6 GASKET, Valve Cover 2011862
9 BUSHING, Suction & Discharge Valve Cover 2007674
6 COVER-VALVE 2011860
6 RING-VALVE COVER 2011699
6 LOCK-COVER, Valve 201185
3 VALVE GUIDE ASSEMBLY, Includes Reference Numbers 17 thru 21 2011706
3 PLATE-RETAINER 2011701
3 GUIDE-VALVE, Suction 2011700
3 BUSHING, Suction Valve Guide 2007674
6 LOCKWASHER 95W2
6 SCREW 655EE06S
1 MANIFOLD-SUCTION 200PZH069
3 GASKET, Suction Manifold to Cylinder 25G41
24 SCREW, Suction Manifold to Cylinder 655EG08N
1 GASKET, Suction Manifold Flange 25C1154N
1 FLANGE, Suction 64CU12
12 SCREW, Suction Flange 75A150
12 NUT 50B5
1 MANIFOLD-DISCHARGE 200PZH071
3 GASKET, Discharge Manifold to Cylinder 25AL35
16 STUD, Discharge Manifold Flange 209PZL110
32 NUT, Discharge Manifold Flange Stud 50AW11
2 GASKET-RING JOINT, Discharge Manifold Flange 25V24
1 FLANGE, Discharge 64EB15
1 FLANGE-BLIND 64EB240

STEEL-FITTED CENTER GUIDED VALVE ( WITH CARBOXYLATED NITRILE INSERT)
Qty. Description Part No.
6 FLUID VALVE ASSEMBLY, Includes Red. Nos. 2 thru 5 202PZL482B
6 SPRING 78H44
6 LOCKNUT 50V27
6 WASHER-VALVE 201PZL279
6 INSERT(carboxylated) 202PZL106
6 VALVE-FLUID 202PZL482
6 SEAT-VALVE 202PZL039

PISTON & LUBRICATING PUMP
Qty. Description Part No.
PUMP ASSEMBLY, Includes All Parts Shown CA122
1 CASING C1K2A1
2 PLUG-SqHd PIPE 64AA6
1 COCK, Drain 90C31
1 IMPELLER ASSEMBLY, SHAFT & PIN C1K1A1A
1 KEY 35B4
1 SEAL 60BT11
1 GASKET 25D212
1 FRAME C1H4A2
8 SCREW 75A130
1 BEARING-BALL (Inner) Includes Retaining Ring 12AK3
1 BEARING-BALL (Outer) Includes Retaining Ring 12AK3

OIL PUMP & PIPING
Qty. Description Part No.
1 SCREEN-OIL 3WAJ511
1 ELBOW 64S12
1 NIPPLE 63H4
1 PUMP-OIL 46C21
1 ADAPTOR, Oil Pump to Frame PZ1398
6 SCREW, Adaptor to Oil Pump 655ED04D
4 SCREW, Adaptor to Frame 655EF05D
4 WASHER 95U7
1 BUSHING-HUB, Gear, Includes Ref. Number 12 22F12SD
1 GEAR-DRIVEN, Oil Pump 2013884
6 SCREW, Gear to Bushing(Included with Reference Number 9)
1 ELBOW 64C6
1 NIPPLE 63H25
12″ WIRE, Adaptor to Oil Pump 97A29
24″ WIRE, Adaptor to Frame Screw 97A29
Oil Pump to Filter Group
1 BUSHING-PIPE 64E16
1 ADAPTOR-HOSE 29Q17
1 HYDRAULIC HOSE ASSEMBLY 29R13
1 VALVE-LIQUID RELIEF 90AR28
1 TEE 64G7
1 NIPPLE 63U12X13
1 NIPPLE 63U12X34
1 UNION 64Z8
1 NIPPLE 63U12X50
2 GASKET, Filter to Frame 25C1788N
1 FILTER-OIL 26C18
Filter to Heat Exchanger Group
1 HYDRAULIC HOSE ASSEMBLY 29N1
1 ADAPTOR-HOSE 29Q17
1 BUSHING-PIPE 64E16
1 CONNECTOR-PIPE 78AUX113
1 ADAPTOR-HOSE 29Q10
1 HYDRAULIC HOSE ASSEMBLY 2009270
1 ADAPTOR-HOSE 29Q10
1 BUSHING-PIPE 64E11
1 HEAT EXCHANGER 2013457
4 SCREW, Heat Exchanger to Skid 655EE060
4 LOCKWASHER 95B5
4 NUT 50B5
1 PLUG-ZINC, Protective 2008076
Heat Exchanger to Oil Trough Group
1 BUSHING-PIPE 64E11
ADAPTOR-HOSE 29Q10
HYDRAULIC HOSE ASSEMBLY 29Z2
ADAPTOR-HOSE 29Q10
CONNECTOR-PIPE 78AUX113
BUSHING-PIPE 64E16
ADAPTOR-HOSE 29Q17
CLAMP, Hose to Frame PZ1301
SCREW, Hose to Frame Clamp 655EF040
HYDRAULIC HOSE ASSEMBLY 2009486
ADAPTOR-HOSE 29Q16
ELBOW 64C5
TROUGH, Oil Feed 2012690
SCREW, Oil Feed Trough to Frame 655EF040
SCREW, Hose Clamp to Bearing Housing 655EG04N
WASHER, Hose Clamp to Bearing Housing 95A8
Oil Trough to Main Bearings
2 ADAPTOR-HOSE 29Q54
2 HYDRAULIC HOSE ASSEMBLY 29Z60
2 ELBOW-PIPE STREET 64D4
2 NIPPLE, Oil Feed Trough to Jackshaft Oil Trough 63AJ6X84
2 TROUGH 2012519
4 HYDRAULIC HOSE ASSEMBLY 655ED03D
2 ELBOW 86A86
16″ TUBE, Jackshaft Oil Trough to Crosshead Slide 85E6A
96″ WIRE 97A29
Thermostat Valve to Heat Exchanger Group
1 VALVE-THERMOSTATIC 90K165
1 BUSHING-PIPE 64E14
1 NIPPLE 63F21
1 ELBOW 64C4
1 NIPPLE 63F21
1 UNION 64Z3
1 NIPPLE 63AJ8X40
2 CLAMP-HOSE 29B31
22″ HOSE-OIL R14G
1 NIPPLE 63AJX840
1 ELBOW 64C4
1 NIPPLE 63F21
1 BUSHING 64E29

PISTON LUBRICATING PIPING
Qty. Description Part No.
Lube Oil Tank to Pump Group
1 SCREEN-OIL 2WAJ511
1 NIPPLE 62H25
1 UNION-HAMMER, Wing 64EB1
1 NIPPLE 63H25
1 VALVE 90A36
1 NIPPLE 63H25
1 TEE-PIPE 64G8G
1 NIPPLE 63HG25
1 VALVE 90A36
1 ADAPTOR-HOSE 29Q9
1 HYDRAULIC HOSE ASSEMBLY 2009247
1 ELBOW 64C6
1 PUMP PISTON LUBRICATING CA122
1 KEY 35B4
1 SCREW, Pump to Skid 655ED040
1 LOCKWASHER, Pump to Skid 95B3
1 WASHER, PUMP to Skid 95A3
1 SHEAVE 73K1A30
1 BUSHING-HUB 22E16B
1 BELT 13C28
1 AUXILIARY SHEAVE 2012669
2 SET SCREW, Sheave 76F30
Pump to Liner Group
1 ADAPTOR-HOSE 29Q10
1 HYDRAULIC HOSE ASSEMBLY 2009247
1 ADAPTOR-HOSE 29Q27
1 REDUCER-PIPE 64N3
1 VALVE 90A25
1 ELBOW 64C5
1 NIPPLE 63G9
1 TEE 64P39
2 CLAMP-PIPE 98H5
2 WASHER 95A3
2 SCREW 75A68
1 NIPPLE 63N12X150
1 TEE 64P39
1 NIPPLE 63N12X150
1 TEE 64P39
1 PLUG 64A5
3 HYDRAULIC HOSE ASSEMBLY 29R30
3 ADAPTOR-HOSE 29Q83
3 COUPLING-PIPE 64BK3
3 BAFFLE 1PZ80
6 NUT-ACORN 50Q30
Frame to Lube Oil Tank Group
1 NIPPLE 63L31
1 ELBOW 64C9
1 TANK-LUBE OIL 2012639
2 PLUG 64A7
4 SCREW, Lube Tank to Skid 655EE040
4 WASHER 95A5
1 PLUG 64A6
1 COVER-LUBE OIL TANK 2012655
2 NUT-WING 50H1
2 PLUG 64A9

OPTIONAL EQUIPMENT
Qty. Description Part No.
1 BAR, Valve Cover Tightening 62L62
1 PIN, Valve Cover Tightening Bar 2009526
1 HYDRIL DAMPENER (K10-5000) 200PZL622
1 HOSE, For Charging HYDRIL Dampener 200PZL127
1 TOOL, Piston Rod Nut Removal 200PZL074
1 PRESSURE GAUGE GROUP, Includes Next 3 Items PZL75283
1 GAUGE (0 – 6000 PSI) 27P70
1 NIPPLE 63V32X60
1 ELBOW 64EB241
1 RELIEF VALVE GROUP, Includes Next 4 Items PZL75284
1 RELIEF VALVE Shear Type (1000 PSI to 5000 PSI) 201559
1 NIPPLE 63V48X60
1 ELBOW 64EB242
1 ELBOW 64D14
1 BLOCK SUPPORT & DISCHARGE CROSS GROUP PZJ75285
1 BLOCK GROUP 301PZG4067
2 GASKET 25V24
2 GASKET 25V17
1 FLANGE 191161
1 FLANGE 64EB240
1 FLANGE 64EB50
1 BLOCK GROUP 300PZG4067
1 BLOCK 205PZL231
24 STUD 206PZL110
24 NUT 50AW11
16 STUD 208PZL110
16 NUT 50AW13
2 SUPPORT GROUP 201845T2
1 BASE 195100
2 BASE 5015475
2 SUPPORT 201845T2
2 SCREW 201853
2 NUT 50W12
2 PIN 62R98
1 NIPPLE 201846
1 SCREW 655EJ200

FRAME & MISCELLANEOUS PARTS
Qty. Description Part No.
1 FRAME ASSEMBLY, Includes Reference Numbers 3 thru 9 200PZL001A
1 PLUG 64AA9
4 STUD, Crosshead Inspection Plate 79A238
4 NUT, Crosshead Inspection Stud 50B5
1 PLUG 64A5
3 PLUG-MAGNETIC, Oil Drain 66D13
2 STUD, Hood 79A75
2 NUT, Hood Stud 50B7
2 GASKET, Crosshead Inspection Plate 200PZL715
2 PLATE-INSPECTION, Crosshead 200PZK052
10 SCREW, Crosshead Inspection Plate 655EE060
1 PLATE-BEARING RETAINER 202PZL253
12 SCREW, Bearing Retainer Plate 75A237
2 HOUSING-BEARING, Eccentric 201PZL006
2 GASKET, Bearing Cover Plate 200PZL715N
1 PLATE-BEARING COVER (Rigid Side) 200PZL315
48 SCREW, Bearing Cover Plate 75A52
1 GASKET, Inspection Plate 25C1788N
1 PLATE-INSPECTION 202FXT052
6 SCREW, Inspection Plate 655EF050
1 GAUGE, Oil Level Sight 40L17
1 GAUGE-Temperature 27H11
1 BUSHING-PIPE 64E2
6 SLIDE-CROSSHEAD 200PZL309
24 SCREW, Crosshead Slide to Frame 75LM89
12 SEAL-FASTENER 60DD35
24 LOCKNUT 50V44
4 STUD, Spacer to Frame 200PZL110
4 KEY, Spacer to Frame 35C24
4 PLATE 200PZL247
8 NUT, Spacer to Frame 50B37
1 PLATE-BEARING COVER (Floating Side) 201PZL315
1 HOOD 200PZL053
30 SCREW, Hood to Frame 655EF050
1 Gasket, Hood 201PZL715
1 BREATHER 5C24
1 PLATE-INSPECTION KXG842
1 GASKET, Inspection Plate 25C1818
8 SCREW, Inspection Plate 655EF040
8 GASKET, Inspection Plate Screw 25F13
3 PLATE-INSPECTION 206PZL052
6 GASKET, Inspection Plate 25C1839
24 SCREW, Inspection Plate 655ED040
1 PLATE-INSPECTION, Piston Rod(General Service) 201PZL052
1 PLATE-INSPECTION, Piston Rod(High Pressure Service) 300PZL052
1 PLATE-INSPECTION, Piston Rod(General Service) 202PZL052
1 PLATE-INSPECTION, Piston Rod(High Pressure Service) 301PZL052
1 PLATE-INSPECTION, Piston Rod(General Service) 203PZL052
1 PLATE-INSPECTION, Piston Rod(High Pressure Service) 302PZL052
4 SCREW, Hood to Frame 655EF200

DRIVE PARTS
Qty. Description Part No.
1 JACKSHAFT. 200PZK371
1 KEY-JACKSHAFT 200PZL062
2 SPACER, Jackshaft Bearing GXH062
2 SLEAVE-WEAR 80M3
2 GASKET, Bearing Housing to Frame 25BC11
2 HOUSING-BEARING 200PZL006
16 SCREW, Bearing Housing to Frame 75A52
2 BEARING-ROLLER, Jackshaft 12W73
2 GASKET, Retainer Plate to Bearing Housing 25bc12
2 PLATE, Bearing Retainer 201pzl253
16 SCREW, Retainer Plate to Bearing Housing 655EG070
2 SEAL-OIL 60DD13
1 ECCENTRIC 200PZK255
1 GEAR-DRIVEN 200PZK280
12 SCREW, Gear to Eccentric 200PZL655
144″ WIRE 97A29
2 BEARING-ROLLER, Eccentric 12BA4
6 SHIM (.002) 201PZL732
6 SHIM (.005) 202PZL732
6 SHIM (.007) 203PZL732
8 SHIM (.020) 204PZL732
2 PLATE-RETAINER, Eccentric Bearing 200PZL168
16 SCREW, Retainer to Eccentric 75B148
48″ WIRE 97A29
3 CONNECTING ROD Includes Ref Nos 28 & 29 200PZL003
6 BOLT-CONNECTING ROD PZ890
6 NUT, Connecting Rod Bolt 50B34
6 LOCKNUT, Connecting Rod Bolt 50M3
3 BEARING, Connecting Rod to Eccentric 12BA6
1 RING-RETAINING, Connecting Rod Bearing 74D5
14 PLATE-RETAINING, Bearing to Eccentric 1PZ1400
14 SCREW, Bearing to Eccentric 655EF05D
672″ WIRE 97A29
22 PLATE-RETAINING, Bearing to Connecting Rod PZ1400
2 PLATE-RETAINING, Bearing to Connecting Rod 203PZL253
48 SCREW, Bearing to Connecting Rod 75B41
288″ WIRE 97A29
3 BEARING-ROLLER, Crosshead Pin 12BA5
3 PIN-LOCK PZ838
3 SET SCREW 76F10
3 CROSSHEAD 200PZJ005
3 PIN-CROSSHEAD 200PZL189
3 RING-RETAINING, Bearing 200PZL706
3 PLATE-RETAINER, Crosshead Pin 206PZL168
18 SCREW, Crosshead Pin Retain 75AG17
12″ WIRE 97A29
3 ROD-EXTENSION 200PZL839
18 SCREW, Rod to Crosshead PV701
288″ WIRE 97A29
6 PLATE-RETAINER, Oil Stop Head to Frame 202PZL168
3 GASKET, Oil Stop Head 25BC13
3 HEAD-OIL STOP 200PZL051
24 GASKET 25F9
24 SCREW, Oil Stop Head to Frame 655EE080
6 SEAL, Oil Stop Head 2011872
6 RING-RETAINER, Oil Stop Head Seal 1PV1398
18 SCREW, Seal Retainer to Oil Stop Head 75A102
3 BAFFLE ROD PZ840
1 ADAPTOR, For Rotating Shaft 2PO1398
2 SCREW, Adaptor to Shaft 655EF050

GENERAL SERVICE FLUID CYLINDER & MANIFOLDS
Qty. Description Part No.
3 FLUID CYLINDER ASSEMBLY, Includes Reference Numbers 2 thru 9) 202PZL029B
24 STUD(Long), Cylinder to Frame 201PZL110
24 STUD(Short), Cylinder to Frame 205PZL110
36 NUT, Cylinder to Frame Stud 50B36
72 STUD, Valve Cover Ring to Cylinder 204PZL110
72 NUT, Valve Cover Ring to Cylinder Stud 50B34
12 STUD, Cylinder to Discharge Manifold 202PZL110
12 NUT, Cylinder to Discharge Manifold Stud 50B34
24 NUT, Liner Clamp 50B36
6 RING-VALVE COVER 200PZL387
6 GASKET, Valve Cover 204PZL715
9 BUSHING, Suction Valve Guide 2007674
6 COVER-VALVE 200PZL147
6 BOLT-EYE 15P5
6 LOCK-COVER 200PZL587
3 PLATE-RETAINER 2011701
3 VALVE GUIDE ASSEMBLY, Includes Reference Numbers 12,16,18&19 200PZL483A
6 SCREW, Valve Guide to Retainer Plate 655EE06S
6 LOCKWASHER 95W2
1 MANIFOLD-SUCTION 200PZJ069
3 GASKET, Suction Manifold to Cylinder 25BE41
24 SCREW, Suction Manifold to Cylinder 655EG08N
1 GASKET, Suction Manifold Flange 25C814N
1 FLANGE, Suction Flange 64CU13
12 SCREW, Suction Flange to Manifold 75A150
12 NUT, Suction Flange to Manifold 50B9
1 MANIFOLD-DISCHARGE 201PZJ071
3 GASKET, Discharge Manifold to Cylinder 25AL35
16 STUD, Discharge Manifold to Discharge Flange 209PZL110
32 NUT, Discharge Manifold to Discharge Flange 50AW11
2 GASKET, Discharge Manifold Flange 25V24
1 FLANGE, Discharge 64EB15
1 FLANGE-BLIND 64EB240

HIGH PRESSURE SERVICE FLUID CYLINDER & MANIFOLDS
Qty. Description Part No.
3 FLUID CYLINDER ASSEMBLY, Includes Reference Numbers 30 thru 33 300PZL2039
168 NUT 50B36
3 SEAL 303PZL316
3 GUIDE, VALVE(UPPER) 300PZL483
3 RING, WEAR 300PZL234
3 RETAINER, VALVE GUIDE 300PZL205
2 FLANGE-BLIND 2009671
6 SEAL 300PZL316
48 NUT 50AW13
3 COVER-VALVE(UPPER) 301PZL147
6 BOLT-EYE 15PZ27
6 RING-VALVE COVER 300PZL387
6 LOCK-COVER 300PZL587
3 GASKET 25BE41
1 MANIFOLD-SUCTION 300PZL069
24 SCREW 655EG10N
3 GASKET-RING 25C1154N
1 FLANGE 64CU12
36 SCREW 75A150
36 NUT 50B9
3 SEAL 302PZL316
1 MANIFOLD-DISCHARGE 300PZL071
2 GASKET 25BC638
2 FLANGE 64EB838
24 STUD 305PZL110
12 BUSHING 300PZL229
3 COVER-VALVE(LOWER) 300PZL147
3 GUIDE, VALVE(LOWER) 301PZL483
36 STUD 302PZL110
6 STUD 300PZL110
6 STUD 303PZL110
84 STUD 301PZL110

FULL OPENING VALVE(High Pressure Service)(WITH POLYURETHANE INSERT)
Qty. Description Part No.
6 SPRING 2117313
6 VALVE-FLUDI(Includes Reference Number 4) 300PZL482
6 SEAT-VALVE 300PZL039
6 INSERT-VALVE 2117312
PISTON ROD & COUPLING(General Service)
Qty. Description Part No.
3 PLUNGER COUPLING ASSEMBLY Includes Ref. Numbers 1, 2 & 3 200PZJ4065
12 SCREW, Coupling 655EE22S
12 LOCKNUT, Coupling Screw 50AW35
3 PISTON ROD, Includes Ref. Number.5 200PZL060
3 LOCKNUT 50V14
3 CLAMP-LINER 200PZL455
3 GASKET, Liner to Cylinder 25AT37
1 WRENCH 99L11

PISTON & LINER(General Service)
Qty. Description Part No.
3 LINER 7″ 200PZL456
3 LINER 6-1/2″ 201PZL456
3 LINER 6″ 202PZJ456
3 LINER 5-1/2″ 203PZJ456
3 O-RING 7″ 25AH1
3 O-RING 6-1/2″ 25AH1
3 O-RING 6″ 25AH1
3 O-RING 5-1/2″ 25AH1
3 PISTON ASSEMBLY, Includes Reference Numbers 9&11 7″ 202TBL045A
3 PISTON ASSEMBLY, Includes Reference Numbers 9&11 6-1/2″ 201TBL045A
3 PISTON ASSEMBLY, Includes Reference Numbers 9&11 6″ 200TBL045A
3 PISTON ASSEMBLY, Includes Reference Numbers 9&11 5-1/2″ 245TBB045A
3 INSERT GROUP, Includes Retainer Plates & Rings 7″ TBL77586
3 INSERT GROUP, Includes Retainer Plates & Rings 6-1/2″ TBL77585
3 INSERT GROUP, Includes Retainer Plates & Rings 6″ TBB76028
3 INSERT GROUP, Includes Retainer Plates & Rings 5-1/2″ TBB76026

PISTON ROD & COUPLING(High Pressure Service)
Qty. Description Part No.
3 COUPLING-PLUNGER ASSEMBLY, Includes Ref. Numbers 2 & 3 300PZL4065
12 SCREW, Coupling 655EE22S
12 LOCKNUT, Coupling Screw 50AW35
3 PISTON ROD, Includes Ref. Number 7 301PZL060
3 PISTON ROD 302PZL060
3 STUD, PISTON ROD 304PZL110
3 LOCKNUT 50V14
3 CLAMP-LINER 300PZL455
1 WRENCH 99L11

PISTON & LINER(High Pressure Service)
Qty. Description Part No.
3 LINER(Includes Ref. Number 10) 6-1/2″ 300PZL4055
3 LINER(Includes Ref. Number 10) 6″ 301PZL4055
3 LINER(Includes Ref. Number 10) 5-1/2″ 302PZL4055
LINER(Includes Ref. Number 10) 5″ 303PZL4055
SEAL-LINER END 6-1/2″ 301PZL316
SEAL-LINER END 6″ 303PZL316
SEAL-LINER END 5-1/2″ 303PZL316
SEAL-LINER END 5″ 303PZL316
3 PISTON ASSEMBLY, Includes Reference Numbers 12&13 6-1/2″ 201TBL045A
3 PISTON ASSEMBLY, Includes Reference Numbers 12&13 6″ 245TBB045A
3 PISTON ASSEMBLY, Includes Reference Numbers 12&13 5-1/2″ 243TBB045A
3 PISTON ASSEMBLY, Includes Reference Numbers 12&13 5″ 241TBB045A
3 INSERT GROUP, Includes Retainer Plates & Rings 6-1/2″ TBL77585
3 INSERT GROUP, Includes Retainer Plates & Rings 6″ TBB76028
3 INSERT GROUP, Includes Retainer Plates & Rings 5-1/2″ TBB76026
3 INSERT GROUP, Includes Retainer Plates & Rings 5″ TBB76024
O-RING 6-1/2″ 25AH1
O-RING 6″ 25AH1
O-RING 5-1/2″ 25AH1
O-RING 5″ 25AH1

OIL CIRCULATING PUMP
Qty. Description Part No.
1 OIL PUMP-COMPLETE 201PAH188
1 COVER 2010987
1 WASHER 2010992
1 BALL BEARING 2010993
1 SHIM, Bearing 2010994
1 ROTOR 2010995
1 WASHER 2010996
1 SEAL, Mechanical 2109003
1 O-RING 2109004
1 PLUG-HOUSING 2010997
1 HOUSING-BEARING 2109005
1 SEAL, Bearing Housing 2010998
1 BEARING-ROLLER 2010999
1 VENT PLUG-SUCTION 2109000
1 VENT PLUG-DISCHARGE 2109001
2 WASHER, Vent Plug 2109002

OIL PUMP & PIPING
Qty. Description Part No.
1 SCREEN-OIL 3WAJ511
1 ELBOW 64C8
1 NIPPLE 63U24X16
1 ELBOW 64U4
1 PUMP-OIL 201PAH188
4 SCREW 75A35N
1 KEY 35D2
1 ADAPTOR, Oil Pump 200PZL170
1 PLATE, Oil Pump to Frame PY526
4 SCREW, Adaptor to Frame 655EF05D
1 BUSHING-HUB, Gear, Includes Ref. Number 11 22F12SD
1 GEAR-DRIVEN, Oil Pump 201PZL280
24″ WIRE, Adaptor to Frame Screw 97A29
Pump Discharge to Filter
1 ADAPTOR-HOSE 29Q17
1 HYDRAULIC HOSE ASSEMBLY 29R21
1 TEE 64G7
1 VALVE-LIQUID RELIEF 90Q62
1 NIPPLE 63U12x16
1 UNION-STRAIGHT 64Z10
1 NIPPLE 63U12X34
1 FILTER-OIL 26C18
Filter to Crosshead Spray
1 NIPPLE 63U12X13
1 NIPPLE 63U12X22
2 ELBOW 64C5
1 NIPPLE 63U12X80
1 TEE 64G7
1 REDUCER-PIPE 64N25
1 HYDRAULIC HOSE ASSEMBLY 29Z26
2 CLAMP, Hose 98H4
2 WASHER, Clamp 95B1
2 SCREW, Hose Clamp 655EC030
5 TEE 64G6
3 NIPPLE 63F21
2 ELBOW 64C4
3 NIPPLE 63N8X160
6 BUSHING-PIPE 64E23
6 ELBOW 64X1
6 NOZZLE 2009982
2 CLAMP 200PZL654
2 STUD 79H1
2 NUT 50B5
2 LOCKNUT 50V44
Filter Tee to Trough
3 BUSHING-PIPE 64E95
1 NIPPLE 63V8X11
2 ADAPTOR-HOSE 29Q6
1 HYDRAULIC HOSE ASSEMBLY 29Z81
5 CLAMP, Hose to Frame PZ1301
1 SCREW, Clamp 655ED020
2 ADAPTOR-HOSE 29Q17
1 ELBOW 64C5
Oil Trough to Main Bearings
1 TROUGH, Oil Feed 201PZL125
2 SCREW, Trough to Frame 655EF040
2 ADAPTOR-HOSE 29Q54
2 HYDRAULIC HOSE ASSEMBLY 29Z35
2 NIPPLE, Trough to Jackshaft 63AJ6X130
2 TROUGH, Jackshaft Bearing Oil 202PZL125
6 SCREW, Jackshaft Bearing Oil Trough 655EE03D
2 ELBOW, Hose to Bearing 64D4
96″ WIRE 97A29
1 BUSHING-PIPE 64E36

PISTON LUBRICATING PIPING(General Service)
Qty. Description Part No.
Lube Oil Tank to Pump Group
1 SCREEN-OIL 2WAJ511
1 NIPPLE 63H25
1 UNION-HAMMER, Wing 64EB1
1 NIPPLE 63H25
1 VALVE 90A36
1 NIPPLE 63H25
1 TEE 64G8G
1 NIPPLE 63H25
1 VALVE 90A36
1 ADAPTOR-HOSE 29Q9
1 HYDRAULIC HOSE ASSEMBLY 29Z7
1 PUMP PISTON LUBRICATING CA122
1 KEY 35B4
4 SCREW, Pump to Skid 655ED040
4 LOCKWASHER, Pump to Skid 95B3
4 WASHER, PUMP to Skid 95A3
1 SHEAVE 73K1A30
1 BUSHING-HUB 22E16B
1 BELT 13C79
1 AUXILIARY SHEAVE ASSEMBLY 200PZL195A
2 SET SCREW, Sheave 76F30
Pump to Liner Group
1 ADAPTOR-HOSE 29Q10
1 HYDRAULIC HOSE ASSEMBLY 2009270
1 ADAPTOR-HOSE 29Q27
1 REDUCER-PIPE 64N3
1 VALVE 90A25
1 ELBOW-PIPE 64C5
1 NIPPLE 63G9
1 TEE 64P39
2 CLAMP 98H5
2 WASHER 95B3
2 SCREW 75A68
1 NIPPLE 63N12X184
1 TEE 64P39
1 NIPPLE 63N12X184
1 TEE 64P39
1 PLUG 64A5
3 HYDRAULIC HOSE ASSEMBLY 29R32
3 ADAPTOR-HOSE 29Q83
3 COUPLING-PIPE 64BK3
3 BAFFLE 200PZL840
6 NUT-ACORN 50Q30
Frame to Lube Oil Tank Group
1 NIPPLE 63L28
1 ELBOW 64C9
1 TANK-LUBE OIL 200PZL250
2 PLUG 64A7
4 SCREW, Lube Tank to Skid 655EE040
4 WASHER 95A5
1 PLUG 64A6
1 COVER-LUBE OIL TANK 2012655
2 NUT-WING 50H1
1 NIPPLE 63AJ32X60

PISTON LUBRICATING PIPING(High Pressure Service)
Qty. Description Part No.
1 SCREEN-OIL 2WAJ511
1 NIPPLE 63H25
1 UNION-HAMMER, Wing 64EB1
1 NIPPLE 63H25
1 VALVE 90A36
1 NIPPLE 63H25
1 TEE 64G8G
1 NIPPLE 63H25
1 VALVE 90A36
1 ADAPTOR-HOSE 29Q9
1 HYDRAULIC HOSE ASSEMBLY 29Z7
1 PUMP PISTON LUBRICATING CA122
1 KEY 35B4
4 SCREW, Pump to Skid 655ED040
4 LOCKWASHER, Pump to Skid 95B3
4 WASHER, PUMP to Skid 95A3
1 SHEAVE 73K1A30
1 BUSHING-HUB 22E16B
1 BELT 13C79
1 AUXILIARY SHEAVE ASSEMBLY 200PZL195A
2 SET SCREW, Sheave 76F30
Pump to Liner Group
1 ADAPTOR-HOSE 29Q10
1 HYDRAULIC HOSE ASSEMBLY 2009270
1 ADAPTOR-HOSE 29Q27
1 REDUCER-PIPE 64N3
1 VALVE 90A25
1 ELBOW 64C5
1 NIPPLE 63N12X200
1 TEE 64P39
1 NIPPLE 63N12X190
1 TEE 64P39
1 NIPPLE 63N12X200
1 NIPPLE 63G19
1 TEE 64P39
1 CAP-PIPE 64AD5
1 PLUG 64A5
3 ADAPTOR-HOSE 29Q6
3 HYDRAULIC HOSE ASSEMBLY 29R29
3 ELBOW 64C4
3 NIPPLE 63F6
3 ELBOW 64C4
3 NIPPLE 63F33
3 BRACKET 300PZL017
Frame to Lube Oil Tank Group
1 NIPPLE 63L28
1 ELBOW 64C9
1 TANK-LUBE OIL 200PZL250
2 PLUG 64A7
4 SCREW, Lube Tank to Skid 655EE040
4 WASHER 95A5
1 PLUG 64A6
1 COVER-LUBE OIL TANK 2012655
2 NUT-WING 50H1
3 FITTING-TUBE 86M18
3 TUBE-FORMED 300PZL857
3 CAP-BAFFLE 300PZL237
3 RING-WATER DISTRIBUTION 300PZL461
6 U-BOLT 123684
4 LOCKWASHER 95B3
4 NUT 50AQ3
6 SCREW 655ED040
6 LOCKWASHER 95B3
2 BRACKET-WASH PIPE 301PZL017
6 SCREW-FLANGE HEAD 75LM150
1 NIPPLE 63AJ32X60

HEAT EXCHANGER GROUP(OPTIONAL EQUIPMENT)
Qty. Description Part No.
28″ HYDRAULIC HOSE R5F
1 ADAPTOR 29Q17
1 BUSHING-PIPE 64E16
1 CONNECTOR, Frame 78AUX113
1 ADAPTOR 29Q10
75″ HYDRAULIC HOSE R5G
1 ADAPTOR 29Q10
1 BUSHING-PIPE 64E11
1 HEAT EXCHANGER 2013457
4 SCREW, Heat Exchanger to Skid 655EE060
4 LOCKWASHER 95B5
4 NUT 50B5
1 BUSHING-PIPE 64E11
1 ADAPTOR 29Q10
75″ HYDRAULIC HOSE R5G
1 ADAPTOR 29Q10
1 CONNECTOR, Frame 78AUX113
1 BUSHING-PIPE 64E16
1 VALVE-THERMOSTAT 90K165
1 BUSHING-PIPE 64E16
1 NIPPLE 90K165
1 ELBOW 64E14
1 NIPPLE 63F21
1 UNION 64Z3
1 NIPPLE 63AJ8X40
2 CLAMP-HOSE 29B31
40″ HOSE-OIL R14G
1 NIPPLE 63AJ8X40
1 ELBOW 64C4
1 NIPPLE 63F21
1 BUSHING 64E29
2 HOSE COUPLING 29Q158
2 HOSE COUPLING 29Z83
1 PLUG-ZINC, Protective 2008076
1 NIPPLE 63U12X13
1 ELBOW 64C62
1 NIPPLE 63U12X40
2 HOSE COUPLING 29Z83

VALVE SEAT PULLER (OPTIONAL) (Center Guided Valve)
Qty. Description Part No.
1 HEAD(Not Included with 100E12 Puller) 100E13
1 VALVE SEAT PULLER ASSEMBLY 100E12
1 HYDRAULIC JACK 2116728
1 CENTER STEM 2117314
1 CENTER STEM NUT 2117315
1 PULLER H BAR BASE 2116727
1 CENTER BUSHING 2117316
1 CENTER BUSHING 2117317
1 HYDRAULIC HOSE 2117318
1 HYDRAULIC PUMP 2117319
1 GAUGE ADAPTOR 2117320
1 GAUGE COUPLER 2117321
1 GAUGE COUPLER 2117322
1 GAUGE 170 TON 2117323
1 CARRYING CASE 2117055

VALVE SEAT PULLER (OPTIONAL) (Full Opening Valve)
Qty. Description Part No.
1 HEAD(Not Included with 100E12 Puller) 300PZL219
1 VALVE SEAT PULLER ASSEMBLY 100E12
1 HYDRAULIC JACK 2116728
1 CENTER STEM 2117314
1 CENTER STEM NUT 2117315
1 PULLER H BAR BASE 2116727
1 CENTER BUSHING 2117316
1 CENTER BUSHING 2117317
1 HYDRAULIC HOSE 2117318
1 HYDRAULIC PUMP 2117319
1 GAUGE ADAPTOR 2117320
1 GAUGE COUPLER 2117321
1 GAUGE COUPLER 2117322
1 GAUGE 170 TON 2117323
1 CARRYING CASE 2117055

OPTIONAL EQUIPMENT
Qty. Description Part No.
1 BAR, Valve Cover Tightening 62L62
1 PIN, Valve Cover Tightening Bar 2009526
1 HYDRIL DAMPENER (K10-5000) 200PZL622
1 HOSE, For Charging HYDRIL Dampener 200PZL127
1 TOOL, Piston Rod Nut Removal 200PZL074
1 PRESSURE GAUGE GROUP, Includes Next 3 Items PZL75283
1 GAUGE (0 – 6000 PSI) 27P70
1 NIPPLE 63V32X60
1 ELBOW 64EB241
1 RELIEF VALVE GROUP, Includes Next 4 Items PZL75284
1 RELIEF VALVE Shear Type (1000 PSI to 5000 PSI) 201559
1 NIPPLE 63V48X60
1 ELBOW 64EB242
1 ELBOW 64D14
1 BLOCK SUPPORT & DISCHARGE CROSS GROUP PZL74435
1 BLOCK GROUP 301PZG4067
2 GASKET 25V24
2 GASKET 25V17
1 FLANGE 191161
1 FLANGE 64EB240
1 FLANGE 64EB50
1 BLOCK GROUP 300PZG4067
1 BLOCK 205PZL231
24 STUD 206PZL110
24 NUT 50AW11
16 STUD 208PZL110
16 NUT 50AW13
2 SUPPORT GROUP PZJ75278
SUPPORT 201845T6
1 BASE 195100
2 BASE 5015475

Gardner Denver PZ-11 Triplex Mud Pump Parts List

DRIVE PARTS
Qty. Description Part No.
1 JACKSHAFT. 200PZK371
1 KEY-JACKSHAFT 200PZL062
2 SPACER, Jackshaft Bearing GXH649
2 SLEAVE-WEAR 80M3
2 GASKET, Bearing Housing to Frame 25BC11
2 HOUSING-BEARING 200PZL006
16 SCREW, Bearing Housing to Frame 75A52
2 BEARING-ROLLER, Jackshaft 12W73
2 GASKET, Retainer Plate to Bearing Housing 25BC12
2 PLATE, Bearing Retainer 201PZL253
16 SCREW, Retainer Plate to Bearing Housing 655EG070
2 SEAL-OIL 60DD13
1 ECCENTRIC 200PZL255
1 GEAR-DRIVEN 200PZL280
12 SCREW, Gear to Eccentric 200PZL655
144″ WIRE 97A29
2 BEARING-ROLLER, Eccentric 12BA4
6 SHIM (.002) 201PZL732
6 SHIM (.005) 202PZL732
6 SHIM (.007) 203PZL732
8 SHIM (.020) 204PZL732
2 PLATE-RETAINER, Eccentric Bearing 200PZL168
16 SCREW, Retainer to Eccentric 75B148
48″ WIRE 97A29
3 CONNECTING ROD Includes Ref Nos 28 & 29 200PZL003
6 BOLT-CONNECTING ROD PZ890
6 NUT, Connecting Rod Bolt 50B34
6 LOCKNUT, Connecting Rod Bolt 50M3
3 BEARING, Connecting Rod to Eccentric 12BA6
1 RING-RETAINING, Connecting Rod Bearing 74D5
14 PLATE-RETAINING, Bearing to Eccentric 1PZ1400
14 SCREW, Bearing to Eccentric 655EF05D
672″ WIRE 97A29
22 PLATE-RETAINING, Bearing to Connecting Rod PZ1400
2 PLATE-RETAINING, Bearing to Connecting Rod 203PZL253
48 SCREW, Bearing to Connecting Rod 75B41
288″ WIRE 97A29
3 BEARING-ROLLER, Crosshead Pin 12BA5
3 PIN-LOCK PZ838
3 SET SCREW 76F10
3 CROSSHEAD 200PZJ005
3 PIN-CROSSHEAD 200PZL189
3 RING-RETAINING, Bearing 200PZL706
3 PLATE-RETAINER, Crosshead Pin 206PZL168
18 SCREW, Crosshead Pin Retain 75AG17
12″ WIRE 97A29
3 ROD-EXTENSION 200PZL839
18 SCREW, Rod to Crosshead PV701
288″ WIRE 97A29
6 PLATE-RETAINER, Oil Stop Head to Frame 202PZL168
3 GASKET, Oil Stop Head 25BC13
3 HEAD-OIL STOP 200PZL051
24 GASKET 25F9
24 SCREW, Oil Stop Head to Frame 655EE080
6 SEAL, Oil Stop Head 2011872
6 RING-RETAINER, Oil Stop Head Seal 1PV1398
18 SCREW, Seal Retainer to Oil Stop Head 75A102
3 BAFFLE ROD PZ840
1 ADAPTOR, For Rotating Shaft 2PO1398
2 SCREW, Adaptor to Shaft 655EF050

PISTON & LINER(General Service)
Qty. Description Part No.
3 LINER 7″ 200PZL456
3 LINER 6-1/2″ 201PZL456
3 LINER 6″ 202PZL456
3 LINER 5-1/2″ 203PZL456
3 O-RING 7″ 25AH1
3 O-RING 6-1/2″ 25AH1
3 O-RING 6″ 25AH1
3 O-RING 5-1/2″ 25AH1
3 PISTON ASSEMBLY, Includes Reference Numbers 9&11 7″ 202TBL045A
3 PISTON ASSEMBLY, Includes Reference Numbers 9&11 6-1/2″ 201TBL045A
3 PISTON ASSEMBLY, Includes Reference Numbers 9&11 6″ 245TBB045A
3 PISTON ASSEMBLY, Includes Reference Numbers 9&11 5-1/2″ 243TBB045A
3 INSERT GROUP, Includes Retainer Plates & Rings 7″ TBL77586
3 INSERT GROUP, Includes Retainer Plates & Rings 6-1/2″ TBL77585
3 INSERT GROUP, Includes Retainer Plates & Rings 6″ TBB76028
3 INSERT GROUP, Includes Retainer Plates & Rings 5-1/2″ TBB76026

OIL PUMP & PIPING
Qty. Description Part No.
1 SCREEN-OIL 3WAJ511
1 ELBOW 64C8
1 NIPPLE 63U24X16
1 ELBOW 64U4
1 PUMP-OIL 201PAH188
4 SCREW 75A35N
1 KEY 35D2
1 ADAPTOR, Oil Pump 200PZL170
1 PLATE, Oil Pump to Frame PY526
4 SCREW, Adaptor to Frame 655ED05D
1 BUSHING-HUB, Gear, Includes Ref. Number 11 22F12SD
1 GEAR-DRIVEN, Oil Pump 201PZL280
24″ WIRE, Adaptor to Frame Screw 97A29
Pump Discharge to Filter
1 ADAPTOR-HOSE 29Q17
1 HYDRAULIC HOSE ASSEMBLY 29R21
1 TEE 64G7
1 VALVE-LIQUID RELIEF 90Q62
1 NIPPLE 63U12x16
1 UNION-STRAIGHT 64Z10
1 NIPPLE 63U12X34
1 FILTER-OIL 26C18
Filter to Crosshead Spray
1 NIPPLE 63U12X13
1 NIPPLE 63U12X22
2 ELBOW 64C5
1 NIPPLE 63U12X80
1 TEE 64G7
1 REDUCER-PIPE 64N25
1 HYDRAULIC HOSE ASSEMBLY 29Z26
2 CLAMP, Hose 98H4
2 WASHER, Clamp 95B1
2 SCREW, Hose Clamp 655EC030
5 TEE 64G6
3 NIPPLE 63F21
2 ELBOW 64C4
3 NIPPLE 63N8X160
6 BUSHING-PIPE 64E23
6 ELBOW 64X1
6 NOZZLE 2009982
2 CLAMP 200PZL654
2 STUD 79H1
2 NUT 50B5
2 LOCKNUT 50V44
Filter Tee to Trough
3 BUSHING-PIPE 64E95
1 NIPPLE 63V8X11
2 ADAPTOR-HOSE 29Q6
1 HYDRAULIC HOSE ASSEMBLY 29Z81
5 CLAMP, Hose to Frame PZ1301
1 SCREW, Clamp 655ED020
2 ADAPTOR-HOSE 29Q17
1 ELBOW 64C5
Oil Trough to Main Bearings
1 TROUGH, Oil Feed 201PZL125
2 SCREW, Trough to Frame 655EF040
2 ADAPTOR-HOSE 29Q54
2 HYDRAULIC HOSE ASSEMBLY 29Z35
2 NIPPLE, Trough to Jackshaft 63AJ6X130
2 TROUGH, Jackshaft Bearing Oil 202PZL125
6 SCREW, Jackshaft Bearing Oil Trough 655EE03D
2 ELBOW, Hose to Bearing 64D4
96″ WIRE 97A29
1 BUSHING-PIPE 64E36

PISTON LUBRICATING PIPING(High Pressure Service)
Qty. Description Part No.
1 SCREEN-OIL 2WAJ511
1 NIPPLE 63H25
1 UNION-HAMMER, Wing 64EB1
1 NIPPLE 63H25
1 VALVE 90A36
1 NIPPLE 63H25
1 TEE 64G8G
1 NIPPLE 63H25
1 VALVE 90A36
1 ADAPTOR-HOSE 29Q9
1 HYDRAULIC HOSE ASSEMBLY 29Z7
1 PUMP PISTON LUBRICATING CA122
1 KEY 35B4
4 SCREW, Pump to Skid 655ED040
4 LOCKWASHER, Pump to Skid 95B3
4 WASHER, PUMP to Skid 95A3
1 SHEAVE 73K1A30
1 BUSHING-HUB 22E16B
1 BELT 13C79
1 AUXILIARY SHEAVE ASSEMBLY 200PZL195A
2 SET SCREW, Sheave 76F30
Pump to Liner Group
1 ADAPTOR-HOSE 29Q10
1 HYDRAULIC HOSE ASSEMBLY 2009270
1 ADAPTOR-HOSE 29Q27
1 REDUCER-PIPE 64N3
1 VALVE 90A25
1 ELBOW 64C5
1 NIPPLE 63N12X200
1 TEE 64P39
1 NIPPLE 63N12X190
1 TEE 64P39
1 NIPPLE 63N12X200
1 NIPPLE 63G19
1 TEE 64P39
1 CAP-PIPE 64AD5
3 ADAPTOR-HOSE 29Q6
3 HYDRAULIC HOSE ASSEMBLY 29R29
3 ELBOW 64C4
3 NIPPLE 63F6
3 ELBOW 64C4
3 NIPPLE 63F33
3 BRACKET 300PZL017
Frame to Lube Oil Tank Group
1 NIPPLE 63L28
1 ELBOW 64C9
1 TANK-LUBE OIL 200PZL250
2 PLUG 64A7
4 SCREW, Lube Tank to Skid 655EE040
4 WASHER 95A5
1 PLUG 64A6
1 COVER-LUBE OIL TANK 2012655
2 NUT-WING 50H1
3 FITTING-TUBE 86M18
3 TUBE-FORMED 300PZL857
3 CAP-BAFFLE 300PZL237
3 RING-WATER DISTRIBUTION 300PZL461
6 U-BOLT 123684
4 LOCKWASHER 95B3
4 NUT 50AQ3
6 SCREW 655ED040
6 LOCKWASHER 95B3
2 BRACKET-WASH PIPE 301PZL017
6 SCREW-FLANGE HEAD 75LM150
1 NIPPLE 63AJ32X60

HEAT EXCHANGER GROUP(OPTIONAL EQUIPMENT)
Qty. Description Part No.
28″ HYDRAULIC HOSE R5F
1 ADAPTOR 29Q17
1 BUSHING-PIPE 64E16
1 CONNECTOR, Frame 78AUX113
1 ADAPTOR 29Q10
75″ HYDRAULIC HOSE R5G
1 ADAPTOR 29Q10
1 BUSHING-PIPE 64E11
1 HEAT EXCHANGER 2013457
4 SCREW, Heat Exchanger to Skid 655EE060
4 LOCKWASHER 95B5
4 NUT 50B5
1 BUSHING-PIPE 64E11
1 ADAPTOR 29Q10
75″ HYDRAULIC HOSE R5G
1 ADAPTOR 29Q10
1 CONNECTOR, Frame 78AUX113
1 BUSHING-PIPE 64E16
1 VALVE-THERMOSTAT 90K165
1 BUSHING-PIPE 64E14
1 NIPPLE 63F21
1 ELBOW 64C4
1 NIPPLE 63F21
1 UNION 64Z3
1 NIPPLE 63AJ8X40
2 CLAMP-HOSE 29B31
40″ HOSE-OIL R14G
1 NIPPLE 63AJ8X40
1 ELBOW 64C4
1 NIPPLE 63F21
1 BUSHING 64E29
2 HOSE COUPLING 29Q158
2 HOSE COUPLING 29Z83
1 PLUG-ZINC, Protective 2008076
1 NIPPLE 63U12X13
1 ELBOW 64C62
1 NIPPLE 63U12X40
2 HOSE COUPLING 29Z83

OPTIONAL EQUIPMENT
Qty. Description Part No.
1 BAR, Valve Cover Tightening 62L62
1 PIN, Valve Cover Tightening Bar 2009526
1 HYDRIL DAMPENER (K10-5000) 200PZL622
1 HOSE, For Charging HYDRIL Dampener 200PZL127
1 TOOL, Piston Rod Nut Removal 200PZL07
1 PRESSURE GAUGE GROUP, Includes Next 3 Items PZL75283
1 GAUGE (0 – 6000 PSI) 27P70
1 NIPPLE 63V32X60
1 ELBOW 64EB241
1 RELIEF VALVE GROUP, Includes Next 4 Items PZL75284
1 RELIEF VALVE Shear Type (1000 PSI to 5000 PSI) 5829653
1 NIPPLE 63V48X60
1 ELBOW 64EB242
1 ELBOW 64D14
1 BLOCK SUPPORT & DISCHARGE CROSS GROUP PZL74435
1 BLOCK GROUP 301PZG4067
2 GASKET 25V24
2 GASKET 25V17
1 FLANGE 191161
1 FLANGE 64EB240
1 FLANGE 64EB50
1 BLOCK GROUP 300PZG4067
1 BLOCK 205PZL231
24 STUD 206PZL110
24 NUT 50AW11
16 STUD 208PZL110
16 NUT 50AW13
2 SUPPORT GROUP PZJ75278
SUPPORT 201845T6
1 BASE 195100
2 BASE 5015475
