Coiled Tubing Stripper

Stripper in CT used as primary barrier to isolate well pressure.

However, stripper has many types to suit different conditions and we will talk about all of them in brief

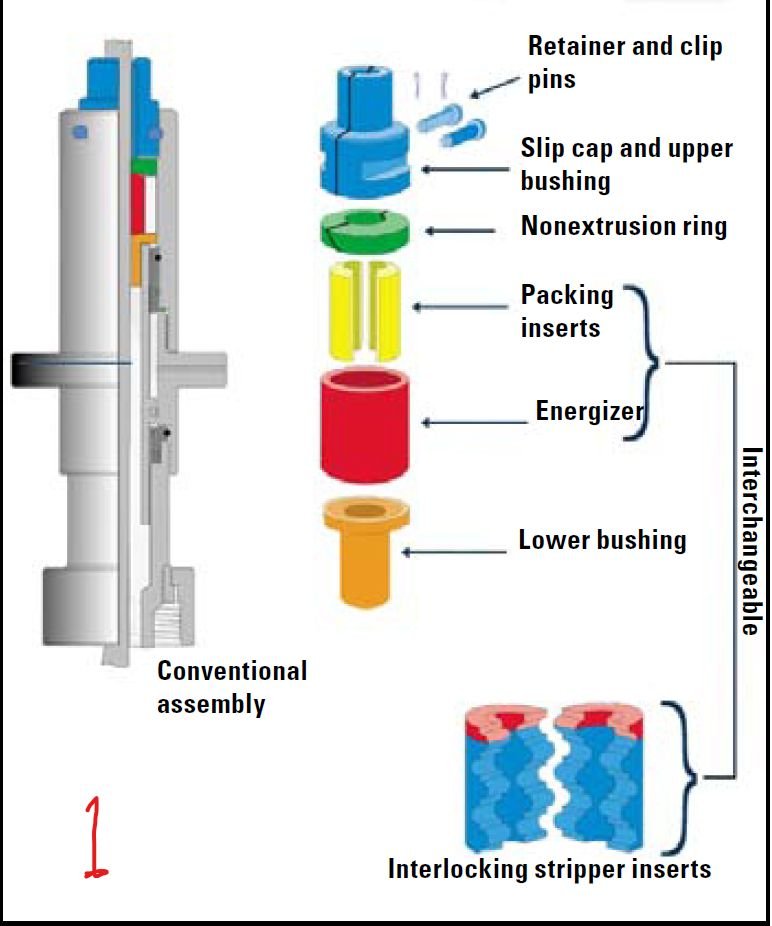

1-Conventional stripper : basic design, difficult to change stripper inserts. pressure assisted to seal.

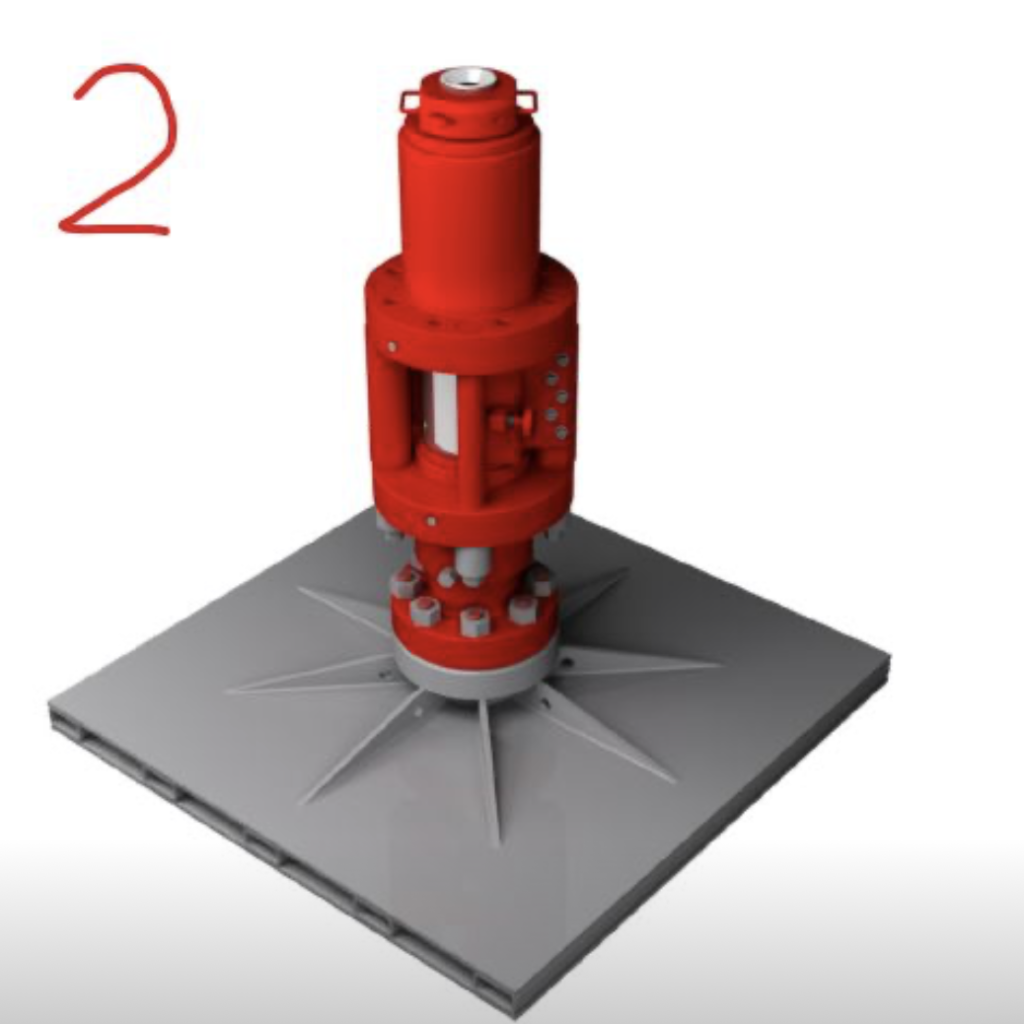

2-Side door stripper: easier to change stripper inserts, not pressure assisted in most models

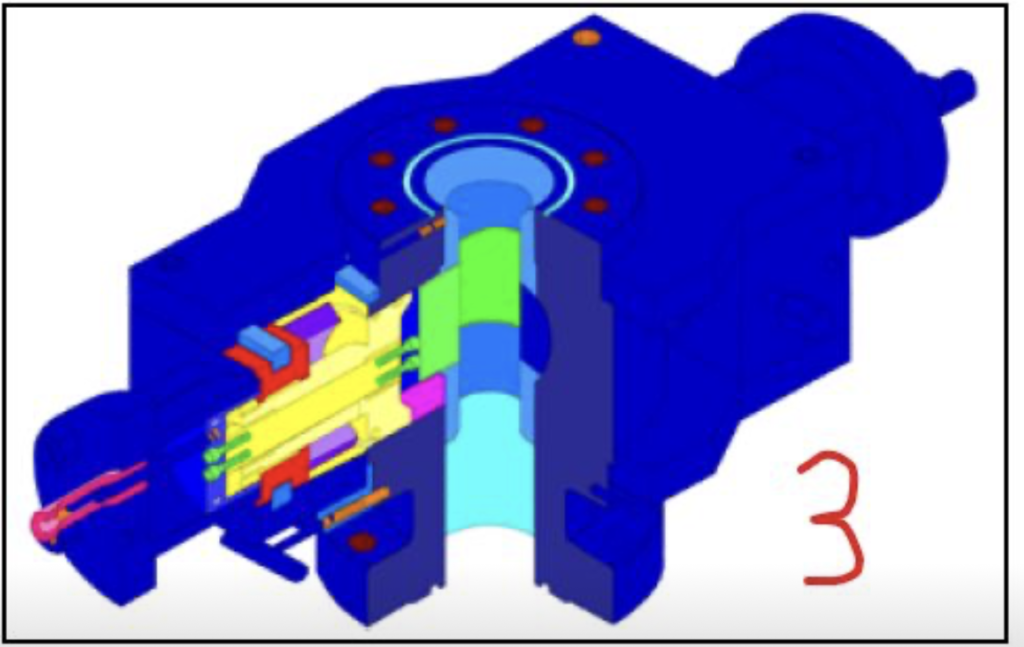

3-Radial stripper: stripper elements are energized from the side (radial), allowing a relatively large insert to be used, It does not have fully retractable inserts

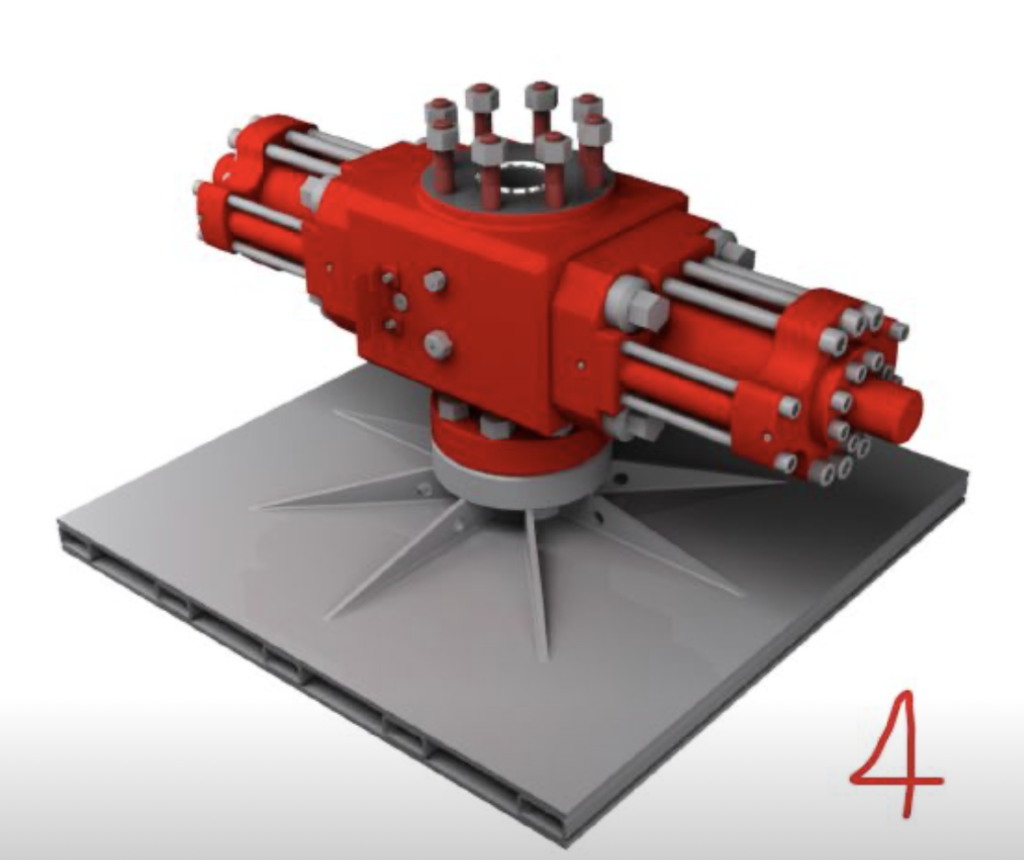

4-Sidewinder stripper: ability to fully retract the stripper elements
and wear bushings, allowing BHA to be inserted through stripper, replaced radial stripper as better version.
5-Over/under stripper: two individual strippers in one stripper body (conventional and side door), reduces height instead of using tandem strippers.
6-Two side door stripper: two independent packers that can be changed through a side door. (side door and side door)
7-Subsea Triple Stripper: three independent packers that can be changed through a side door.
8-Tandem strippers: just single strippers( whatever type) installed above each other (consider end connections).
