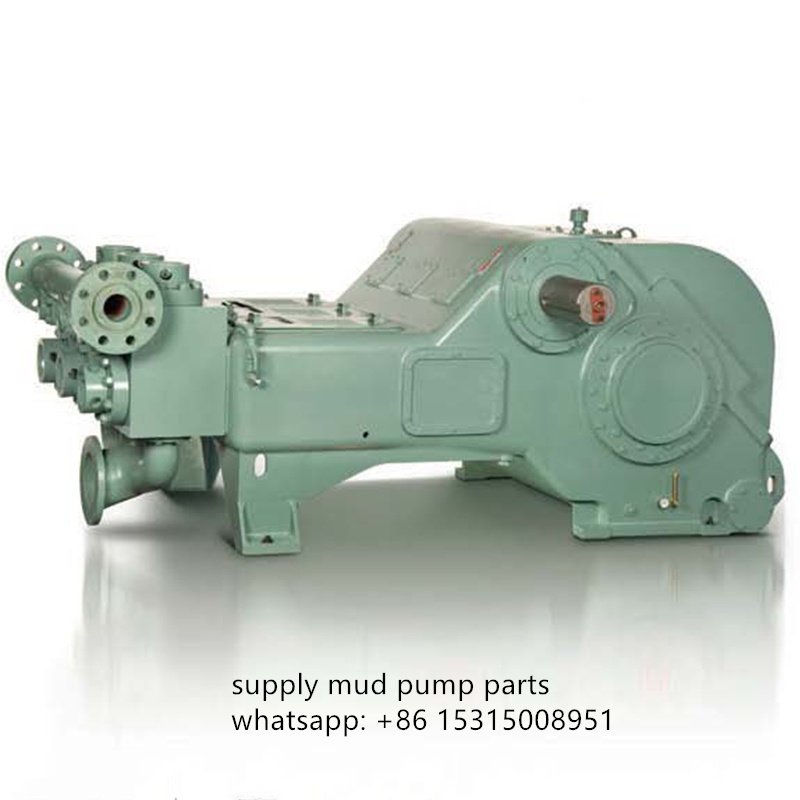

Gardner Denver PZ-9 Triplex Mud Pump Parts List Manual
| Gardner Denver PZ-9 Mud Pump Parts List | ||
| FRAME & MISCELLANEOUS PARTS | ||
| Qty. | Description | Part No. |
| 1 | FRAME ASSEMBLY, Includes Reference Numbers 2 thru 9 | PZ172A |
| 2 | PLUG-SqHd PIPE | 64A27 |
| 1 | PLUG-SqHd PIPE | 64AA9 |
| 2 | STUD, Crosshead Inspection Plate | 79A238 |
| 2 | NUT, Crosshead Inspection Stud | 50B5 |
| 1 | PLUG-SqHd PIPE | 64A5 |
| 3 | PLUG-MAGNETIC, Oil Drain | 66D13 |
| 2 | STUD, Hood | 79A75 |
| 2 | NUT, Hood Stud | 50B7 |
| 2 | GASKET, Crosshead Inspection Plate | PZ715 |
| 2 | PLATE-INSPECTION, Crosshead | 1PZ723 |
| 10 | SCREW, Crosshead Inspection Plate | 655EE060 |
| 1 | PLATE-BEARING RETAINER | 200PZH253 |
| 12 | SCREW, Bearing Retainer Plate | 655EG050 |
| 2 | HOUSING-BEARING, Eccentric | PZ1280 |
| 2 | GASKET, Bearing Cover Plate | 1PZ715N |
| 1 | PLATE-BEARING COVER (Rigid Side) | PZ196 |
| 48 | SCREW, Bearing Cover Plate | 655EG070 |
| 2 | GASKET, Inspection Plate | 25C1788N |
| 1 | PLATE-INSPECTION | 202FXT052 |
| 6 | SCREW, Inspection Plate | 655EF050 |
| 1 | GAUGE, Oil Level Sight | 40L17 |
| 1 | GAUGE-Temperature | 27H11 |
| 1 | BUSHING-PIPE | 64E2 |
| 6 | SLIDE-CROSSHEAD | PZ222 |
| 24 | SCREW, Crosshead Slide to Frame | 75K72 |
| 12 | SEAL-FASTENER | 60DD35 |
| 24 | LOCKNUT | 50V41 |
| 4 | STUD, Spacer to Frame | PZ872 |
| 4 | KEY, Spacer to Frame | 35C24 |
| 4 | PLATE | PZ1128 |
| 8 | NUT, Spacer to Frame | 50B37 |
| 1 | PLATE-BEARING COVER (Floating Side) | 1PZ196 |
| 1 | HOOD | PZ246 |
| 30 | SCREW, Hood to Frame | 655EF050 |
| 1 | Gasket, Hood | 2PZ715 |
| 1 | BREATHER | 5C24 |
| 1 | PLATE-INSPECTION | KXG842 |
| 1 | GASKET, Inspection Plate | 25C1818 |
| 8 | SCREW, Inspection Plate | 655EF040 |
| 8 | GASKET, Inspection Plate Screw | 25F13 |
| 3 | PLATE-INSPECTION | 206PZL052 |
| 6 | GASKET, Inspection Plate | 25C1839 |
| 24 | SCREW, Inspection Plate | 655ED040 |
| 1 | PLATE-INSPECTION, Piston Rod | 2006929 |
| 1 | PLATE-INSPECTION, Piston Rod | PZ842 |
| 1 | PLATE-INSPECTION, Piston Rod | 1PZ842 |
| 2 | PLUG-CSK PIPE | 64AA7 |
| 4 | SHIM-Frame to Skid Mounting | 77E27 |
| 4 | SHIM-Frame to Skid Mounting | 77E28 |
| DRIVE PARTS | ||
| Qty. | Description | Part No. |
| 1 | JACKSHAFT. | 1PZ371 |
| 1 | KEY-JACKSHAFT | 35B380 |
| 2 | SPACER, Jackshaft Bearing | PZ649 |
| 2 | SLEAVE-WEAR | 80L3 |
| 2 | GASKET, Bearing Housing to Frame | 25C2377 |
| 2 | HOUSING-BEARING | PZ368 |
| 16 | SCREW, Bearing to Frame | 75A52 |
| 2 | BEARING-ROLLER, Jackshaft | 12W60 |
| 2 | GASKET, Retainer Plate to Bearing Housing | 25C2692 |
| 2 | PLATE, Bearing Retainer | PZ370 |
| 16 | SCREW, Retainer Plate to Bearing Housing | 655EF060 |
| 2 | SEAL-OIL | 60G242 |
| 1 | ECCENTRIC | 2013705 |
| 1 | GEAR-DRIVEN | 1PZ180 |
| 12 | SCREW, Gear to Eccentric | 75B150 |
| 144″ | WIRE | 97A29 |
| 2 | BEARING-ROLLER, Eccentric | 12GF36 |
| 2 | SHIM (.062″) | 77C55 |
| 2 | PLATE-RETAINER, Eccentric Bearing | PZ1206 |
| 12 | SCREW, Retainer to Eccentric | 75B28 |
| 48″ | WIRE | 97A29 |
| 3 | CONNECTING ROD Includes Ref Nos 28 & 29 | PZ417 |
| 6 | BOLT-CONNECTING ROD | PZ890 |
| 6 | NUT, Connecting Rod Bolt | 50B34 |
| 6 | LOCKNUT, Connecting Rod Bolt | 50M3 |
| 3 | BEARING, Connecting Rod to Eccentric | 12W84 |
| 1 | RING-RETAINING, Connecting Rod Bearing | 2009808 |
| 14 | PLATE-RETAINING, Bearing to Eccentric | 1PZ1400 |
| 14 | SCREW, Bearing to Eccentric | 655EF05D |
| 384″ | WIRE | 97A29 |
| 22 | PLATE-RETAINING, Bearing to Connecting Rod | PZ1400 |
| 2 | PLATE-RETAINING, Bearing to Connecting Rod | 203PZL253 |
| 48 | SCREW, Bearing to Connecting Rod | 75B41 |
| 288″ | WIRE | 97A29 |
| 3 | BEARING-ROLLER, Crosshead Pin | 12AM3 |
| 3 | PIN-LOCK | PZ838 |
| 3 | SET SCREW | 76F10 |
| 3 | CROSSHEAD | 200PZJ005 |
| 3 | PIN-CROSSHEAD | PZ189 |
| 3 | RING-RETAINING, Bearing | 16AUX203 |
| 3 | PLATE-RETAINER, Crosshead Pin | 201PZJ168 |
| 18 | SCREW, Crosshead Pin Retain | 75AG17 |
| 72″ | WIRE | 97A29 |
| 3 | ROD-EXTENSION | PZ183 |
| 18 | SCREW, Rod to Crosshead | PV701 |
| 72″ | WIRE | 97A29 |
| 6 | PLATE-RETAINER, Oil Stop Head to Frame | 200PZJ168 |
| 3 | GASKET, Oil Stop Head | 25C2693 |
| 3 | HEAD-OIL STOP | 1PZ226 |
| 24 | GASKET | 25F9 |
| 24 | SCREW, Oil Stop Head to Frame | 655EE080 |
| 6 | SEAL, Oil Stop Head | 2011872 |
| 6 | RING-RETAINER, Oil Stop Head Seal | 1PV1398 |
| 18 | SCREW, Seal Retainer to Oil Stop Head | 75A102 |
| 3 | BAFFLE ROD | PZ840 |
| 1 | ADAPTOR, For Rotating Shaft | 2PO1398 |
| 2 | SCREW, Adaptor to Shaft | 655EF050 |
| FLUID CYLINDER & MANIFOLDS | ||
| Qty. | Description | Part No. |
| 3 | FLUID CYLINDER ASSEMBLY, Includes Reference Numbers 2 thru 9) | 205PZL029D |
| 24 | STUD, Cylinder to Frame & Liner Clamp | 79L188 |
| 48 | NUT, Cylinder to Frame & Liner Stud | 50B36 |
| 12 | STUD, Cylinder to Frame | 79L73 |
| 12 | NUT, Cylinder to Frame Stud | 50AQ30 |
| 48 | STUD, Vlave Cover to Cylinder | 79AL6 |
| 48 | NUT, Valve Cover Ring to Cylinder Stud | 50B34 |
| 12 | STUD, Cylinder to Discharge Manifold | 202PZL110 |
| 12 | NUT, Cylinder to Discharge Manifold Stud | 50B34 |
| 6 | RING-RETAINER, Valve Cover Gasket | 2011861 |
| 6 | GASKET, Valve Cover | 2011862 |
| 9 | BUSHING, Suction & Discharge Valve Cover | 2007674 |
| 6 | COVER-VALVE | 2011860 |
| 6 | RING-VALVE COVER | 2011699 |
| 6 | LOCK-COVER, Valve | 2011857 |
| 3 | VALVE GUIDE ASSEMBLY, Includes Reference Numbers 17 thru 21 | 2011706 |
| 3 | PLATE-RETAINER | 2011701 |
| 3 | GUIDE-VALVE, Suction | 2011700 |
| 3 | BUSHING, Suction Valve Guide | 2007674 |
| 6 | LOCKWASHER | 95W2 |
| 6 | SCREW | 655EE06S |
| 1 | MANIFOLD-SUCTION | 200PZJ069 |
| 3 | GASKET, Suction Manifold to Cylinder | 25G41 |
| 24 | SCREW, Suction Manifold to Cylinder | 655EG08N |
| 1 | GASKET, Suction Manifold Flange | 25C1154N |
| 1 | FLANGE, Suction | 64CU12 |
| 12 | SCREW, Suction Flange | 75A150 |
| 12 | NUT | 50B5 |
| 1 | MANIFOLD-DISCHARGE | 200PZJ071 |
| 3 | GASKET, Discharge Manifold to Cylinder | 25AL35 |
| 16 | STUD, Discharge Manifold Flange | 209PZL110 |
| 32 | NUT, Discharge Manifold Flange Stud | 50AW11 |
| 2 | GASKET-RING JOINT, Discharge Manifold Flange | 25V24 |
| 1 | FLANGE, Discharge | 64EB15 |
| 1 | FLANGE-BLIND | 64EB240 |
| STEEL-FITTED CENTER GUIDED VALVE ( WITH POLYURETHANE INSERT) | ||
| Qty. | Description | Part No. |

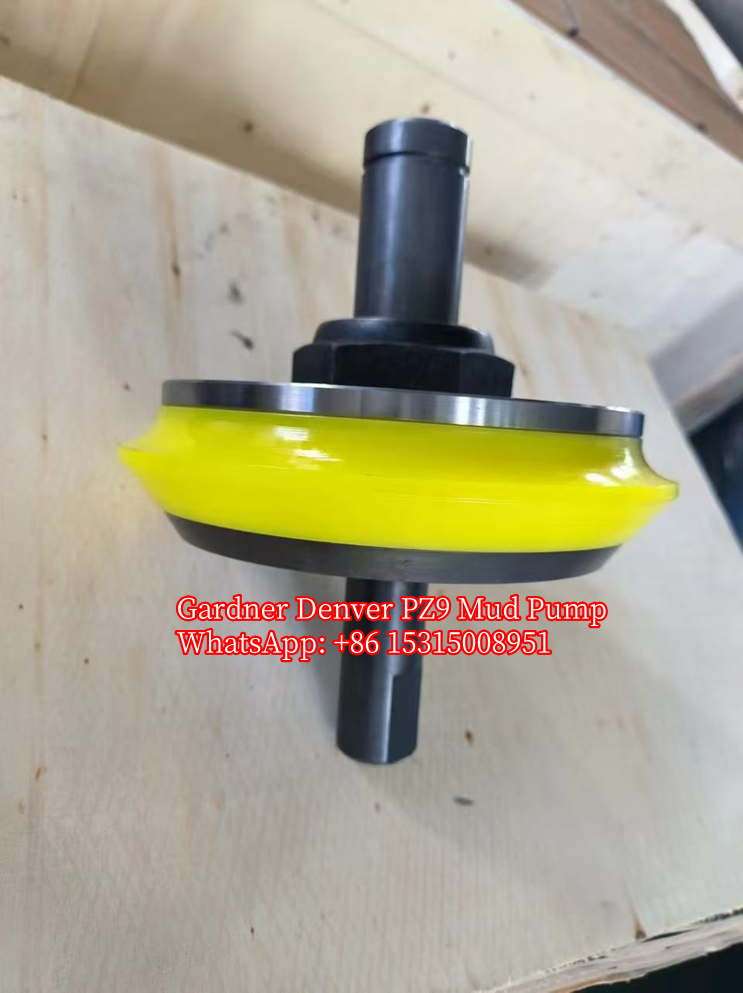

| 6 | FLUID VALVE ASSEMBLY, Includes Ref. Nos. 2 thru 5 | 202PZL482A |

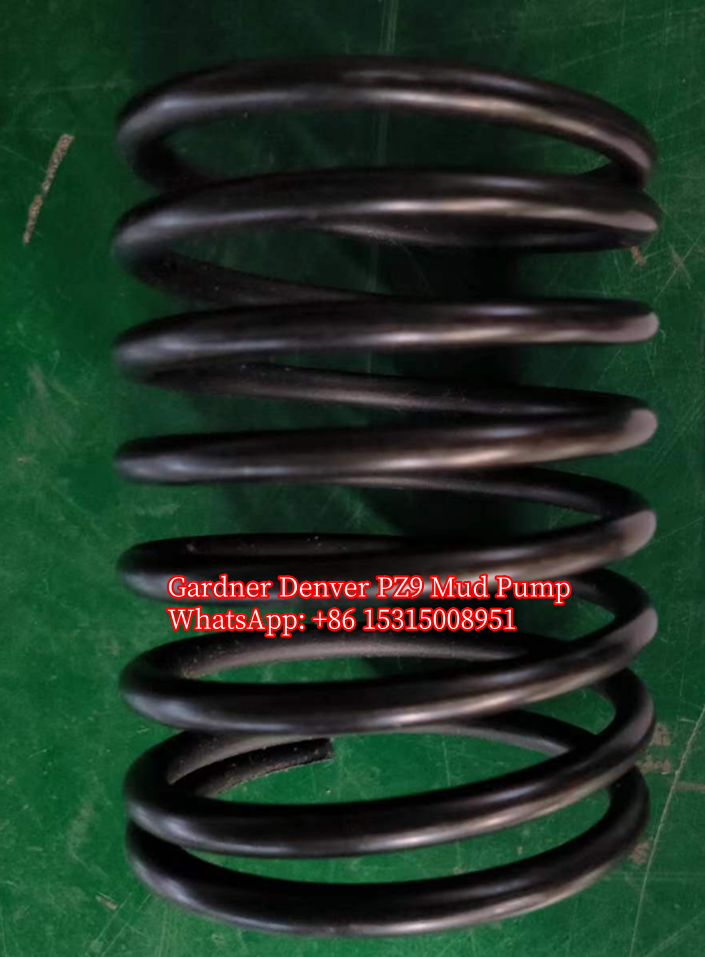

| 6 | SPRING | 78H44 |
| 6 | LOCKNUT | 50V27 |
| 6 | WASHER-VALVE | 201PZL279 |

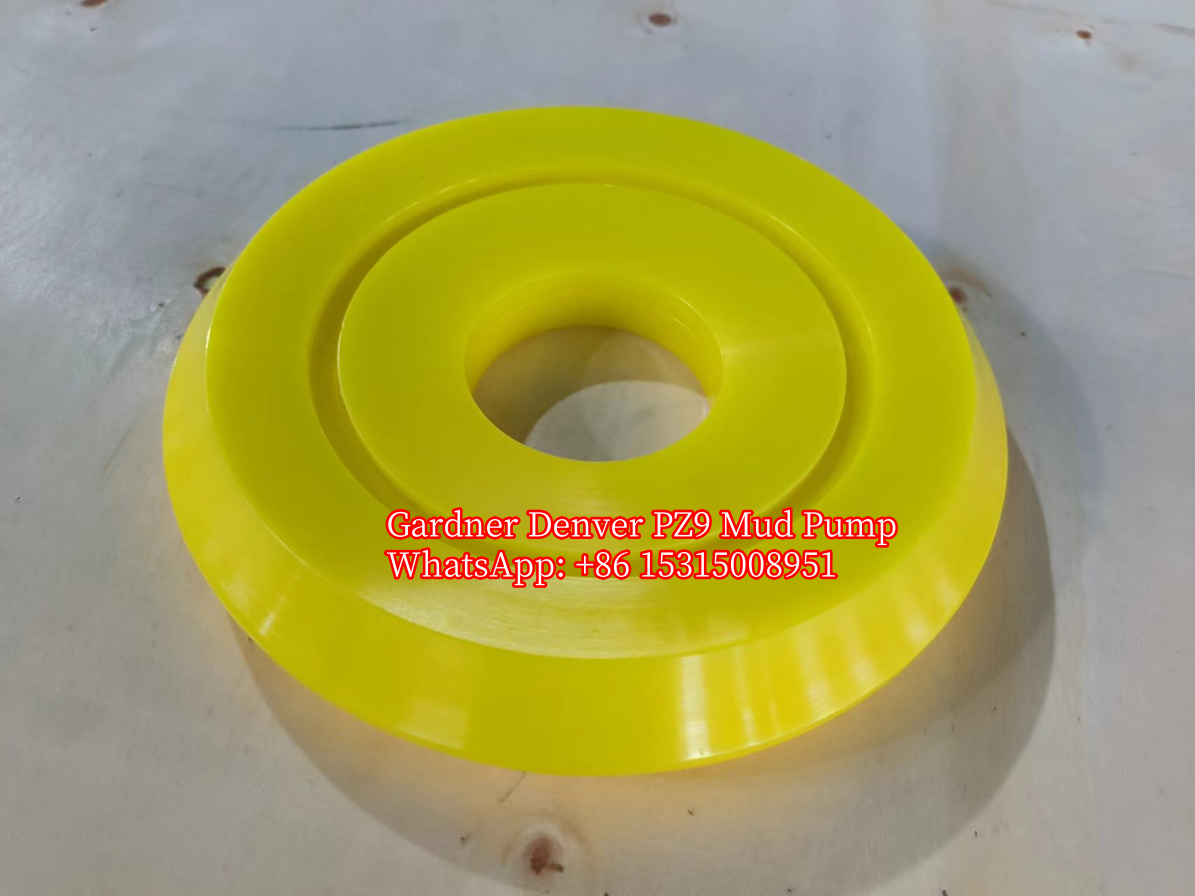

| 6 | INSERT(Polyurethane) | 201PZL106 |
| 6 | VALVE-FLUID | 202PZL482 |

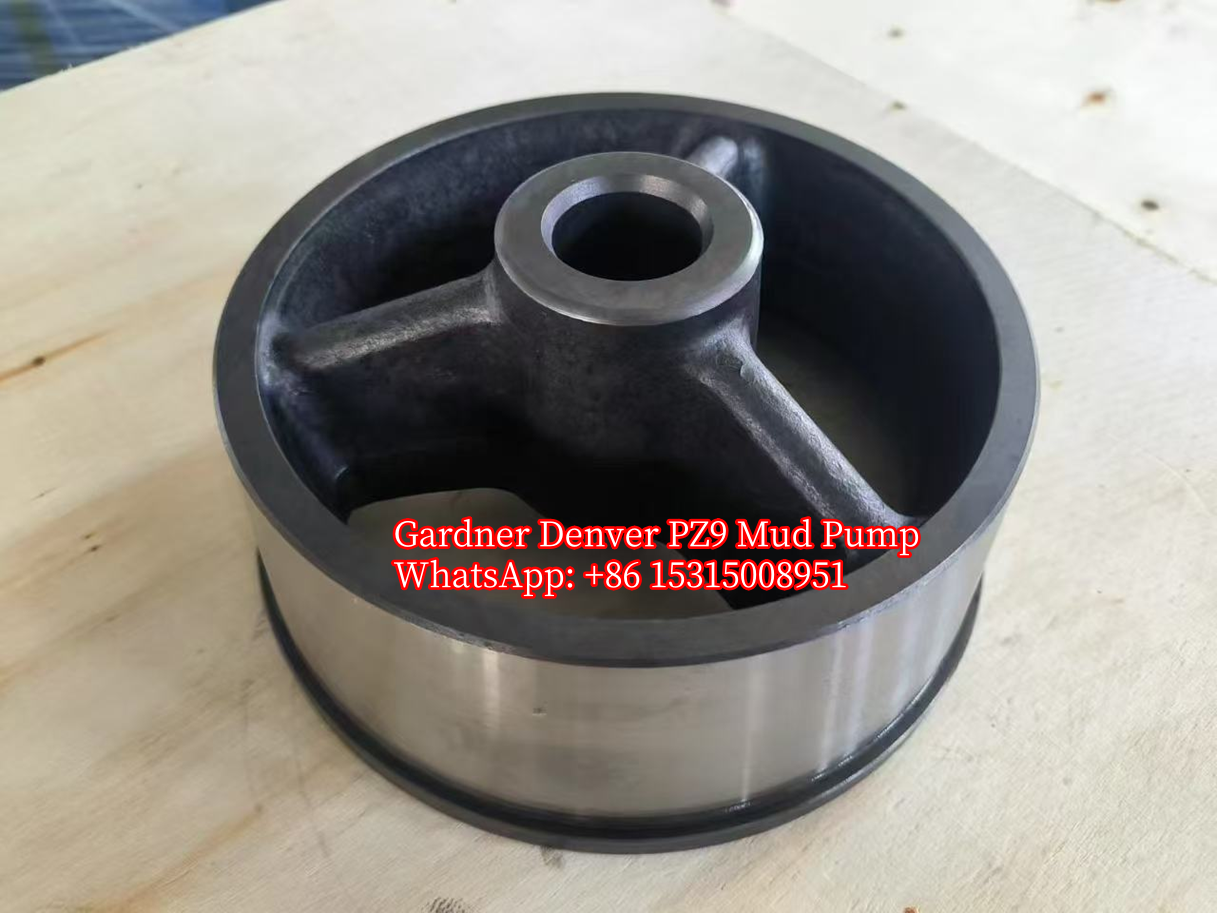

| 6 | SEAT-VALVE | 202PZL039 |
| STEEL-FITTED CENTER GUIDED VALVE ( WITH CARBOXYLATED NITRILE INSERT) | ||
| Qty. | Description | Part No. |
| 6 | FLUID VALVE ASSEMBLY, Includes Red. Nos. 2 thru 5 | 202PZL482B |
| 6 | SPRING | 78H44 |
| 6 | LOCKNUT | 50V27 |
| 6 | WASHER-VALVE | 201PZL279 |
| 6 | INSERT(Carboxylated) | 202PZL106 |
| 6 | VALVE-FLUID | 202PZL482 |
| 6 | SEAT-VALVE | 202PZL039 |
| PLUNGER COUPLING & PISTON ROD | ||
| Qty. | Description | Part No. |
| 3 | PLUNGER COUPLING ASSEMBLY Includes Ref. Numbers 1, 2 & 3 | 200PZJ4065 |
| 6 | COUPLING-PLUNGER | 200PZJ092 |
| 6 | SCREW, Coupling Plunger | 655EE22S |
| 6 | NUT, Flanged | 50AW35 |

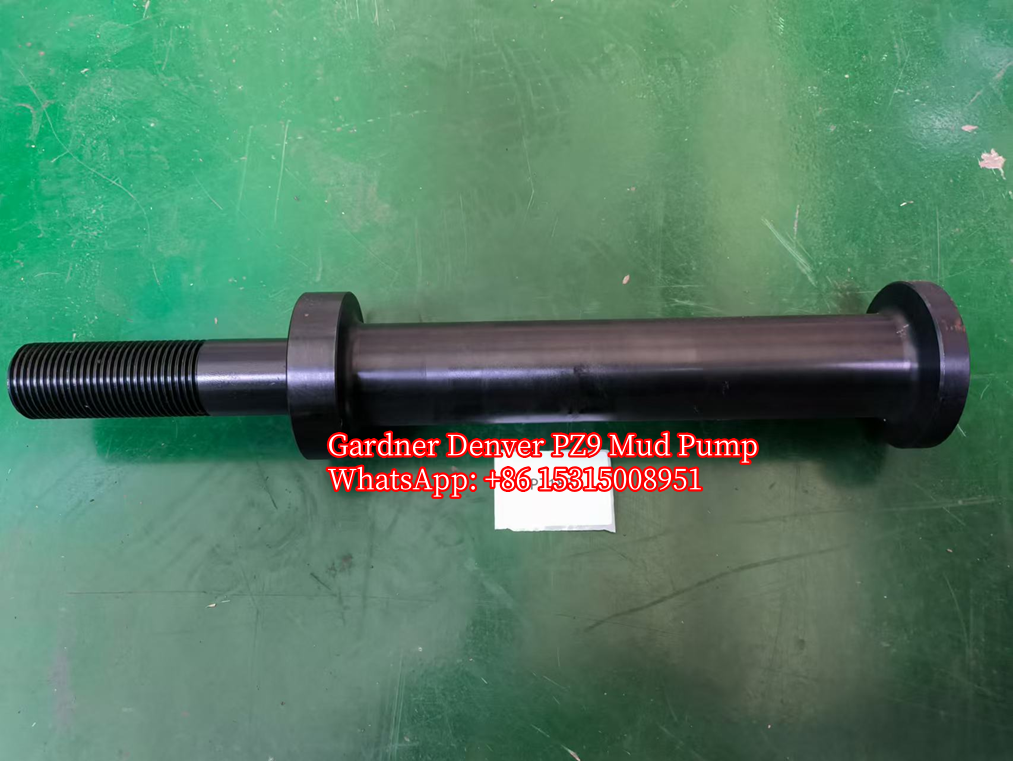

| 3 | PISTON ROD, Includes Red. No.5 | 1PZ183 |
| 3 | LOCKNUT | 50V14 |
| 3 | CLAMP-LINER | 1PV14 |
| 3 | GASKET, Liner to Cylinder | 25AT37 |
| 1 | WRENCH | 99L11 |
| PISTON & LINER | ||
| Qty. | Description | Part No. |
| 3 | LINER-FLUID 7″ | 207PZJ456 |
| 3 | LINER-FLUID 6-1/2″ | 200PZJ456 |
| 3 | LINER-FLUID 6-1/4″ | 201PZJ456 |
| 3 | LINER-FLUID 6″ | 202PZJ456 |
| 3 | LINER-FLUID 5-1/2″ | 203PZJ456 |
| 3 | LINER-FLUID 5″ | 204PZJ456 |
| 3 | LINER-FLUID 4-1/2″ | 205PZJ456 |
| 3 | LINER-FLUID 4″ | 206PZJ456 |
| 3 | O-RING 7″ | 25AH1 |
| 3 | O-RING 6-1/2″ | 25AH1 |
| 3 | O-RING 6-1/4″ | 25AH1 |
| 3 | O-RING 6″ | 25AH1 |
| 3 | O-RING 5-1/2″ | 25AH1 |
| 3 | O-RING 5″ | 25AH1 |
| 3 | O-RING 4-1/2″ | 25AH1 |
| 3 | O-RING 4″ | 25AH1 |

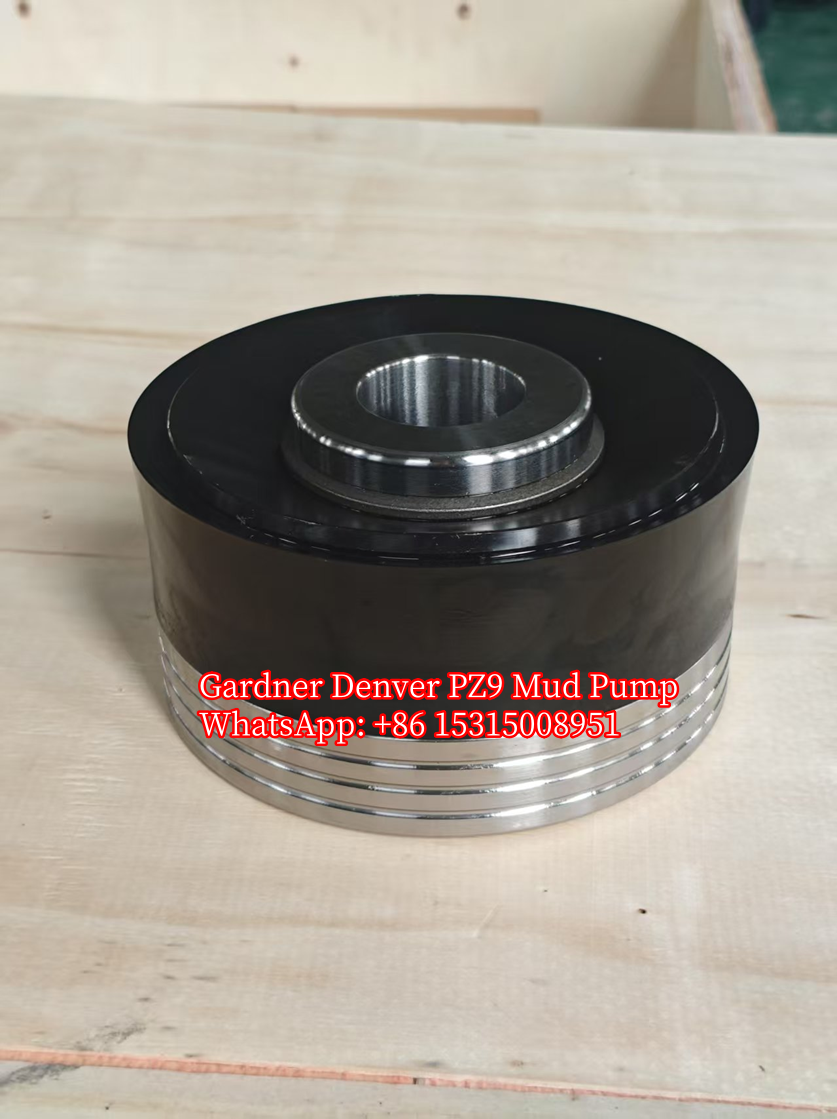

| 3 | PISTON ASSEMBLY 7″ | 202TBL045A |
| 3 | PISTON ASSEMBLY 6-1/2″ | 201TBL045A |
| 3 | PISTON ASSEMBLY 6-1/4″ | 200TBL045A |
| 3 | PISTON ASSEMBLY 6″ | 245TBB045A |
| 3 | PISTON ASSEMBLY 5-1/2″ | 243TBB045A |
| 3 | PISTON ASSEMBLY 5″ | 241TBB045A |
| 3 | PISTON ASSEMBLY 4-1/2″ | 239TBB045A |
| 3 | PISTON ASSEMBLY 4″ | 231TBK045A |
| 3 | INSERT GROUP 7″ | TBL77586 |
| INSERT GROUP 6-1/2″ | TBL77585 | |
| INSERT GROUP 6-1/4″ | TBL77584 | |
| 3 | INSERT GROUP 6″ | TBB76028 |
| 3 | INSERT GROUP 5-1/2″ | TBB76026 |
| 3 | INSERT GROUP 5″ | TBB76024 |
| 3 | INSERT GROUP 4-1/2″ | TBB76022 |
| 3 | INSERT GROUP 4″ | TBK90428 |
| PISTON LUBRICATING PUMP | ||
| Qty. | Description | Part No. |
| PUMP ASSEMBLY, Includes All Parts Shown | CA122 | |
| 1 | CASING | C1K2A1 |
| 2 | PLUG-SqHd PIPE | 64AA6 |
| 1 | COCK, Drain | 90C31 |
| 1 | IMPELLER ASSEMBLY, SHAFT & PIN | C1K1A1A |
| 1 | KEY | 35B4 |
| 1 | SEAL | 60BT11 |
| 1 | GASKET | 25D212 |
| 1 | FRAME | C1H4A2 |
| 8 | SCREW | 75A130 |
| 1 | BEARING-BALL (Inner) Includes Retaining Ring | 12AK3 |
| 1 | BEARING-BALL (Outer) Includes Retaining Ring | 12AK3 |
| OIL PUMP | ||
| Qty. | Description | Part No. |
| 1 | PUMP, Incl. All the Following Items | 46C21 |
| 1 | BODY | |
| 1 | HEAD | |
| 1 | CAP, END | |
| 1 | GASKET | 2010024 |
| 1 | KEY, Drive | |
| 2 | BEARING, Shaft | 2010025 |
| 1 | RING, Snap | |
| 1 | BEARING, Thrust | 2010026 |
| 1 | RING, Snap | |
| 1 | SCREW, Drain Plug | |
| 4 | SCREW, Hex Head | |
| 1 | SEAL | 2010027 |
| 1 | KEY, Rotor | |
| 1 | RING, Eccentric | |
| 1 | ROTOR SET | 2010208 |
| 2 | PIN, Eccentric | |
| 1 | PIN, Locating | |
| 2 | RETAINER, Key | |
| 8 | SCREW, Hex Head | |
| 1 | SHAFT | |
| OIL PUMP & PIPING | ||
| Qty. | Description | Part No. |
| 1 | SCREEN-OIL | 3WAJ511 |
| 1 | ELBOW | 64S12 |
| 1 | NIPPLE | 63H4 |
| 1 | PUMP-OIL | 46C21 |
| 1 | ADAPTOR, Oil Pump to Frame | PZ1398 |
| 6 | SCREW, Adaptor to Oil Pump | 655ED04D |
| 4 | SCREW, Adaptor to Frame | 655EF05D |
| 4 | WASHER | 95U7 |
| 1 | BUSHING-HUB, Gear, Includes Ref. Number 11 | 22F12SD |
| 1 | GEAR-DRIVEN, Oil Pump | 2013884 |
| 6 | SCREW, Gear to Bushing(Included with Reference Number 9) | |
| 12″ | WIRE, Adaptor to Oil Pump | 97A29 |
| 24″ | WIRE, Adaptor to Frame Screw | 97A29 |
| Oil Pump to Filter Group | ||
| 1 | BUSHING-PIPE | 64E16 |
| 1 | ADAPTOR-HOSE | 29Q17 |
| 1 | HYDRAULIC HOSE ASSEMBLY | 29N1 |
| 1 | VALVE-LIQUID RELIEF | 90AR28 |
| NIPPLE | 63U12x16 | |
| 1 | TEE | 64G7 |
| 1 | NIPPLE | 63U12X34 |
| 1 | FILTER-OIL | 26C18 |
| 1 | NIPPLE | 63U12X50 |
| 1 | UNION-STRAIGHT | 64Z8 |
| Filter to Heat Exchanger Group | ||
| 1 | HYDRAULIC HOSE ASSEMBLY | 29N1 |
| 1 | ADAPTOR-HOSE | 29Q17 |
| 1 | BUSHING-PIPE | 64E16 |
| 1 | CONNECTOR, Frame | 78AUX113 |
| 1 | ADAPTOR-HOSE | 29Q10 |
| 1 | HYDRAULIC HOSE ASSEMBLY | 2009270 |
| 1 | ADAPTOR-HOSE | 29Q10 |
| 1 | BUSHING-PIPE | 64E11 |
| 1 | HEAT EXCHANGER | 2013457 |
| 4 | SCREW, Heat Exchanger to Skid | 655EE060 |
| 4 | LOCKWASHER | 95B5 |
| 4 | NUT | 50B5 |
| 1 | PLUG-ZINC, Heat Exchanger Protector | 2008076 |
| Heat Exchanger to Oil Trough Group | ||
| 1 | BUSHING-PIPE | 64E11 |
| 1 | ADAPTOR-HOSE | 29Q10 |
| 1 | HYDRAULIC HOSE ASSEMBLY | 29Z2 |
| 1 | ADAPTOR-HOSE | 29Q10 |
| 1 | CONNECTOR, Frame | 78AUX113 |
| 1 | BUSHING-PIPE | 64E16 |
| 1 | ADAPTOR-HOSE | 29Q17 |
| 1 | CLAMP, Hose to Frame | PZ1301 |
| 1 | SCREW, Hose to Frame Clamp | 655EF040 |
| 1 | HYDRAULIC HOSE ASSEMBLY | 29Z5 |
| 1 | ADAPTOR-HOSE | 29Q16 |
| 1 | ELBOW | 64C5 |
| 1 | TROUGH, Oil Feed | 2PZ1254 |
| 2 | SCREW, Oil Feed Trough to Frame | 655EF040 |
| Oil Trough to Main Bearings | ||
| 2 | ADAPTOR-HOSE | 29Q54 |
| 2 | HYDRAULIC HOSE ASSEMBLY | 29Z99 |
| 2 | ELBOW-PIPE | 64D4 |
| 2 | NIPPLE, Oil Feed Trough to Jackshaft Oil Trough | 63AJ6X144 |
| 2 | TROUGH, Jackshaft Bearing Oil | PZ1254 |
| 6 | SCREW, Jackshaft Oil Trough | 655ED04D |
| 1 | CLAMP, Hose to Main Bearing Housing | PZ1301 |
| 1 | SCREW, Clamp | 655EG04N |
| 1 | WASHER, Clamp Screw | 95A8 |
| 96″ | WIRE, Trough Screw | 97A29 |
| Thermostat Valve to Heat Exchanger Group | ||
| 1 | VALVE-THERMOSTATIC | 90K165 |
| 1 | BUSHING-PIPE | 64E14 |
| 1 | NIPPLE | 63F21 |
| 1 | ELBOW | 64C4 |
| 1 | NIPPLE | 63F21 |
| 1 | UNION | 64Z3 |
| 1 | NIPPLE | 63AJ8X40 |
| 2 | CLAMP-HOSE | 29B31 |
| 22″ | HOSE-OIL | R14G |
| 1 | NIPPLE | 63AJX840 |
| 1 | ELBOW | 64C4 |
| 1 | NIPPLE | 63F21 |
| 1 | BUSHING | 64E29 |
| PISTON LUBRICATING PIPING | ||
| Qty. | Description | Part No. |
| Lube Oil Tank to Pump Group | ||
| 1 | SCREEN-OIL | 2WAJ511 |
| 1 | NIPPLE | 63H25 |
| 1 | UNION-HAMMER, Wing | 64EB1 |
| 1 | NIPPLE | 63H25 |
| 1 | VALVE | 90A36 |
| 1 | NIPPLE | 63H25 |
| 1 | TEE | 64G8G |
| 1 | NIPPLE | 63H25 |
| 1 | VALVE | 90A36 |
| 1 | ADAPTOR-HOSE | 29Q9 |
| 1 | HYDRAULIC HOSE ASSEMBLY | 2009270 |
| 1 | NIPPLE | 63H2 |
| 1 | ELBOW | 64C6 |
| 1 | PUMP PISTON LUBRICATING | CA122 |
| 1 | KEY | 35B4 |
| 4 | SCREW, Pump to Skid | 655ED040 |
| 4 | LOCKWASHER, Pump to Skid | 95B3 |
| 4 | WASHER, PUMP to Skid | 95A3 |
| 1 | SHEAVE | 73K1A30 |
| 1 | BUSHING-HUB | 22E16B |
| 1 | BELT | 13C27 |
| 1 | AUXILIARY SHEAVE ASSEMBLY | 2006102 |
| 2 | SET SCREW, Sheave | 76F30 |
| Pump to Liner Group | ||
| 1 | ADAPTOR-HOSE | 29Q10 |
| 1 | HYDRAULIC HOSE ASSEMBLY | 2009247 |
| 1 | ADAPTOR-HOSE | 29Q27 |
| 1 | REDUCER-PIPE | 64N3 |
| 1 | VALVE | 90A25 |
| 1 | ELBOW-PIPE | 64C5 |
| 1 | NIPPLE | 63G12 |
| 1 | TEE | 64P39 |
| 2 | CLAMP | 98H5 |
| 2 | WASHER | 95B3 |
| 2 | SCREW | 75A68 |
| 1 | NIPPLE | 63N12X144 |
| 1 | TEE | 64P39 |
| 1 | NIPPLE | 63N12X144 |
| 1 | TEE | 64P39 |
| 1 | PLUG | 64A5 |
| 3 | HYDRAULIC HOSE ASSEMBLY | 29R32 |
| 3 | ADAPTOR-HOSE | 29Q83 |
| 3 | COUPLING-PIPE | 64BK3 |
| 3 | BAFFLE | 200PZJ840 |
| 6 | NUT-ACORN | 50Q30 |
| Frame to Lube Oil Tank Group | ||
| 1 | NIPPLE | 63L9 |
| 1 | ELBOW | 64C9 |
| 2 | NIPPLE | 63AJ32X134 |
| 2 | CLAMP | 29B32 |
| 1 | HOSE | 29Z186 |
| 1 | UNION-HAMMER, Wing | 2009242 |
| 1 | NIPPLE | 63L9 |
| 1 | TANK-LUBE OIL | 2012639 |
| 2 | PLUG | 64A7 |
| 4 | SCREW, Lube Tank to Skid | 655EE040 |
| 4 | WASHER | 95A5 |
| 1 | PLUG | 64A6 |
| 1 | COVER-LUBE OIL TANK | 200PZH249 |
| 2 | NUT-WING | 50H1 |
| 1 | PLUG | 64A9 |
| 1 | NIPPLE | 63L1 |
| 1 | ELBOW | 64V9 |
| OIL FILTER | ||
| Qty. | Description | Part No. |
| 1 | OIL FILTER ASSEMBLY, Includes Reference Numbers 1 thru 4 | 26C18 |
| 1 | ELEMENT ASSEMBLY, Includes Reference Number 3 | 5E30 |
| 1 | COVER | 2109770 |
| 1 | GASKET | 2109771 |
| 4 | SCREW | 75A54 |
| 1 | GASKET, Filter to Frame | 25C1788N |
| 6 | SCREW-SoHd CAP, Filter to Frame | 75P95 |
| VALVE SEAT PULLER-CENTER GUIDED TYPE (OPTIONAL) | ||
| Qty. | Description | Part No. |
| 1 | HEAD | 100E13 |
| 1 | VALVE SEAT PULLER ASSEMBLY | 100E12 |
| 1 | HYDRAULIC JACK | 2116728 |
| 1 | CENTER STEM | 2117314 |
| 1 | CENTER STEM NUT | 2117315 |
| 1 | PULLER H BAR BASE | 2116727 |
| 1 | CENTER BUSHING #5 | 2117316 |
| 1 | CENTER BUSHING #6 | 2117517 |
| 1 | HYDRAULIC HOSE | 2117318 |
| 1 | HYDRAULIC PUMP | 2117319 |
| 1 | GAUGE ADAPTOR | 2117320 |
| 1 | GAUGE COUPLER | 2117322 |
| 1 | GAUGE COUPLER | 2117321 |
| 1 | GAUGE 170 TON | 2117323 |
| 1 | CARRYING CASE | 2117055 |
| OPTIONAL EQUIPMENT | ||
| Qty. | Description | Part No. |
| 1 | BAR, Valve Cover Tightening | 62L62 |
| 1 | PIN, Valve Cover Tightening Bar | 2009526 |
| 1 | HYDRIL DAMPENER (K10-5000) | 200PZL622 |
| 1 | HOSE, For Charging HYDRIL Dampener | 200PZL127 |
| 1 | TOOL, Piston Rod Nut Removal | 200PZL074 |
| 1 | PRESSURE GAUGE GROUP, Includes Next 3 Items | PZL75283 |
| 1 | GAUGE (0 – 6000 PSI) | 27P70 |
| 1 | NIPPLE | 63V32X60 |
| 1 | ELBOW | 64EB241 |
| 1 | RELIEF VALVE GROUP, Includes Next 4 Items | PZL75284 |
| 1 | RELIEF VALVE Shear Type (1000 PSI to 5000 PSI) | 201559 |
| 1 | NIPPLE | 63V48X60 |
| 1 | ELBOW | 64EB242 |
| 1 | ELBOW | 64D14 |
| 1 | BLOCK SUPPORT & DISCHARGE CROSS GROUP | PZJ75285 |
| 1 | BLOCK GROUP | 301PZG4067 |
| 2 | GASKET | 25V24 |
| 2 | GASKET | 25V17 |
| 1 | FLANGE | 191161 |
| 1 | FLANGE | 64EB240 |
| 1 | FLANGE | 64EB50 |
| 1 | BLOCK GROUP | 300PZG4067 |
| 1 | BLOCK | 205PZL231 |
| 24 | STUD | 206PZL110 |
| 24 | NUT | 50AW11 |
| 16 | STUD | 208PZL110 |
| 16 | NUT | 50AW13 |
| 2 | SUPPORT GROUP | PZJ74823 |
| 1 | BASE | 195100 |
| 2 | BASE | 5015475 |
| 2 | SUPPORT | 201845T2 |
| 2 | SCREW | 201853 |
| 2 | NUT | 50W12 |
| 2 | PIN | 62R98 |
| 1 | NIPPLE | 201846 |
| 1 | SCREW | 655EJ200 |
| E 75647 FOR LIST OF PARTS SEE PAGE 3. | ||
| MODEL PZJD COMM NO. |
MODELS PZ9A PZ9B PZJC COMM NO. |
DESCRIPTION FRAME |
| 200PZJ001A | PZ172A | ASM FRAME, Incl. Ref. # 2 thru 9 |
| 64A27 | None | PLUG – SqHd PIPE |
| 64AA9 | None | PLUG – SqHd PIPE |
| 79A238 (12) | 79A238 (2) | STUD, Crosshead Inspection Plate |
| 50B5 (12) | 50B5 (2) | NUT, Crosshead Inspection Plate Stud |
| 64A5 | 64A5 | PLUG – SqHd PIPE |
| 66D13 | 66D13 | PLUG – MAGNETIC, Oil Drain |
| 79A75 | 79A75 | STUD, Hood |
| 50B7 | 50B7 | STUD, Hood Stud |
| PZ715 | PZ715 | GASKET, Crosshead Inspection Plate |
| 1PZ723 | 1PZ723 | PLATE – INSPECTION, Crosshead |
| None | 75A20 | SCREW, Crosshead Inspection Plate |
| 200PZJ253 | 200PZJ253 | PLATE – BEARING RETAINER |
| 75A196 | 75A196 | SCREW, Bearing Retainer Plate |
| PZ1280 | PZ1280 | HOUSING – BEARING, Eccentric |
| 1PZ715 | 1PZ715 | GASKET, Bearing Cover Plate |
| PZ196 | PZ196 | PLATE – BEARING COVER ( Right Side ) |
| 75A57 | 75A57 | SCREW, Bearing Cover Plate |
| 25C1788 | 25C1788 | GASKET, Inspection Plate |
| 4PO237 | 4PO237 | PLATE – INSPECTION |
| 75A18 | 75A18 | SCREW, Inspection Plate |
| 40L17 | 40L17 | GAUGE, Oil Level Sight |
| 27H11 | 27H11 | GAUGE – TEMPERATURE |
| 64E2 | 64E2 | BUSHING – PIPE |
| 200PZL122 | 200PZL122 | SHIELD, Oil Gauges |
| PZ222 | PZ222 | SHIELD – CROSSHEAD |
| 75K72 | 75K72 | SCREW, Crosshead Slide to Frame |
| 60DD36 | 60DD36 | SEAL – FASTENER |
| 50V41 | 50V41 | LOCKNUT |
| PZ872 | PZ872 | STUD, Spacer to Frame |
| 35C24 | 35C24 | KEY, Spacer to Frame |
| PZ1128 | PZ1128 | PLATE |
| 50B37 | 50B37 | NUT, Spacer to Frame |
| 1PZ196 | 1PZ196 | PLATE – BEARING COVER ( Floating Side ) |
| PZ246 | PZ246 | HOOD |
| 75A18 | 75A18 | SCREW, Hood to Frame |
| 2PZ715 | 2PZ715 | GASKET, Hood |
| 5C24 | 5C24 | BREATHER |
| KXG842 | KXG842 | PLATE – INSPECTION |
| 25C1818 | 25C1818 | GASKET, Inspection Plate |
| 75A195 | 75A195 | SCREW, Inspection Plate |
| 25F13 | 25F13 | GASKET, Inspection Plate Screw |
| 206PZL052 | 206PZL052 | PLATE – INSPECTION |
| 25C1839 | 25C1839 | GASKET, Inspection Plate |
| 75A1 | 75A1 | SCREW, Inspection Plate |
| None | 2006929 | PLATE – INSPECTION, Piston Rod |
| None | PZ842 | PLATE – INSPECTION, Piston Rod |
| None | 1PZ842 | PLATE – INSPECTION, Piston Rod |
| E75439 FOR LIST OF PARTS SEE PAGE 7. | ||
| MODEL PZJC COMM NO. |
MODELS PZJD COMM NO. |
DESCRIPTION FLUID CYLINDER & MANIFOLDS |
| 205PZL029D | * | ASM FLUID CYLINDER, Incl. Ref. No. 2 thru 9 |
| 79L188 | 79L188 | STUD ( 1-1/4 ), Cylinder to Frame & Liner Clamp |
| 50B36 | 50B36 | NUT ( 1-1/4 ), Cylinder to Frame & Liner Clamp Stud |
| 79L73 | 79L73 | STUD ( 7/8 ), Cylinder to Frame |
| 50AQ30 | 50AQ30 | NUT ( 7/8 ), Cylinder to Frame Stud |
| 79AL6 | 79AL6 | STUD, Valve Cover Ring to Cylinder |
| 50B34 | 50B34 | NUT, Valve Cover Ring to Clinder Stud |
| 202PZL110 | 202PZL110 | STUD, Cylinder to Discharge Manifold |
| 50B34 | 50B34 | NUT, Cylinder to Discharge Manifold Stud |
| 50B36 | 50B36 | NUT, Liner Clamp |
| 2011861 | 2011861 | RING – RETAINING, Valve Cover Gasket |
| 2011862 | 2011862 | GASKET, Valve Cover |
| 2007674 | 2007674 | BUSHING, Discharge Valve Cover |
| 2011860 | 2011860 | COVER – VALVE |
| 2011699 | 2011699 | RING – VALVE COVER |
| 2011857 | 2011857 | LOCK – COVER, Valave |
| 2011706 | 2011706 | ASM VALVE GUIDE, Incl. Ref. No. 17 thru 21 |
| 2011701 | 2011701 | PLATE – RETAINER |
| 2011700 | 2011700 | GUIDE – VALVE, Suction |
| 2007674 | 2007674 | BUSHING |
| 95W2 | 95W2 | WASHER – LOCK |
| 75AA178 | 75AA178 | SCREW |
| 200PZJ069 | 200PZJ069 | MANIFOLD – SUCTION |
| 25G41 | 25G41 | GASKET, Suction Manifold to Cylinder |
| 75A74N | 75A74N | SCREW, Suction Manifold to Cylinder |
| 25C1154 | 25C1154 | GASKET, Suction Manifold Flange |
| 64CU12 | 64CU12 | FLANGE, Suction |
| 75A150 | 75A150 | SCREW, Suction Flange |
| 50B9 | 50B9 | NUT |
| 200PZJ071 | 200PZJ071 | MANIFOLD – DISCHARGE |
| 25AL35 | 25AL35 | GASKET, Discharge Manifold to Cylinder |
| 209PZL110 | 209PZL110 | STUD, Discharge Manifold Flange |
| 50AW11 | 50AW11 | NUT, Discharge Manifold Flange Stud |
| 25V24 | 25V24 | GASKET, Discharge Manifold Flange |
| 64EB15 | 64EB15 | FLANGE – DISCHARGE |
| * The Fluid Cylinder Assembly originally furnished for Model PZJC is no longer available, For repair order 20 5PZL029D Fluid Cylinder Assembly | ||
| D75681 | ||
| MODEL PZJC* COMM NO. |
MODELS PZJD COMM NO. |
DESCRIPTION PISTON & LINER WASHING PIPING |
| ( Lube Oil Tank to Pump Group ) | ||
| 2WAJ511 | 2WAJ511 | SCREEN – OIL |
| 63H25 | 63H25 | NIPPLE – PIPE |
| 64EB1 | 64EB1 | UNION – HAMMER, Wing |
| 63H2 | 63H2 | NIPPLE – PIPE |
| 64C6 | 64C6 | ELBOW – PIPE |
| 63H25 | 63H25 | NIPPLE – PIPE |
| 90A36 | 90A36 | VALVE |
| 63H25 | 63H25 | NIPPLE – PIPE |
| 64G8 | 64G8 | TEE – PIPE |
| 63H25 | 63H25 | NIPPLE – PIPE |
| 90A36 | 90A36 | VALVE |
| 29Q9 | 29Q9 | ADAPTOR – HOSE |
| 2009270 | 2009270 | ASM HYDRAULIC HOSE |
| ** | ** | PUMP – CIRCULATING, Incl. Ref. No.13 |
| 35B4 | 35B4 | KEY |
| 75A1 | 75A1 | SCREW, Pump to Skid |
| 95B3 | 95B3 | WASHER – LOCK, Pump to Skid |
| 95A3 | 95A3 | WASHER, Pump to Skid |
| 73K1A30 | 73K1A30 | SHEAVE – DRIVEN |
| 22E16B | 22E16B | BUSHING – HUB, Driven Sheave |
| 13C77 | 13C77 | BELT |
| 2006102 | 2006102 | ASM AUXILIARY SHEAVE |
| ( Pump to Liner Group ) | ||
| 29Q10 | 29Q10 | ADAPTOR – HOSE |
| 2009247 | 2009247 | ASM HYDRAULIC HOSE |
| 29Q27 | 29Q27 | ADAPTOR – HOSE |
| 64N3 | 64N3 | REDUCER – PIPE |
| 90A25 | 90A25 | VALVE |
| 64C5 | 64C5 | ELBOW – PIPE |
| 63G12 | 63G12 | NIPPLE – PIPE |
| 64P39 | 64P39 | TEE – PIPE |
| 95H5 | 95H5 | CLAMP – PIPE |
| 95A3 | 95A3 | WASHER |
| 75A68 | 75A68 | SCREW |
| 63N12X144 | 63N12X144 | NIPPLE – PIPE |
| 64P39 | 64P39 | TEE – PIPE |
| 63N12X144 | 63N12X144 | NIPPLE – PIPE |
| 64P39 | 64P39 | TEE – PIPE |
| 64A5 | 64A5 | PLUG – SqHd PIPE |
| 29R32 | 29R32 | ASM HYDRAULIC HOSE |
| 29Q83 | 29Q83 | ADAPTOR – HOSE |
| 64BK3 | 64BK3 | COUPLING – PIPE |
| 1PZ840 | 1PZ840 | BAFFLE |
| 50Q30 | 50Q30 | NUT – ACORN |
| ( Frame to Lube Oil Tank Group ) | ||
| 63L9 | 63L9 | NIPPLE – PIPE |
| 64C9 | 64C9 | ELBOW – PIPE |
| 63AJ32X40 | 63AJ32X40 | NIPPLE – PIPE |
| 29B32 | 29B32 | CLAMP – HOSE |
| 29A314 | 29Z135 | HOSE |
| 2009242 | 2009242 | UNION – HAMMER, Wing |
| 63L1 | 63L1 | NIPPLE – PIPE |
| 64V9 | 64V9 | ELBOW – PIPE |
| 63L9 | 63L9 | NIPPLE – PIPE |
| 2012639 | 2012639 | TANK – LUB OIL |
| 64A7 | 64A7 | PLUG – SqHd PIPE |
| 75A4 | 75A4 | SCREW, Lube Tank to Skid |
| 95A5 | 95A5 | WASHER |
| 64A6 | 64A6 | PLUG – SqHd PIPE |
| 200PZH249 | 200PZH249 | COVER – LUBE OIL TANK |
| 50H1 | 50H1 | NUT – WING |
| 64A9 | 64A9 | PLUG – PIPE |
| * For Model PZJC Pumps with Serial Numbers 721733 thru 721736, 734803, 734804, 736415, 741950, 743791, 743792, 743802, 743803, 750914 thru 740917, and all higher serial numbers. | ||
| ** For Circulating Pump and component parts see page 14. | ||
| B75885 | ||
| MODELS PZJC PZJD Part No. * ( Three – Rib Valves ) |
MODELS PZJC PZJD Part No. * ( Four – Rib Valves ) |
DESCRIPTION VALVE SEAT PULLER OPTIONAL EQUIPMENT |
| 100E11 | 100E10 | HEAD ( Not included with 100E9 Puller ) |
| 100E9 | 100E9 | ASM VALVE SEAT PULLER, Incl. Ref. No. 2 thru 11 |
| NUT | ||
| GAUGE | ||
| HOSE COUPLING ( Male ) | ||
| 2109166 | 2109166 | HOSE COUPLING ( Female ) |
| BUSHING | ||
| HYDRAULIC PUMP | ||
| 2109167 | 2109167 | STEM |
| 2109168 | 2109168 | HYDRAULIC HOSE |
| HYDRAULIC JACK | ||
| PULLER CROSSBAR | ||
| * Part Numbers listed only for those parts normally furnished for repairs. | ||
Supply Multiple Mud Pump Parts
Whtsapp: +86 13370857100
Email: info@goscoenergy.com
www.goscoenergy.com
