A turbine flow meter looks simple. A rotor spins, pulses are generated, and flow is calculated.
But accuracy is never just about the meter.
It is about how you install it.

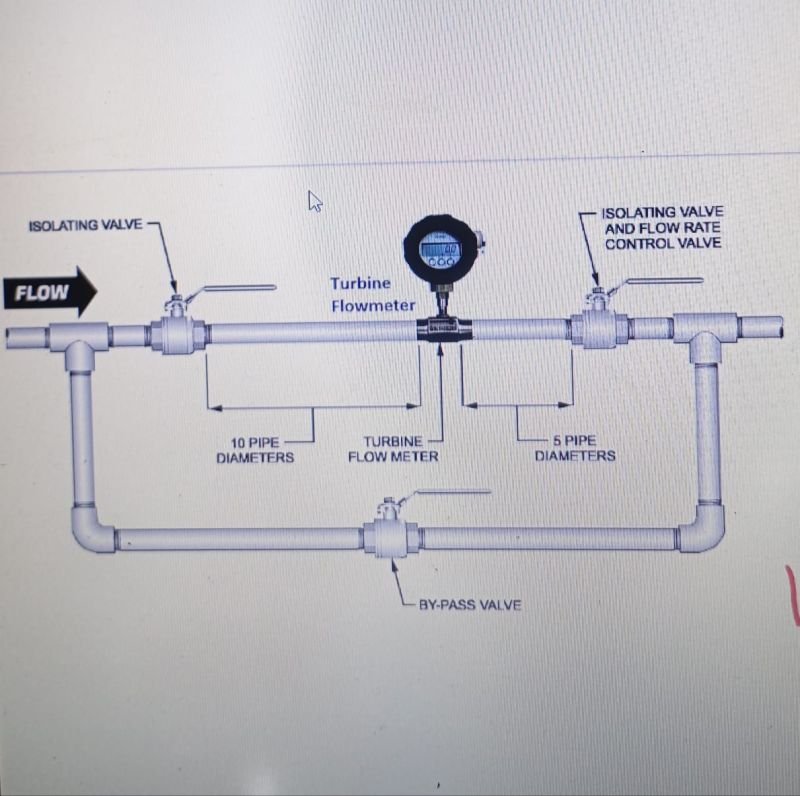

In the setup shown, two details matter:
- 10 pipe diameters upstream
- 5 pipe diameters downstream
This is not a suggestion. It ensures the flow profile is stable before it reaches the rotor. It can as well be more depending on the factors.
Now look closer:
✔ Isolating valves allow maintenance without shutting down the line
✔ A bypass line keeps operations running during servicing
✔ Proper alignment ensures the rotor spins freely without distortion
Here is the truth many overlook:
If the flow entering the meter is swirling, pulsating, or disturbed, the reading is already wrong before it is even measured.
And no amount of calibration will fix bad installation.
Turbine meters reward good engineering practice.
They expose poor installation instantly.
So next time you see inconsistent readings, do not rush to blame the instrument.
Check the straight run. Check the valves. Check the installation.
Because in flow measurement, accuracy begins long before the meter.
