Why doesn’t shale always collapse when drilling through it?
Yesterday we discussed how shale formations can react with water, leading to swelling, dispersion, and wellbore instability.
So how do mud engineers prevent this from happening?
The answer lies in a concept known as shale inhibition.

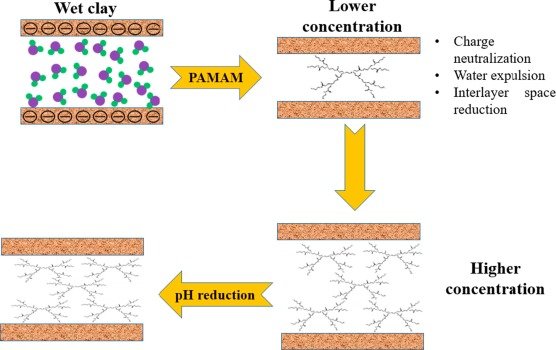

Shale inhibition refers to the ability of a drilling fluid to minimize the interaction between water and reactive shale formations.
Without proper inhibition, clay minerals in shale can absorb water and expand, leading to drilling problems such as:
- Tight hole conditions
- Wellbore instability
- Excess cuttings in the mud system
- Stuck pipe
To reduce these risks, mud engineers often add inhibitive chemicals to the drilling fluid.
Some commonly used shale inhibitors include:
- Potassium Chloride (KCl) – helps stabilize clay minerals and reduce swelling
- Polymers (such as PHPA) – help encapsulate shale cuttings and reduce dispersion
- Glycols – used in some systems to further control shale hydration
These additives help maintain wellbore stability by limiting how much water enters the shale formation.
In many drilling operations, one of the most widely used inhibitive systems is the KCl–Polymer mud system.
This system combines the stabilizing effect of potassium with the protective properties of polymers to control shale reactivity.
Professional insight:
Mud engineers in the field — what shale inhibition methods have you found most effective when drilling through reactive formations?
Food for Thought:
Why do you think potassium ions are particularly effective in stabilizing clay minerals in shale?
