What happens when drilling fluid disappears into the formation?
During drilling, one of the most challenging problems engineers face is lost circulation.

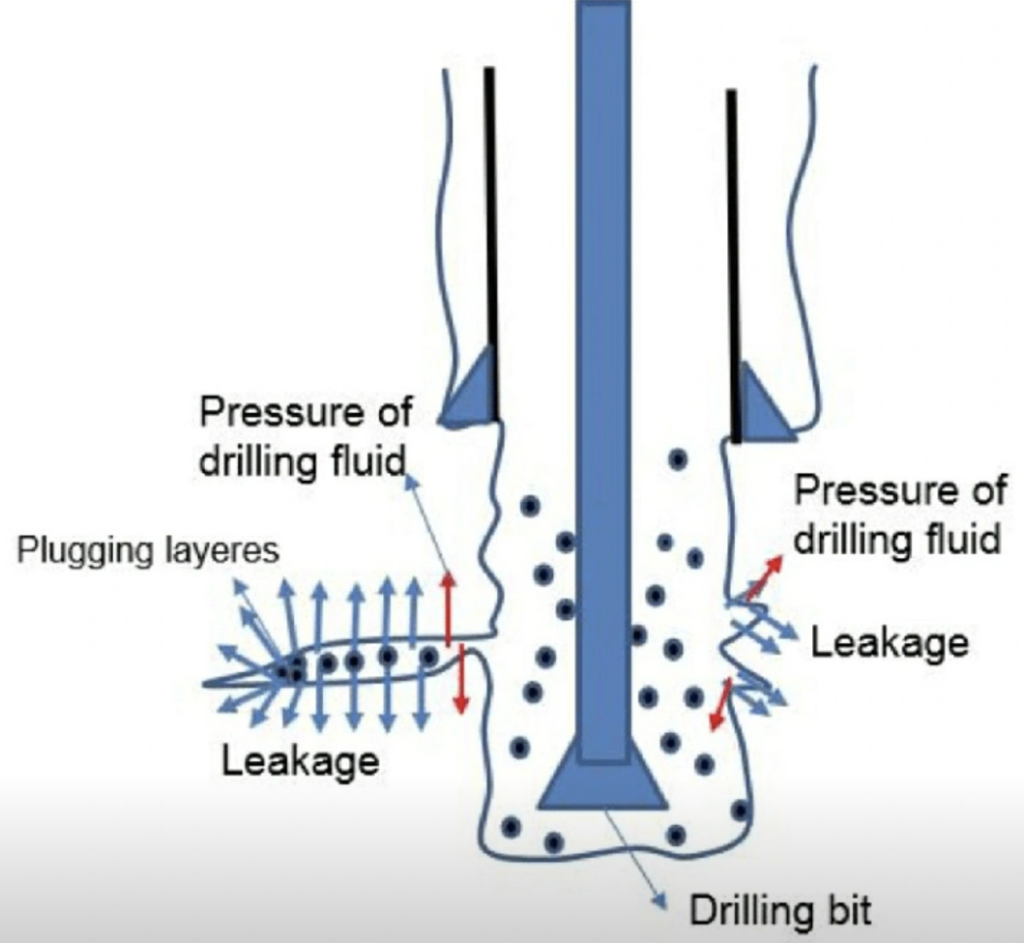

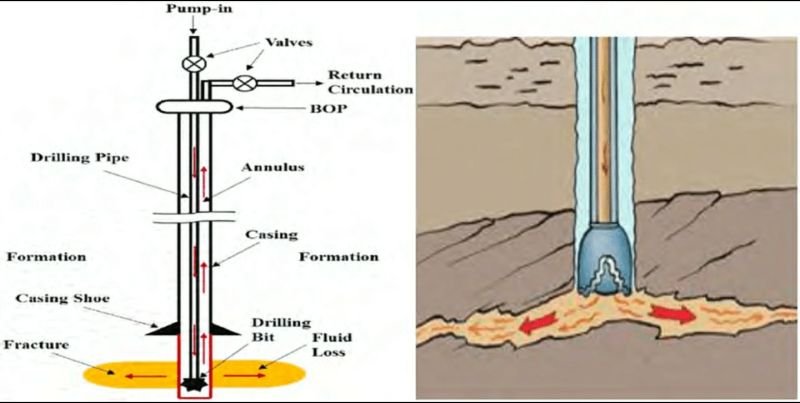

Lost circulation occurs when drilling fluid flows into the formation instead of returning to the surface.
But why does this happen?
It usually occurs when the pressure exerted by the mud exceeds the fracture pressure of the formation.
When this happens:
- The formation breaks or has natural fractures
- Drilling fluid escapes into these openings
- Mud losses occur
Depending on severity, losses can be: - Partial losses – some mud returns to surface
- Total losses – no mud returns at all
Lost circulation can lead to several operational challenges:
- Increased drilling cost
- Loss of well control
- Difficulty maintaining mud properties
- Risk of stuck pipe
To manage this, mud engineers may:
- Reduce mud weight
- Add Lost Circulation Materials (LCM)
- Adjust drilling parameters
Understanding the balance between mud pressure and formation strength is critical in preventing this problem.
